SRS (Airbag)

Discussion in 'Volvo Forum' started by Weiboy718, Nov 9, 2019.

  1. Weiboy718

    Weiboy718 Bobtail Member

    7
    0
    Jan 25, 2017
    0
    Just wondering if anybody can point me where to check for my airbag issue.

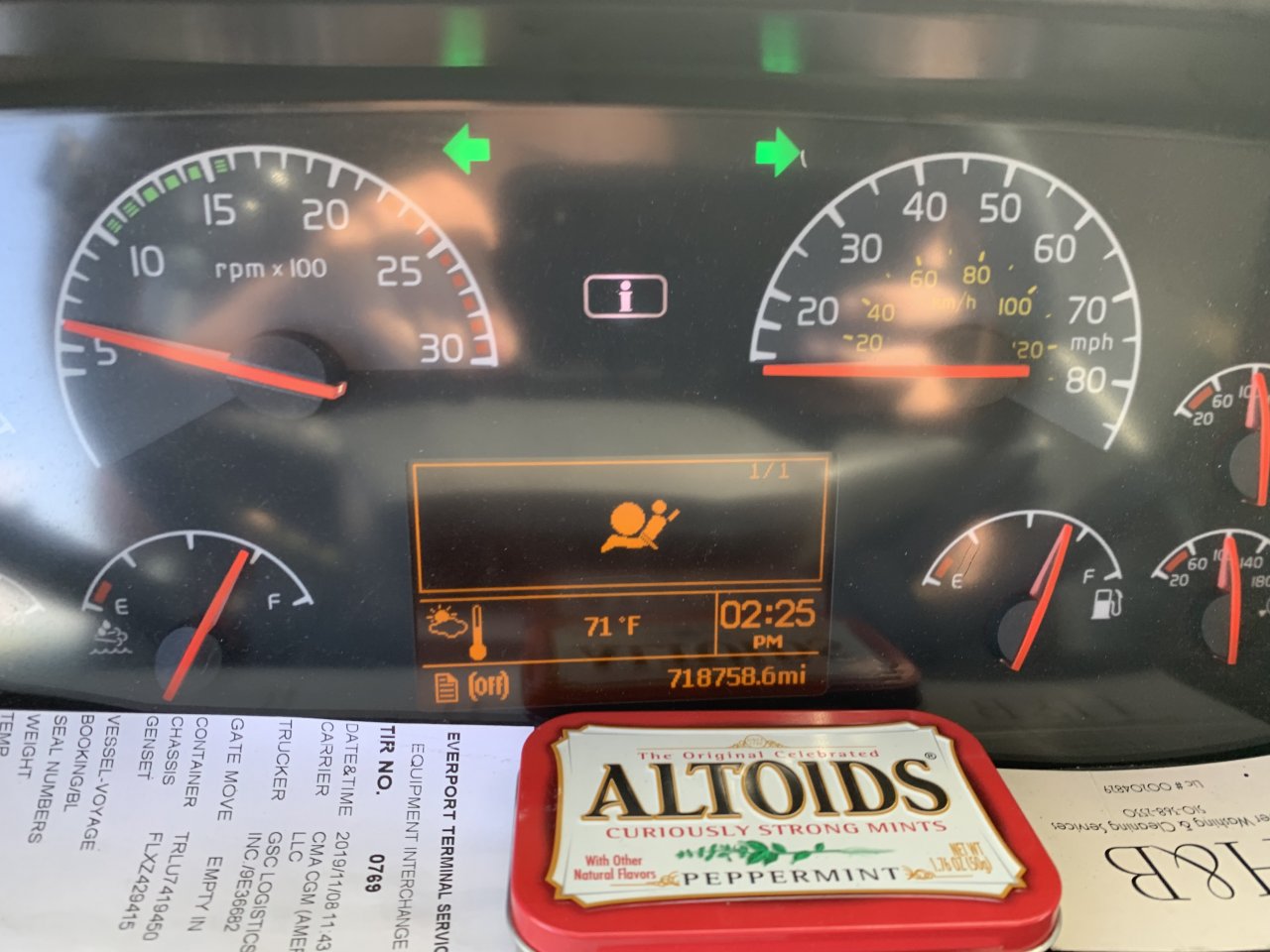

    No fault codes under diagnostics. Only error I’m getting is the Info light with the airbag symbol.

    Any help will be greatly appreciated!


    Attached Files:

  2. Newto Trucking

    Newto Trucking Light Load Member

    298
    167
    Dec 26, 2013
    NE Illinois
    0
    Volvo premium tech tool software will be able to show you the errors, in other words you need a laptop with Volvo software doesn’t have to be a dealer as long they have a working program and right adapter

    QUALITYTRUCK and Weiboy718 Thank this.
  3. roundhouse

    roundhouse Light Load Member

    79
    99
    Jul 11, 2018
    0
    Dunno about the Volvo trucks
    But with Volkswagen cars it’s almost always the connection of the wires that plug into the bag harness on the steering collumn or under the seat

  4. Weiboy718

    Weiboy718 Bobtail Member

    7
    0
    Jan 25, 2017
    0
    yeah I’ve already checked the wiring within the airbag inside the steering wheel and found no issue. I was hoping someone would know where all the sensors and modules are at.

  5. d281833

    d281833 Heavy Load Member

    830
    783
    May 15, 2012
    0
    Are you running Omnitracs ELD? I have the same issue, it's the ELD. Unplug it, and it goes away. No fix they say other than changing to a different ELD make.

  6. QUALITYTRUCK

    QUALITYTRUCK Road Train Member

    1,229
    848
    Jun 14, 2009
    romulus,mi
    0
    This is the correct way to find your issue. If you insist on throwing parts at it blindly though, I would start by replacing clockspring first.

  7. Weiboy718

    Weiboy718 Bobtail Member

    7
    0
    Jan 25, 2017
    0
    I’m not any ELD, nothing is plugged into the diagnostic port.

  8. Weiboy718

    Weiboy718 Bobtail Member

    7
    0
    Jan 25, 2017
    0
    Yes I agree! Unfortunately where I’m from every mechanic will throw parts at it rather than doing a proper diagnostic.

  9. nasriza

    nasriza Road Train Member

    1,916
    1,471
    Feb 1, 2013
    Chicago, IL
    0
    Are all horns in steering working if yes remove steering cover and check maybe airbag unplugged or clock spring broken. Usually if they replace steering shafts sometimes it gets damaged need t 27 long torx. 2 screws and cover pops up.

  10. Weiboy718

    Weiboy718 Bobtail Member

    7
    0
    Jan 25, 2017
    0
    Thanks for the advice!

    I did removed the airbag and visually I don’t see anything wrong and the airbag is plugged in tightly. However I can’t see anything beyond the wiring harness that the airbag is connected. Is there a way to remove the clock spring? I did not dug deeper but it seems like the steering wheel will have to be removed in order to access the clock spring? Is that how it is?

    Thanks!
