Super singles to doubles

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by RGVTrucker956, Jun 21, 2020.

Page 1 of 2
  1. RGVTrucker956

    RGVTrucker956 Bobtail Member

    Joined:
    Sep 17, 2016
    Messages:
    27
    Thanks Received:
    4
    0

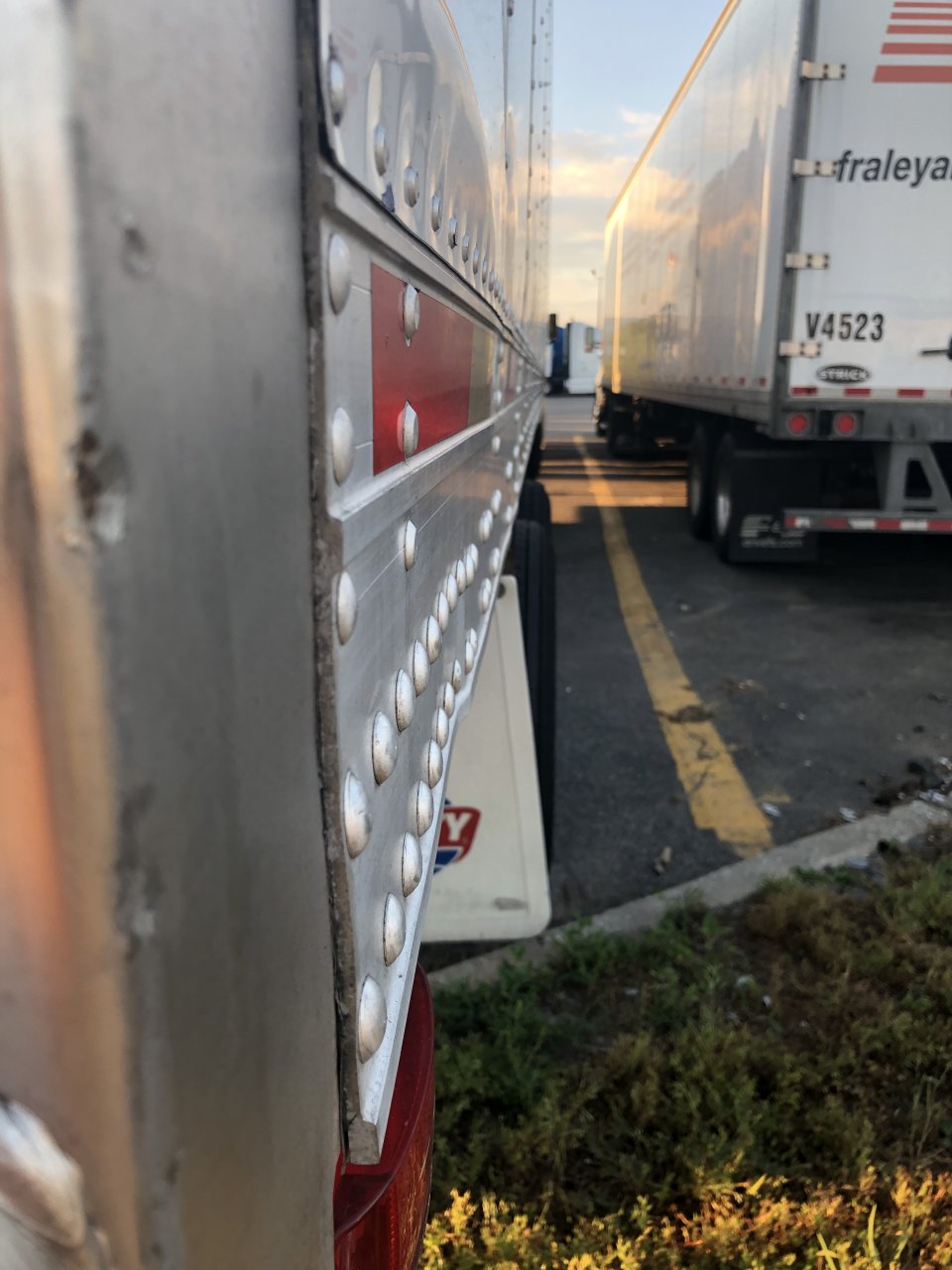

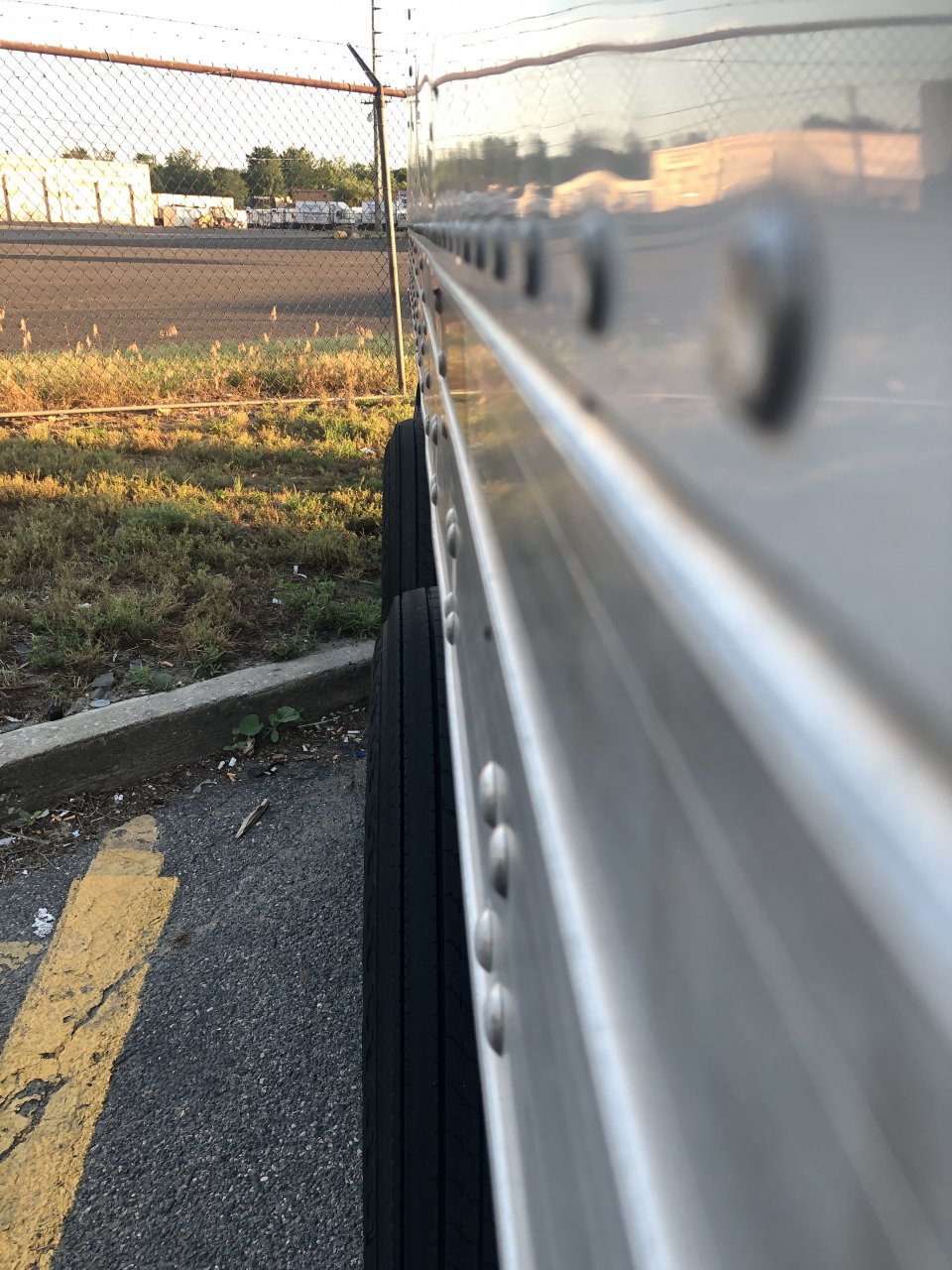

    So I changed my super single tires on my trailer to doubles & they are a couple of inches sticking out from trailer. Anyone know what I have to do in order to fix this ? ‍♂️

    RGVTrucker956, Jun 21, 2020
    #1
  2. Goodysnap

    Goodysnap Road Train Member

    Joined:
    Jul 12, 2017
    Messages:
    3,702
    Thanks Received:
    8,981
    0
    I'm no trailer expert but I would say your hubs are offset specifically for singles. Most likely changing hubs would be needed. I would contact the trailer manufacturer. Might cost more than its worth, if its even possible.

    Looks cool........but not legal.

    Goodysnap, Jun 21, 2020
    #2
    stwik, Tb0n3, PE_T and 3 others Thank this.
  3. spsauerland

    spsauerland Road Train Member

    Joined:
    May 31, 2010
    Messages:
    4,296
    Thanks Received:
    10,886
    Location:
    West Harrison, In
    0
    You need narrower trailer axles, axles were designed for wide base wheels. Bummer.

    spsauerland, Jun 21, 2020
    #3
    Tb0n3, PE_T and Goodysnap Thank this.
  4. baha

    baha Road Train Member

    Joined:
    Jul 25, 2013
    Messages:
    4,137
    Thanks Received:
    2,835
    Location:
    ga
    0
    If its a 102in. wide trailer you may have to put the super singles back on till you can buy a set of the narrow axles from truck used parts yard?

    baha, Jun 22, 2020
    #4
    Tb0n3 and PE_T Thank this.
  5. PE_T

    PE_T Road Train Member

    Joined:
    Jul 12, 2017
    Messages:
    3,412
    Thanks Received:
    3,788
    Location:
    Texas (trucking since 02/2013)
    0
    What made you change to duals? Just wondering. Lots of blowouts?

    PE_T, Jun 22, 2020
    #5
    Bean Jr. and Tb0n3 Thank this.
  6. Trucker2211

    Trucker2211 Light Load Member

    Joined:
    Mar 3, 2015
    Messages:
    94
    Thanks Received:
    91
    0
    Whoever came up with these super singles needs smacked up side their head! Those things are a death wish. Went from duals to super singles one time and had a mini heart attack during every single turn on interstate. They had a negative offset I guess and set inward 2-3” on both sides so I lost a ton of stability. Needless to say, they didn’t last very long on my rig.

    Trucker2211, Jun 22, 2020
    #6
    ajax1337 and PE_T Thank this.
  7. PE_T

    PE_T Road Train Member

    Joined:
    Jul 12, 2017
    Messages:
    3,412
    Thanks Received:
    3,788
    Location:
    Texas (trucking since 02/2013)
    0
    Well, I must admit I want to switch to super singles for the weight savings mostly. I could have access to a few more loads if I can haul 1,000 more pounds, particularly in my case because I book my own loads. I also happen to already carry all the tools necessary to change tires. I’m sure there is a serious risk and initial investment of a few thousand dollars involved, but I’m hoping that if I do switch, I can recoup it all in a year, mostly from hauling loads that many cannot or don’t want to haul because of the weight.

    As for the stability, I hear they do sell super single wheels with a 2-inch offset.

    PE_T, Jun 22, 2020
    #7
  8. little cat 500

    little cat 500 Road Train Member

    Joined:
    Jan 17, 2010
    Messages:
    2,048
    Thanks Received:
    1,092
    Location:
    Abbottstown PA
    0
    Cant put duels on some of the newer trailers the whole sider is wider

    little cat 500, Jun 22, 2020
    #8
    PE_T Thanks this.
  9. Cattleman84

    Cattleman84 Road Train Member

    Joined:
    Nov 1, 2017
    Messages:
    9,894
    Thanks Received:
    70,469
    Location:
    The Sticks, Idaho
    0
    I'm not sure if we have 0" or 2" offset on our fleet... But I know that I havent ever had an issue with stability, I take some corners faster than alot of guys running duels.

    We also use them for the weight savings... 400# per axle

    Cattleman84, Jun 22, 2020
    #9
    alds and PE_T Thank this.
  10. lwlevens

    lwlevens Medium Load Member

    Joined:
    Feb 9, 2018
    Messages:
    623
    Thanks Received:
    427
    0
    Put some rubber extensions around the top lip of trailer first , instead of changing everything out.

    lwlevens, Jun 22, 2020
    #10
