T680 Condenser Stud Size?

Discussion in 'Kenworth Forum' started by skierbri10, May 21, 2025.

  1. skierbri10

    skierbri10 Bobtail Member

    28
    13
    Feb 26, 2017
    0

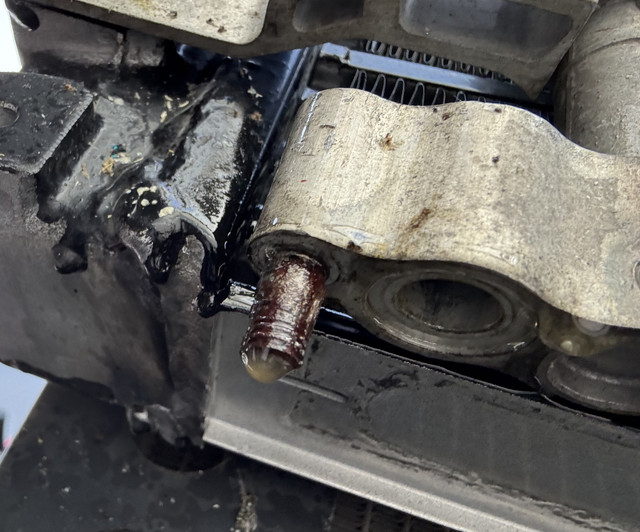

    I had a rock hit my condenser and take out the line leading out the bottom right. It also broke the stud. The condenser is ok though since the line and stud to the impact. I am planning to take the broken stud out, but I don’t know what size stud it is. I also need the nut that goes with it. Does anyone know the stud size for the condenser? Thanks
    [​IMG]

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,967
    32,029
    May 2, 2021
    0
    Condensors are pretty cheap, and that's a critical high pressure seal. I doubt you can get it out without more damage, and honestly, not worth the time to chance it IMO.

    If you do try, make sure you back up that aluminum with a big crescent.

    skierbri10 Thanks this.
  4. skierbri10

    skierbri10 Bobtail Member

    28
    13
    Feb 26, 2017
    0
    I was going to Heat up the condenser near the stud. I am also an aircraft mechanic so I was just going to try before buying a new condenser. Also, I’m seeing that some condensers don’t come with studs installed and aren’t included with the condenser. So either way I might need a stud or two, and I am not stud enough.

  5. Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,967
    32,029
    May 2, 2021
    0
    Can't help ya on size, Sorry. Every one I've replaced already had the studs installed.

    I would expect something 8mm, but not sure what thread pitch.

    skierbri10 Thanks this.
  6. skierbri10

    skierbri10 Bobtail Member

    28
    13
    Feb 26, 2017
    0
    No worries. The only thing I’ve found that might possibly be it is 6mm x 1.0 x 40mm The part says it is universal condenser stud and for kenworths it only applies to “some.” I wish I had access to a parts diagram/catalogue.

    Of course I wouldn’t pay $120 for 4 studs. LOL but here is a place I found that is my only lead at the moment. Stud-Condenser, for Universal Application RF99963256 | Roadforce Parts

    Big Road Skateboard Thanks this.
  7. JB7

    JB7 Heavy Load Member

    718
    1,084
    Dec 13, 2022
    Laurel, MD
    0
    I doubt that stud is coming out, likely seized. But if you did get it out or for the size of any other studs, bolts or threads. They make pitch gauges (see the brass looking piece on the left). The one that fits perfectly tells you the thread pitch. The one on the right was about $20 and the holes are threaded. Have to watch for that cheap China stuff though as the one popular size is not correct. Most hardware stores such as Home Depot will have one similar to the one on the right bolted down for customers to check sizes.



    skierbri10 Thanks this.
  8. Iamoverit

    Iamoverit Road Train Member

    1,902
    4,236
    Oct 31, 2023
    0
    I'd replace the entire line if I were you. I'd also take a good look at the rest of the lines as well as the condensor to be sure nothing else needs to be replaced while you have the system evacuated. Refrigerant prices have skyrocketed over the last few years.

    skierbri10 Thanks this.
  9. skierbri10

    skierbri10 Bobtail Member

    28
    13
    Feb 26, 2017
    0
    I have the line coming. It was too damaged to repair since the damage was on a bend and close to the connection. Stupid line was $300 all in.

    Iamoverit Thanks this.
  10. AModelCat

    AModelCat Road Train Member

    29,040
    156,716
    Jul 7, 2015
    Canuckistan
    0
    Pull stud, go to local bolt supply store, buy new stud.

    skierbri10 Thanks this.
  11. skierbri10

    skierbri10 Bobtail Member

    28
    13
    Feb 26, 2017
    0
    Wish the truck wasn’t so far away but yes this is the option i have. Thanks for the input.
