Towing capacity

Discussion in 'Motor Carrier Questions - The Inside Scoop' started by Juggedm1124, Feb 3, 2022.

  1. mitrucker

    mitrucker Road Train Member

    5,231
    9,237
    Dec 15, 2010
    Lapeer, MI
    0
    Yep. I didn’t look at the second picture until you said something.

    AModelCat Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. SmallPackage

    SmallPackage Road Train Member

    5,441
    17,250
    Dec 20, 2019
    Marion Texas
    0
    Second rear axle block on spec tag is just noting the diff model gear ratio on the single axle. FL does the same thing on their single screws. Tandems should have 4 blocks stamped.

  4. bumper Jack

    bumper Jack Heavy Load Member

    887
    4,410
    Dec 5, 2021
    0
    6B28BA45-CC98-4300-8AF3-4FF7D7325905.jpeg It’s a 38,000 pound tandem. There is no 38,000 pound single.

    kylefitzy and AModelCat Thank this.
  5. SmallPackage

    SmallPackage Road Train Member

    5,441
    17,250
    Dec 20, 2019
    Marion Texas
    0
    Rockwell has made a 70 ton 35-38,000 lbs single drives for trucks since 1951. My Diamond T has one. The old ones were big momma’s. They held almost 8 gallons of lube. As the years went by they became the same size as the others.

    bumper Jack and AModelCat Thank this.
  6. SmallPackage

    SmallPackage Road Train Member

    5,441
    17,250
    Dec 20, 2019
    Marion Texas
    0
    up until the time he retired it my Great Grandfather was registered and grossing 69,000 with a tandem trailer.

    bumper Jack Thanks this.
  7. SmallPackage

    SmallPackage Road Train Member

    5,441
    17,250
    Dec 20, 2019
    Marion Texas
    0

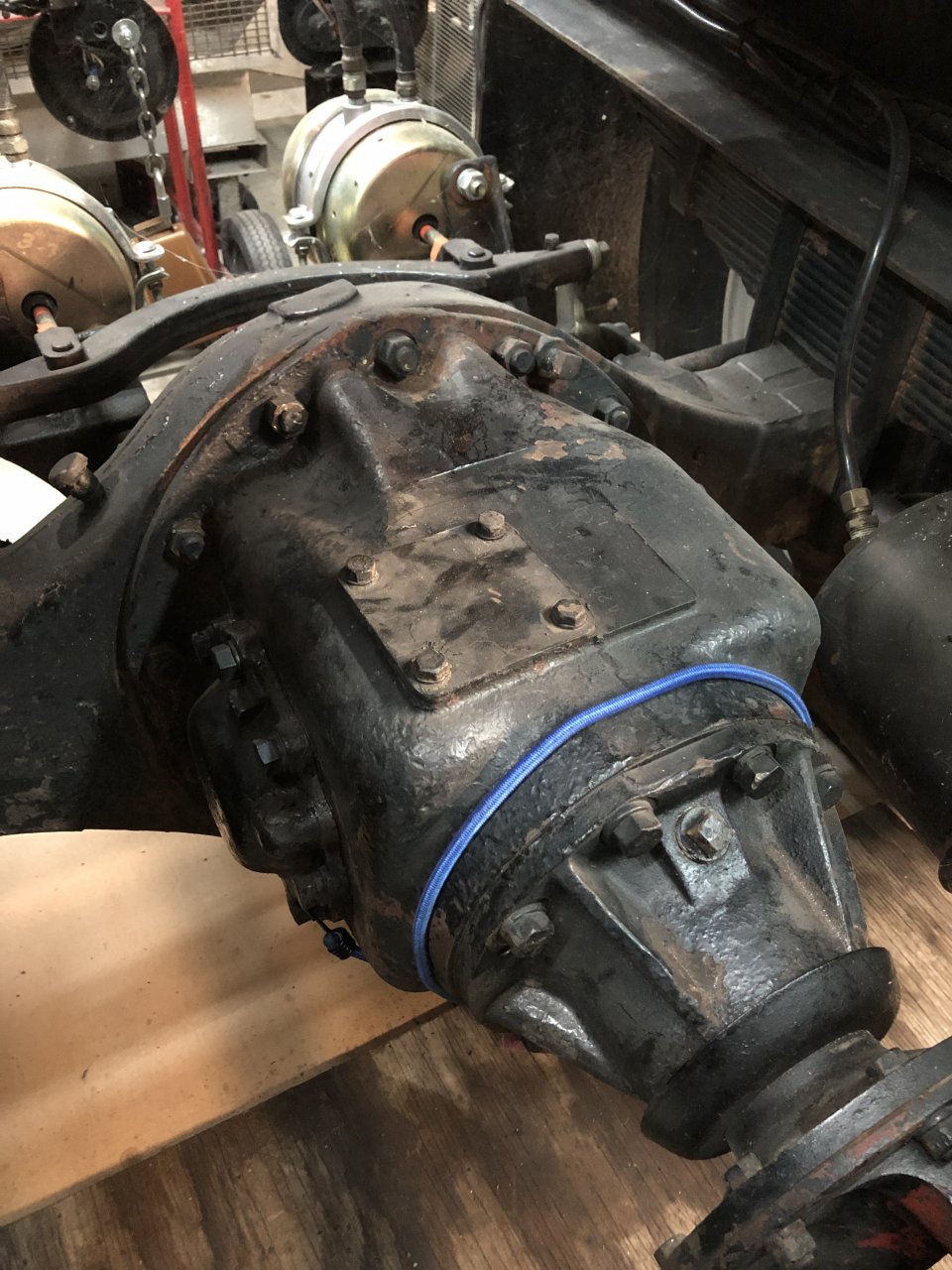

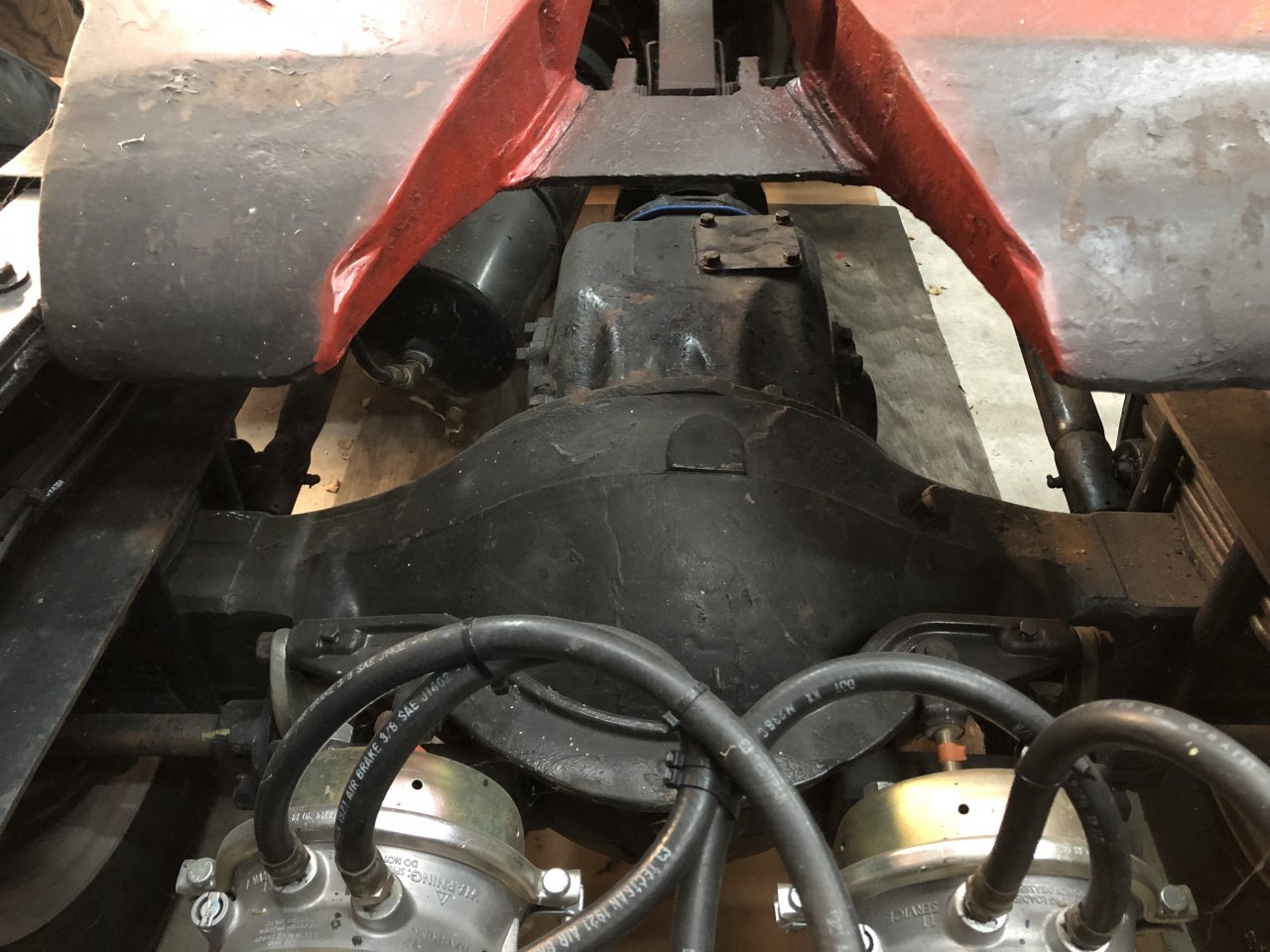

    this ones out of an ‘82 single screw FL coe that Pioneer Flower in San Antonio used to run heavy.

    bumper Jack and AModelCat Thank this.
  8. SmallPackage

    SmallPackage Road Train Member

    5,441
    17,250
    Dec 20, 2019
    Marion Texas
    0

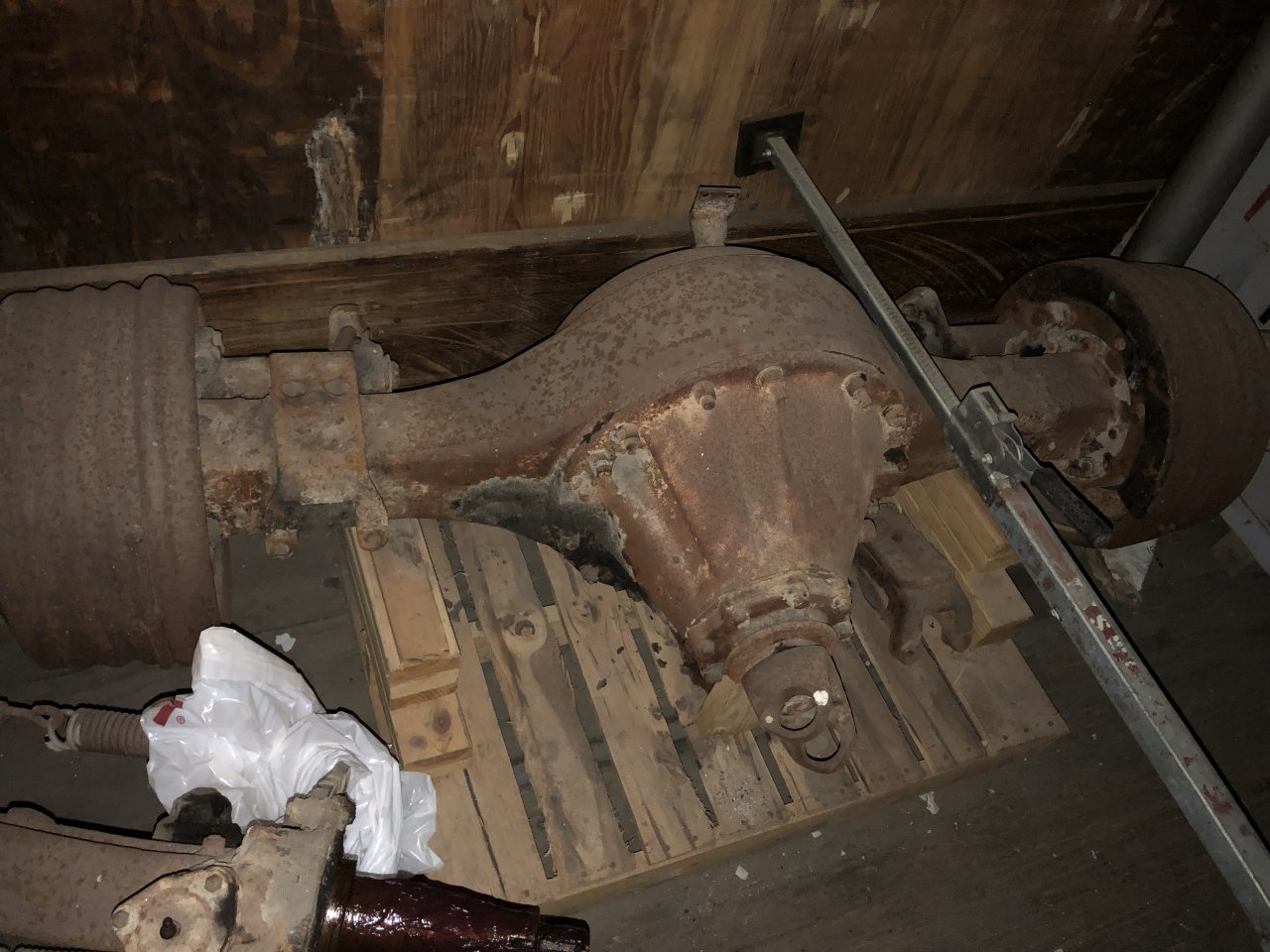

    the big momma in the T

    bumper Jack Thanks this.
  9. bumper Jack

    bumper Jack Heavy Load Member

    887
    4,410
    Dec 5, 2021
    0
    And mack made 69k rears but I’ve never seen one singled and what good would it do on a Volvo road tractor?

  10. bumper Jack

    bumper Jack Heavy Load Member

    887
    4,410
    Dec 5, 2021
    0
    I’m not doubting you, but do you have and pictures of one that isn’t 40-60 years old? I’ve honestly never seen a single highway axle rated that high. I also don’t see the point. No state will let you go over 24 or 25,000 on a single. Most are 20 or 22,500

  11. bumper Jack

    bumper Jack Heavy Load Member

    887
    4,410
    Dec 5, 2021
    0
    You can do that with a 23,000 pound axle. But thanks for the info. I got something new to google.
