Trailer leveling valve

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by ZiplocW2019, Nov 25, 2023.

  1. ZiplocW2019

    ZiplocW2019 Bobtail Member

    19
    8
    Feb 14, 2021
    0
    Replaced with new one, now air bags won't inflate. I replaced with identical unit. All air lines going to same location. Valve has integral dump

    1. When I push in trailer supply valve in truck - brakes release no air to airbags.
    2. When I pull out trailer supply - brakes set and air bags rise

    I don't understand...... IMG_2953.jpg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. wichris

    wichris Road Train Member

    3,893
    7,363
    Jan 17, 2011
    0
  4. IH Truck Guy

    IH Truck Guy Road Train Member

    3,223
    35,116
    Mar 2, 2008
    Purgatory
    0
    That don't look like a new valve..

    cke, Magoo1968, Oxbow and 1 other person Thank this.
  5. ZiplocW2019

    ZiplocW2019 Bobtail Member

    19
    8
    Feb 14, 2021
    0

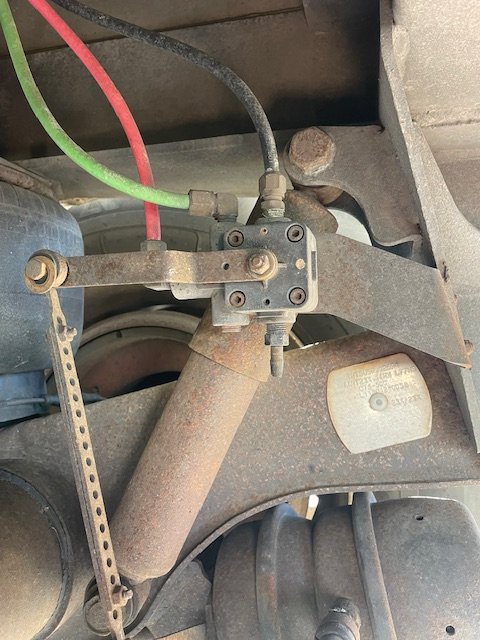

    this was pic from before removal. everything worked. any chance pressure protection valve is bad?

  6. JB7

    JB7 Medium Load Member

    497
    594
    Dec 13, 2022
    0
    See attached, page 3 has a diagram. Did you buy the same brand valve? Some may have ports in different places. Do you still have the old valve. Look to see if the ports are marked and they are the same.
    Probably not related to your problem but the connection where the vertical rod bolts to the valve rod is worn. Not just the washer hanging down but the rubber appears worn as the bolt does not look centered.

    Still sounds like the air lines are not connected properly.
    Not related but that looks like a big gap between the brake shoe and drum in the pic.

    Why were you replacing the valve to start with?


    Attached Files:

    Last edited: Nov 25, 2023
    Oxbow and NightWind Thank this.
  7. wichris

    wichris Road Train Member

    3,893
    7,363
    Jan 17, 2011
    0
    Move the valve body 180 degrees and put the lines back like in the picture

    ZiplocW2019 and Oxbow Thank this.
  8. Oxbow

    Oxbow Road Train Member

    10,541
    106,754
    Nov 24, 2015
    Idaho
    0
    I'm not that smart, so I would disconnect the linkage to the axle and the output line and move the lever to see when the air comes out..........and then realize I have it 180 degrees off!

    cke and Rideandrepair Thank this.
  9. wichris

    wichris Road Train Member

    3,893
    7,363
    Jan 17, 2011
    0
    Take off the airline and the exhaust fitting. Take off the two bolts holding the valve body. Turn the valve body 180. Put the air line and exhaust back like in the picture. 15 minutes work. Not like nobody has done that before.

    Concorde, ZiplocW2019 and Oxbow Thank this.
  10. OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    16,404
    241,939
    Nov 29, 2011
    West Virginia
    0
    Same valve and mounted on the same side of the bracket….?

    cke Thanks this.
  11. ZiplocW2019

    ZiplocW2019 Bobtail Member

    19
    8
    Feb 14, 2021
    0
    Put old valve back in worked as it should. Faulty replacement

    Rideandrepair and JB7 Thank this.
