Trailer leveling valve

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by ZiplocW2019, Nov 25, 2023.

Page 2 of 3
  1. Nov 25, 2023 #11
    ZiplocW2019

    ZiplocW2019 Bobtail Member

    24
    10
    Feb 14, 2021
    0
    Yes. Same, same,same.

    faulty replacement

    ZiplocW2019, Nov 25, 2023
    ZiplocW2019, Nov 25, 2023
    #11
    OLDSKOOLERnWV Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Nov 25, 2023 #12
    ZiplocW2019

    ZiplocW2019 Bobtail Member

    24
    10
    Feb 14, 2021
    0
    Out of curiosity- why does flipping 180 make a difference? I honestly don’t know.

    ZiplocW2019, Nov 25, 2023
    ZiplocW2019, Nov 25, 2023
    #12
  4. Nov 25, 2023 #13
    OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    18,369
    276,641
    Nov 29, 2011
    West Virginia
    0

    Because the valve would exhaust when it was supposed to be inflating and vise versa.

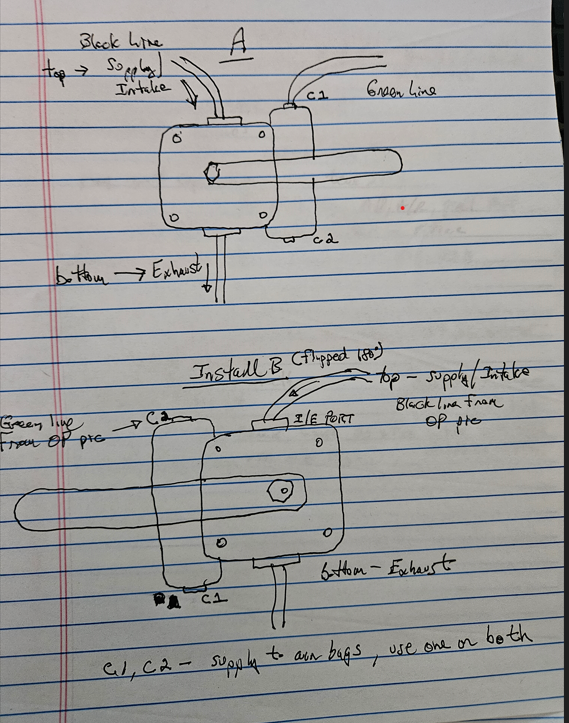

    That is why I had ask if the new valve was bolted to the same side of the bracket as the old one in your picture….

    OLDSKOOLERnWV, Nov 25, 2023
    OLDSKOOLERnWV, Nov 25, 2023
    #13
    cke, Magoo1968, Rideandrepair and 1 other person Thank this.
  5. Nov 25, 2023 #14
    JB7

    JB7 Heavy Load Member

    796
    1,225
    Dec 13, 2022
    Laurel, MD
    0

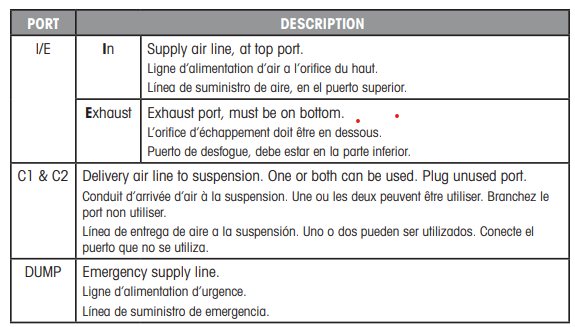

    Should not/ does not matter. Install instructions say nothing about this end up or any arrow showing install direction. And one port is not marked Intake and the Other Exhaust. They are both marked I/E. Note that I/E ports can be either Intake or Exhaust depending on which way the valve is installed. But the SUPPLY Air LIne has to be on top and exhaust on the bottom.


    Last edited: Nov 25, 2023
    JB7, Nov 25, 2023
    JB7, Nov 25, 2023
    #14
  7. Nov 25, 2023 #15
    ZiplocW2019

    ZiplocW2019 Bobtail Member

    24
    10
    Feb 14, 2021
    0
    Correct. I didn’t think it mattered. Got a new will try again

    ZiplocW2019, Nov 25, 2023
    ZiplocW2019, Nov 25, 2023
    #15
  8. Nov 25, 2023 #16
    Oxbow

    Oxbow Road Train Member

    12,839
    133,043
    Nov 24, 2015
    Idaho
    0
    Kinda depends on which side of the valve the lever comes off doesn't it?

    Oxbow, Nov 25, 2023
    Oxbow, Nov 25, 2023
    #16
    cke, IH Truck Guy, Rideandrepair and 1 other person Thank this.
  9. Nov 25, 2023 #17
    OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    18,369
    276,641
    Nov 29, 2011
    West Virginia
    0

    Exactly…!!!!!

    OLDSKOOLERnWV, Nov 25, 2023
    OLDSKOOLERnWV, Nov 25, 2023
    #17
    cke, Rideandrepair and Oxbow Thank this.
  10. Nov 25, 2023 #18
    wichris

    wichris Road Train Member

    4,293
    8,647
    Jan 17, 2011
    0

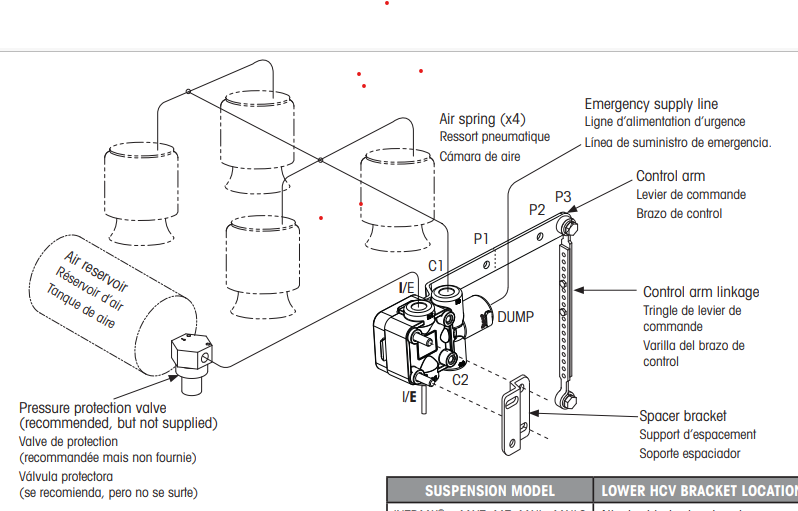

    If that diagram is for the new valve, then the green and black lines are reversed from what is in your picture.

    wichris, Nov 25, 2023
    wichris, Nov 25, 2023
    #18
    Rideandrepair Thanks this.
  11. Nov 25, 2023 #19
    JB7

    JB7 Heavy Load Member

    796
    1,225
    Dec 13, 2022
    Laurel, MD
    0
    No, as long as the Supply/Intake is on top it does not matter which way the lever is pointed.

    Last edited: Nov 25, 2023
    JB7, Nov 25, 2023
    JB7, Nov 25, 2023
    #19
    Rideandrepair Thanks this.
  12. Nov 25, 2023 #20
    ZiplocW2019

    ZiplocW2019 Bobtail Member

    24
    10
    Feb 14, 2021
    0
    Thanks for all replies. Got new one installed exactly the same as in picture. Works 100% again. These can be mounted either way. Project complete. thanks

    Last edited: Nov 25, 2023
    ZiplocW2019, Nov 25, 2023
    ZiplocW2019, Nov 25, 2023
    #20
    Magoo1968, JB7 and Rideandrepair Thank this.
