Transmission stuck in high range

Snap ring came off range shift bar, aux section and shift bar housing need to come off to repair.



Can you switch the air lines on the range cyl?



You did not say if it was a auto. trans. so we are thinking it is a stick shift trans. mid/way back on top of trans. is the shift piston that makes it move from hi to low, take it out and clean it to see if it still moves, in the rear most part of back box there is another piston that moves back box from hi to low, ck it for air and see if you can hear it move? Was any grinding sounds coming from trans.when you tried to shift from hi to low before it stoped working??

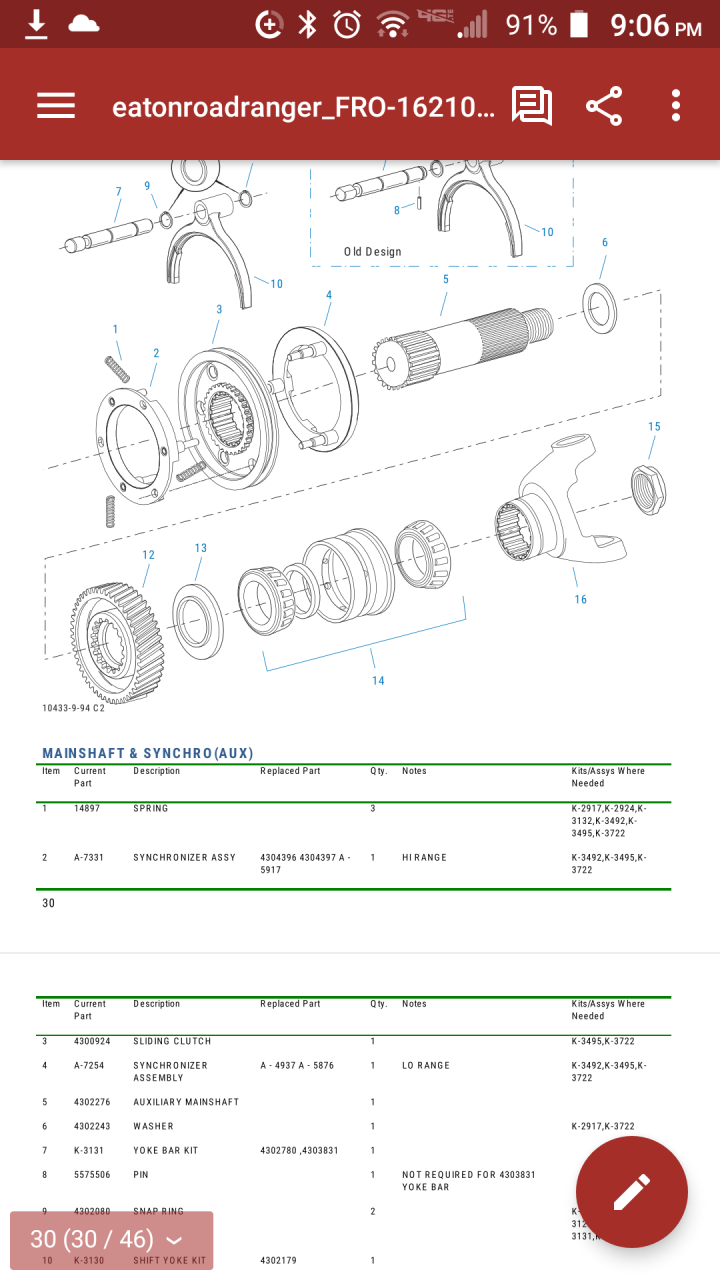

On the Eaton FRO__210 transmissions, the shift cylinder for the range is located in the shift bar housing. The shift cylinder has a spool that meshes with range yoke shaft. The yoke (fork) is held in place on shaft with two snap-rings. Snap-ring pops off and you are stuck in one range. Seen it many times. I usually pull the transmission and go thru back box.



This thread is another example of the value of this forum. Many members with huge knowledge and experience. Info that can't be found without alot of time searching. Come here, ask a question, and almost always get the answer.
Thank you @spsauerland, @AModelCat, @Goodysnap, @pushbroom and many more. Everything you men give is huge appreciated, by every one of us(I hope!).
