Trying a new antenna

Discussion in 'CB Radio Forum' started by JReding, Jun 19, 2017.

  1. Jazz1

    Jazz1 Road Train Member

    2,373
    4,965
    May 7, 2012
    Thunder Bay On
    0
    What's SWR meter on radio say. Wiggle coax and see if meter fluctuates. I always have to connect/disconnect once or twice on my cascadia factory coax to get a match under 3

    I get match between 1 and end of meter each night. Little adjustment gets it to a decent SWR

    JReding Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. JReding

    JReding Road Train Member

    1,954
    3,492
    Sep 8, 2014
    Puyallup, WA
    0

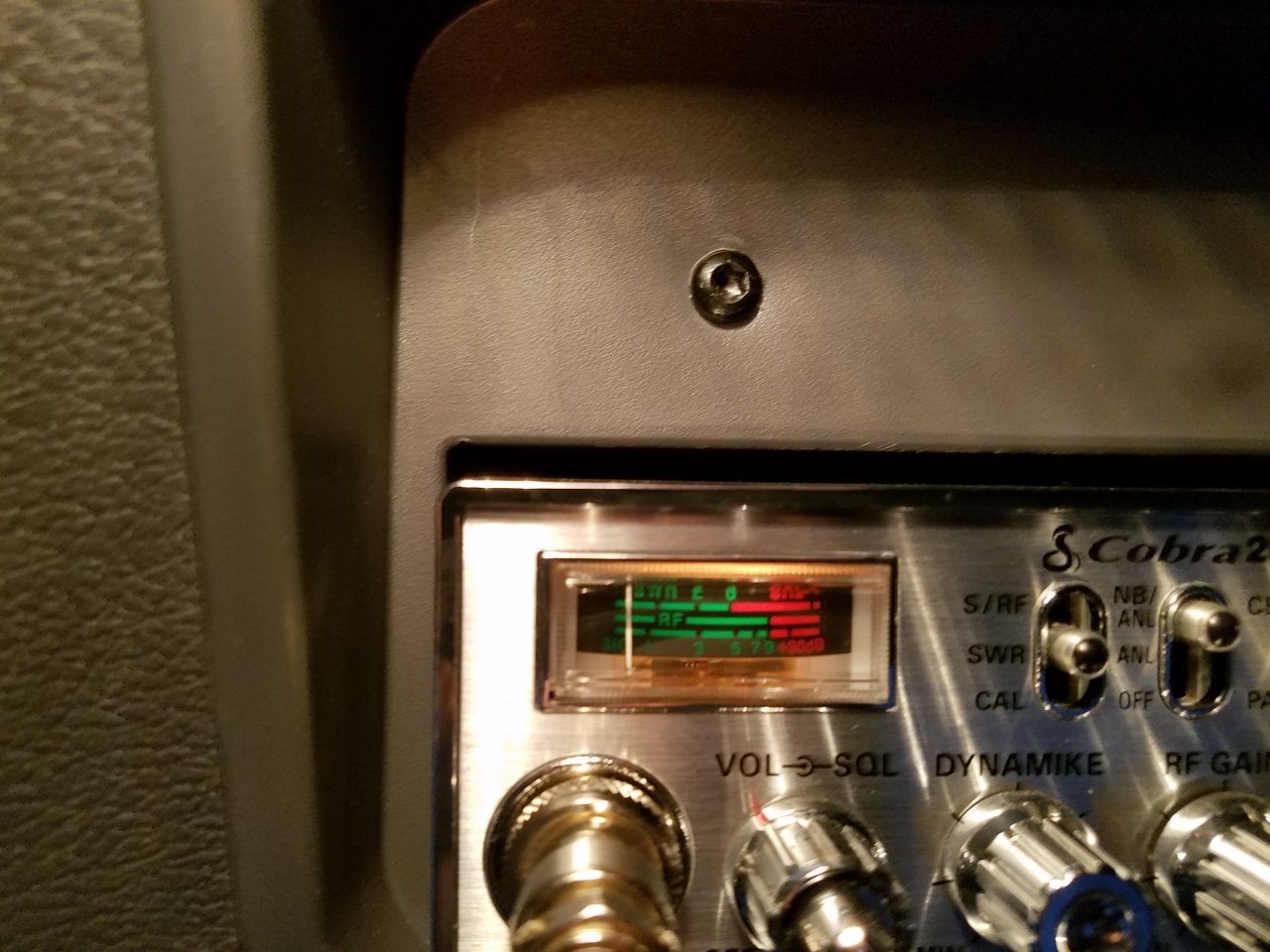

    Keyed up, calibrate setting:

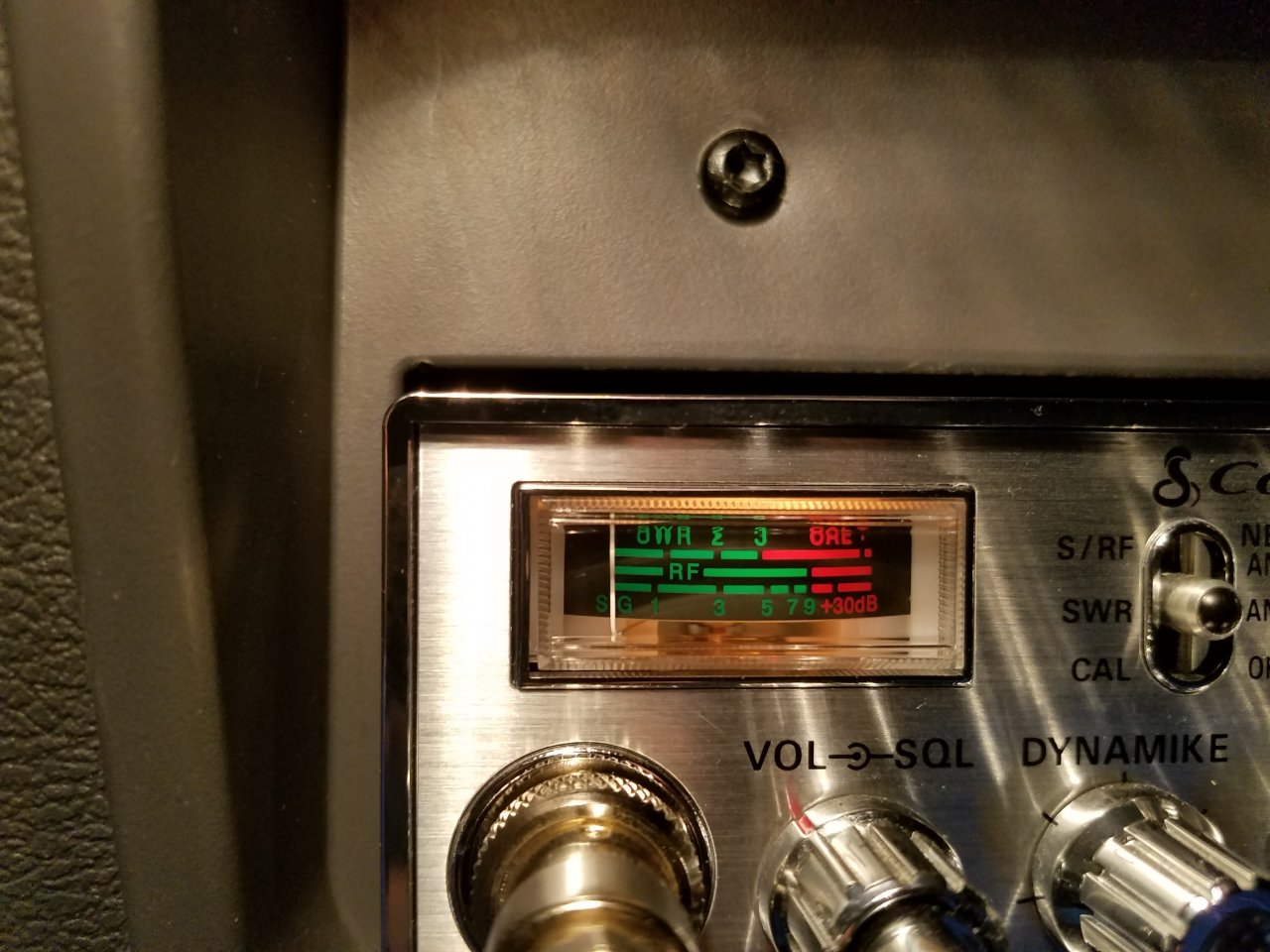

    Keyed up, SWR setting:

  4. mike5511

    mike5511 Road Train Member

    3,106
    1,485
    May 15, 2011
    NW Arkansas
    0
    1. Go to the thread CW SPOOK linked to and read post 24-33. No need to read the whole thing. P.S. you can get away with a 5ft top loaded antenna and forget the brace, especially if you stay in the middle of the CB band. Pretty simple, go for it.

    JReding and bored silly Thank this.
  5. rabbiporkchop

    rabbiporkchop Road Train Member

    9,634
    6,477
    Feb 9, 2012
    Wapwallopen, Pa
    0

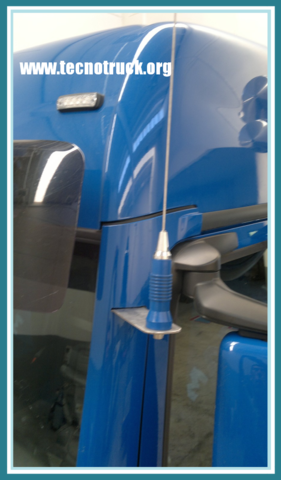

    This is how they do it in Europe.
    images.jpeg cache_2450908304.png

    Ougigoug and JReding Thank this.
  6. craig_sez

    craig_sez Road Train Member

    5,446
    2,642
    Sep 5, 2013
    novascotia,Canada
    0

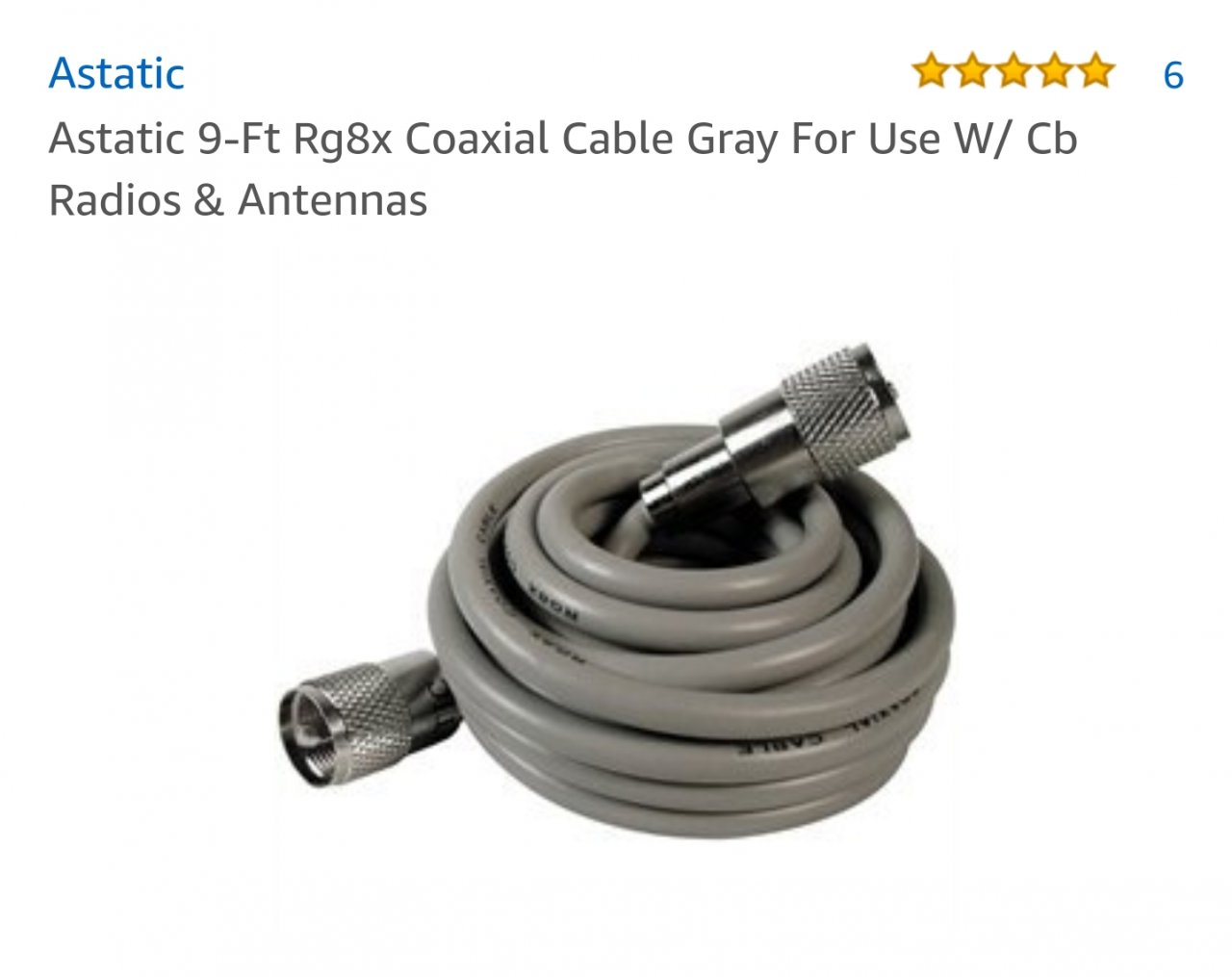

    Well he aint in europe and those mounts do nothing for him on a crapcadia..Fresh coax(15' 2 or 4" i forget exact)..Cascadia mirror mount(not single stud style) and the longest ant you can get away with with tuneable tip..7 ft skip shooter there..Got pvc pipe on it to keep it from swayin to much..


    Attached Files:

    tucker and bored silly Thank this.
  7. JReding

    JReding Road Train Member

    1,954
    3,492
    Sep 8, 2014
    Puyallup, WA
    0
    I didn't want to go all the way yet, so I stuck with the 3' Francis for now, as well as the coax upgrade. These are my results right now. I have a friend's test meter, I just need to get a jump cable for it, then I can fine tune. I haven't had anyone I can talk to yet to test it out.

    SWR, channel 1:

    SWR, channel 40:

    Is there such a thing as getting the SWR too low?

  8. Ridgeline

    Ridgeline Road Train Member

    20,659
    100,396
    Dec 18, 2011
    Michigan
    0
    DO NOT use the internal meter.

    ALSO anything below 1.5 to 1 is good.

    JReding Thanks this.
  9. JReding

    JReding Road Train Member

    1,954
    3,492
    Sep 8, 2014
    Puyallup, WA
    0
    Why shouldn't I use the internal meter?

  10. bored silly

    bored silly Road Train Member

    2,714
    656
    Jul 1, 2016
    0
    Accuracy which the internal meter is not. Find someone with a RIG EXPERT or at the very least a MFJ ANALYSER to check your SWRS

    JReding Thanks this.
  11. bored silly

    bored silly Road Train Member

    2,714
    656
    Jul 1, 2016
    0
    Yeah BOY you GO CRAIG. THATS MY DAWG.
