Uneven Chain Tension

Discussion in 'Flatbed Trucking Forum' started by Milkyway2025, Apr 13, 2025.

  1. Milkyway2025

    Milkyway2025 Bobtail Member

    1
    2
    Oct 20, 2024
    0
    Rookie in training here
    What do you guys do to fix or prevent the chain from having uneven tension? The length of chain that goes under the spool will be tight and rigid, but the part of the chain that attaches to the load will be a little looser than the former, no matter how much you tighten the ratchet. Prying and hitting the chain helped a few of the chains settle, but the rest aren't budging. I hope the attached picture helps

    Flat Earth Trucker and Kyle G. Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Razororange

    Razororange Road Train Member

    2,464
    23,361
    Dec 20, 2011
    Milwaukee, WI
    0
    Stop running your chains across the deck like that. You are trying to pull it around too many corners and will never get it tight.

    The correct way would be to run the chain direct from the load to the spools or pockets with the binder in the middle pulling in a straight line from the load to the trailer. You might have to use more binders this way but it is the correct way to secure with chains.

  4. Walk Among Us

    Walk Among Us Light Load Member

    257
    1,230
    Mar 3, 2025
    I-35 Corridor
    0
    In general chains loosen here and there as you go down the road. The links straighten, the kinks come out as you bounce on the road. You must re tighten them during your first 2 load checks. Also you can make sure you are putting the chains on straight and not twisted.

    Flat Earth Trucker, cke, CAXPT and 3 others Thank this.
  5. OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    17,945
    270,417
    Nov 29, 2011
    West Virginia
    0
    As mentioned in post #2, always put your binders between the load and your anchor point.

    I don’t use snap binders, ratchet only. After tightening I put the handle against the trailer to eliminate any loosening caused by reverse rotation, stays right and tight.

    Trying to pull a chain tight around a spool doesn’t work well…..

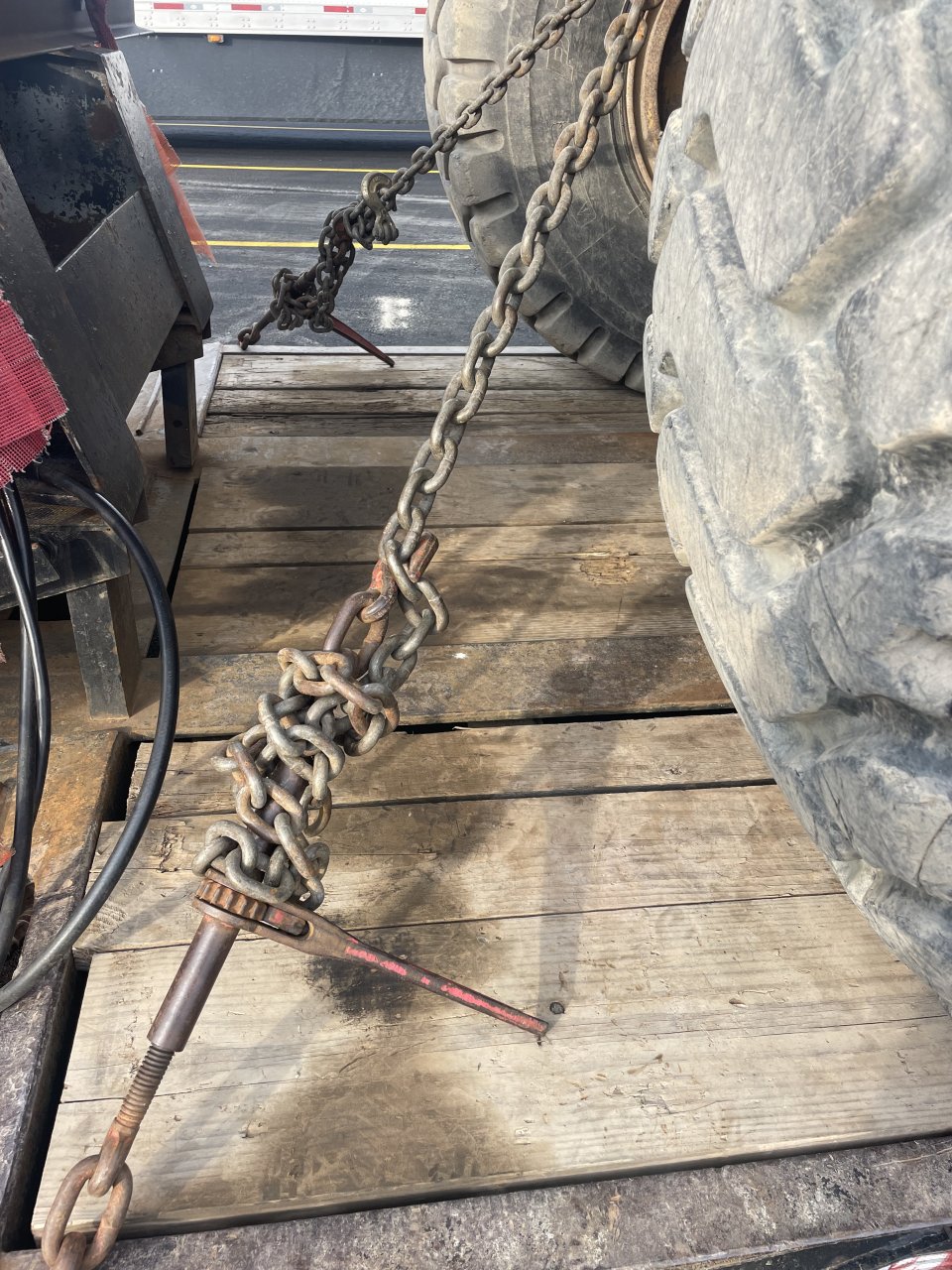

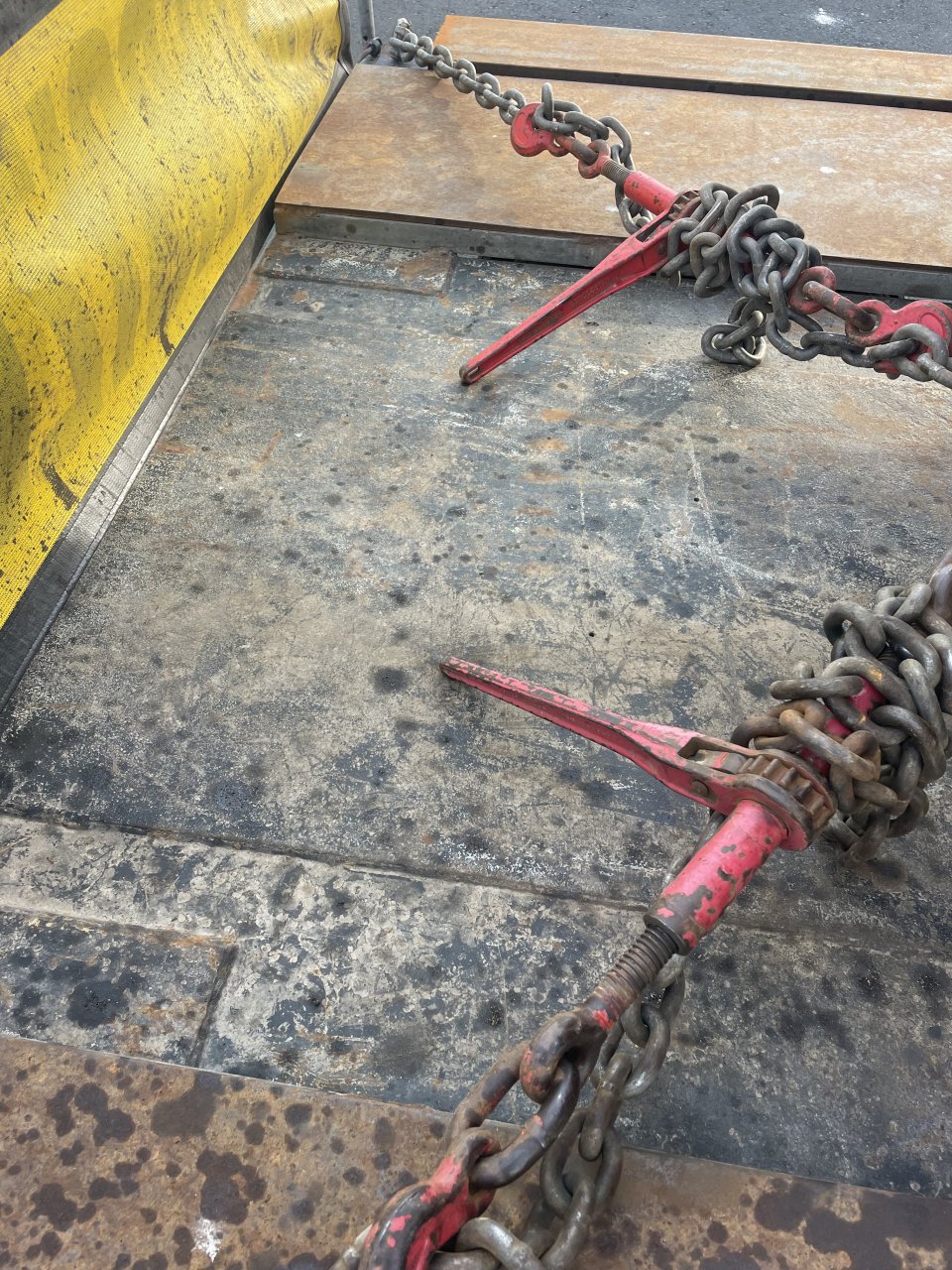

    IMG_8551.jpeg IMG_8550.jpeg IMG_8548.jpeg

  6. kylefitzy

    kylefitzy Road Train Member

    4,611
    19,063
    Aug 12, 2007
    Kansas city,Mo
    0
    You could try smacking the loose (or the tight) part with your winch bar to “help” the links around the corners. You’re always going to have that issue when using a chain like that, it’s a poor technique.

  7. skallagrime

    skallagrime Road Train Member

    3,844
    9,898
    Apr 10, 2012
    Indiana
    0
    Youve got track for j-hooks, use them/buy THEN use them
