Valve head coming out?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by ConfusedAF, Jun 9, 2023.

Page 1 of 2
  1. Jun 9, 2023 #1
    ConfusedAF

    ConfusedAF Bobtail Member

    6
    0
    Jun 9, 2023
    0
    So have done now three rebuilds on a Detroit 60 12.7 and have never had this happen before. The new heads we keep getting its like the valve head is un-welding. Is this common? Are we doing something wrong?

    ConfusedAF, Jun 9, 2023
    ConfusedAF, Jun 9, 2023
    #1 + Quote Reply
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jun 9, 2023 #2
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    3,598
    16,505
    May 2, 2021
    0
    Big Road Skateboard, Jun 9, 2023
    Big Road Skateboard, Jun 9, 2023
    #2 + Quote Reply
    Catmando Thanks this.
  4. Jun 9, 2023 #3
    buddyd157

    buddyd157 Road Train Member

    13,103
    32,968
    May 25, 2017
    under a shade tree
    0
    you got pictures? cuz what you're saying doesn't make ay sense.

    buddyd157, Jun 9, 2023
    buddyd157, Jun 9, 2023
    #3 + Quote Reply
    Diesel Dave and BoxCarKidd Thank this.
  5. Jun 9, 2023 #4
    ConfusedAF

    ConfusedAF Bobtail Member

    6
    0
    Jun 9, 2023
    0

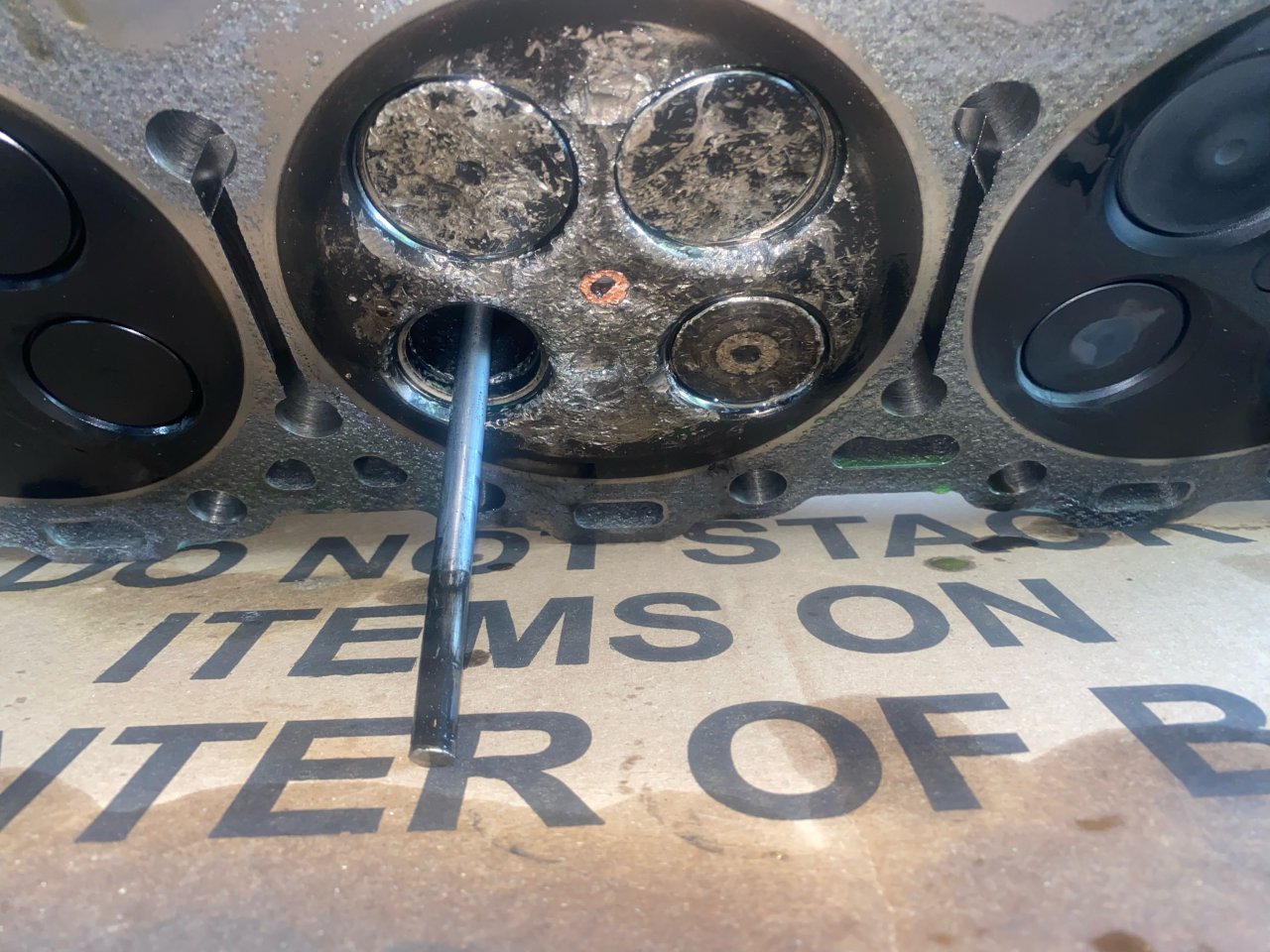

    this was after the first replacement sorry its the only photo i have to show


    Attached Files:

    ConfusedAF, Jun 9, 2023
    ConfusedAF, Jun 9, 2023
    #4 + Quote Reply
  7. Jun 9, 2023 #5
    ConfusedAF

    ConfusedAF Bobtail Member

    6
    0
    Jun 9, 2023
    0

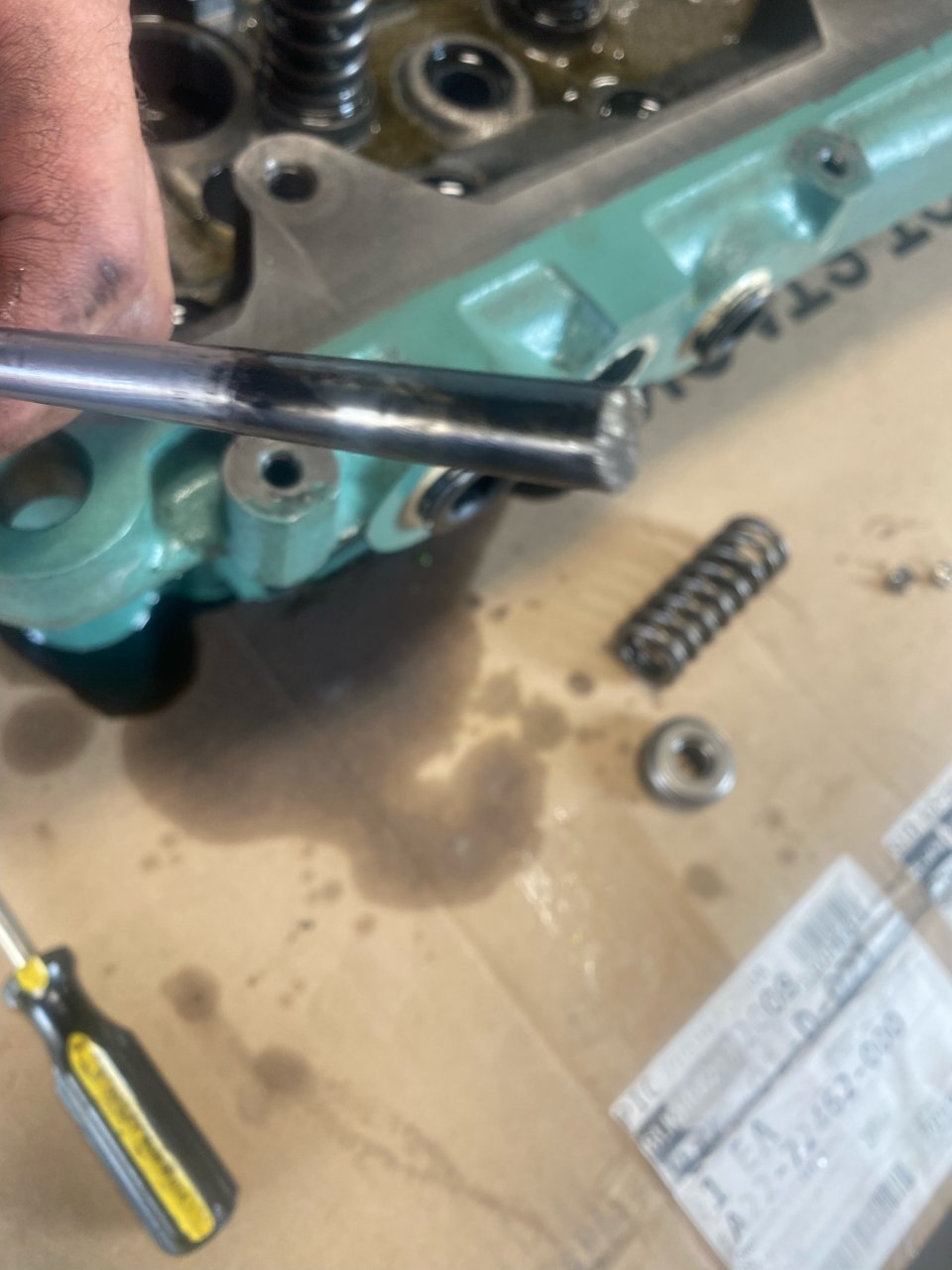

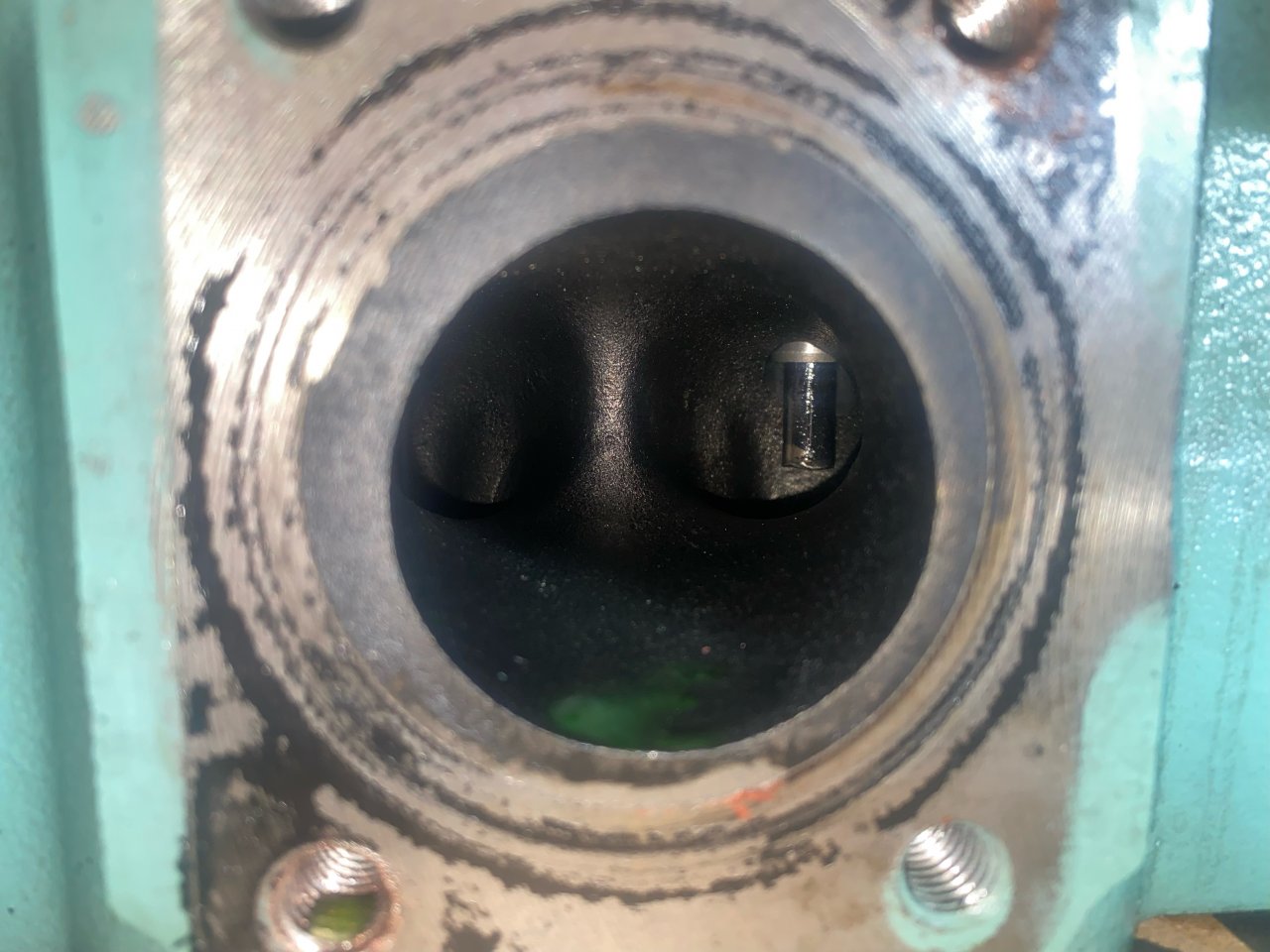

    These are from this second time


    Attached Files:

    ConfusedAF, Jun 9, 2023
    ConfusedAF, Jun 9, 2023
    #5 + Quote Reply
  8. Jun 9, 2023 #6
    ConfusedAF

    ConfusedAF Bobtail Member

    6
    0
    Jun 9, 2023
    0

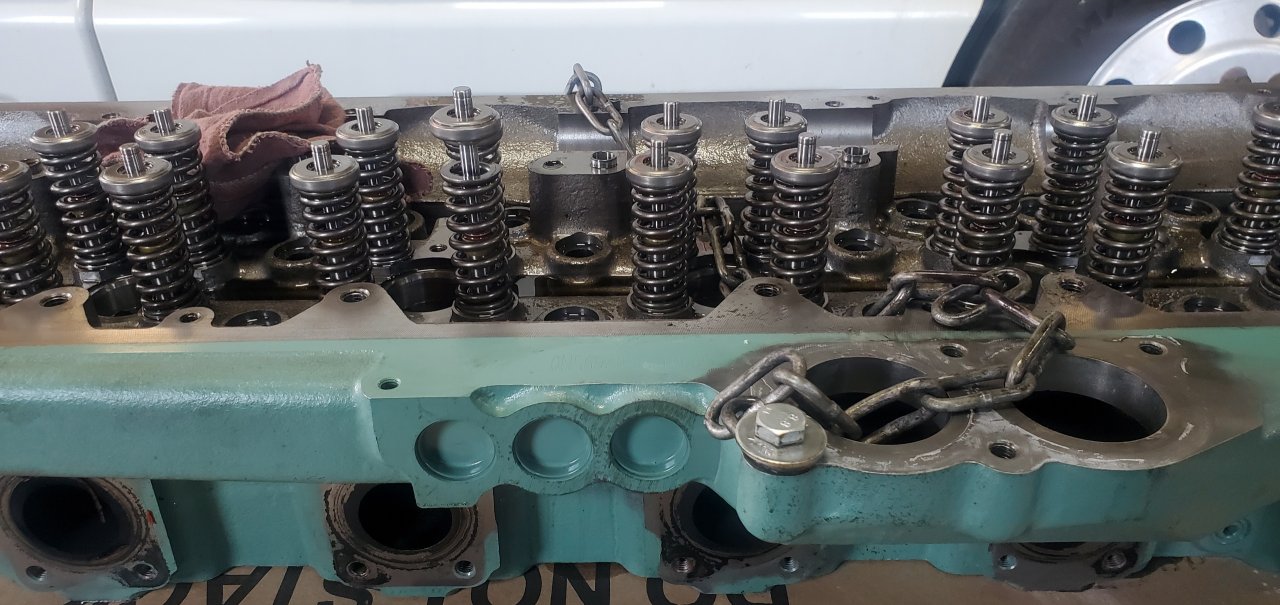

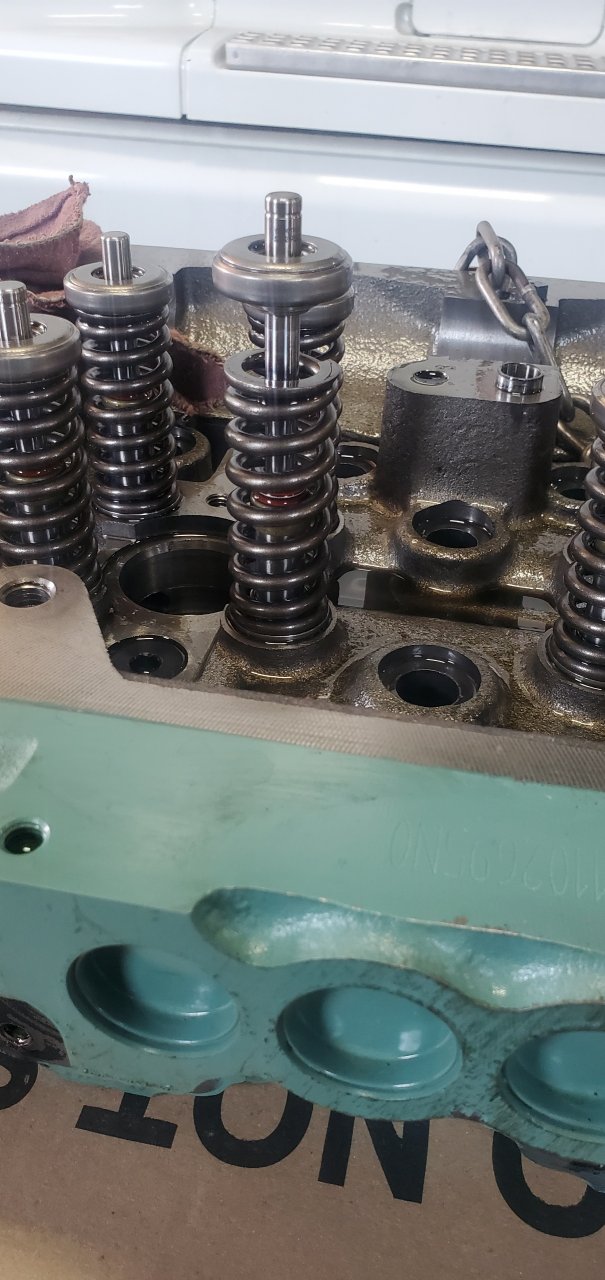

    second time


    Attached Files:

    ConfusedAF, Jun 9, 2023
    ConfusedAF, Jun 9, 2023
    #6 + Quote Reply
  9. Jun 9, 2023 #7
    buddyd157

    buddyd157 Road Train Member

    13,103
    32,968
    May 25, 2017
    under a shade tree
    0

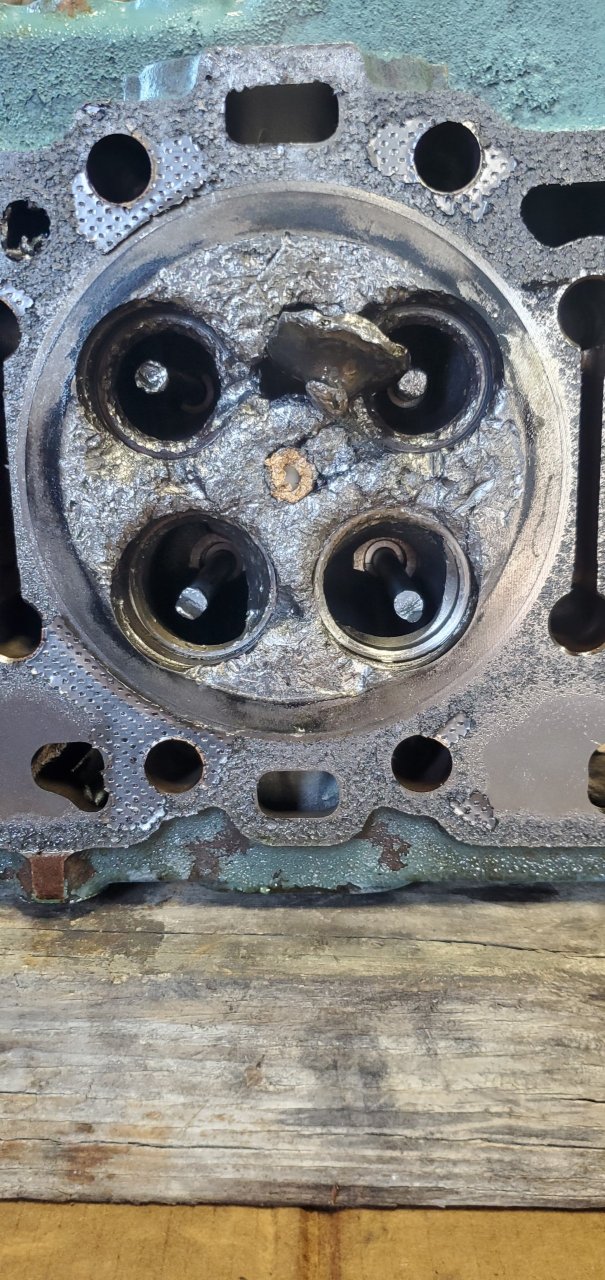

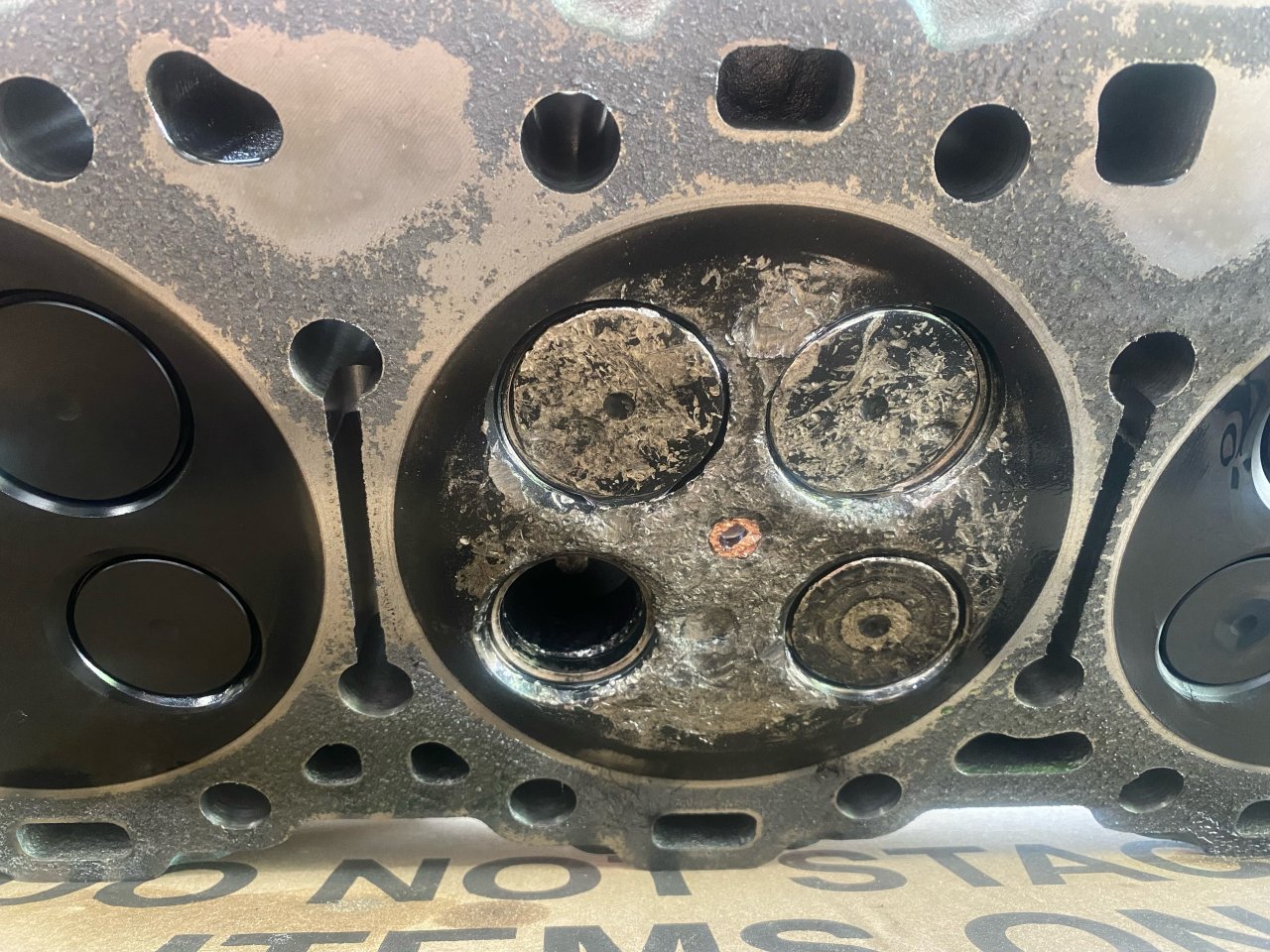

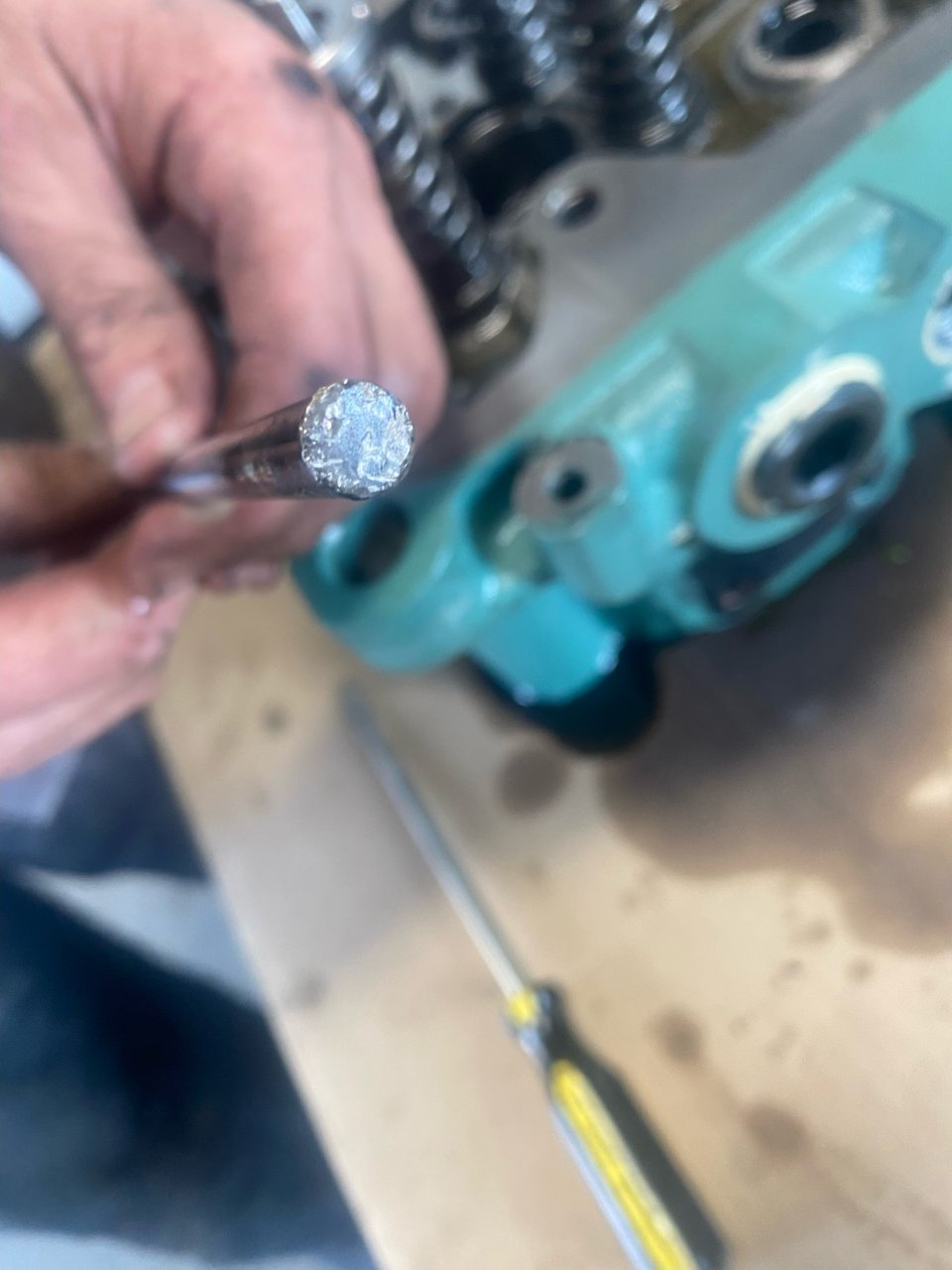

    well the valves are being snapped off the stems.

    either too much spring pressure, or very old valves you are using..???

    buddyd157, Jun 9, 2023
    buddyd157, Jun 9, 2023
    #7 + Quote Reply
  10. Jun 9, 2023 #8
    ConfusedAF

    ConfusedAF Bobtail Member

    6
    0
    Jun 9, 2023
    0
    we got the head from a machine shop the first one i believe was a reman and this second one was supposed to be new

    ConfusedAF, Jun 9, 2023
    ConfusedAF, Jun 9, 2023
    #8 + Quote Reply
  11. Jun 9, 2023 #9
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    3,598
    16,505
    May 2, 2021
    0
    Hows it running after firing up? May be out of time

    Big Road Skateboard, Jun 9, 2023
    Big Road Skateboard, Jun 9, 2023
    #9 + Quote Reply
    Catmando Thanks this.
  12. Jun 9, 2023 #10
    ConfusedAF

    ConfusedAF Bobtail Member

    6
    0
    Jun 9, 2023
    0
    it was running fine did everything by the book driver even said it was running great until they heard a pop and back it came

    ConfusedAF, Jun 9, 2023
    ConfusedAF, Jun 9, 2023
    #10 + Quote Reply
