Volvo d13 2012 electrical problem or?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by djomla89, Dec 26, 2020.

  1. Dec 26, 2020 #1
    djomla89

    djomla89 Bobtail Member

    21
    16
    Jan 25, 2019
    0
    While I was driving a got a bunch of codes with message for engine derate in <60 mins.Gauge from DEF went down. I made it to delivery with msg engine will derate at next truck stop. Last year I installed new batteries, rail and new battery kill switch. We checked battery connections, ground connections, cab and PDM fuses, DEF fuse, engine ECU connection, DEF connection, we tried different DEF ACM, checked all for corrosion and they all have voltage. Nothing has worked, still same codes except that code for transmission is gone. This is list of codes
    MID 144 PSID 230 FMI 5

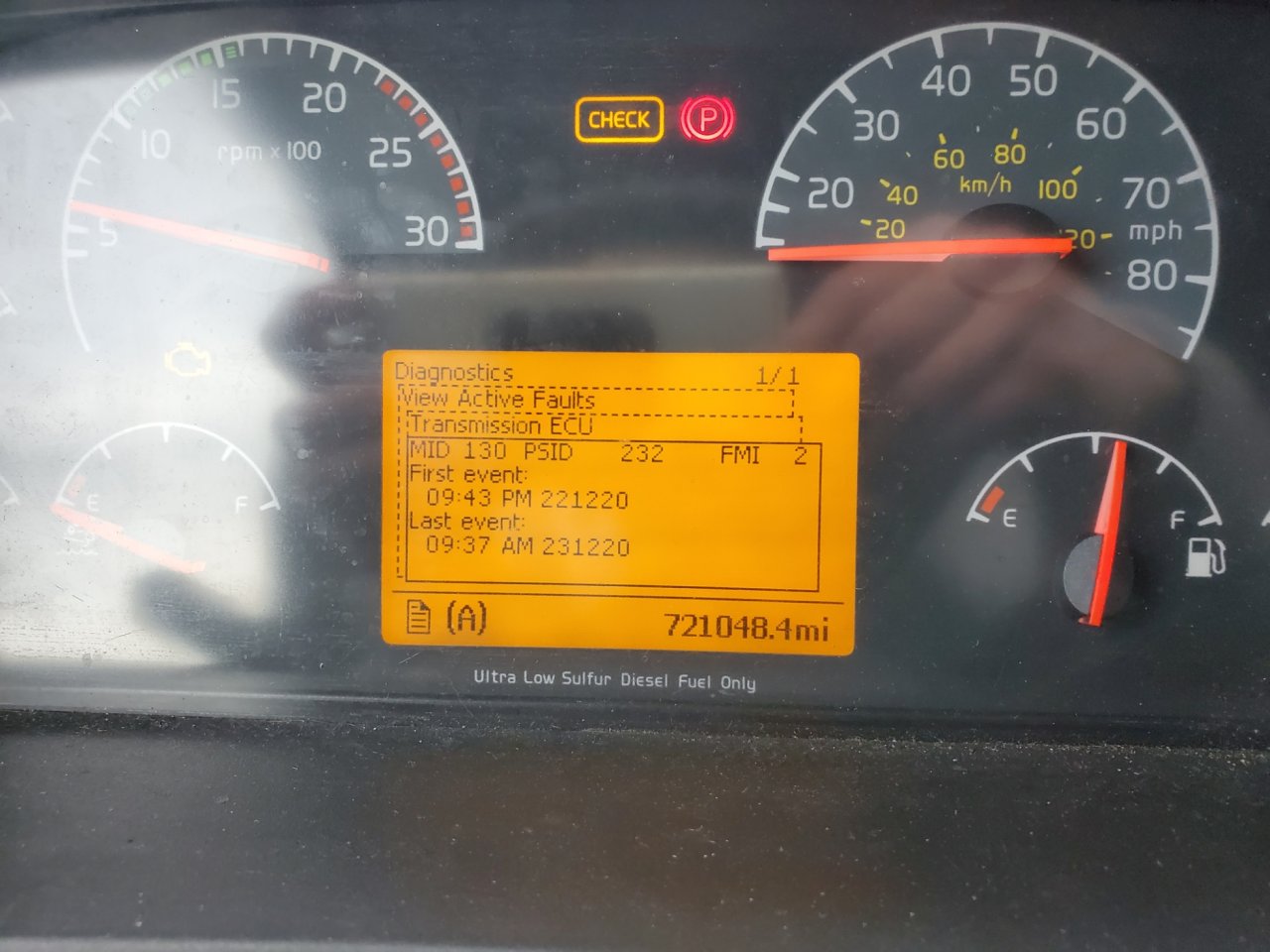

    MID 130 PSID 232 FMI 2
    SPN 5246 FMI 0
    SPN 641 FMI 9
    SPN 3216 FMI 9
    SPN 3226 FMI 9

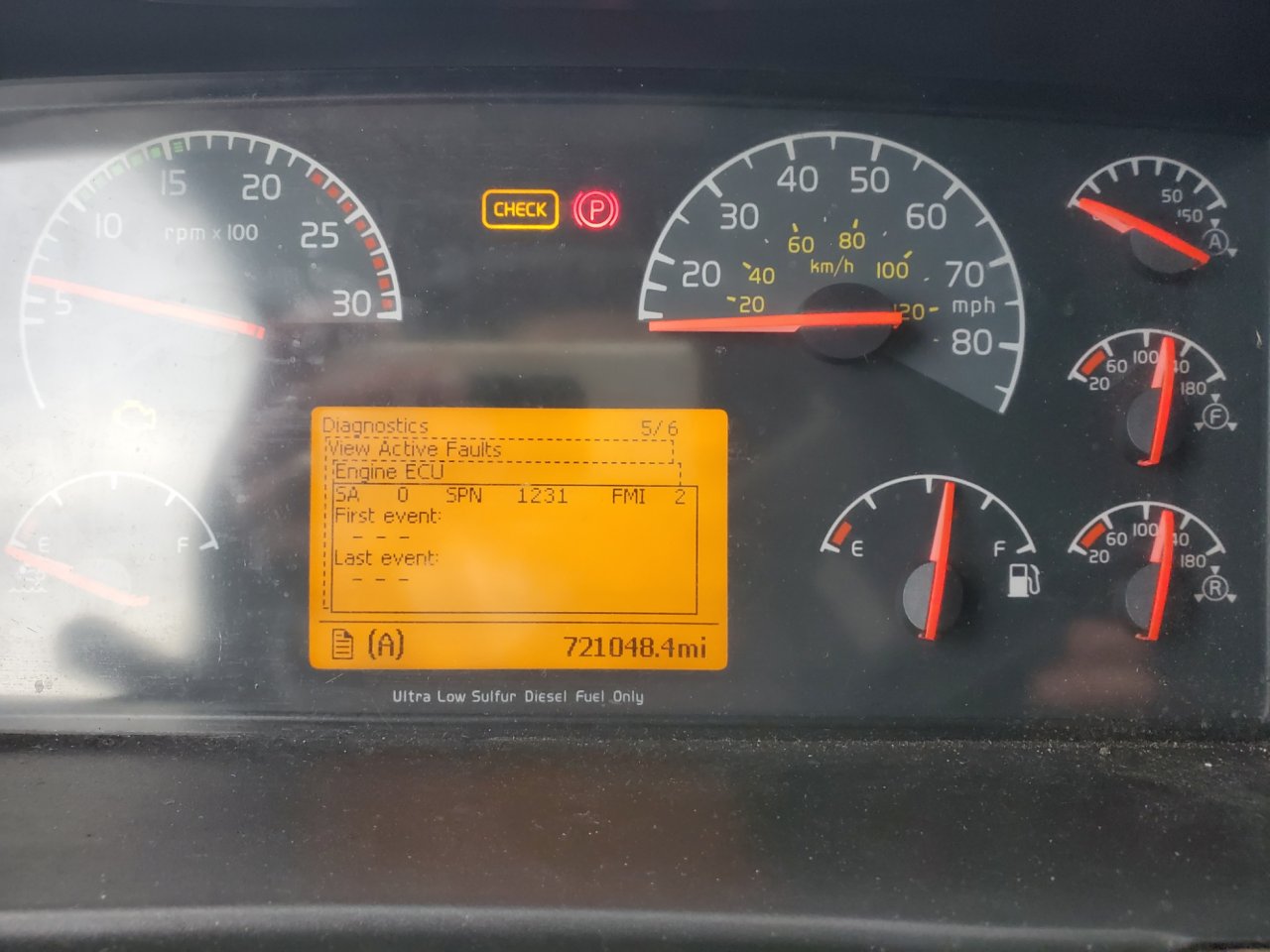

    SPN 1231 FMI 2
    SPN 1231 FMI 9

    Anyone has any ideas what to check next?


    Attached Files:

    djomla89, Dec 26, 2020
    djomla89, Dec 26, 2020
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dec 26, 2020 #2
    Scooter Jones

    Scooter Jones Road Train Member

    9,551
    19,970
    Apr 19, 2011
    0
    I know this probably sounds elementary and basic, but did you try and disconnect the batteries and then reconnecting? Sometimes if the voltage gets low, for whatever reason, it will stack up codes like that.

    Scooter Jones, Dec 26, 2020
    Scooter Jones, Dec 26, 2020
    #2
  4. Dec 26, 2020 #3
    djomla89

    djomla89 Bobtail Member

    21
    16
    Jan 25, 2019
    0
    Yeah. I tried that several times, while I was cleaning all connectors and also batteries where disconnected overnight.

    djomla89, Dec 26, 2020
    djomla89, Dec 26, 2020
    #3
    Scooter Jones Thanks this.
  5. Dec 28, 2020 #4
    6cuda6

    6cuda6 Light Load Member

    259
    174
    Oct 9, 2020
    0
    Try clearing them using the dash and see what comes back.....that many codes at once means usually "a chain effect" were one code causes a whole bunch to follow.

    Id have to look up the codes to see what they are but give the above a shot first....

    6cuda6, Dec 28, 2020
    6cuda6, Dec 28, 2020
    #4
  7. Dec 28, 2020 #5
    djomla89

    djomla89 Bobtail Member

    21
    16
    Jan 25, 2019
    0
    We tried that, all codes except transmission are coming back

    djomla89, Dec 28, 2020
    djomla89, Dec 28, 2020
    #5
  8. Jan 23, 2021 #6
    mobilerepairboise

    mobilerepairboise Light Load Member

    61
    42
    Jul 10, 2018
    Boise Idaho
    0
    Wire harness

    mobilerepairboise, Jan 23, 2021
    mobilerepairboise, Jan 23, 2021
    #6
    slow.rider, JJ 501 and djomla89 Thank this.
  9. Jan 23, 2021 #7
    djomla89

    djomla89 Bobtail Member

    21
    16
    Jan 25, 2019
    0
    Correct. Positive wire on main harness from nox was was damaged and touching the frame. Problem solved

    djomla89, Jan 23, 2021
    djomla89, Jan 23, 2021
    #7
  10. Jan 24, 2021 #8
    mobilerepairboise

    mobilerepairboise Light Load Member

    61
    42
    Jul 10, 2018
    Boise Idaho
    0
    Yep most of the def problems in Volvo is wire harness. I work on them every day 99% of trucks I work on is Volvo 2011 and up. When u see a lot of codes like in ur case that’s 100% harness

    mobilerepairboise, Jan 24, 2021
    mobilerepairboise, Jan 24, 2021
    #8
    slow.rider and djomla89 Thank this.
  11. Apr 14, 2022 #9
    CJ252

    CJ252 Bobtail Member

    11
    3
    Nov 15, 2021
    0
    My Volvo has low voltage and idles rough. Checked the batteries and alternator and everything came out fine. They thought it was the started saying it was a bad/corroded starter solenoid/wires. Got it fixed and still having the same problem. Seems like nobody knows what the problem is

    CJ252, Apr 14, 2022
    CJ252, Apr 14, 2022
    #9
