W900 n14 celect

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Jdw900, Apr 24, 2021.

Page 2 of 2
  1. Apr 25, 2021 #11
    Final Drive

    Final Drive Road Train Member

    1,573
    2,505
    Jan 21, 2015
    0
    That's what I'm thinking the Temp. For ECM

    Final Drive, Apr 25, 2021
    Final Drive, Apr 25, 2021
    #11
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Apr 26, 2021 #12
    spsauerland

    spsauerland Road Train Member

    4,296
    10,886
    May 31, 2010
    West Harrison, In
    0

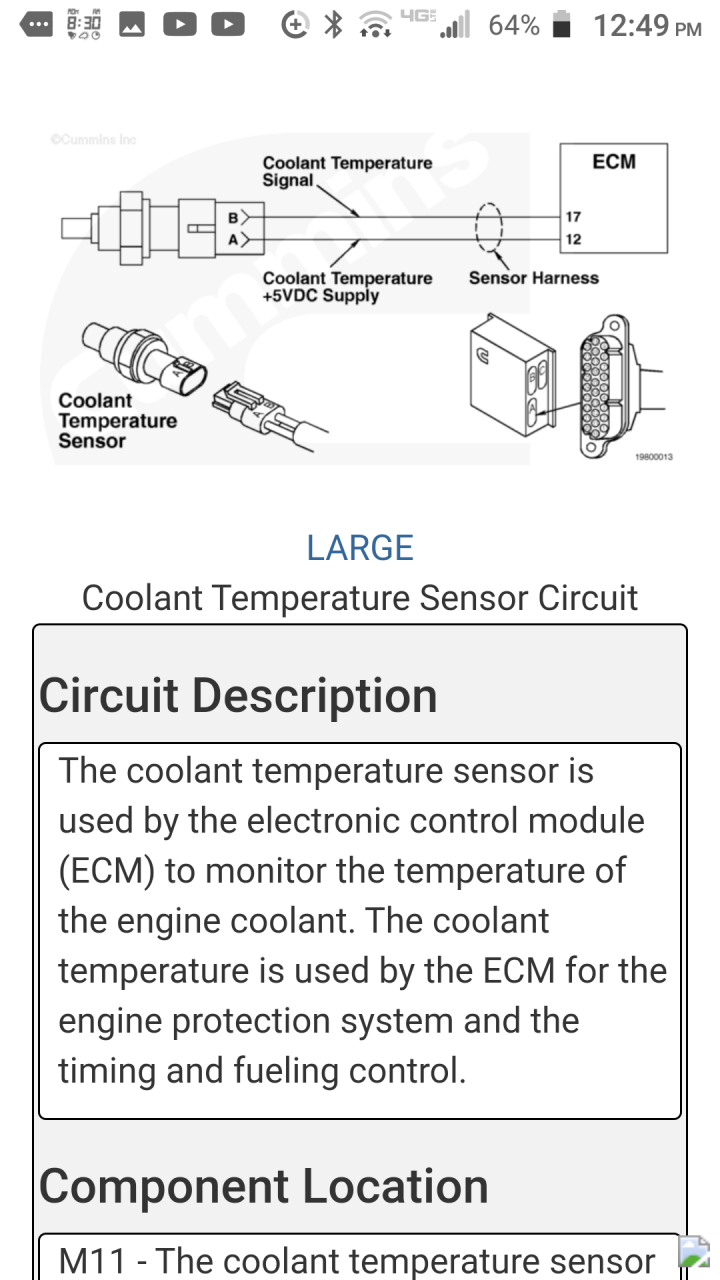

    Sorry for being late to the party, but here is the information that I know. Coolant temp sensor is a 5V two wire thermistor. Screenshot_20210426-124942.png

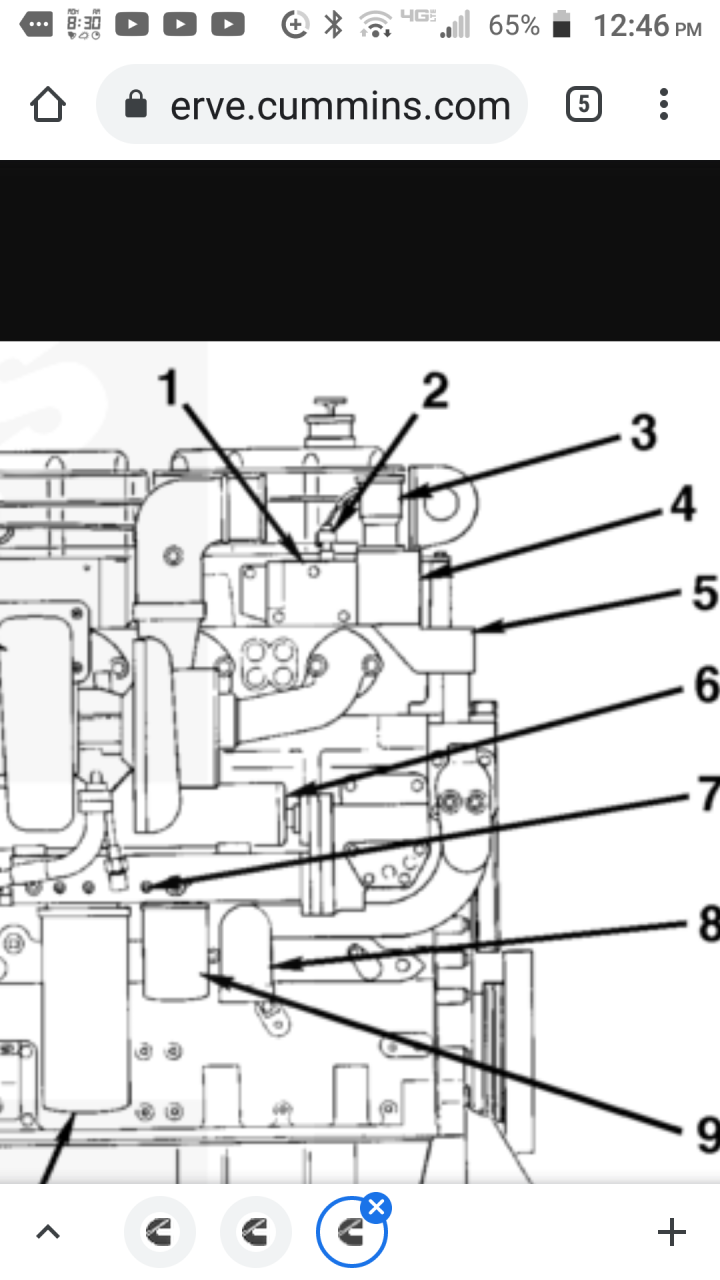

    On the N14, the sensor is located on thermostat housing, item #2. Screenshot_20210426-124617.png
    As far as connecting with scan tool, good luck finding an adapter! Celect used a two pin weather pack to connect to datalink. I not sure if anyone sells an adapter anymore. Most just flashed out codes. Truck had a switch to flash faults or you had to short a plug.

    spsauerland, Apr 26, 2021
    spsauerland, Apr 26, 2021
    #12
    mile marker 27, BoxCarKidd and 062 Thank this.
  4. Apr 27, 2021 #13
    Jdw900

    Jdw900 Bobtail Member

    16
    4
    Jan 19, 2021
    0
    Ok so I have check voltage to temp sensor and everything seems ok I checked the vent breathers on fuel tank and fuel sending unit and everything is good. I went for a ride yesterday and I notice oil pressure is staying put at 20 psi when truck is doing 1500 rpms so next step will be change oil pump. I don’t think that’s the issue but I have to do it either way

    Jdw900, Apr 27, 2021
    Jdw900, Apr 27, 2021
    #13
  5. Apr 27, 2021 #14
    BoxCarKidd

    BoxCarKidd Road Train Member

    4,428
    6,461
    Aug 26, 2014
    0
    We got a six pin and wired it in for the Pro Link. We studied on it for a while but hate I did not keep notes.

    BoxCarKidd, Apr 27, 2021
    BoxCarKidd, Apr 27, 2021
    #14
    spsauerland Thanks this.
  7. May 4, 2021 #15
    Jdw900

    Jdw900 Bobtail Member

    16
    4
    Jan 19, 2021
    0
    Finally got it fix truck was loosing power due to oil pump not being able to pick enough pressure at 180f so did an oil change and that fix the derate problem then truck didn’t want to boost over 20 Psi so I looked for the switch to flash code and founded flash them codes and I got 222 ambient pressure sensor check the harnes and everything was good so I went to Cummins for a new sensor and I had to get a pig tail for the new sensor because they updated tha sensor so conector are not the same Cummins sensor #4359572
    Pig tail #4384743

    Jdw900, May 4, 2021
    Jdw900, May 4, 2021
    #15
    BoxCarKidd Thanks this.
