W900L Front Springs

Discussion in 'Kenworth Forum' started by Asanchez, Mar 1, 2024.

  1. Asanchez

    Asanchez Bobtail Member

    11
    5
    May 17, 2020
    0
    Has anybody swapped from a 4 spring front spring to 2 spring set up? Looking to get a better ride. Truck is a 1996 W900L pulling end dump got on the scale and front axle weighed about 9800 pounds loaded

    Also any advice about dealing srping hangers to K100 would be appreciated

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. MM71

    MM71 Heavy Load Member

    753
    973
    Jun 28, 2008
    AZ
    0
    I changed out to 3 leaf packs when sag warranted replacement on mine. I'm happy with them. Dont know what you run for rubber. But if you want a better ride, top tier steer tires like michelins and the taller the rubber the better for ride quality. Love me some 11r24.5 16ply Michelin X Line Energy Z steers

    Asanchez Thanks this.
  4. Asanchez

    Asanchez Bobtail Member

    11
    5
    May 17, 2020
    0
    I run the same brand except for low pro 24.5. Do you by chance have a part number or picture of the 3 leaf?

  5. Vampire

    Vampire Medium Load Member

    633
    17,032
    May 14, 2011
    Transylvania
    0
    For your w900…Best ride would be air ride front end. If you want a better turning radius, swap in a wide track front axle. Be sure to put in the updated spring hangers as well.

    Wide track Front axle: Meritor MFS+ 12k or 13,2k

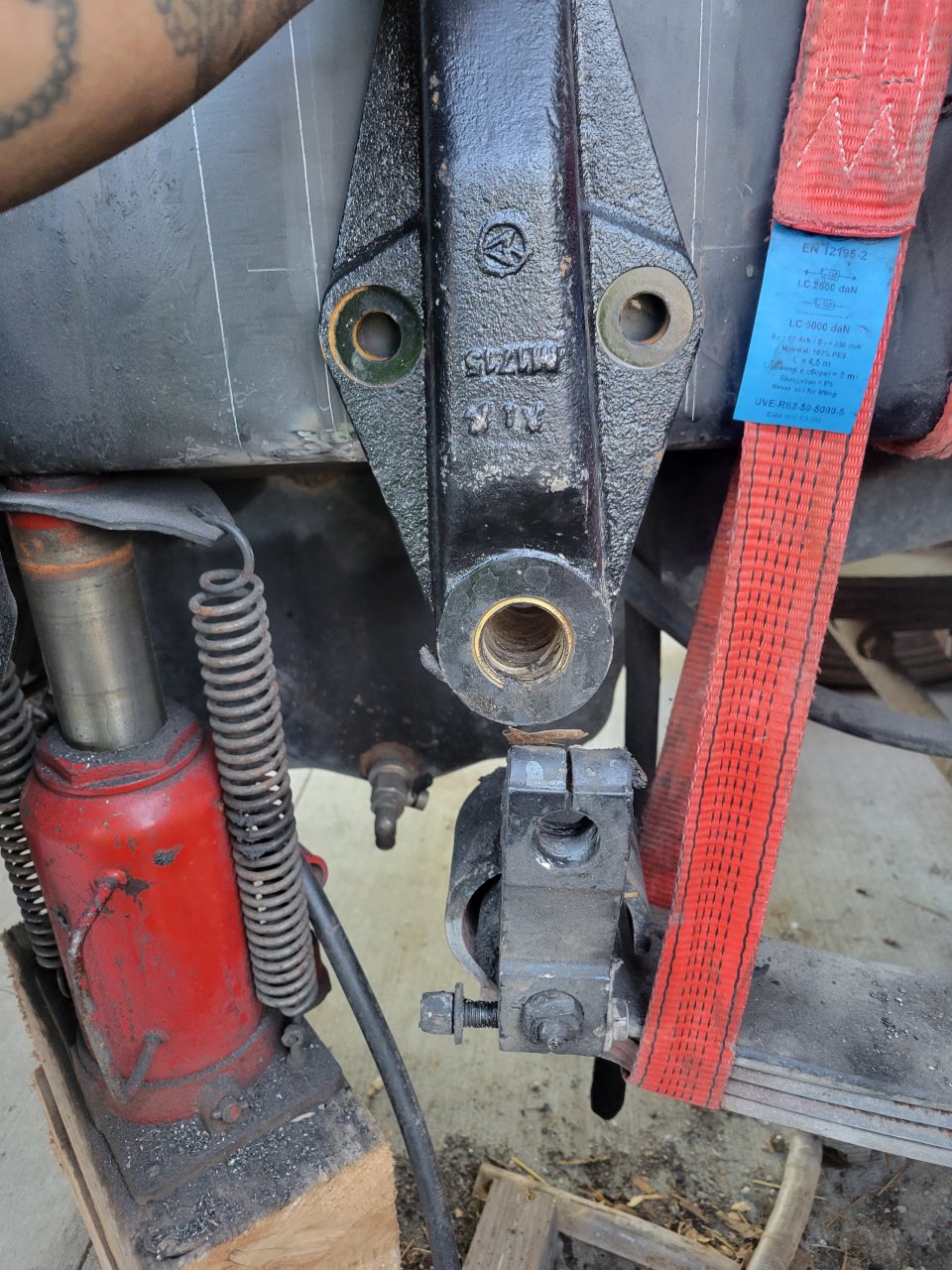

    Updated rear of front Spring hangers (mechanic will have to drill new holes in frame. It’s worth it…throw out that old spring hanger, as they are the source of cracked frames…there’s a reason they updated to the one below):
    [​IMG]

    BESTfit Steel Shackle Hanger Cast #B11-1033 Replaces B11-10347 For Kenworth

    There’s a bunch of air ride kits out there. Some are cheap and problematic. Others are well built. The updated 12 gauge kits are much beefier. People had issues with their previous kits. But, which one you choose is up to you. Just don’t cheap out on it.

    Good luck.

    Last Call and Asanchez Thank this.
  6. lester

    lester Midwest's #1 Feed Hauler

    2,811
    7,459
    Jan 2, 2012
    NW, Iowa
    0
    are you not maxing out your gross weight when loaded? Or why are you running your front so light?

    Vampire Thanks this.
  7. Asanchez

    Asanchez Bobtail Member

    11
    5
    May 17, 2020
    0
    That’s usually how this truck has always scaled sometimes a little bit over 10k. Usually carrying 84,000

    Vampire Thanks this.
  8. Asanchez

    Asanchez Bobtail Member

    11
    5
    May 17, 2020
    0
    T
    Thank you I’ll check them out

    Vampire Thanks this.
  9. Asanchez

    Asanchez Bobtail Member

    11
    5
    May 17, 2020
    0
    I mean weighing 84,000 not carrying

    Vampire Thanks this.
