Walking beam suspension allowance

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Mr79W900A, Jul 24, 2021.

  1. Mr79W900A

    Mr79W900A Light Load Member

    89
    58
    Mar 4, 2019
    British Columbia
    0

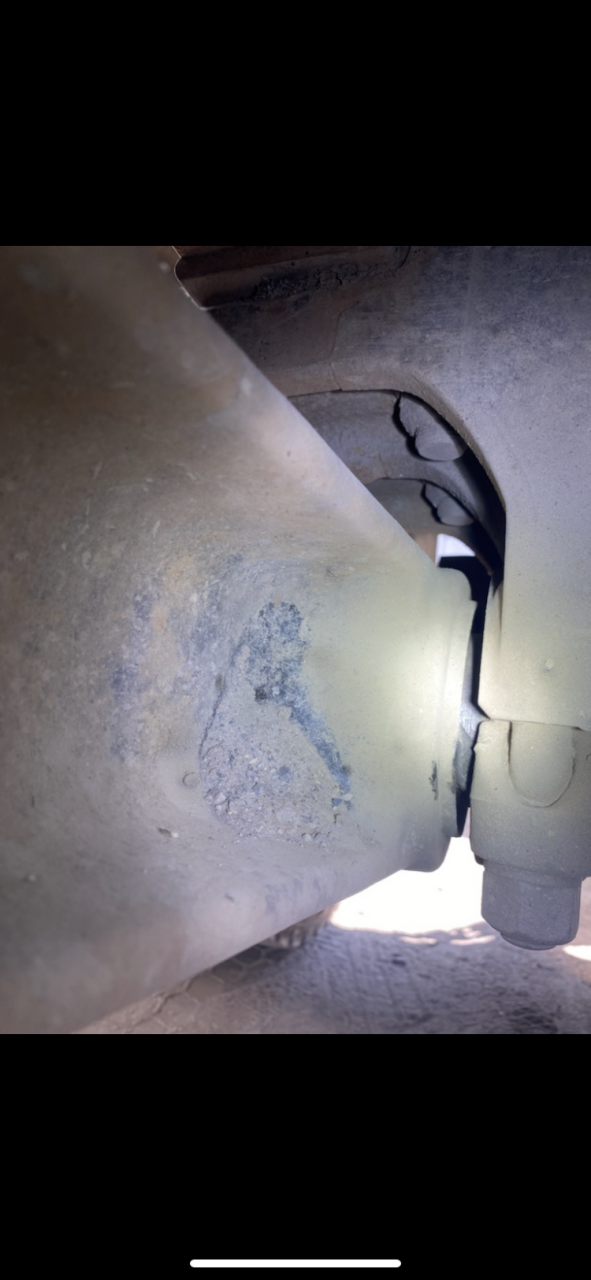

    88E73770-BAED-43F8-A5A6-13467760987B.png Hey guys I got my truck in the shop for cvi and they are calling the walking beam saying center pounded out and outside ends weather cracked. But the suspension doesn’t walk more than a half tire out loaded still... are these not allowed to crack as long as they are in tolerance?? That was my understanding. Shop seems not experienced as I explained this to them. Here’s a pic they sent.

    jamespmack and Flint1 Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Oxbow

    Oxbow Road Train Member

    6,606
    76,886
    Nov 24, 2015
    Idaho
    0
    On mine the bushings are weather-checked on the outside but still in place, and it walks out a bit when turning loaded. I would think the only way to disqualify them would be to measure walkout, but I have no idea how much would be allowed.

    There probably aren't many shops that deal with them anymore, but I don't think they are terribly expensive to have re-bushed if you think you might be getting close anyway.

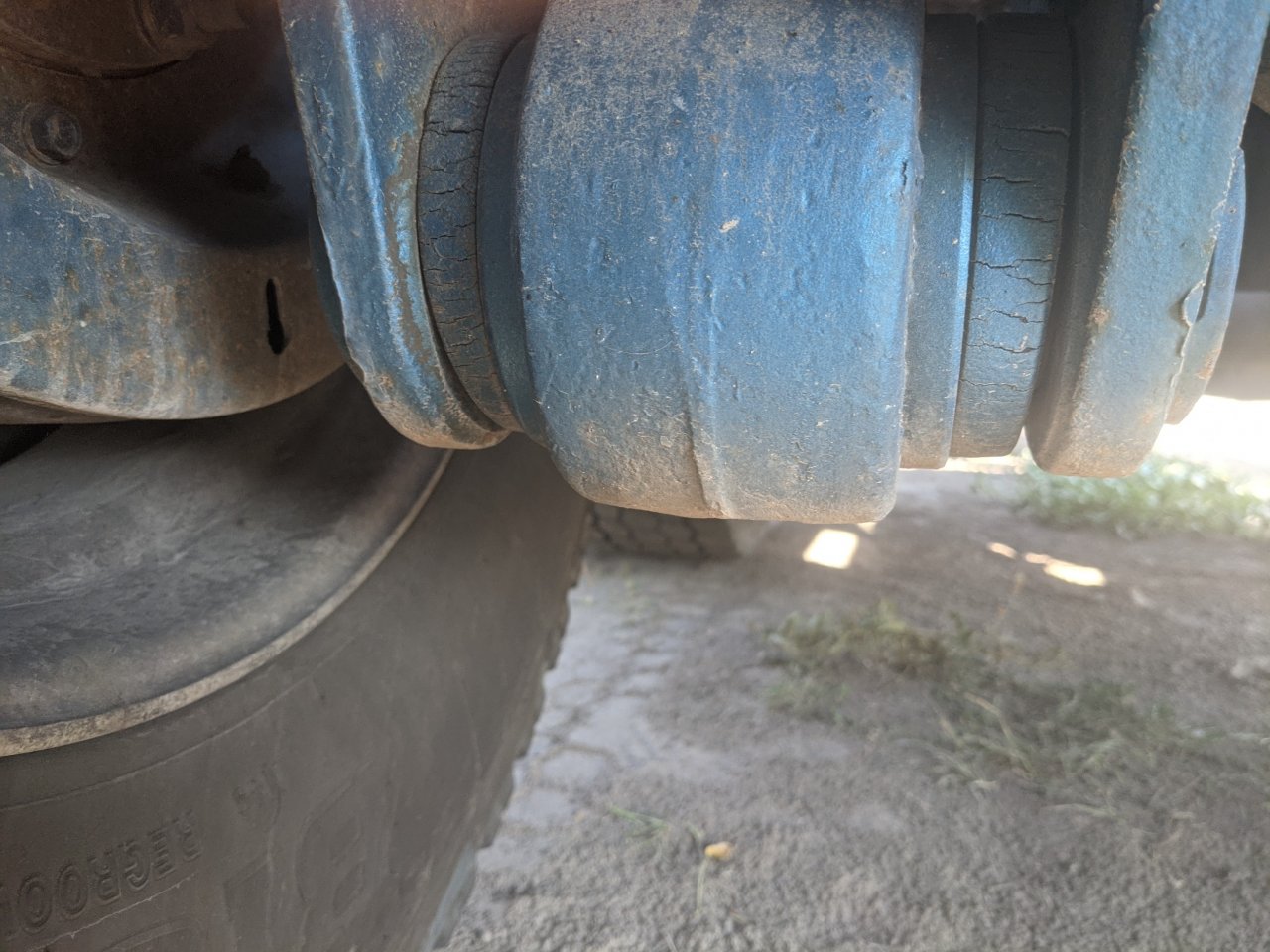

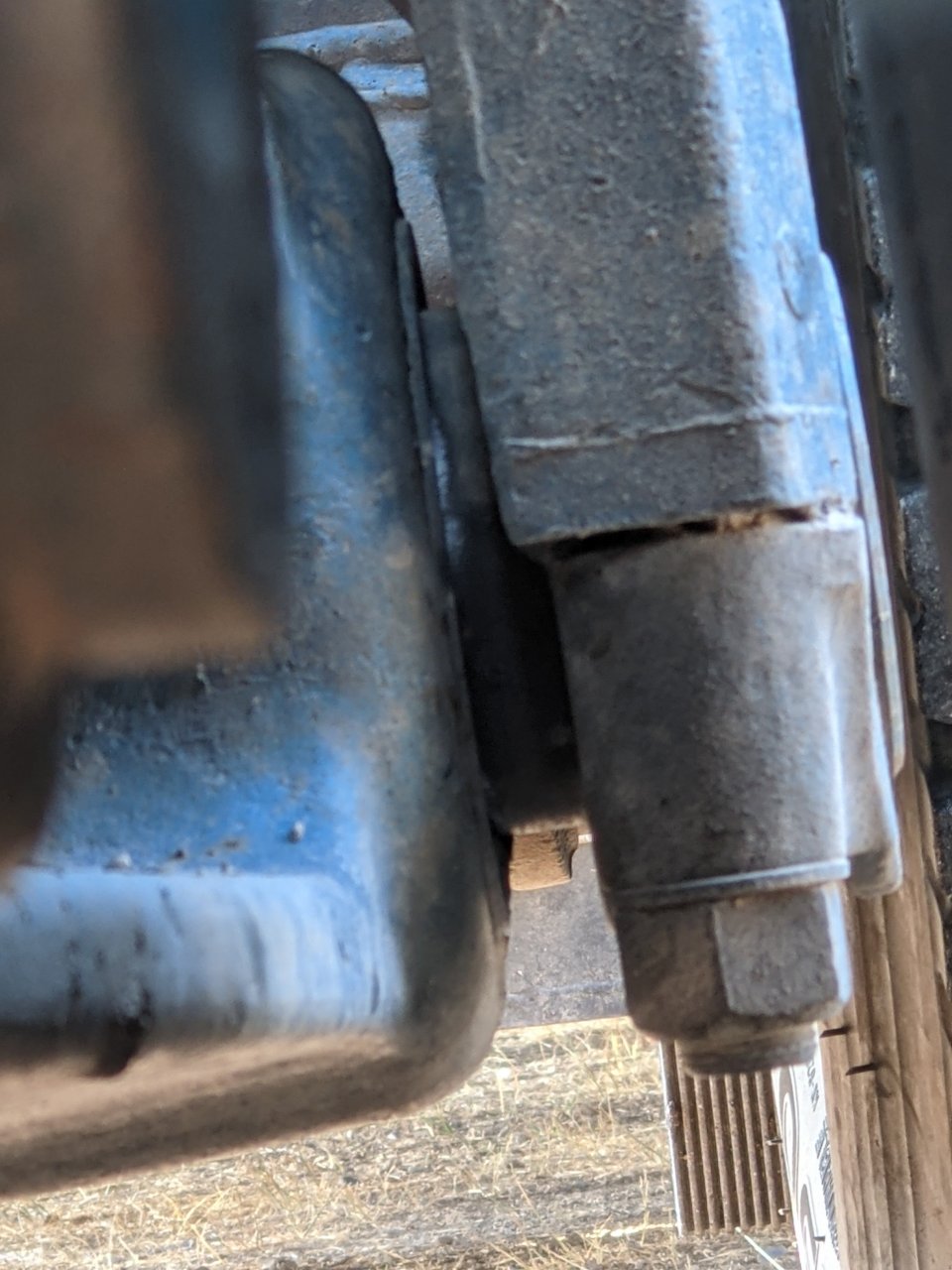

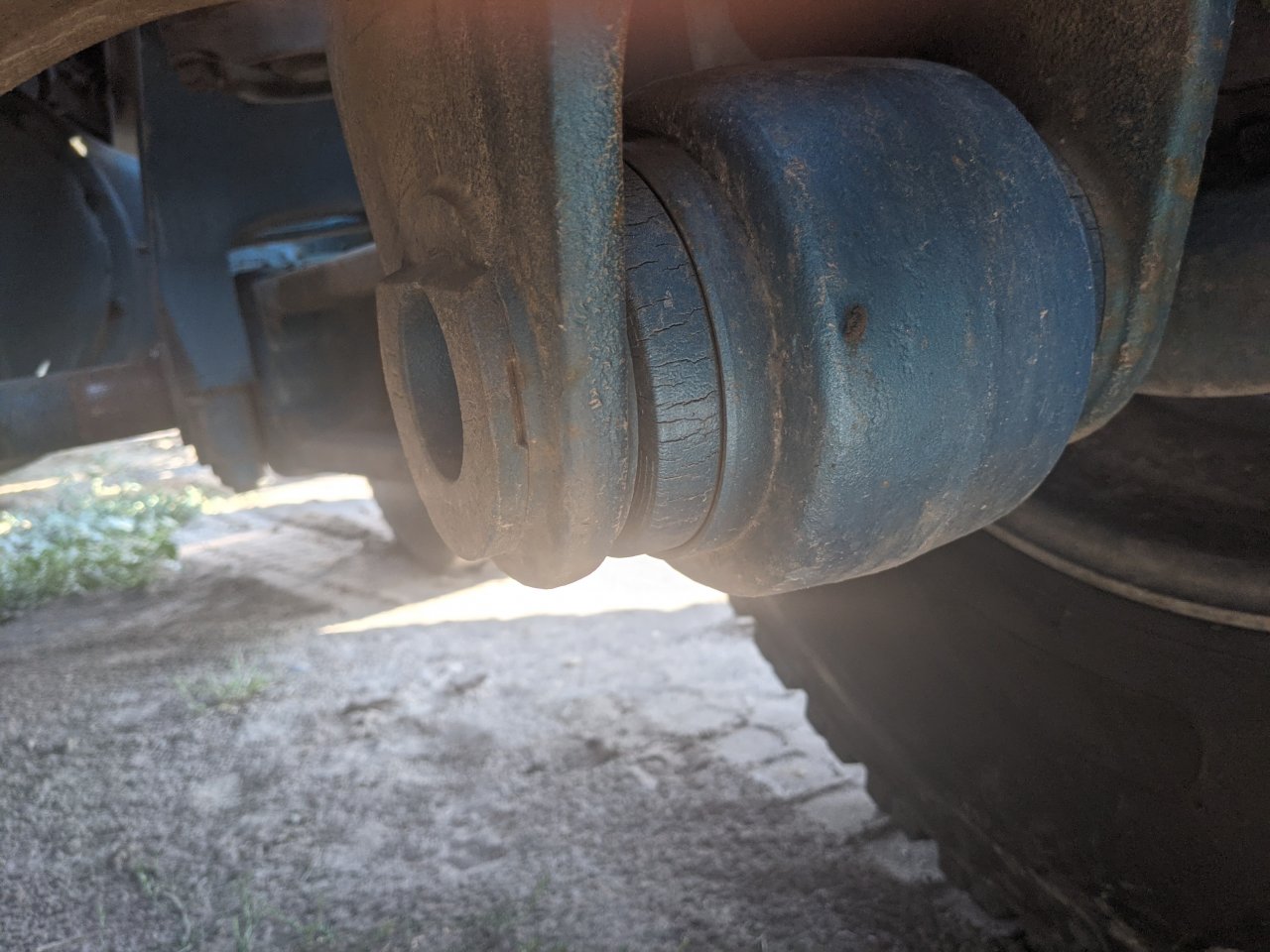

    I'll run out and take some photos of mine for comparison.

    Mr79W900A Thanks this.
  4. Oxbow

    Oxbow Road Train Member

    6,606
    76,886
    Nov 24, 2015
    Idaho
    0
  5. Oxbow

    Oxbow Road Train Member

    6,606
    76,886
    Nov 24, 2015
    Idaho
    0
    Goodysnap, AModelCat and IH Truck Guy Thank this.
  6. Slowpoke KW

    Slowpoke KW Road Train Member

    1,105
    12,586
    Dec 7, 2015
    OK
    0
    I don’t know the specifics of a walking beam but I have found that some folks see cracking in rubber bushings and automatically say it’s bad until they are forced to check for movement then find none.

  7. AModelCat

    AModelCat Road Train Member

    22,169
    103,615
    Jul 7, 2015
    Canuckistan
    0
    I wouldn't call weather cracking like in Oxbow's picture a big deal. Now pounded out and sloppy is another thing.

    Flint1 and Oxbow Thank this.
  8. AModelCat

    AModelCat Road Train Member

    22,169
    103,615
    Jul 7, 2015
    Canuckistan
    0
    I'm not even sure where my old books ended up. They'd have some good information. Might have been lost when I moved :(

    Mr79W900A, Flint1 and Oxbow Thank this.
  9. IH Truck Guy

    IH Truck Guy Road Train Member

    2,276
    25,462
    Mar 2, 2008
    Purgatory
    0
    Yous guys should get gold medals for driving them rough riding trucks. :D:D

  10. Oxbow

    Oxbow Road Train Member

    6,606
    76,886
    Nov 24, 2015
    Idaho
    0
    With 55k on the drives it's not bad!

    Empty on washboards is a different story.

  11. Flint1

    Flint1 Medium Load Member

    591
    4,885
    Sep 4, 2019
    Alberta
    0
    Here is a screenshot of the most current Alberta cvi manual regarding walking beams. As I read it you are allowed 7mm clearance on the cross tube bushing.

    I'm not sure about bc, but alberta cvi manuals are a free download from service alberta.
