What DVR multi channel camera system options are out there that use standard video format?

Discussion in 'Trucking Electronics, Gadgets and Software Forum' started by Green461, Aug 29, 2020.

  1. Green461

    Green461 Light Load Member

    72
    31
    Mar 22, 2019
    Southern WI
    0
    Hello.. I shopped around quite a bit.. Looking for a 4 camera system with a DVR and within $200-$300, Found several, some Amazon ones "Joinlgo" brand but from what ive read they record in their own proprietary format and need their software to view and transferring is inaccurate. A lot of other ones dont say what format it records in. I want to be able to use my own software to edit it, and even put it on youtube if needed.

    I see some places making them for trucks and looks to be the same cheap china stuff but the price is multiplied by 4.
    Any reasonable systems out there? Or just the DVR? I can piece the system together myself but easier to buy a kit. No need for high dollar cameras and NASA approved parts or really anything beyond 720 is unneeded. Simple camera system with a large DVR.
    Thanks.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Snailexpress

    Snailexpress Road Train Member

    1,988
    3,554
    Apr 28, 2014
    0
    Check ebay 7"LCD 4CH Car Mobile DVR Recorder with 4 IR Light Vision Camera and Cable #USA | eBay

  4. Snailexpress

    Snailexpress Road Train Member

    1,988
    3,554
    Apr 28, 2014
    0
    Some soldering skills required to do installation as camera cables connectors need to be cut to pull thru the holes or door. Then you need to solder wires back.
    Recording format is h264 means advanced video file compression to store more video data. All CCTV systems use h264 codec.
    Converter software is free and widely available. You can search video and convert to MP4 files.
    Didn't noticed any changes with original file.

    Last edited: Aug 29, 2020
  5. Banker

    Banker Road Train Member

    2,251
    4,729
    Aug 19, 2012
    0
    I don’t have a recommendation in the $200-$300 range. I purchased a 4 camera system at the Mid American Truck Show about 4 years ago for roughly $500. It was from Roadmate and did very well until recently. One of the video output connections jarred loose from the DVR rendering the system inoperable. I probably could have fixed it but I got my money’s worth from the system. I also went from a 7” monitor to a 9” monitor and it is much better when viewing four cameras at once. I replaced it with a system from Falcon Electronics. It seems to be very similar but the connector that went bad on the old system is heavier constructed on this system. I feel the price range is very worthwhile as several years ago I was sideswiped. I received $21,000 in loss of use pay while my rig was in the body shop due only to the video evidence I had in hand. The Amazon system may have worked, but I am not taking the cheap route when it comes to cameras for my rig. Both of the systems I have the SD card is downloaded on the computer and the footage can be accessed for free.
    On a side note I didn’t need to cut any of the cables during installation. I used a hole saw large enough to run the connector and all of the cables through the firewall and then used silicon to seal the hole when I was finished. I have also learned that it is important to put 3-1 heat shrink over the connectors. They are water proof, but after a year or so moisture does still get in and will ruin the connector if you let it go due to corrosion. Dialectric grease does not work on the inside of the connector as the signal won’t go through, but can be used on the outside to keep moisture out. If one camera starts to act up, use electrical connector cleaner to clean up the connection and reseal it to extend the life of it.

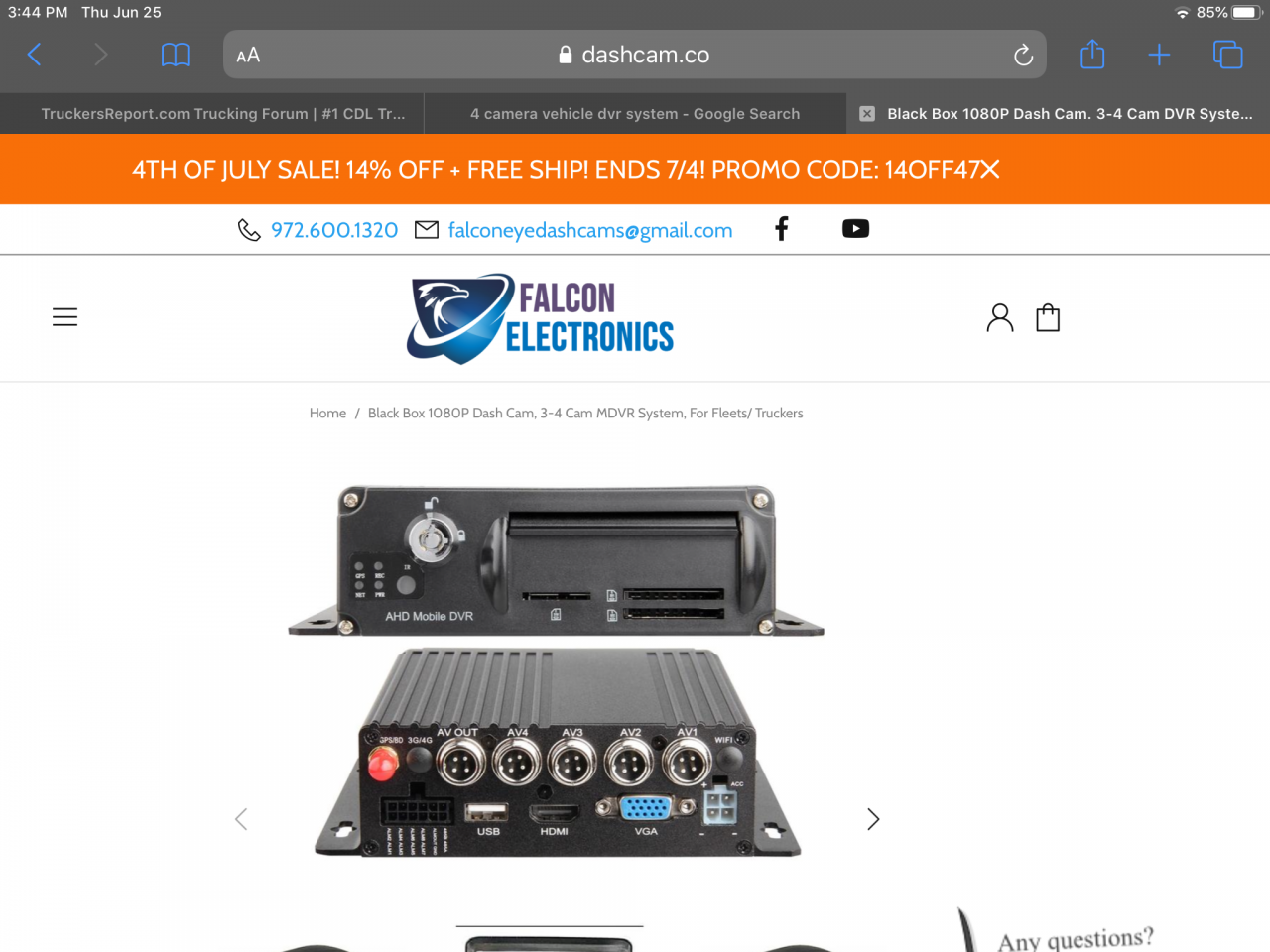

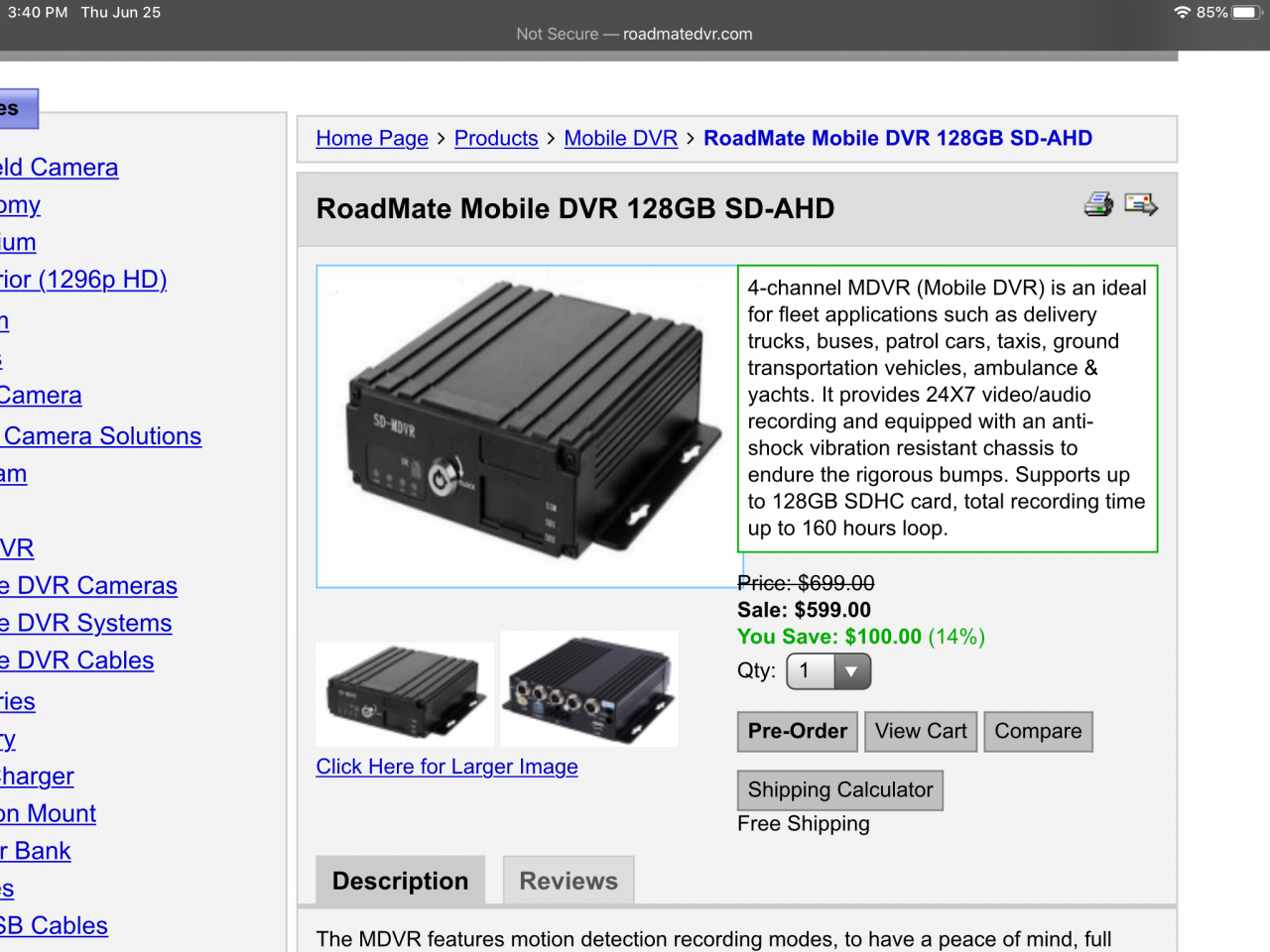

    5EE47495-E201-4FD3-B75E-3CB1DD0FC521.png D5C5070A-1F44-4EDE-96A3-3C3ED9199474.png

    Last edited: Aug 29, 2020
    JonJon78 Thanks this.
  6. Banker

    Banker Road Train Member

    2,251
    4,729
    Aug 19, 2012
    0

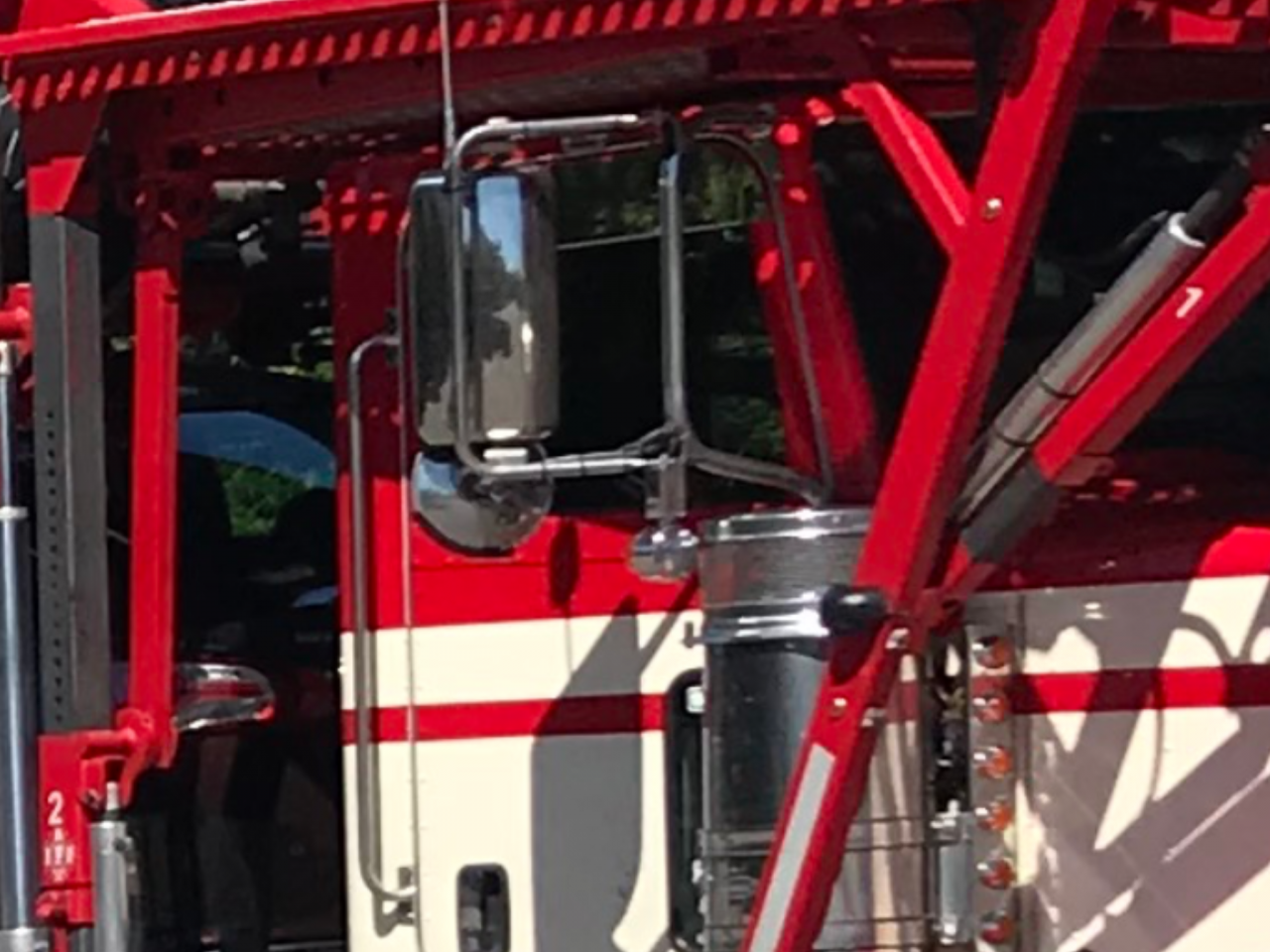

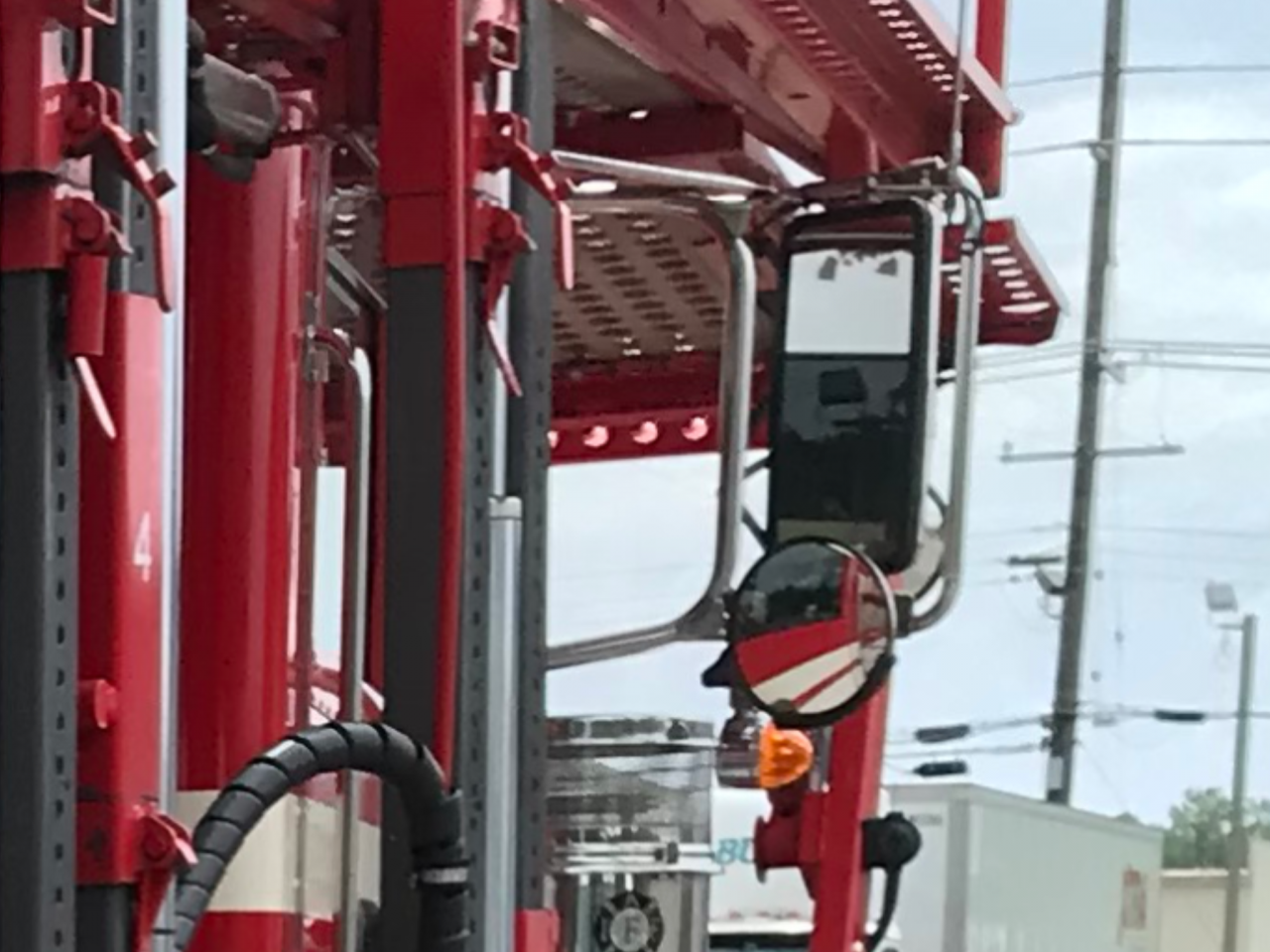

    My side cameras are mounted on the post near the air cleaners. For a normal rig you will find another place as far forward as possible to get the best side view. 7BC57615-C931-453C-BBCE-B76395FC4C78.png 07030D76-F8E0-4722-BCF0-D83A87590C92.png

    JonJon78 Thanks this.
  7. bigguns

    bigguns Road Train Member

    2,616
    6,269
    Jun 13, 2013
    Omega,GA
    0
    I may have missed it. Which system did you buy: Roadmate or Falcon? Thank you

  8. bigguns

    bigguns Road Train Member

    2,616
    6,269
    Jun 13, 2013
    Omega,GA
    0
    Never mind. Rereading your post I see it now. Duh

    Banker Thanks this.
  9. zaroba

    zaroba Medium Load Member

    584
    779
    Aug 28, 2012
    South East PA
    0
    I have a joinlgo 4 camera system.
    The format isn't too bad, they use...I think it is ogm. It will play in any media player that supports it but not properly, it constantly hesitates. Their program is free and easy to download.

    I think it has to do with the video formatting. While each camera does produce a separate video file, their software let's you view all the camera's footage at once as if you were watching it live with the ability to watch multiple cameras or a single camera.

    Although the brand does seem like it's on the low budget end of the spectrum. Higher end multi camera systems can cost over a thousand dollars.

  10. Green461

    Green461 Light Load Member

    72
    31
    Mar 22, 2019
    Southern WI
    0
    Or if what dash cam will last? Ive gotten a few different ones in the past 5 years, they all go to #### and are unreliable, the micro-SD cards all start to fail. Just wanted to review something in my current one which appeared to be working and nope... videos are all from 2 years ago lol. A dash camera with 2 cams in it or 2 angles would be good.
    My 4 cam DVR system for my house is 4 years old, was only $300. records in 1080 and can access on my phone anywhere... someone needs to come up with a 12v system like that. If it was as good as my house one even 400-500 is alright..

  11. JonJon78

    JonJon78 Road Train Member

    4,415
    20,182
    Jul 1, 2018
    0
    When it snows/rains how is the picture from those outside cameras?

    Does the snow/ice build up on them blocking the camera completely?
