What kind of ac compressor is this, need to replace it? (pics)

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by nikmirbre, May 26, 2022.

  1. Rideandrepair

    Rideandrepair Road Train Member

    16,456
    53,779
    Aug 8, 2015
    0
    You may need a 4 digit # starting with 4. I can’t find my catalog. MEI may be able to help. I can get the 4 digit # off mine if needed. I’m home. Let Me know. No problem.

    D.Tibbitt Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Rideandrepair

    Rideandrepair Road Train Member

    16,456
    53,779
    Aug 8, 2015
    0
    Same as newer Freightliners. I upgraded mine to those type, so I could use that compressor.

    D.Tibbitt Thanks this.
  4. nikmirbre

    nikmirbre Road Train Member

    5,034
    8,644
    Jul 27, 2011
    High Point NC
    0

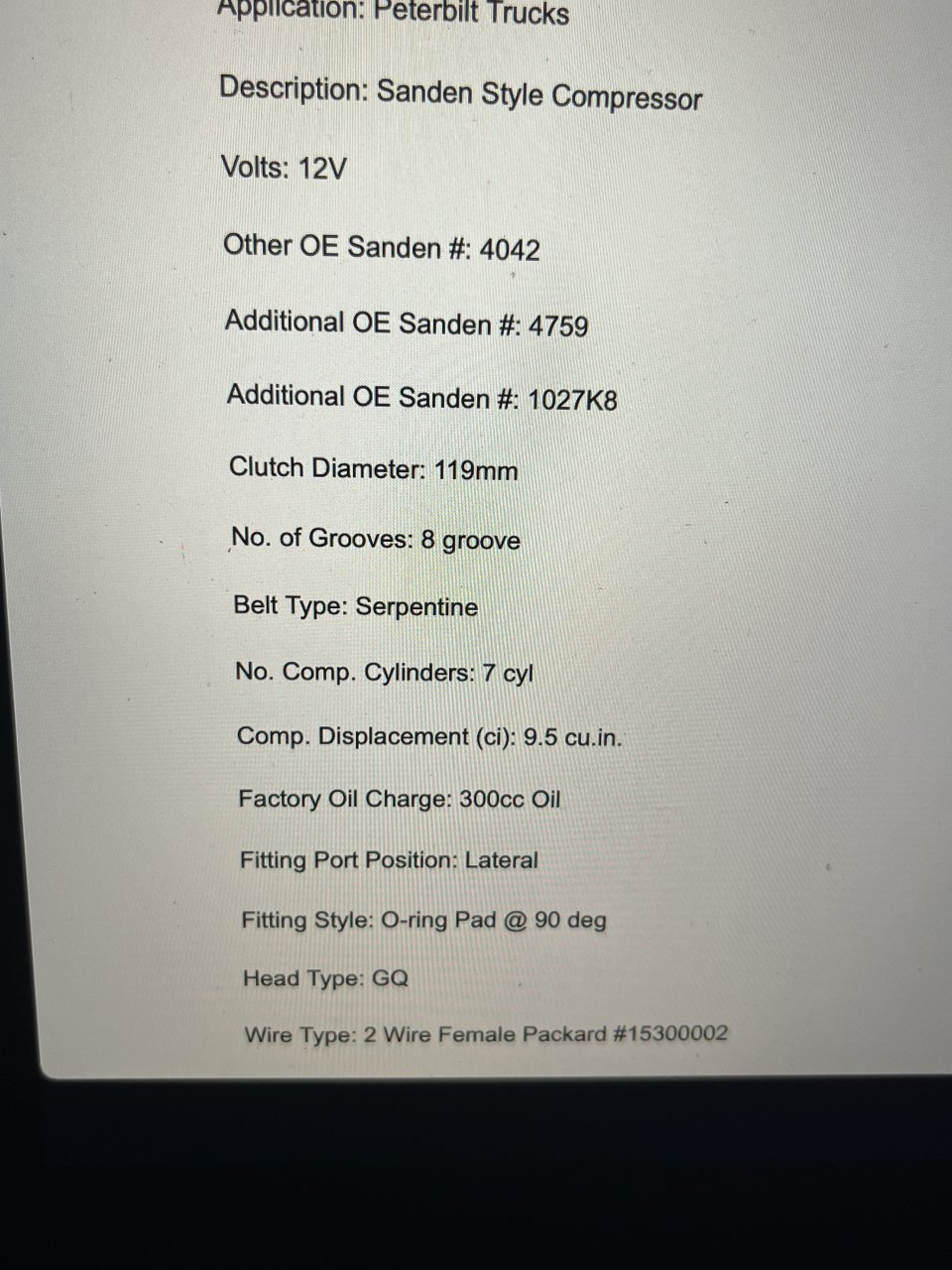

    This is from the site that @skallgrime sent me B4BA9256-E16E-4957-B30F-74375DF7F065.jpeg

    D.Tibbitt and Rideandrepair Thank this.
  5. Rideandrepair

    Rideandrepair Road Train Member

    16,456
    53,779
    Aug 8, 2015
    0
    Need to make sure the lines fit the head. Yours should have letters on the head, GV or GH or ?? ( for example ) Different heads different lines. Looks like the same pad mount as mine. There’s slim line, PK, and o ring types.

    BoxCarKidd, D.Tibbitt and nikmirbre Thank this.
  6. nikmirbre

    nikmirbre Road Train Member

    5,034
    8,644
    Jul 27, 2011
    High Point NC
    0
    Ill have to look in the morning....but the picture I took above the part number is 03-1404s. which is listed on the picture you sent. I also found the 03-0609s on that site also

    Last edited: May 26, 2022
    Rideandrepair Thanks this.
  7. nikmirbre

    nikmirbre Road Train Member

    5,034
    8,644
    Jul 27, 2011
    High Point NC
    0
    I took a picture earlier....it says GQ on it.

    Edit to add....

    The 03-0609s the lines go into the back of the head. I need them on top

    Rideandrepair Thanks this.
  8. Rideandrepair

    Rideandrepair Road Train Member

    16,456
    53,779
    Aug 8, 2015
    0

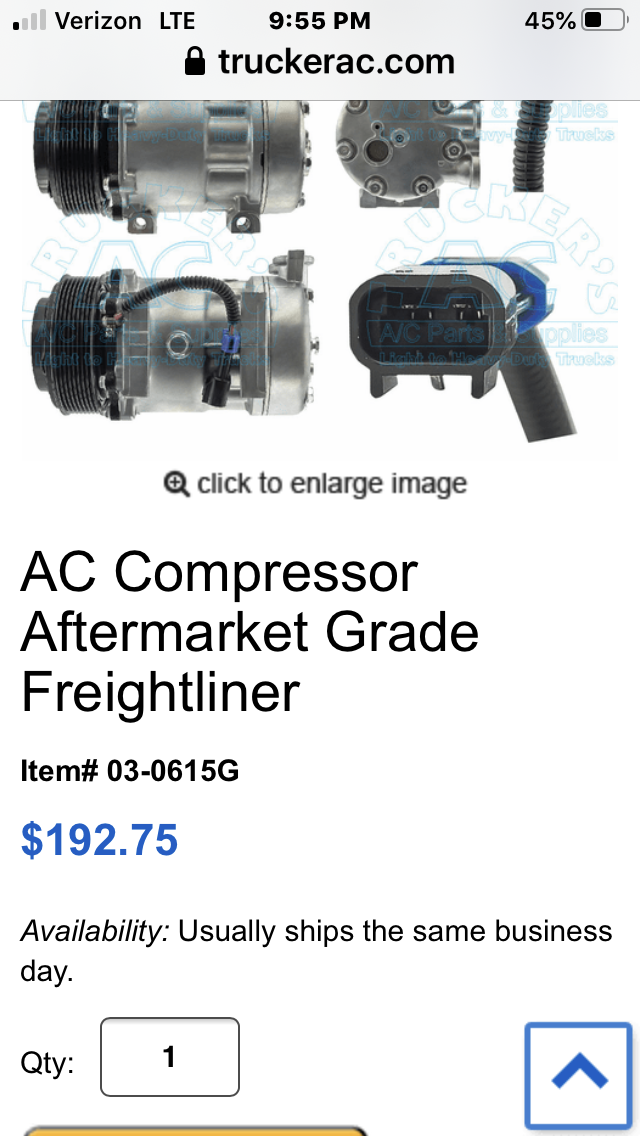

    A7EF182B-73C8-47C0-9B2E-33E2246D25F9.png My guess would be this one. But definitely double check. Get the letters from the head. Looks like they all have the clutch fused now. I’d ask about that. They all say diode protected, only the last one says diode and fused. Fused clutch will save some grief if compressor ever locks up.

  9. Rideandrepair

    Rideandrepair Road Train Member

    16,456
    53,779
    Aug 8, 2015
    0
    I’ll look again at the site for the 0609. If all things are equal, lines, plug, clutch etc. Basically a 300cc 119mm 8 groove clutch, 7 piston with same wires and lines.

  10. nikmirbre

    nikmirbre Road Train Member

    5,034
    8,644
    Jul 27, 2011
    High Point NC
    0
    It looks like the 03-1404s is the one.

    Rideandrepair Thanks this.
  11. nikmirbre

    nikmirbre Road Train Member

    5,034
    8,644
    Jul 27, 2011
    High Point NC
    0
    Im not sure if it makes a difference but the one you sent above doesn't have the GQ on the back one the head.

    The 03-1404s does have GQ on the back of the head.

    Rideandrepair Thanks this.
