Where is the CDC locatated? I have issues

Discussion in 'Freightliner Forum' started by 77fib77, Aug 27, 2020.

  1. 77fib77

    77fib77 Road Train Member

    10,589
    66,498
    Jul 7, 2010
    St Louis
    0
    I unplugged the switches in the sleeper. It works fine now. Supposedly if switches get wet from AC and stupid humidity this can happen. It's run fine all day.

    Fu1304. My last 6.

    Last edited: Aug 28, 2020
    RocketyMan and nikmirbre Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. RocketyMan

    RocketyMan Medium Load Member

    549
    336
    Jun 5, 2015
    0
    Yes! That is a very common issue due to the rear HVAC. You can easily disconnect the slave MSF and inspect for any corrosion on the tiny pins. The connector can become compromised as well. Might be able to clean off any corrosion and re-use...otherwise not too expensive to replace.

    Funny vin btw. Haha...

  4. 77fib77

    77fib77 Road Train Member

    10,589
    66,498
    Jul 7, 2010
    St Louis
    0
    What is this MSF you speak of?

    I go to the dealership I'm like Frank Unicorn 1304. Instead of ## 1304! Sir!

  5. RocketyMan

    RocketyMan Medium Load Member

    549
    336
    Jun 5, 2015
    0

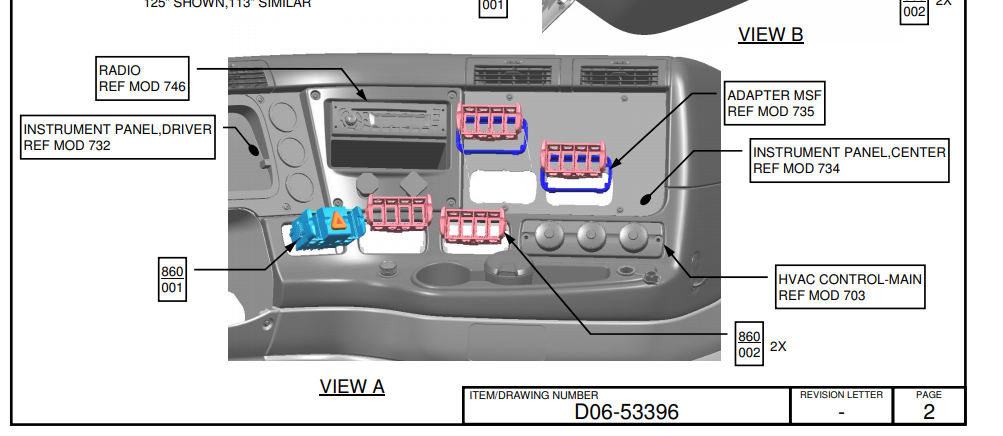

    The item denoted in blue and marked 001 is the MSF. All the magenta items are the slaves that are daisy chained together.


    Rideandrepair and 77fib77 Thank this.
  6. RocketyMan

    RocketyMan Medium Load Member

    549
    336
    Jun 5, 2015
    0

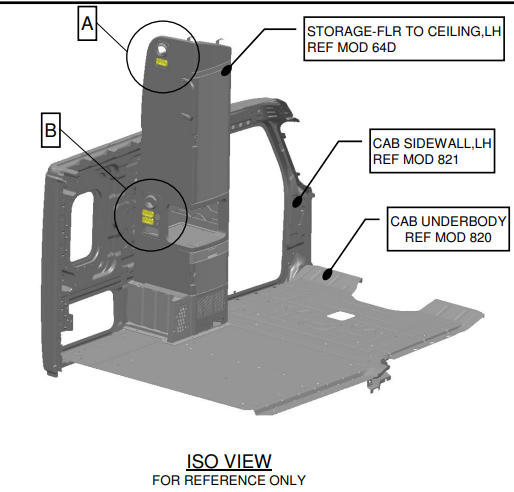

    The markings "A" & "B" are denoted as the sleeper slaves. One of them which probably got the condensation water dripped on it.



    Attached Files:

    Rideandrepair and 77fib77 Thank this.
  7. Rogerburch69

    Rogerburch69 Bobtail Member

    11
    5
    Sep 5, 2020
    0
    They don't need the CDC. They need social security

    Rideandrepair and 86scotty Thank this.
