Hey Guys,

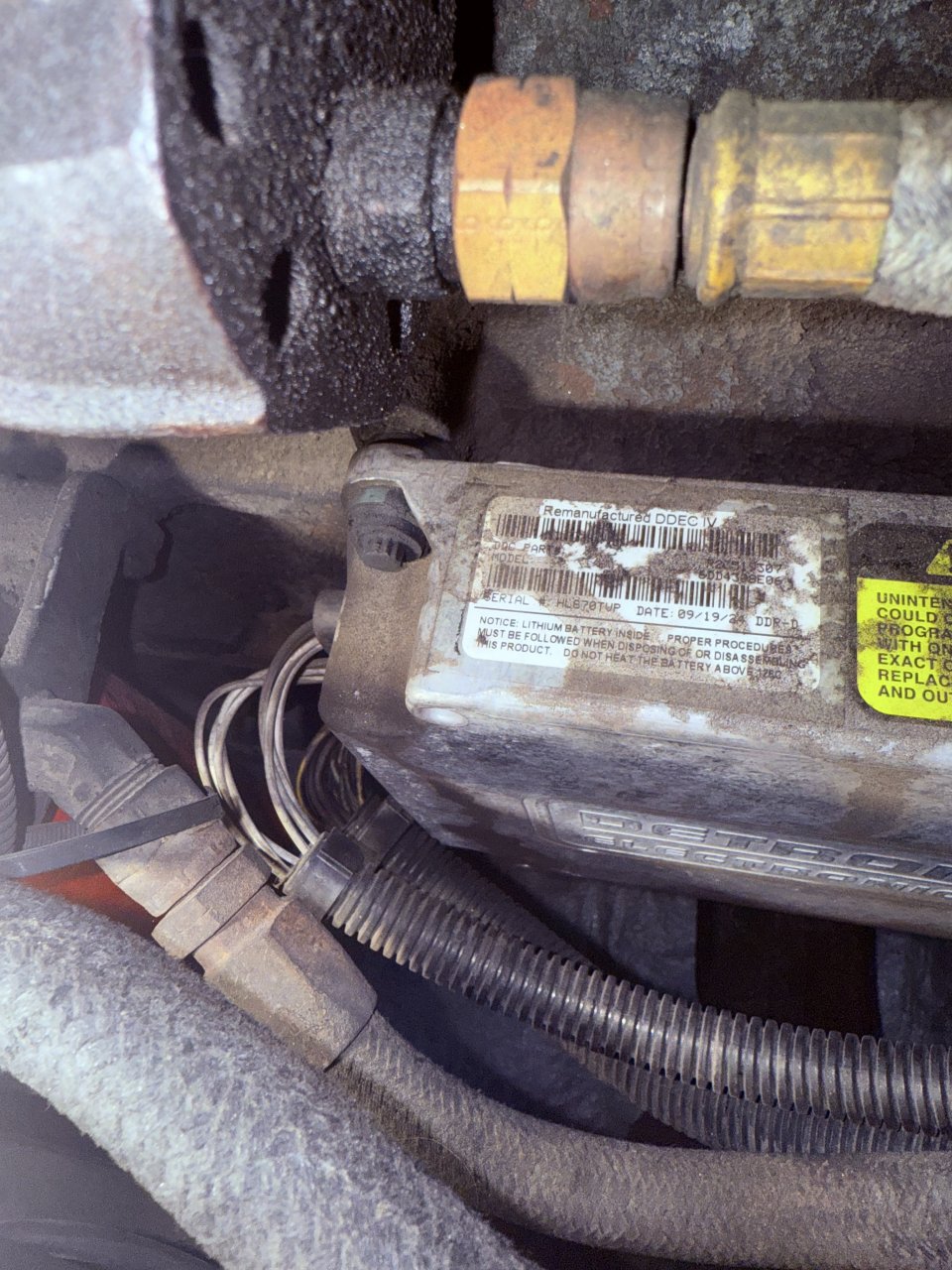

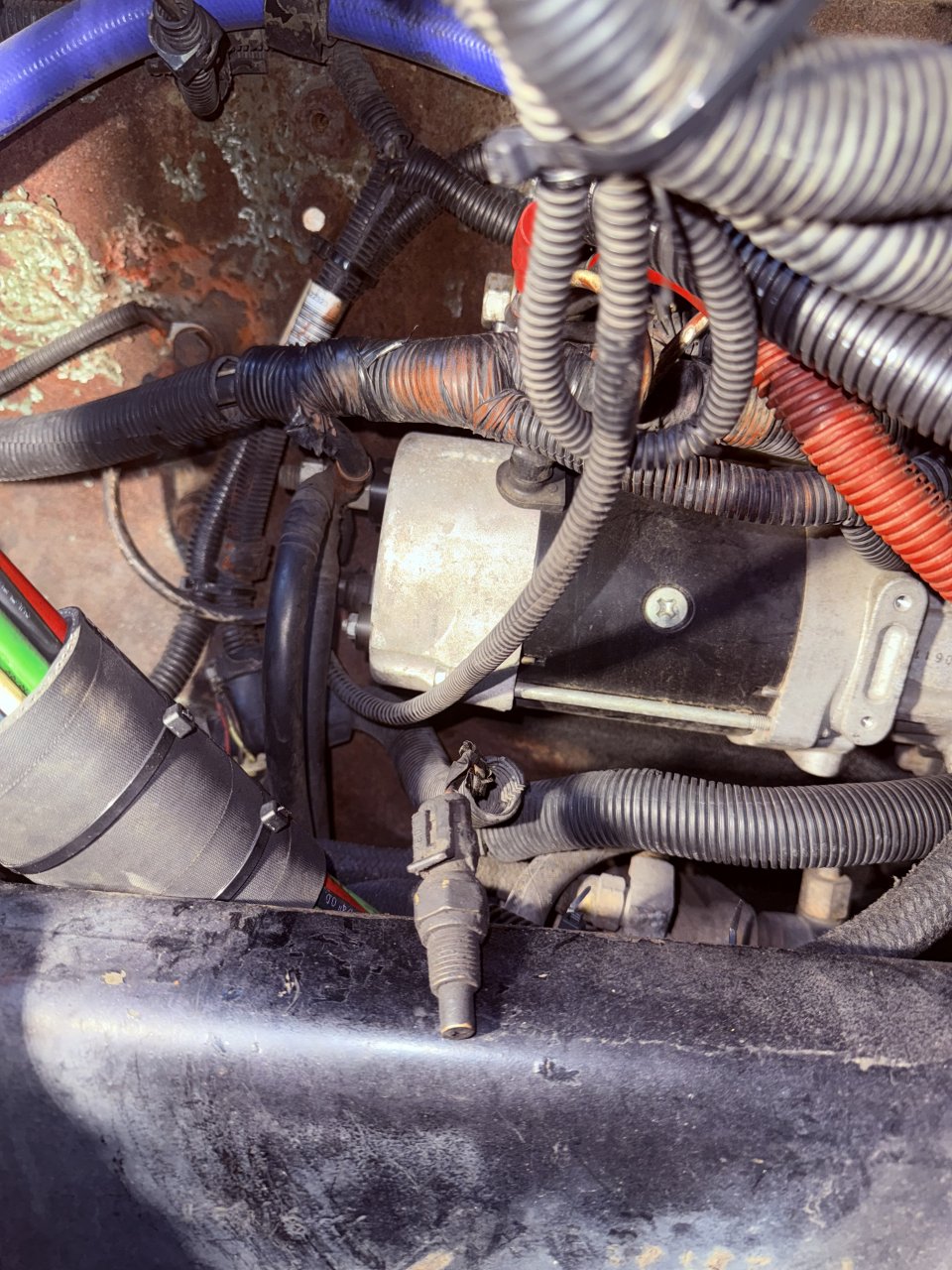

Need help identifying dangling sensor off ECM wire bundle. Pics attached. Sensor runs to front lower ECM plug. TY for any help.
Which sensor off ECM?
Discussion in 'Ask An Owner Operator' started by RepoweredRookie, May 14, 2026 at 10:36 AM.
-
Attached Files:
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
1999 Freighliner Century - Detroit 12.7 series 60.
-
Fuel temp sensor. The lead probably went to the front filter housing at some point.
Sometimes, a new engine harness has too short of a lead for the fuel temp sensor. I would assume the harness has been replacedJB7 and RepoweredRookie Thank this. -
Detroit Series 60 I6 Engine Sensor Locations – TroubleCodes.net
numbers 5 and 6 are the only ones near the starter
Does not appear to be much slack in the wires connected to the sensor so there is probably a plug screwed in place of the sensor near thereRepoweredRookie Thanks this. -
Thank you so much for the quick reply! The harness does hang right at the front of the rear fuel filter and is long enough. I think I will get a new sensor, pull the plug out of the filter, and install the sensor. Threads appear to be same size. Thank you Sir!
-
Awesome reference, but I think it's for DDEC5. Gonna dive into it more later, but yes, the plug on the rear fuel filter housing has a plug, same size, I'm gonna try pulling and put a new sensor in. Thanks for the help figuring this out.
