Which tool 2 use on this bolt for replacing shock absorbers?

Discussion in 'Ask An Owner Operator' started by JonJon78, May 7, 2021.

  1. roundhouse

    roundhouse Medium Load Member

    688
    1,162
    Jul 11, 2018
    0
    Can you sawzall the bolt between the shock and frame ?
    And push what’s left of the bolt out ?

    and use a new bolt with the new shock ?

    Or just take it to a mechanic or welding shop and have them torch it out . will take you longer to park and walk in and ask how much than it will for them to blow the bolt off with a torch .

    Rideandrepair and JonJon78 Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. JonJon78

    JonJon78 Road Train Member

    4,909
    23,587
    Jul 1, 2018
    0

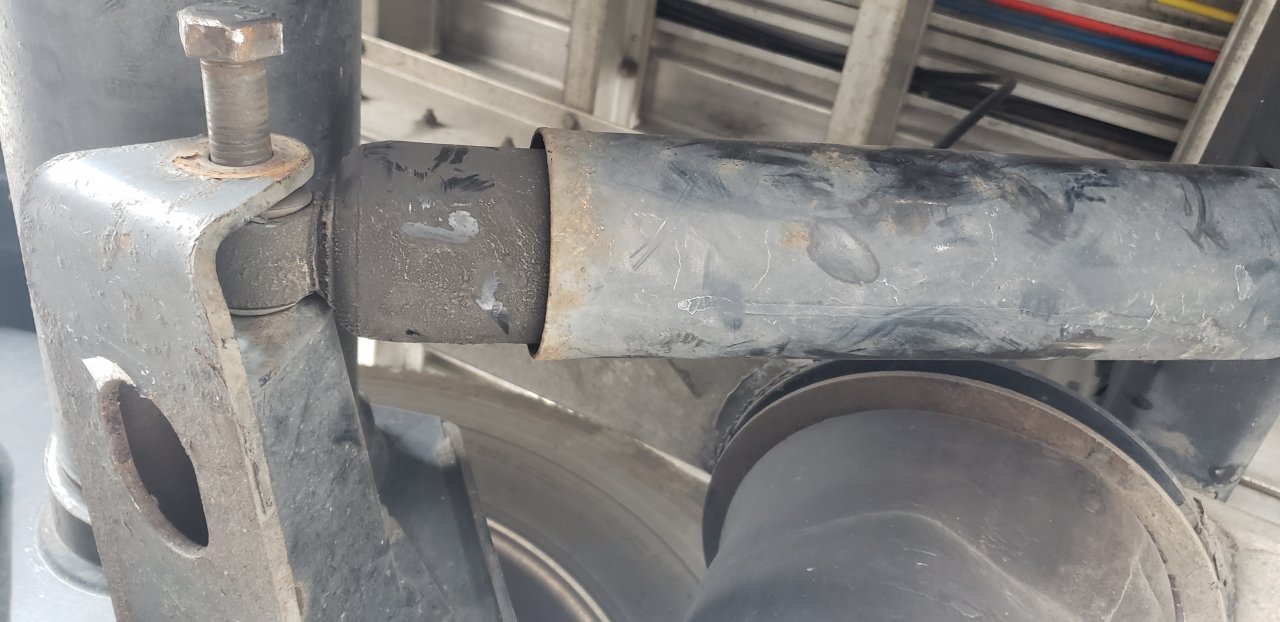

    Not much room at all to get anything inside the hole where the nut is...This a picture from the other side. Was able to get this one out obviously. 20200717_130444.jpg

  4. skallagrime

    skallagrime Heavy Load Member

    785
    1,370
    Apr 10, 2012
    Indiana
    0

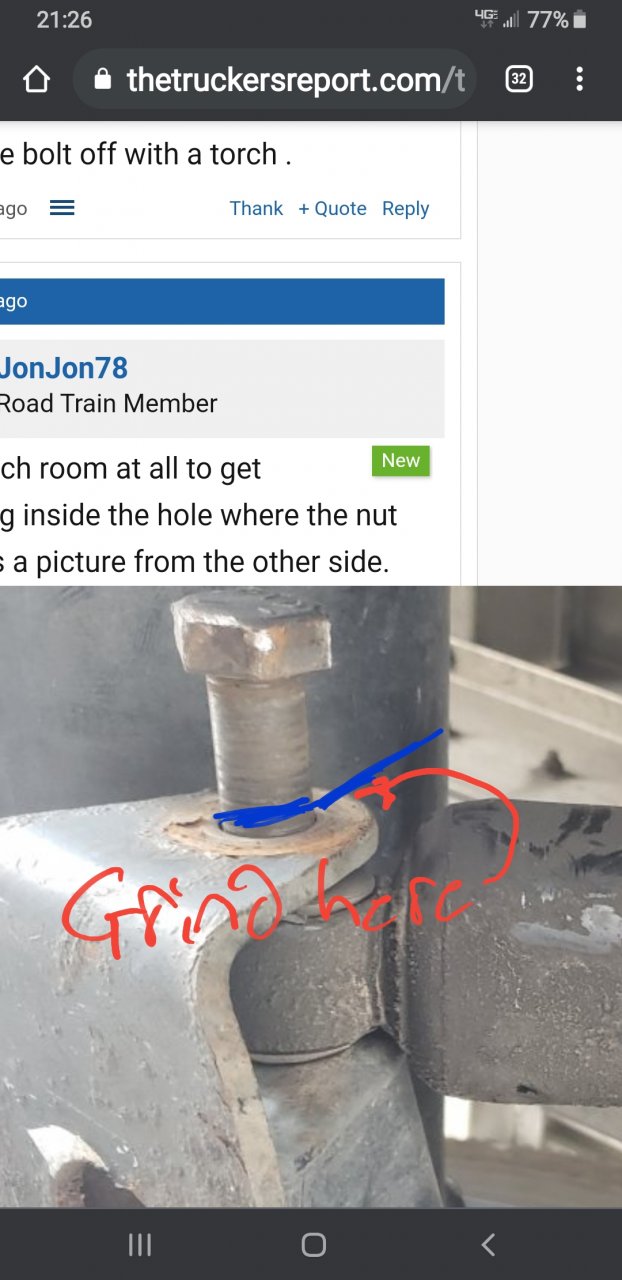

    Oh, thats easy, use your grinder to cut the bolt flush at the shock on the outside, slip shock off and at worst you might have to cut it closer again

  5. skallagrime

    skallagrime Heavy Load Member

    785
    1,370
    Apr 10, 2012
    Indiana
    0
  6. JonJon78

    JonJon78 Road Train Member

    4,909
    23,587
    Jul 1, 2018
    0
    I was able to change this shock, the one im having trouble with i can't get the nut loose so I dont have that room on the bolt to cut... unless I tried to grind the head... think paying someone to torch is gonna be best option

    Rideandrepair Thanks this.
  7. jason6541

    jason6541 Road Train Member

    1,515
    2,499
    Mar 5, 2012
    Omaha, NE
    0
    When you put the new hardware on be sure to use antiseize willing to bet a thin wall box end wrench will work. Bet the dealer uses that for that nut.

    JonJon78 and Rideandrepair Thank this.
  8. skallagrime

    skallagrime Heavy Load Member

    785
    1,370
    Apr 10, 2012
    Indiana
    0
    Even with the bolt close up, its easier to cut at the bolt head then grind flush, make sure you have multiple grinding wheels

    I would cut at a slight angle to aiming to still be able to toss a wrench on the bolt head to shear it (bolt head) off

    JonJon78 and Rideandrepair Thank this.
  9. Dino soar

    Dino soar Road Train Member

    3,392
    10,276
    Dec 8, 2017
    0
    For what you're going to pay someone to do it I mean if you have somewhere to store it you really should just buy yourself a little welding outfit.

    You can get small bottles and a cutting torch and make sure you get a rosebud torch because there's going to be things that you're going to need to heat up.

    Once you have access to a torch you'll wonder what you did before you had it.

  10. Rideandrepair

    Rideandrepair Road Train Member

    10,029
    25,467
    Aug 8, 2015
    0
    Either jam something against the nut, and turn the bolt with a socket, breaker and cheater bar, or take a small cutting wheel, on small grinder, cut the bottom of the shock off, then cut the remaining eyelet of the shock off the bolt, then cut the bolt. I used a cheap 1/4” harbor freight air grinder, ran off the trucks compressor to cut my U bolts. Small enough and powerful enough for that. 4” cutting wheel on a small electric grinder will probably work best. Just cut the head off, if that’s leaves enough room to get nut/bolt out.

    Last edited: May 7, 2021
    Dino soar, kemosabi49 and JonJon78 Thank this.
  11. Rideandrepair

    Rideandrepair Road Train Member

    10,029
    25,467
    Aug 8, 2015
    0
    Watch your fingers using the grinder w/ cutting wheel. Don’t ask how I know.

    JoeyJunk, InTooDeep and JonJon78 Thank this.
