Will this tool work for tie rod ends?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Dino soar, Sep 11, 2019 at 2:16 PM.

  1. Cattleman84

    Cattleman84 Road Train Member

    2,601
    8,025
    Nov 1, 2017
    The Sticks, Idaho
    0

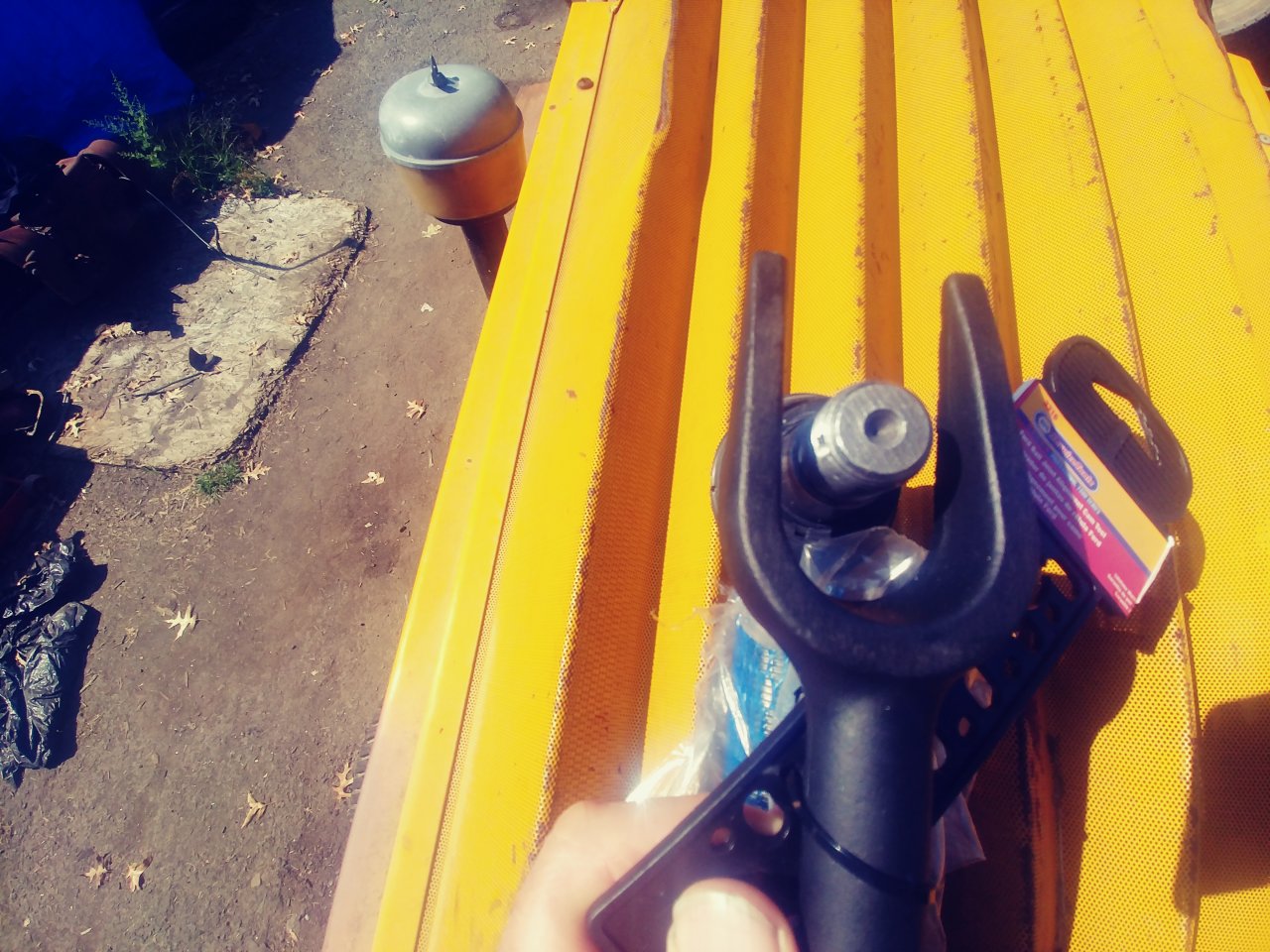

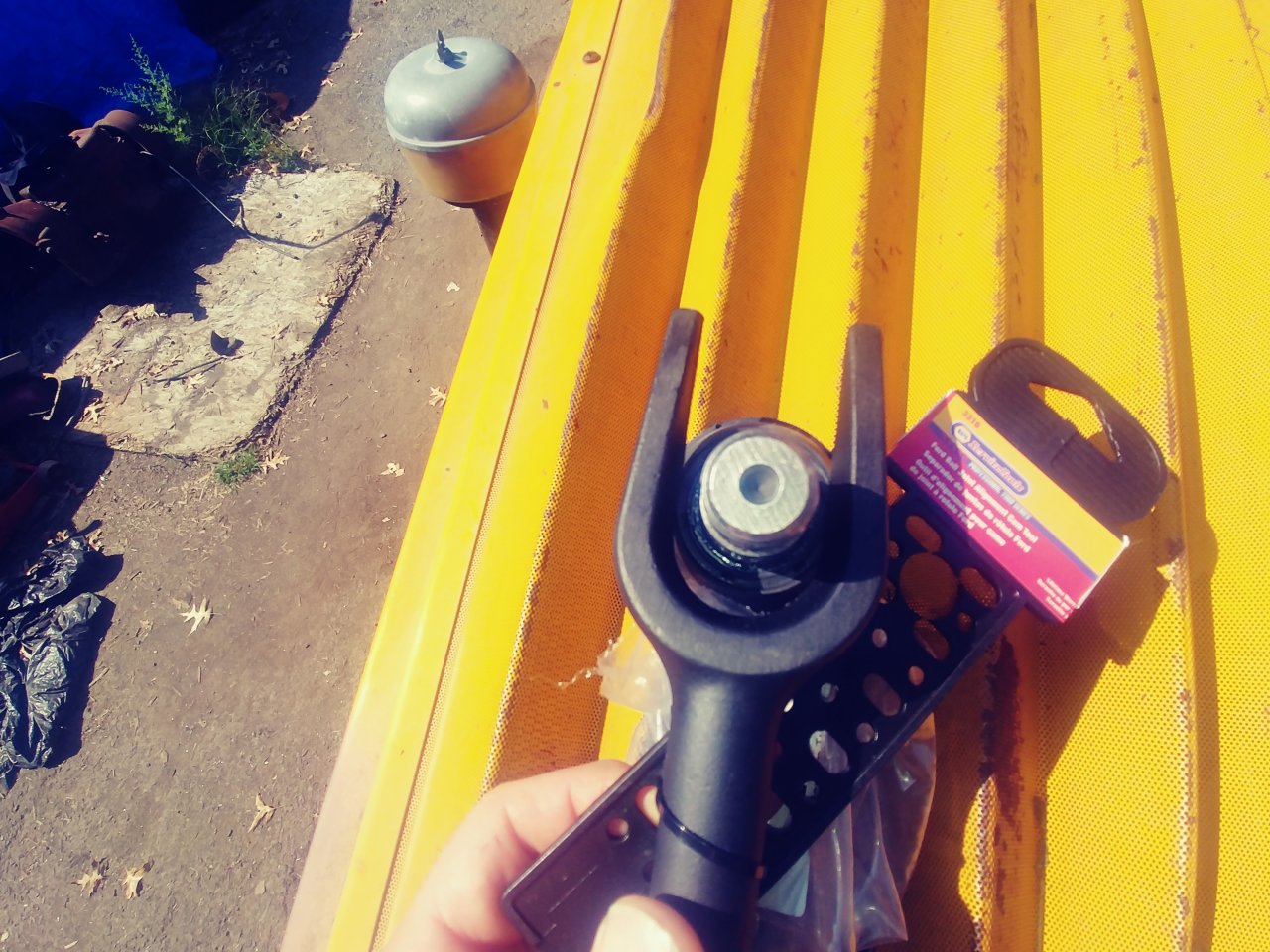

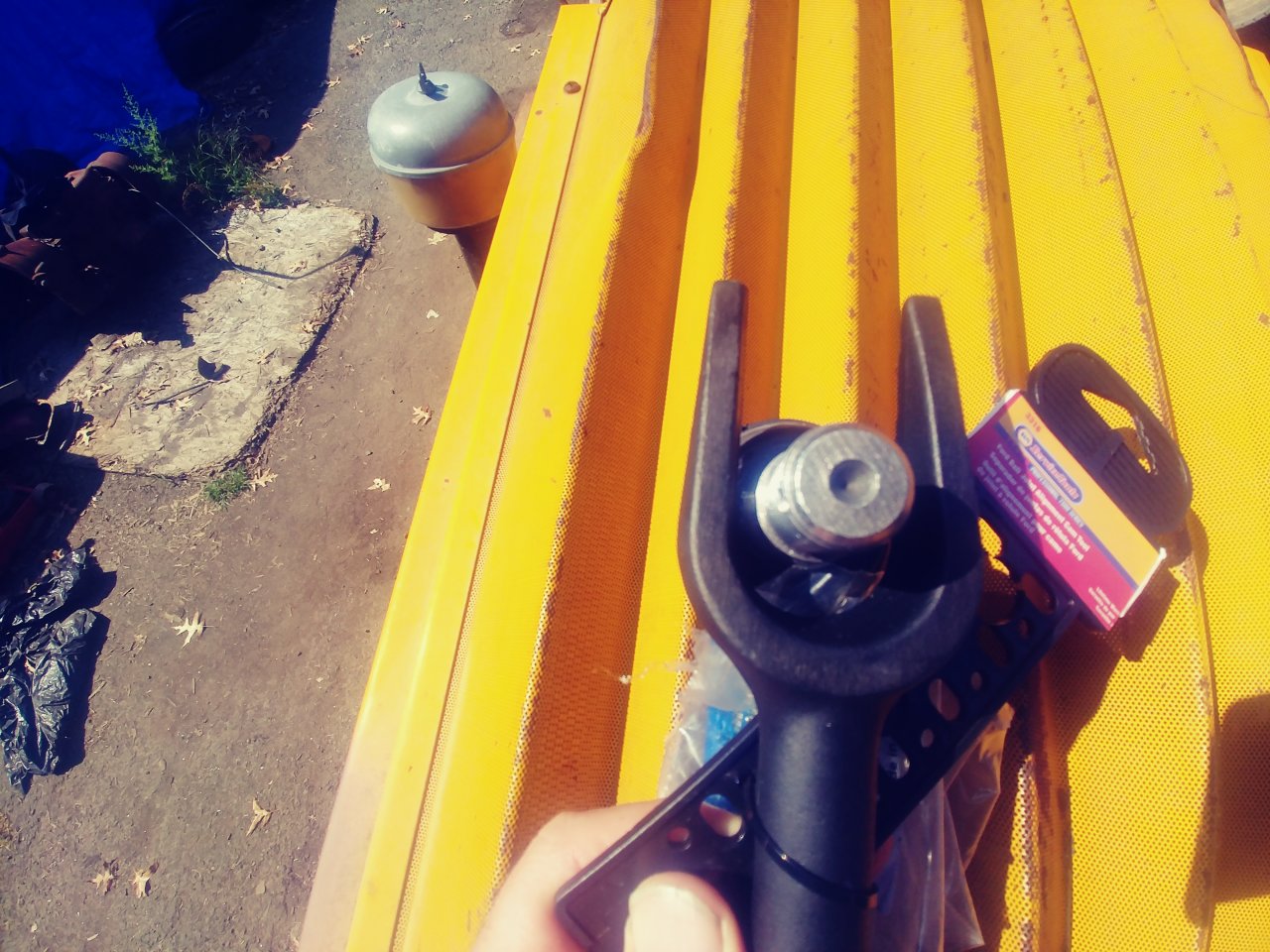

    Yea the tool you have is made for seperating the knuckles... Its called a "pickle fork".

    Place tines between knuckle and ball joint, then hit the end with a big hammer... Might take a few good hard smacks.

    Rideandrepair and Dino soar Thank this.
  2. Goodysnap

    Goodysnap Road Train Member

    1,373
    2,444
    Jul 12, 2017
    0

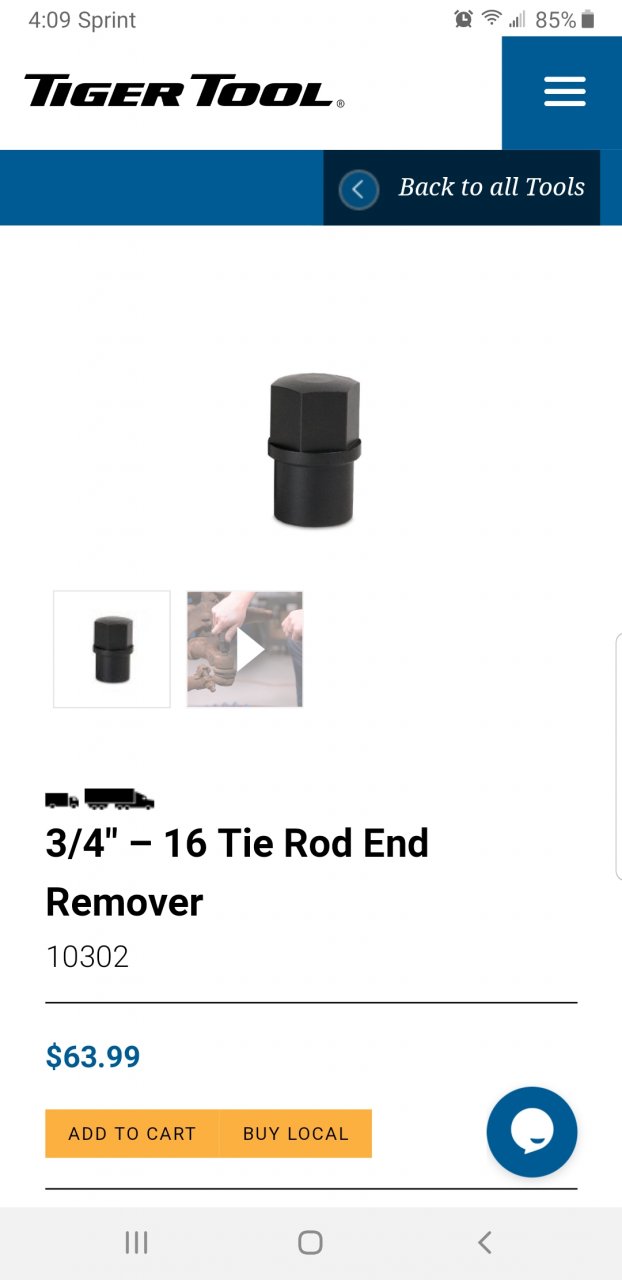

    Screenshot_20190911-160957_Samsung Internet.jpg

    This removes them without damage to reuse. A steel bearing on the inside hits on the center of the stud with no damage to threads, boot or taper.

    BoxCarKidd, pushbroom and Dino soar Thank this.
  3. buddyd157

    buddyd157 Road Train Member

    6,953
    12,504
    May 25, 2017
    New England area
    0
    Rideandrepair and Dino soar Thank this.
  4. AModelCat

    AModelCat Road Train Member

    12,166
    36,622
    Jul 7, 2015
    On vacation
    0
    A bolt the same size and pitch as the tie rod and 2 nuts works great too. Plus its free from the shop bolt bin lol.

    buddyd157 and Diesel Dave Thank this.
