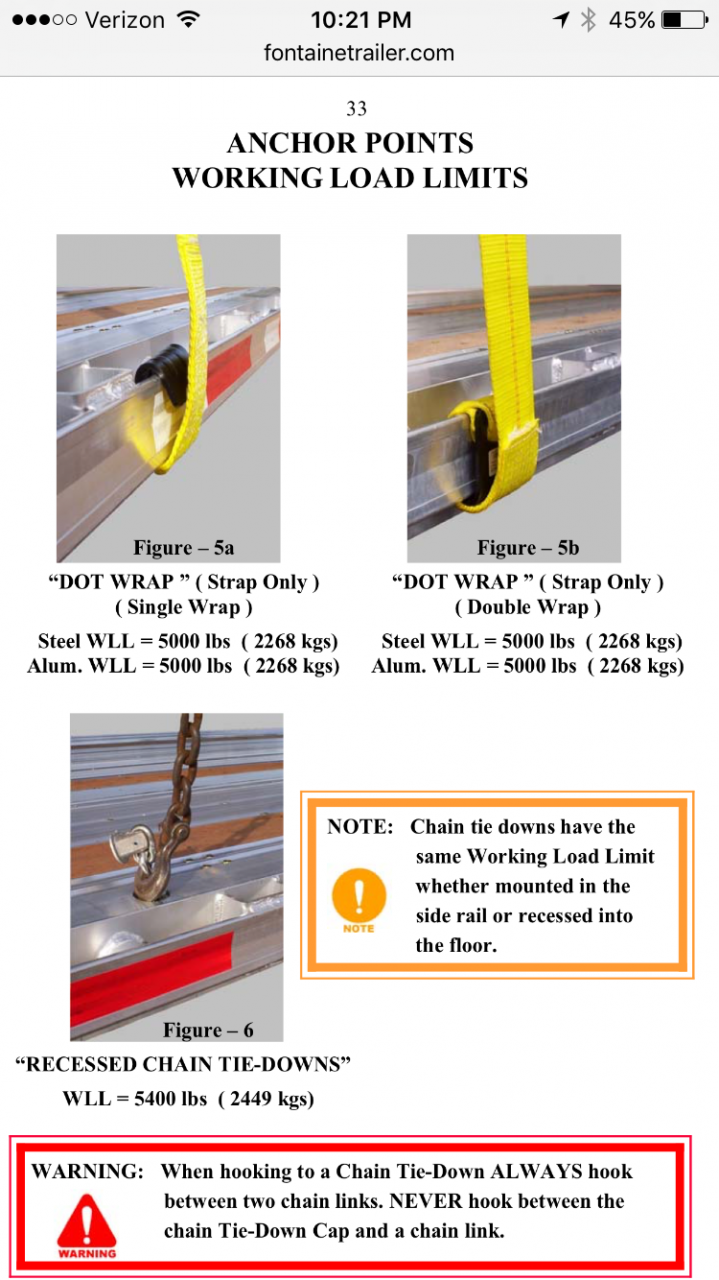

This is from the Fontaine manual. I would not do it this way. I know they changed the regs where straps can go outside the rub rail but why?
Interestingly they also state the 6" channel side rail frame is not an attachment point and not to hook to it.
Would you hook straps this way?
Discussion in 'Flatbed Trucking Forum' started by Bdog, Dec 8, 2015.
Page 1 of 7
-
Attached Files:
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
I've done that, only so the strap comes thru the rub rail and not the outside.
peterbilt_2005 Thanks this. -
Back when I ran skateboards I used the method depicted in the upper right picture. That way I could tuck some excess between the rail and the deck to help it stay put while I made my around to the other side to tighten it down.
-
Also I notice they only rate the strap attachment point at 5000b WLL. 3" straps are good for that. Why bother with 4" if this is the weakest link? -
If you have a used trailer most likely you won't be able to do that because the forklifts have hit it enough that it won't go through every where.
201 Thanks this. -
I know that the methods shown are the way most people hook their straps (including me when I was pulling a flat). But that is not how they should be hooked. They should be ran between the rub rail and the bed and attached under the bed of the trailer. The rub rail is there to protect your straps from being cut if something comes into contact with your trailer. Not to mention the fact that the rub rail is the weakest part of the trailer. However, DOT doesn't say anything about it. And a lot of trailers don't really have any place to hook a strap other than the rub rail. Do what ya gotta do. I'm just pointing out that there are sometimes better ways (depending on your trailer) to hook straps.
realdesertkickin, Lepton1, tsavory and 1 other person Thank this. -
No I wouldn't.
I agree with @RustyBolt, rubrails are to protect your straps, not anchor points.
Oh yeah, and BC will give you a ticket for that. -
I too agree with rustybolt, the purpose of the rub rail is to protect the strap and other securement things. I sometimes get trucks loaded and ready to go when I arrive at a customers place, if they are setup outside the rub rail, I take all the straps off and do it right. Sometimes that will delay me 30 minutes or so but I do it right. Another reason is I seem to run into the same county cop who will cite anyone for this.
-
-
