2013 KW T660 leaf spring pins/ bushing replacement

Discussion in 'Trucks [ Eighteen Wheelers ]' started by mitmaks, May 18, 2021.

  1. mitmaks

    mitmaks Road Train Member

    2,150
    1,466
    May 16, 2014
    0
    I'd like to replace pins and bushings on my truck. Anyone done this before yourself and which tools did you use?

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. ClineER

    ClineER Light Load Member

    227
    133
    Apr 27, 2016
    N.E. Oklahoma
    0
    Usually the rears are what wear, I would say buy new rear mount, price isnt much different than bushing. Atleast for my T800 it wasnt much.
    I use hyd jack between spring and frame to release tension for disassembly.
    A hammer and air chisel will remove spring bushing, I've had good success putting pin in new bushing and using flat end of pin as a driver to install new bushing.
    If you have the rubber pins I would convert back to the threaded style, seem to last longer.

    mitmaks Thanks this.
  4. mitmaks

    mitmaks Road Train Member

    2,150
    1,466
    May 16, 2014
    0
    There's greasable pins available from what I've been told. Its just a matter of pressing out old pins and bushings out. I'd like to buy a press but its 2000k without adapters.

  5. AModelCat

    AModelCat Road Train Member

    21,351
    96,932
    Jul 7, 2015
    Canuckistan
    0
    Definitely go with the greaseable, threaded style. Those rubber bushings are junk IMO.

    Last edited: May 23, 2021
    mitmaks Thanks this.
  6. SmallPackage

    SmallPackage Road Train Member

    2,456
    6,720
    Dec 20, 2019
    Marion Texas
    0
    I have seen were it’s a 50/50 deal whether the bottom bushing in the spring is bad. It is usually just the top one in the hanger that supports all the weight and wears out towards its top. Half the time the pin in the spring itself just gets pitted from moisture in the grease but the bushing is ok. I’ve seen the top pins worn down 1/4 of their size and bushings just pull out with pliers because they are eaten away.

  7. SmallPackage

    SmallPackage Road Train Member

    2,456
    6,720
    Dec 20, 2019
    Marion Texas
    0

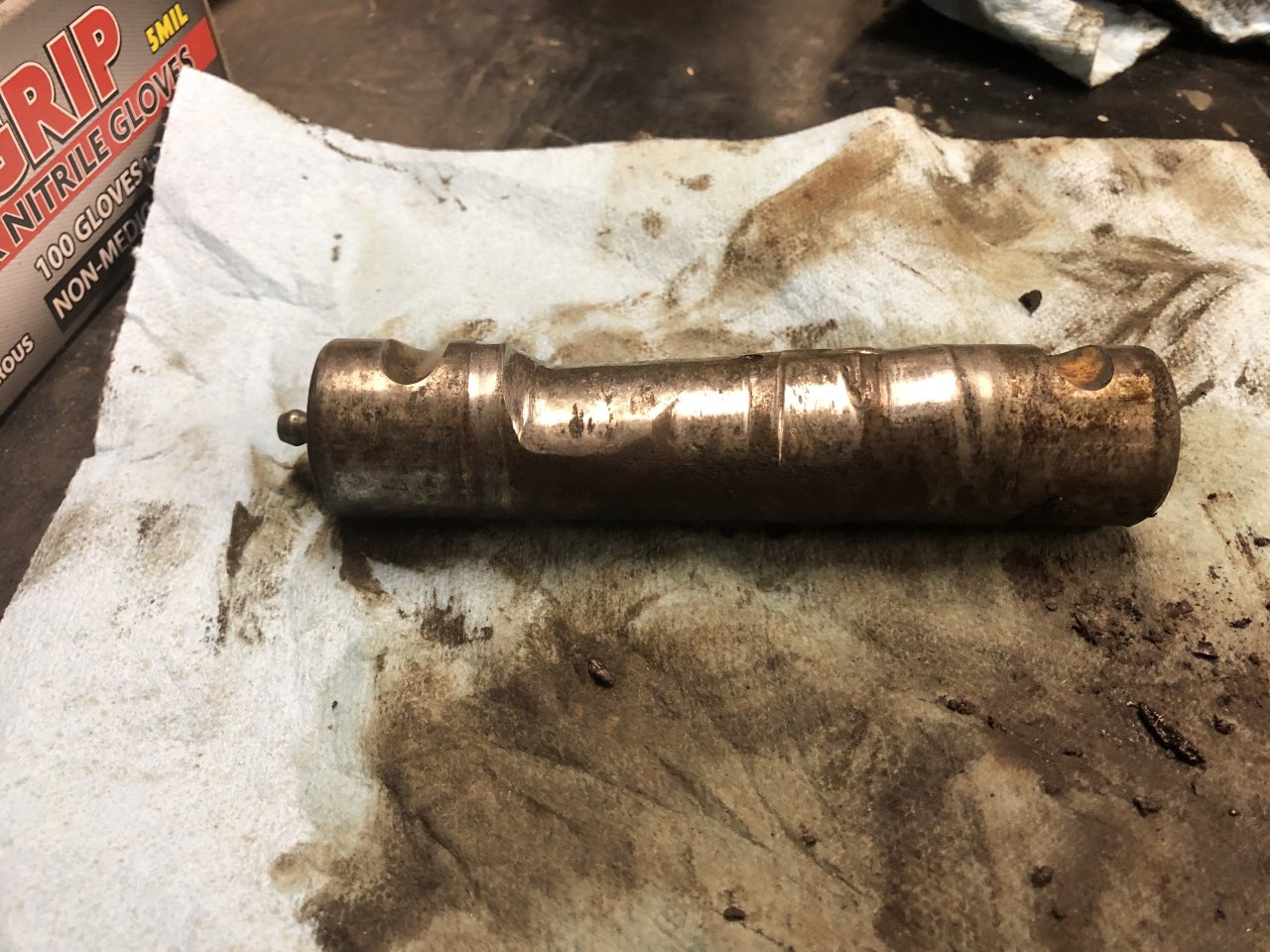

    I just replaced the ones in my ‘67 last month 902BFB30-9CD9-4ABC-B767-E8AFF6BC78E9.jpeg
    Top pin

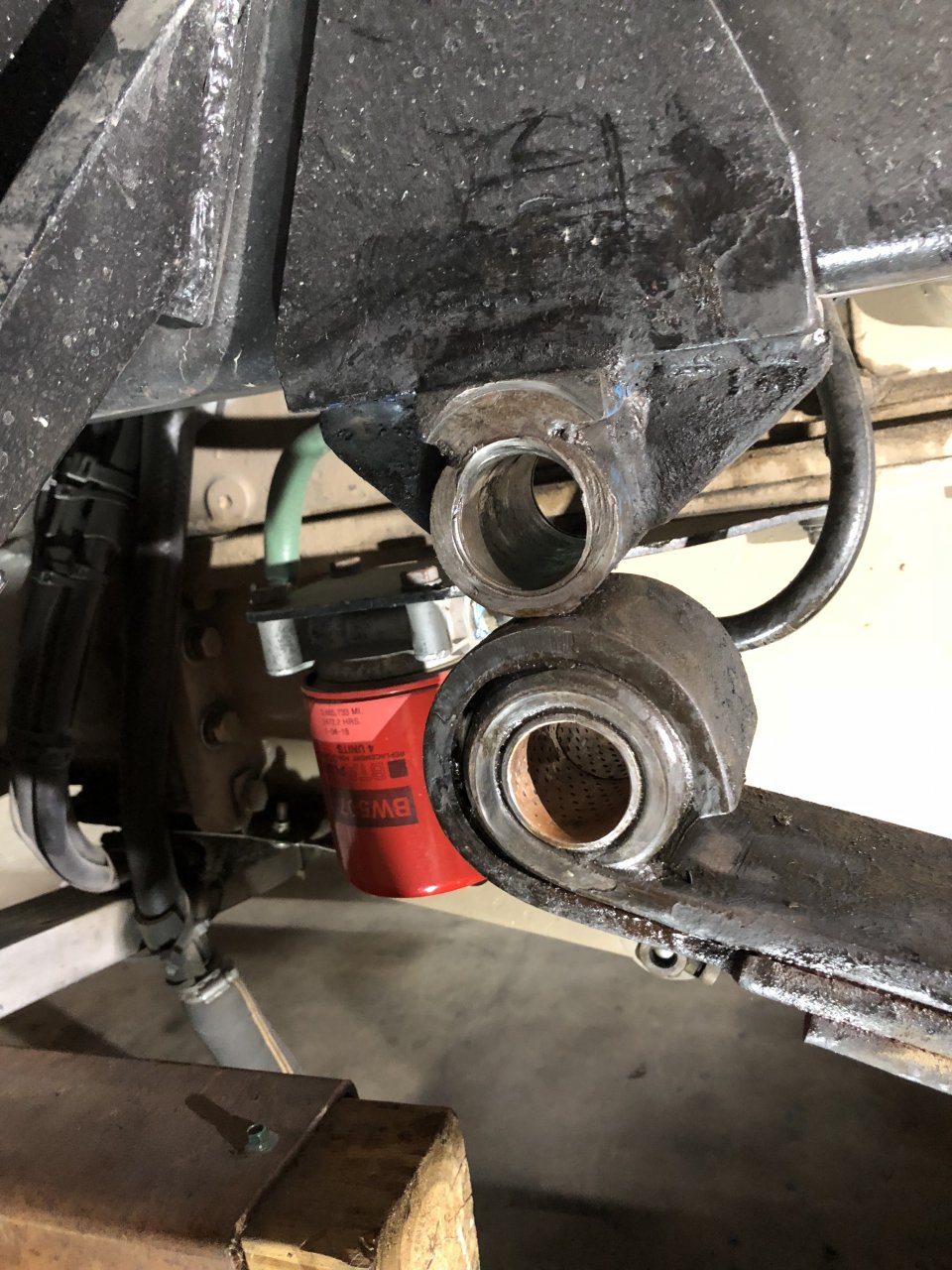

    You can see the bushing in the spring is still good. Hanger pin and bushing took the beating. These however have been in this truck since Feb. of 1982.

    AModelCat and LameMule Thank this.
  8. SmallPackage

    SmallPackage Road Train Member

    2,456
    6,720
    Dec 20, 2019
    Marion Texas
    0

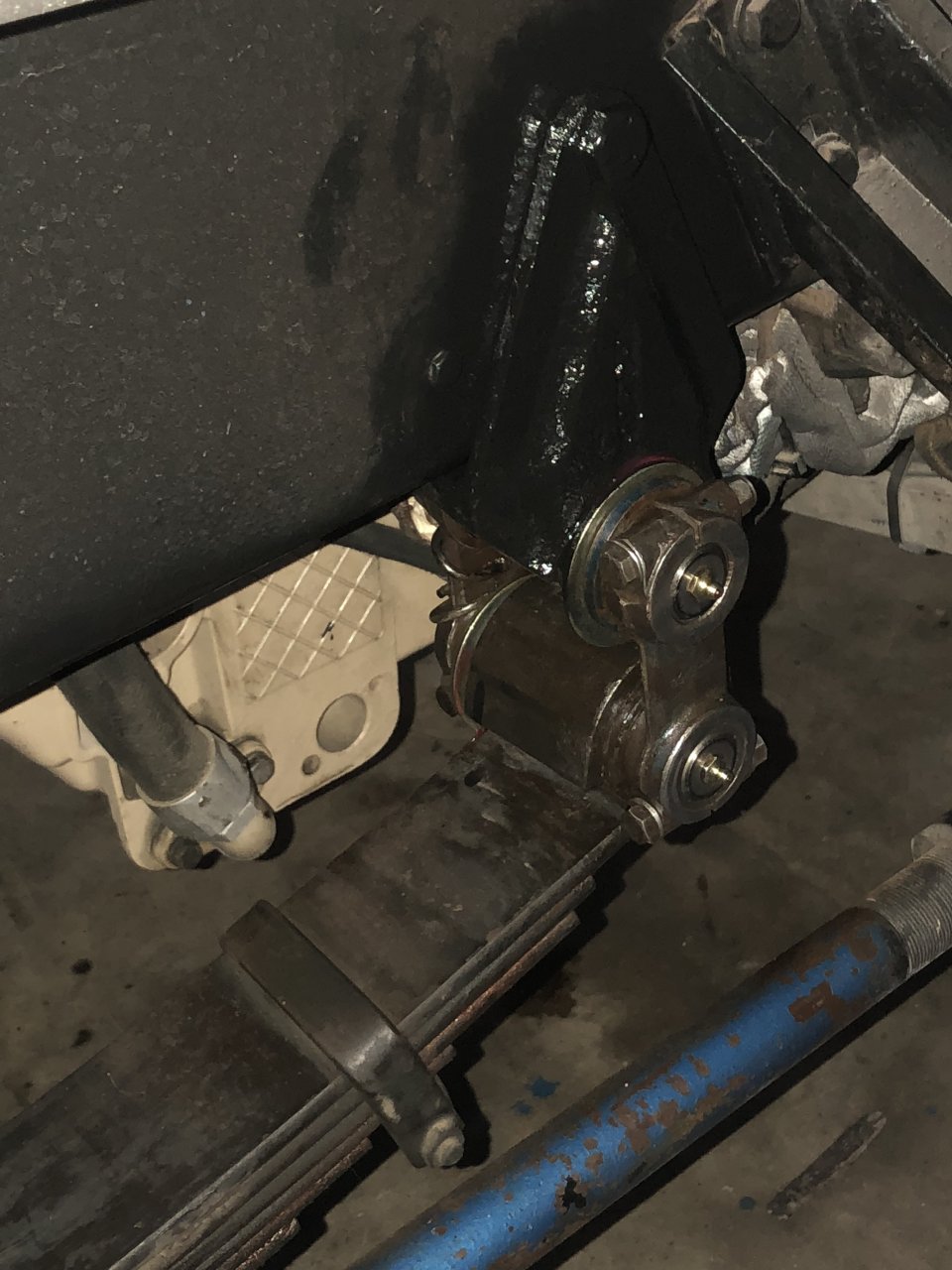

    Rh done.

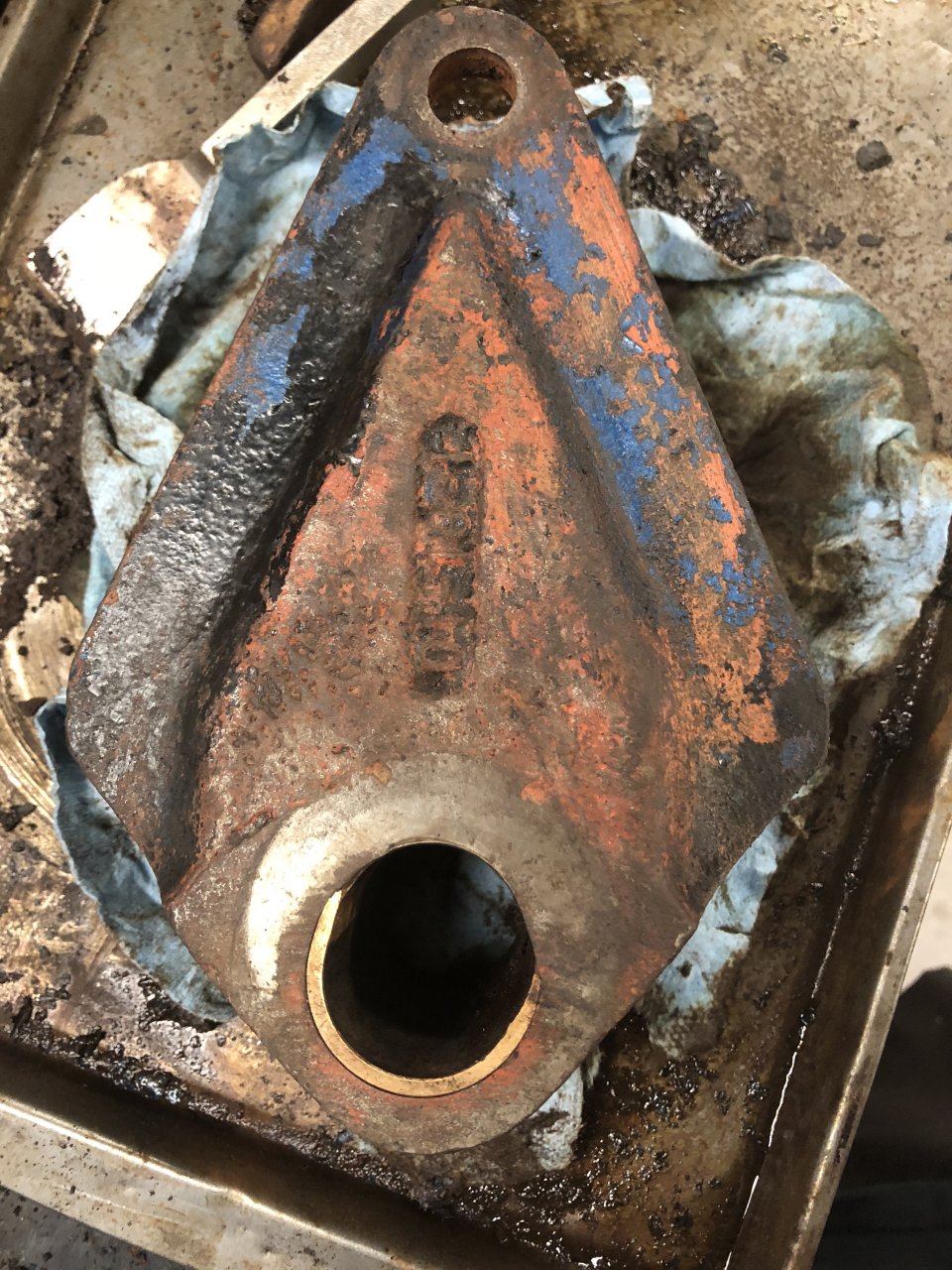

    Lh hanger bushing
    Lh done

    spsauerland, AModelCat and mitmaks Thank this.
