Dual front steer axles?

Discussion in 'Trucks [ Eighteen Wheelers ]' started by Haulin Gass, Nov 16, 2018.

  1. Haulin Gass

    Haulin Gass Bobtail Member

    16
    22
    Aug 9, 2018
    0
    What positives or negatives would this design have? This is from the Volvo VHD line I think. I'm finding it intriguing. While not present, I imagine a sliding 5th would be required to make it useful for much other than a dump.
    [​IMG]

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. uncleal13

    uncleal13 Road Train Member

    3,783
    6,260
    Apr 9, 2009
    Humboldt, Sk
    0
    Use to have dual steers with single axle on rear in Japan. Allowed full weights with it. Very maneuverable, in tight spaces.

    Xeno124 Thanks this.
  4. supersnackbar

    supersnackbar Road Train Member

    17,834
    41,112
    Aug 19, 2007
    Your Town, USA
    0
    I see these a lot in Canada, especially on the big rotator wreckers and on the big straight truck dump trucks, cement mixers and dumpster haulers.

  5. Nothereoften

    Nothereoften Light Load Member

    261
    264
    Oct 6, 2018
    0
    Cranes whether knuckle or stick are the only things pulling trailers with those, mainly body jobs for the chassis

  6. x1Heavy

    x1Heavy Road Train Member

    34,017
    42,114
    Mar 5, 2016
    White County, Arkansas
    0
    I feel it is time now to allow these.

    Might as well as dual em both axles. Or as a compromise There are oversize concrete mixer type singles (NOT super singles) If its a 10 foot spread might as well allow 40K up front. With two axles in the drives total of 75K just about Should do it.

    Tare would probably be 30,000 minus 75K leaves 45K, just enough room to put up a 53 foot dane reefer trailer loaded. Trailer can carry a set of tag axles or a canadian three foot spread tridem over a total of just under 10 feet itself. Call it 55K capacity, plus dual steer axle tractor with two tandem drives OR should i dare say three drive axles.

    You can carry three tanks or even 4 with enough fuel to pick any pump with the cheapest quality anyone in the USA and fuel there one time all week.

    The rear steer axle may be powered to provide more options Should things get a little bit off step on ice or what have you . Lord knows there is plenty of trucks that get stuck.

    I'll have to settle the Motor Carrier's Weight chart against itself with a monster quite like this. Being in chart land offers oppertunities to simply disregard Dear Uncle Sam, Or Monsuier Quack Scale Or Homb're Wally Peso. (He he he...)

  7. not4hire

    not4hire Road Train Member

    7,142
    26,951
    May 16, 2012
    Calgary
    0
    Very common in the oil patch, concrete delivery, picker/crane trucks, etc. You will see twin steer bed trucks in the oil patch and crane trucks pulling a float or scissor neck (fixed fifth wheel), but as a matter of course they are not for semis--you couldn't load the steer axles enough to justify the cost and weight penalties.

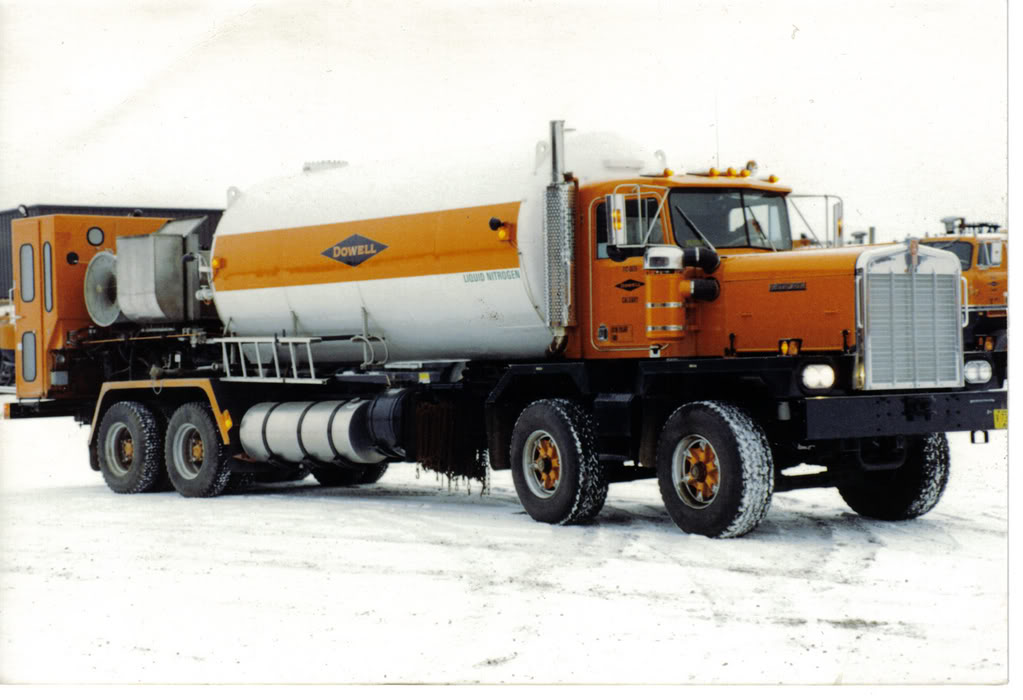

    I used to operate this...


    Last edited: Nov 16, 2018
  8. 25(2)+2

    25(2)+2 Trucker Forum STAFF Staff Member

    18,734
    44,906
    Sep 18, 2006
    the road less travelled
    0
    First one I ever saw was a drill carrier.

    x1Heavy Thanks this.
  9. x1Heavy

    x1Heavy Road Train Member

    34,017
    42,114
    Mar 5, 2016
    White County, Arkansas
    0
    Put 5th wheel into middle of chassis behind aft steer axle.

    Build operator cab into the forward portion of the trailer hooked onto the 5th wheel, let the engine etc figure itself out in other engineering.

  10. not4hire

    not4hire Road Train Member

    7,142
    26,951
    May 16, 2012
    Calgary
    0
    Truck engine runs pump and hydraulics via A-box when stationary. It was a similar setup for twin cementers (two pumps, two 8v71/92s). Due to the increasing weight and complexity, all manufacturers went to trailer mounted equipment so the tractor is transportation only; therefore, twin steer not required.

    x1Heavy Thanks this.
