Forward force

Discussion in 'Questions From New Drivers' started by Kodaroda1, Jul 20, 2023.

  1. Kodaroda1

    Kodaroda1 Bobtail Member

    31
    21
    Apr 27, 2023
    0
    So I see it says forward force is 80% of load weight. But how do you achieve that? Does that mean you need wll of 80% of load? Thank you ahead of time.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Moosetek13

    Moosetek13 Road Train Member

    14,708
    18,497
    Nov 1, 2010
    Burnsville, MN
    0
    What the heck are you talking about?

    Kodaroda1 and Numb Thank this.
  4. Kodaroda1

    Kodaroda1 Bobtail Member

    31
    21
    Apr 27, 2023
    0

  5. Kodaroda1

    Kodaroda1 Bobtail Member

    31
    21
    Apr 27, 2023
    0

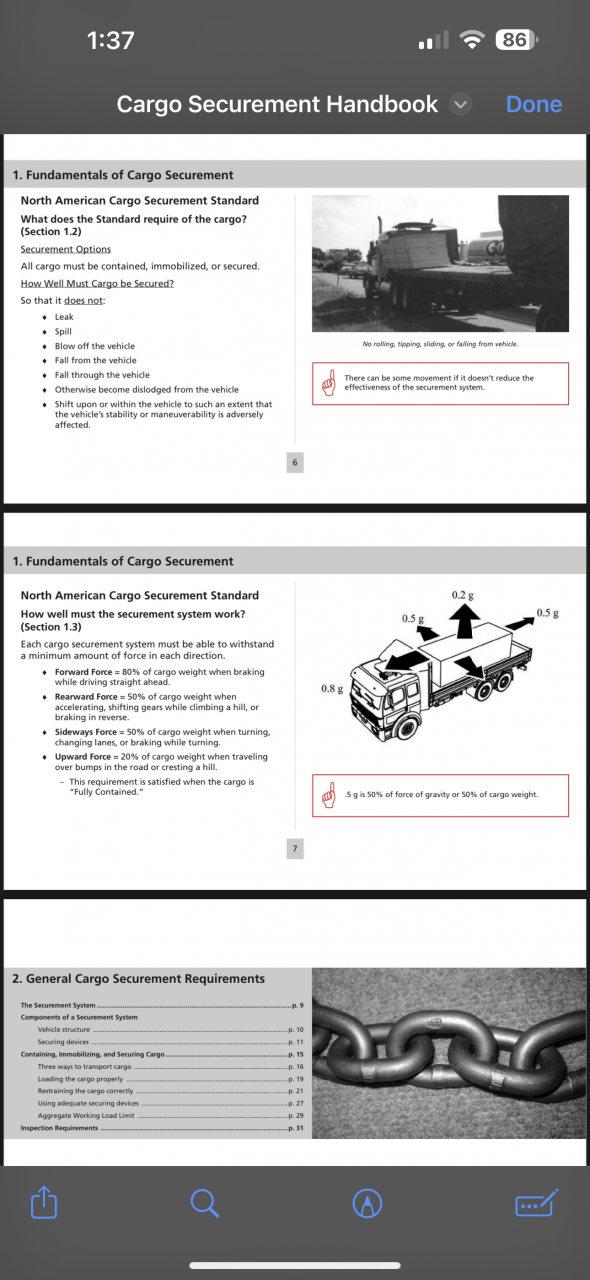

    upload_2023-7-20_1-39-31.png upload_2023-7-20_1-39-31.png


    Attached Files:

    Moosetek13 Thanks this.
  6. TripleSix

    TripleSix God of Roads

    18,554
    129,982
    Apr 10, 2009
    Copied in Hell
    0
    Your rear pull. For those brake check moments. Mainly this will apply to heavy equipment. The regs say that you have to have 4 points of securement for heavy equipment (10k or heavier) regardless of the WLL of your securement. Your securement is to prevent the load from going forward(80%WLL), back(50%), side to side(50%) and up and down (50%). For heavy equipment, you will do 4 points DIRECT. So take your machine and multiply by 0.8 and your securement to the rear has to be enough to cover.

    Hope I made sense.

    RockinChair, Magoo1968 and AModelCat Thank this.
  7. tscottme

    tscottme Road Train Member

    I think you may want to post this question in the flatbed forum, not new driver section.

  8. Ridgeline

    Ridgeline Road Train Member

    22,418
    116,682
    Dec 18, 2011
    Michigan
    0
    Why? This should be a question on the written exam for all drivers, dry van drivers should take it in consideration the forward movement of the load, god only knows how many pallets that the allow to be loaded in the center of the trailer have moved to the front by hard braking.

    TripleSix Thanks this.
  9. Frank Speak

    Frank Speak Road Train Member

    4,521
    13,825
    May 3, 2016
    0
    Forward Force is exactly why Big Maude doesn’t walk down hill. It’s level or nothing for Big Maude.

    RockinChair Thanks this.
  10. Ex-Trucker Alex

    Ex-Trucker Alex Road Train Member

    1,411
    2,405
    Jan 7, 2023
    0
    Oh, man, the way shippers used to load stuff into my dry van! A 12" piece of 2x4 with 2 nails into the floor was deemed 'sufficient' to secure a 9000lb roll of Kraft board.....Yikes!!! Kinda makes you want to avoid stopping too quickly.....
    No, the reality is that MOST dry van drivers have nothing stronger than a few straps and maybe a load lock. And the occasional stove-out nose from when those weren't enough to do the job!
