Help me name this part, please?

Discussion in 'Ask An Owner Operator' started by Keepforgettingmypassword, Mar 15, 2023.

  1. Keepforgettingmypassword

    Keepforgettingmypassword Heavy Load Member

    727
    934
    Jan 11, 2022
    0

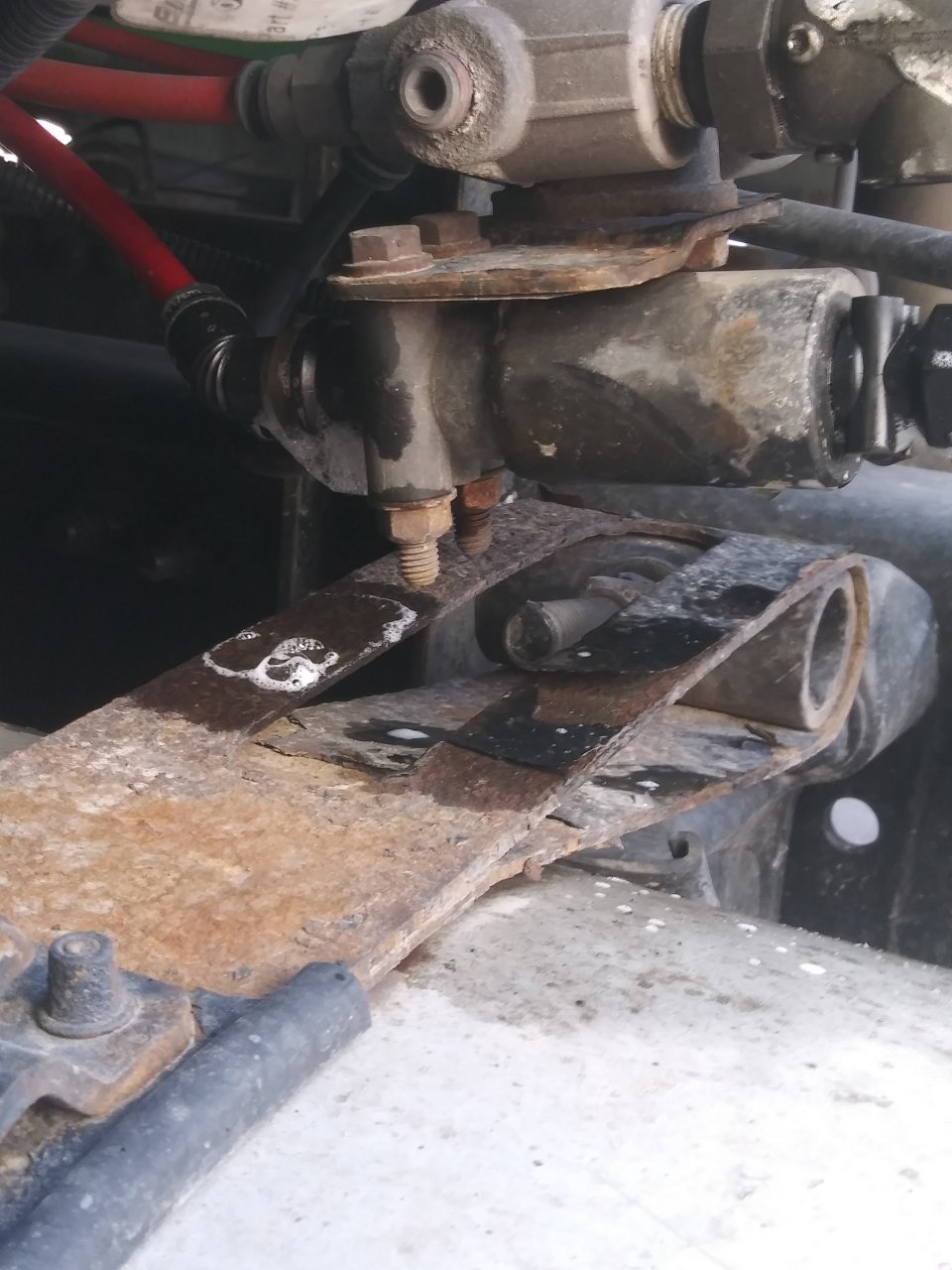

    If the pictures are no good. It's connected to the same bracket the trailer air connect to under the cab.
    2016 cascadia 167889121624297600394697581991.jpg 1678891267036677306367753147853.jpg 16788912428226924727492667594733.jpg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. xsetra

    xsetra Road Train Member

    4,925
    6,584
    Aug 21, 2011
    0
    Is that mounted on the fuel tank bracket?

  4. blairandgretchen

    blairandgretchen Road Train Member

    12,046
    60,630
    Dec 9, 2011
    South west Missouri
    0

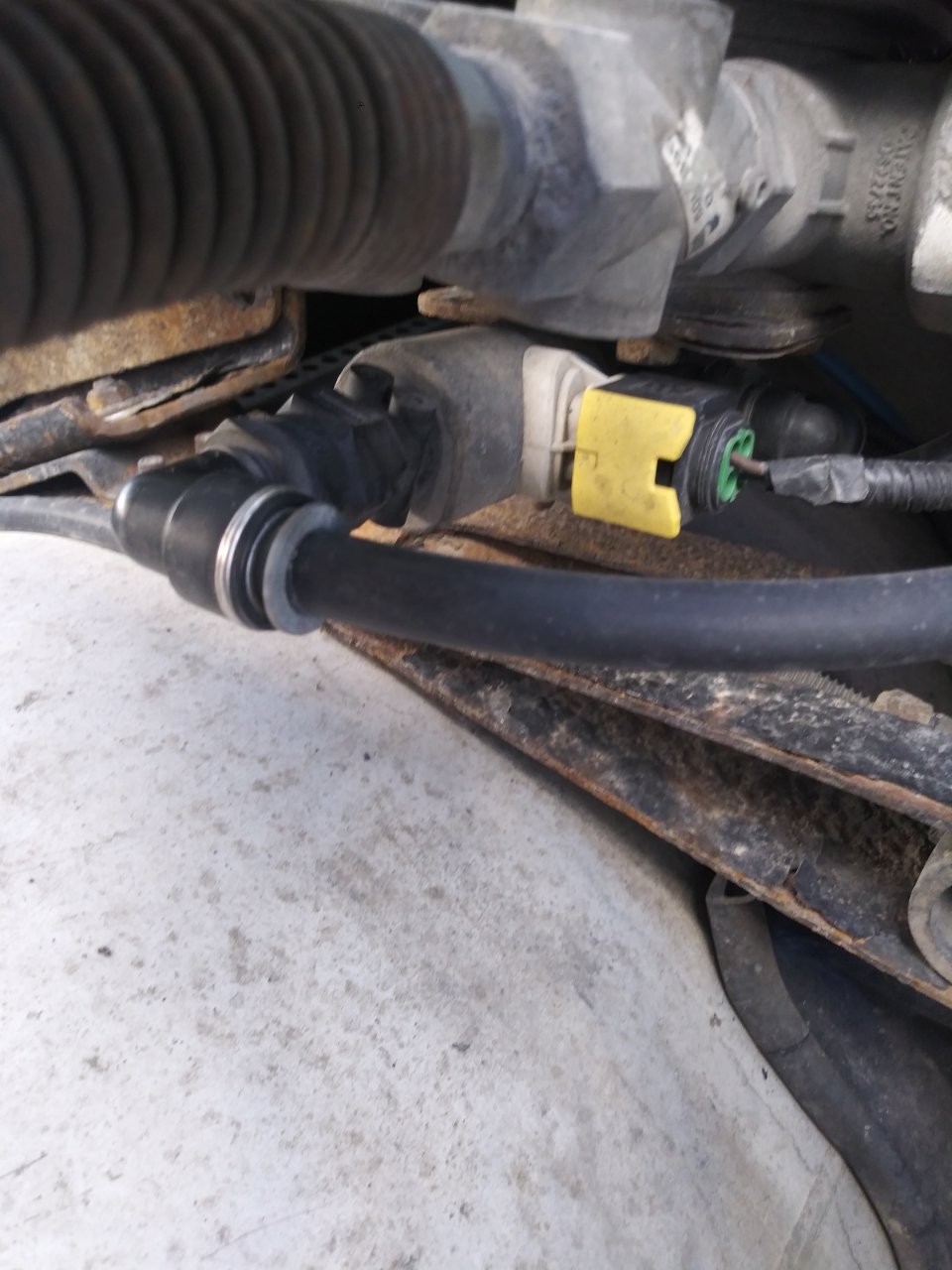

    Is that yellow plug on the backside in the picture connected to it?

  5. Keepforgettingmypassword

    Keepforgettingmypassword Heavy Load Member

    727
    934
    Jan 11, 2022
    0
    great question. I had to look. Yes it is.

  6. JB7

    JB7 Medium Load Member

    521
    625
    Dec 13, 2022
    0

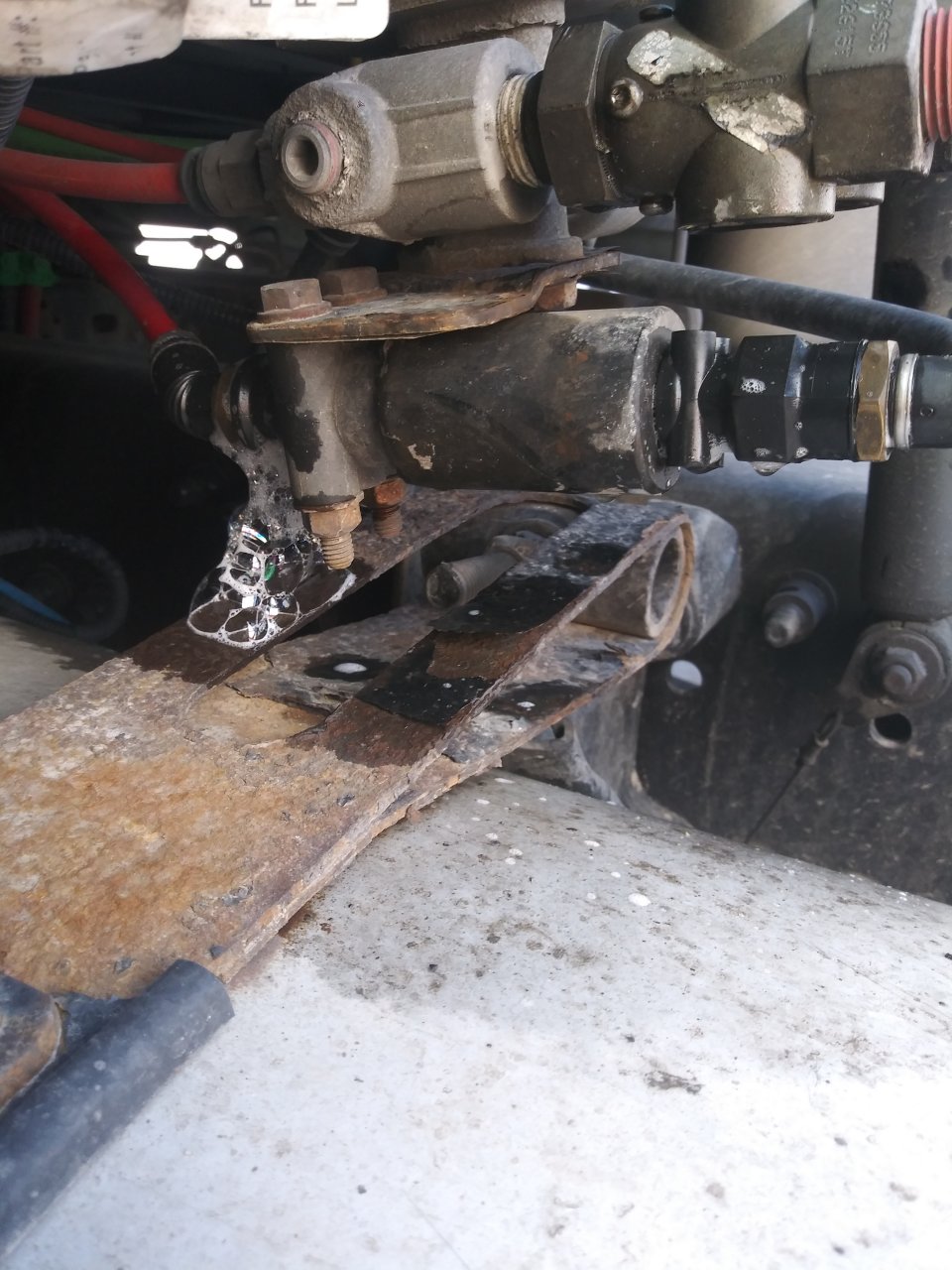

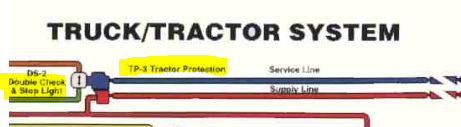

    In the first pic, upper right corner, between the white threads and orange threads is a quick release valve (QR) which threads into the tractor protection valve (TP). The valve below that I think is called the double check valve. The wires are for the trailer brake light switch.

    Last edited: Mar 16, 2023
  7. Dave_in_AZ

    Dave_in_AZ Road Train Member

    49,748
    314,967
    May 4, 2015
    0
    As long as your hands are dirty, you might as well change the rest of the connectors around there, and save yourself some time.

    Get the brass one's.

  8. Keepforgettingmypassword

    Keepforgettingmypassword Heavy Load Member

    727
    934
    Jan 11, 2022
    0
    Just over it at the bottom of the cab.

  9. Keepforgettingmypassword

    Keepforgettingmypassword Heavy Load Member

    727
    934
    Jan 11, 2022
    0
    Thank you.

    JB7 Thanks this.
