Low air buzzer stays on

Discussion in 'Peterbilt Forum' started by blairandgretchen, Oct 4, 2017.

  1. blairandgretchen

    blairandgretchen Road Train Member

    12,048
    60,658
    Dec 9, 2011
    South west Missouri
    0
    1995 Peterbilt 379

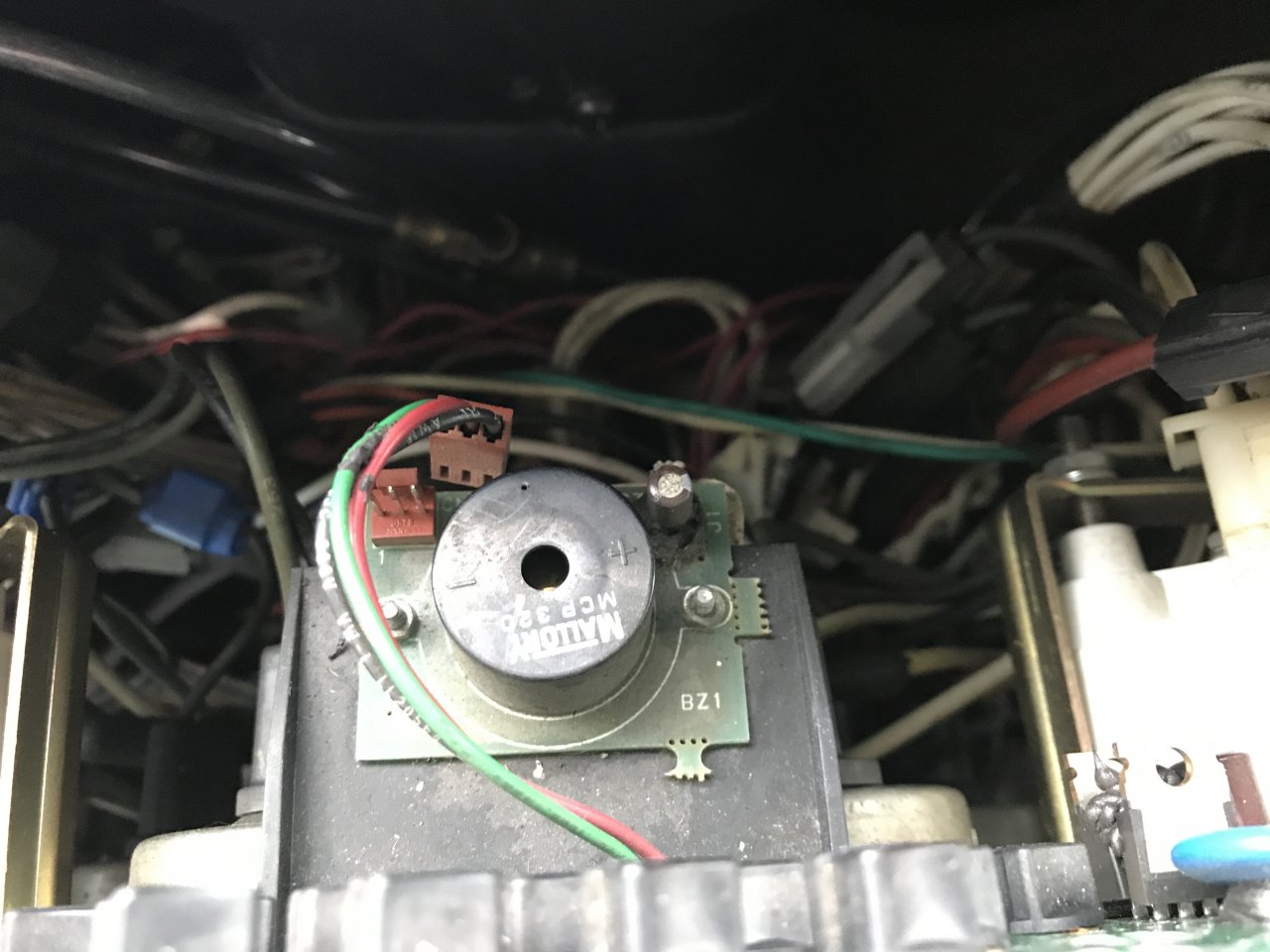

    So - the air pressure is fine, but the buzzer stays on. If you can't stand the racket, take the dash panel off ( key off, and careful not to sparky spark - or disconnect batteries) , and pull the orange 3-wire plug.

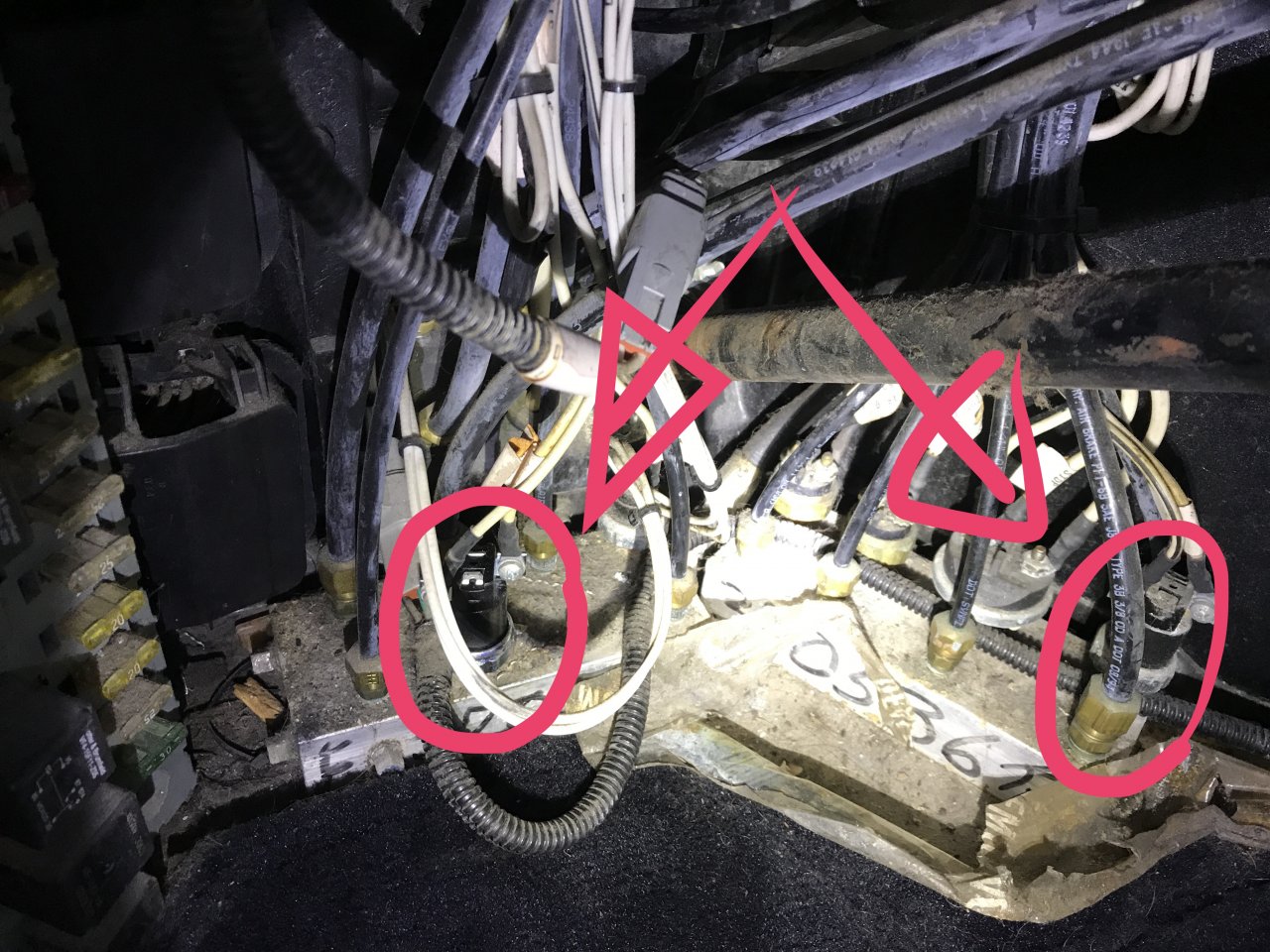

    Low pressure switches are on the floor, behind the pedals. Two covers, about 10 screws. DRAIN YOUR AIR TANKS. Adjustable wrench or channel locks to remove the switch, 2 screws hold the two wires. Clean off area with toothbrush and rag to prevent any crud falling in manifold.

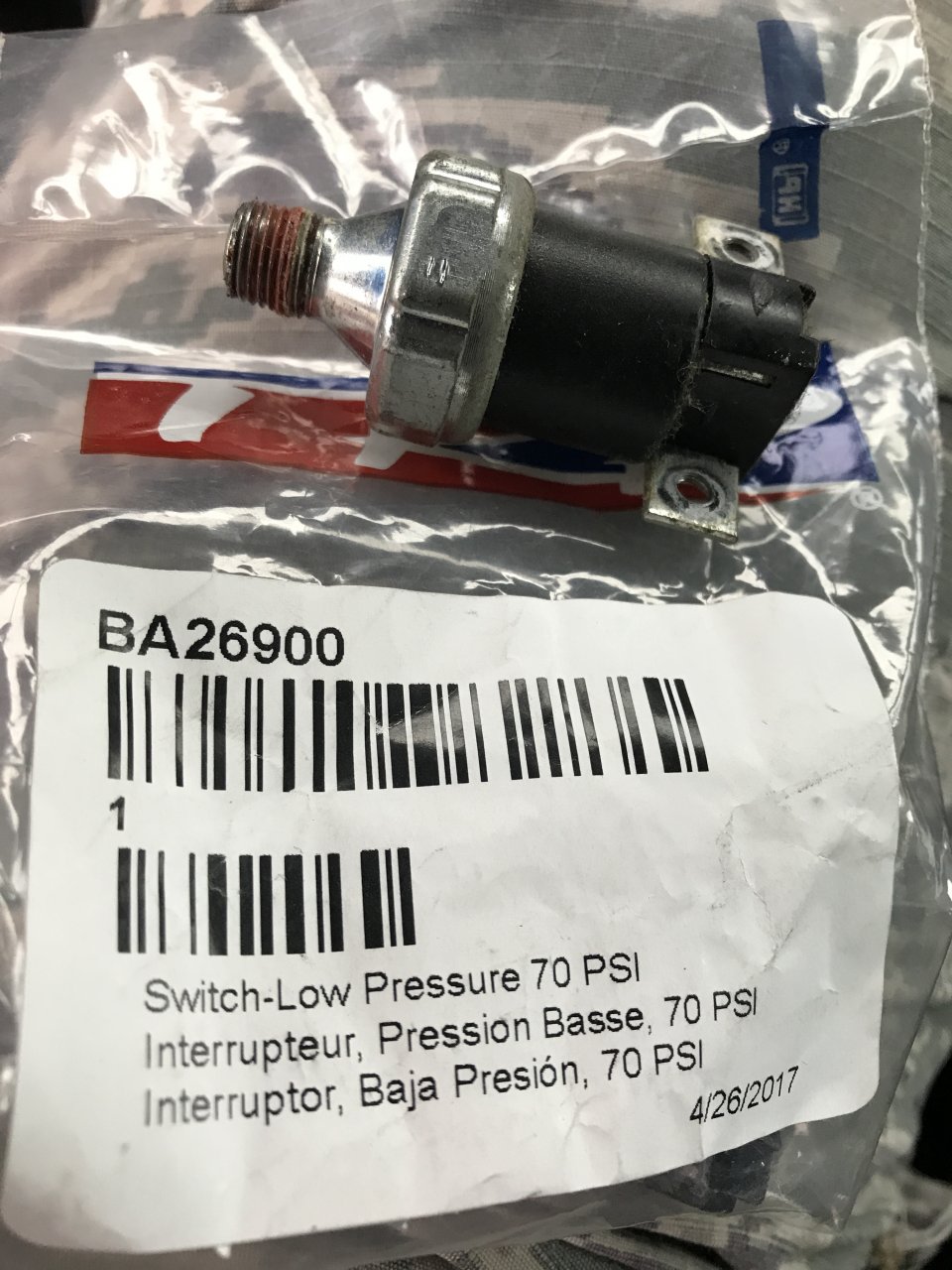

    I didn't see the one on the right at first - but guessed lucky. So I went back in to Peterbilt and bought the other one for a spare.($14).



    Replaced the buzzer plug, aired up and tested.

    Charged myself $289.75, and a case of brake cleaner.

    Hope this helps - Google led me back to TTR, but I didn't find my problem specifically.

    TonyG, '88K100, drive-away2020 and 6 others Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Bigrayon

    Bigrayon Road Train Member

    1,283
    646
    Aug 16, 2015
    0
    Lol I hope you get paid good luck driver

    blairandgretchen Thanks this.
  4. special-k

    special-k Road Train Member

    1,515
    3,240
    Dec 27, 2008
    Southern Ontario Canada
    0
    Keep another one in your toolbox. I've replaced a few on my truck over the years. Just changed one for the daytime running lights on monday. No buzzer just a huge air leak under the dash.

    blairandgretchen Thanks this.
  5. blairandgretchen

    blairandgretchen Road Train Member

    12,048
    60,658
    Dec 9, 2011
    South west Missouri
    0
    Yeah - good luck, my boss is a cheap b*stard!

    Dave_in_AZ Thanks this.
  6. Dave_in_AZ

    Dave_in_AZ Road Train Member

    49,798
    315,522
    May 4, 2015
    0
    I bought a new fan clutch solenoid for mine. $71. All I had to do was threaten the truck that I was going to install it myself, and the old one has worked flawlessly since. New one still in the bag in the glove box.

    blairandgretchen Thanks this.
  7. blairandgretchen

    blairandgretchen Road Train Member

    12,048
    60,658
    Dec 9, 2011
    South west Missouri
    0
    I think it's a Murphy's Law!

    Dave_in_AZ Thanks this.
  8. kevinright2026

    kevinright2026 Bobtail Member

    41
    4
    Jun 20, 2013
    morrisville pa
    0
    So I know this is an old thread but I have a 377 peterbilt that the air buzzard likes to come on when the truck is turned off and I guess when the air leaks down.

    it didn't always do this it just started and sometimes it'll go off on its own after sitting a day or two or it'll just decide not to do it any ideas.

  9. blairandgretchen

    blairandgretchen Road Train Member

    12,048
    60,658
    Dec 9, 2011
    South west Missouri
    0
    At what PSI is it coming on at?

  10. drive-away2020

    drive-away2020 Light Load Member

    68
    260
    Aug 17, 2020
    0
    @blairandgretchen when you said you charged yourself for labor. Is this a legal tax deductible thing to do? Ive heard a little talk on this over the years. But if so, I’ve cheated myself from a MANY tax deductions :D !!

    blairandgretchen Thanks this.
  11. FLHT

    FLHT Road Train Member

    1,012
    1,510
    Aug 2, 2014
    0

    Water leaking in from windshield or cab marker lights.

    blairandgretchen Thanks this.
