Moving buildings and securement?

Discussion in 'Heavy Haul Trucking Forum' started by W923, Nov 30, 2024.

  1. broke down plumber

    broke down plumber Road Train Member

    1,997
    12,909
    Jan 25, 2024
    0
    Talking out the side of my neck cause idk . Can road dollys be mounted under it pull without a trailer so to speak ? Saw something like that in Franklin Tn. Was moving a 100yr old 2 story .

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. xsetra

    xsetra Road Train Member

    5,064
    6,883
    Aug 21, 2011
    0
    To secure the building to the I-beams. Put 1-1/2",,2" lag bolts beside the beam flange in to the center of floor joists, with an oversized washer getting pressed between the bolt head and the flange of the I-beam.
    Bolts on both sides of each beam works best.
    Bolts go in center of floor joist.

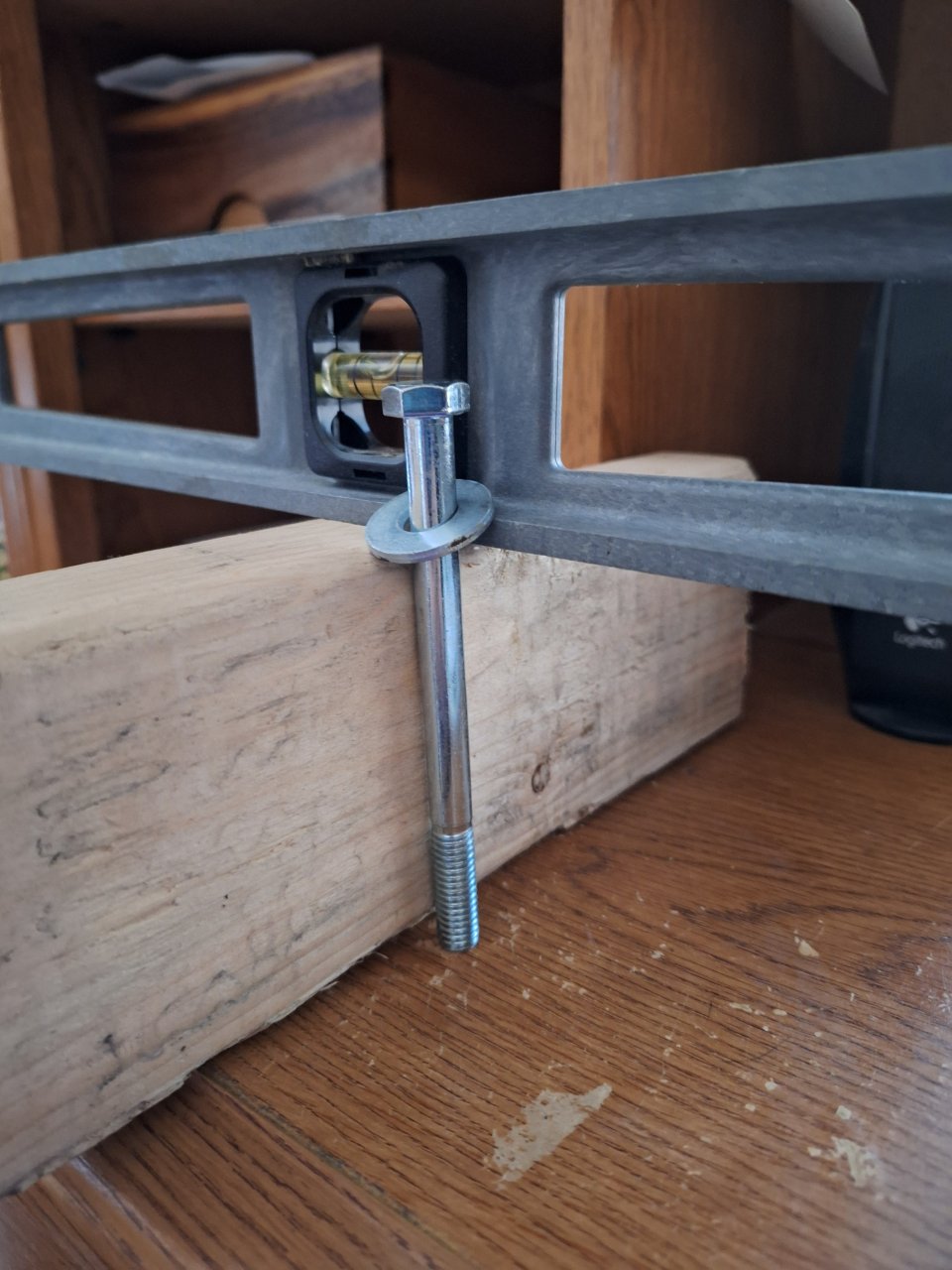

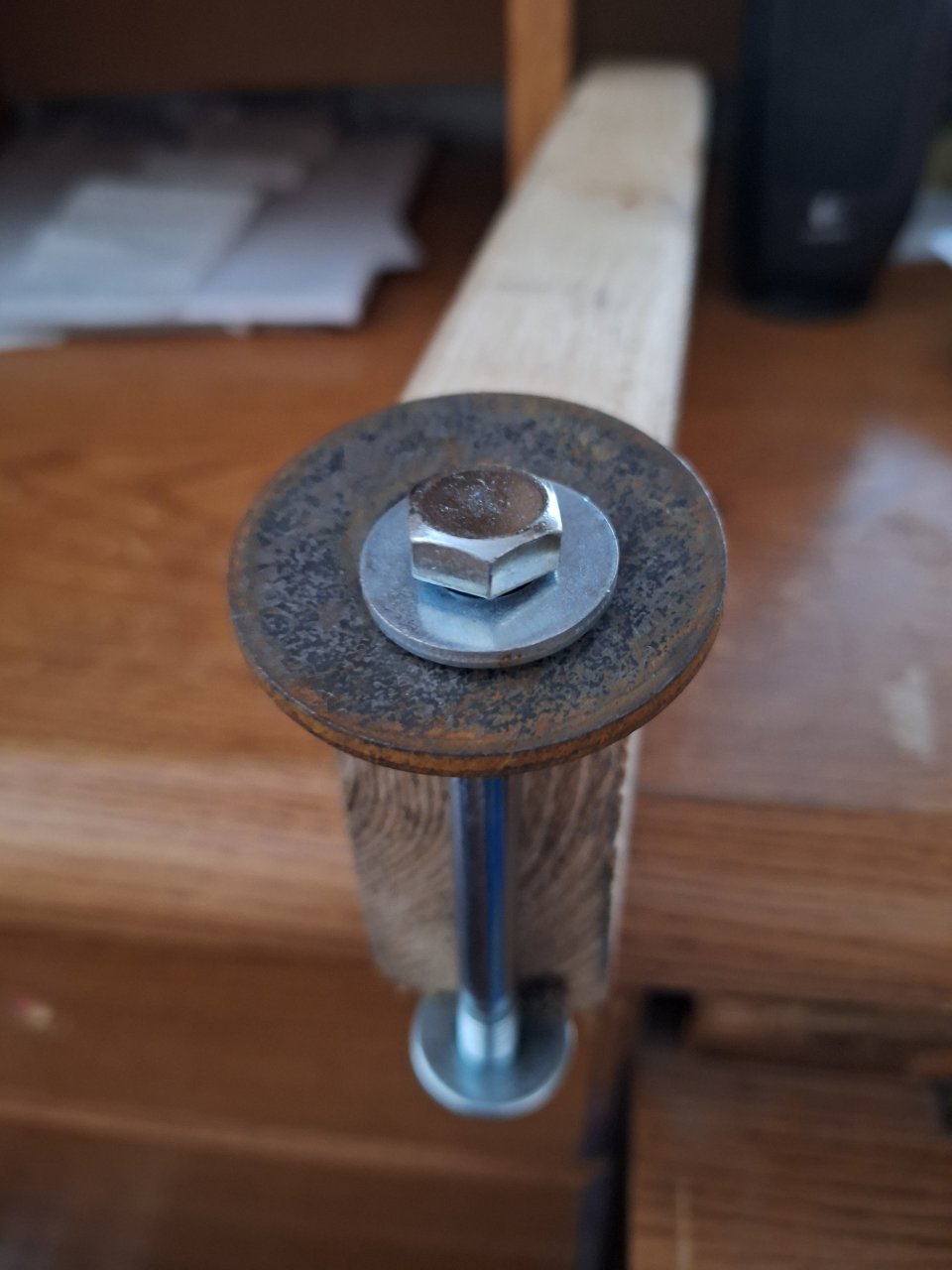

    I grabbed what I had close by to illustrate.
    The level in picture is the I-beam. 2x4 is the floor joist.

  4. xsetra

    xsetra Road Train Member

    5,064
    6,883
    Aug 21, 2011
    0
    upload_2024-12-1_12-57-28.jpeg upload_2024-12-1_12-57-57.jpeg upload_2024-12-1_12-58-20.jpeg upload_2024-12-1_12-57-28.jpeg upload_2024-12-1_12-57-57.jpeg

    And weld all the I-beams where they overlap. Easy to grind off after using.
    You might look for a used mobile home frame and modify it to hitch to your truck.

    Last edited: Dec 1, 2024
  5. Oxbow

    Oxbow Road Train Member

    12,026
    122,261
    Nov 24, 2015
    Idaho
    0
    There is a local housemover that does that, but I think @W923 is trying to do it with what he has.

  6. blairandgretchen

    blairandgretchen Road Train Member

    13,017
    68,026
    Dec 9, 2011
    South west Missouri
    0
    Be interesting to have them quote it to get an idea.

    If they were reasonable, might be the go. Have to remember the liability question if anything gets fuddled up @W923

  7. blairandgretchen

    blairandgretchen Road Train Member

    13,017
    68,026
    Dec 9, 2011
    South west Missouri
    0
  8. W923

    W923 Road Train Member

    1,259
    3,834
    Feb 28, 2022
    0
    That’s a good idea but going to be tough because the bottom of this thing has osb on it which is now trapped between the I beam and the bottom of the joists. I was thinking about welding tabs on the beams at the front and back and bolting to the outer plate of the walls

  9. blairandgretchen

    blairandgretchen Road Train Member

    13,017
    68,026
    Dec 9, 2011
    South west Missouri
    0
    Hurricane ties, or “z-plates” - heavy duty, would be a good choice. Steel, welded to frame, then bolted to wood joists.

    Feedman, beastr123, D.Tibbitt and 3 others Thank this.
  10. blairandgretchen

    blairandgretchen Road Train Member

    13,017
    68,026
    Dec 9, 2011
    South west Missouri
    0
    Aah - ok - in that case your idea is an option.

  11. W923

    W923 Road Train Member

    1,259
    3,834
    Feb 28, 2022
    0
    That’s the plan and the last 3/4 mile of the trip is going through a hay field so it’s about going to have to be on my trailer or something at that point
