Need flush APU mounts (I need my catwalk)

Discussion in 'Flatbed Trucking Forum' started by F4T6UY, May 9, 2022.

  1. F4T6UY

    F4T6UY Medium Load Member

    433
    1,331
    Oct 24, 2017
    Very South Texas
    0
    Posted this in the flatbed section because I figured y’all were most likely to deal with this issue. And frankly, this is new to me.

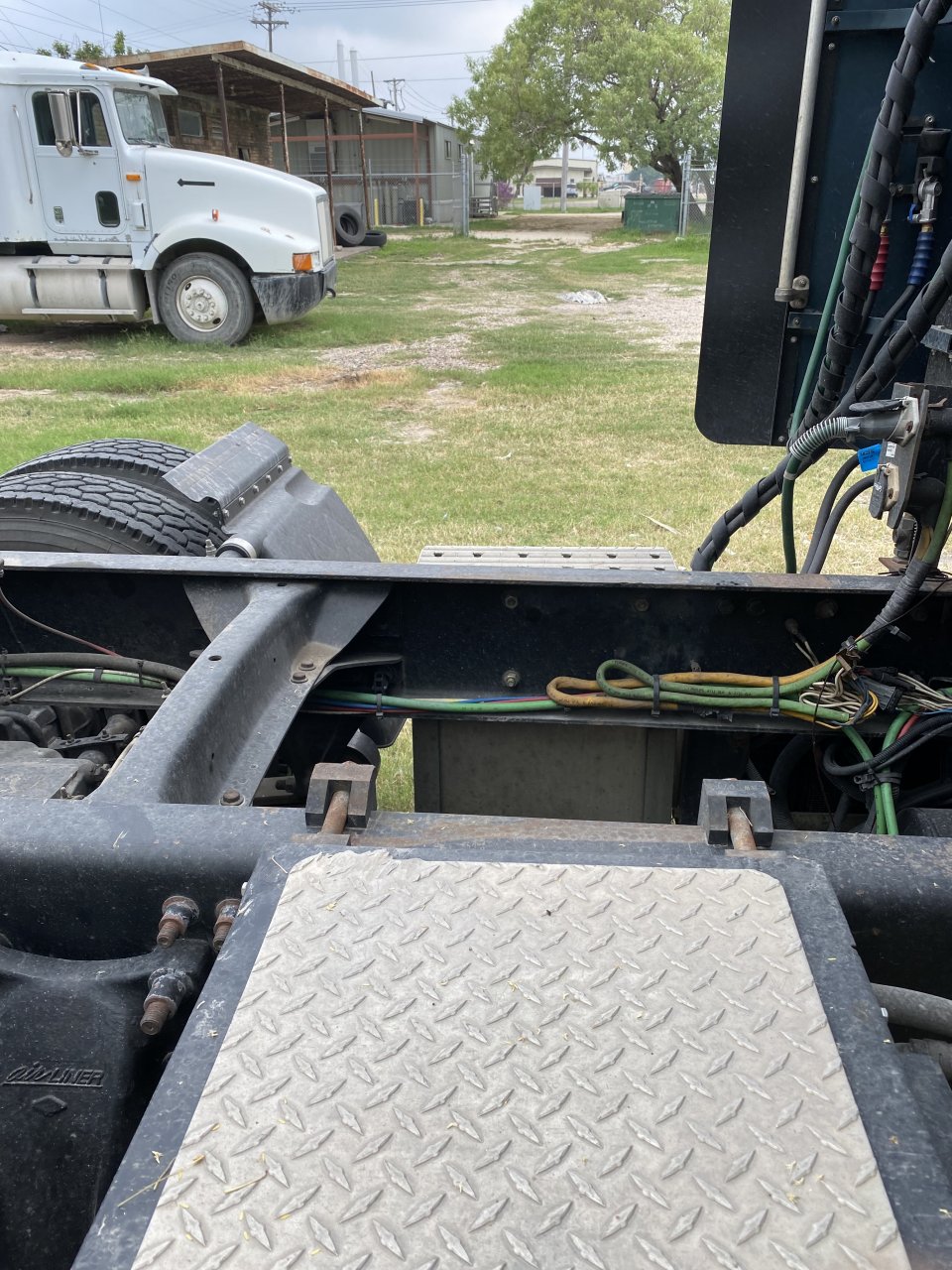

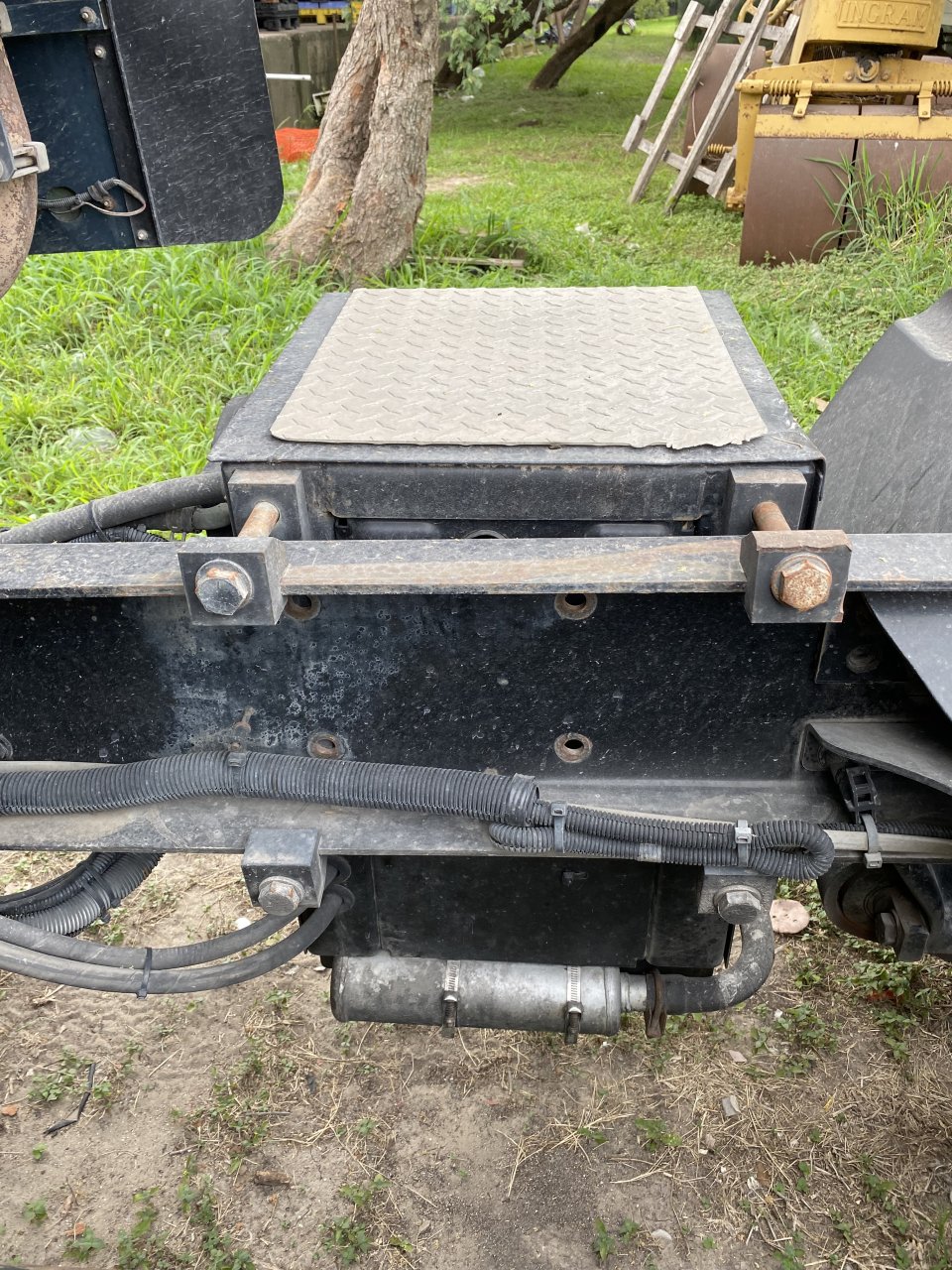

    I have an APU now, but I can’t mount my catwalk because of the APU mounts coming over the top of the frame.

    Just looking for mount bracket alternatives, or ideas, so I can get the use of my frame back for mounting my catwalk.

    I’m sure there’s an easy solution, but I’m not finding it.

    thanks


  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. MacLean

    MacLean Heavy Load Member

    740
    2,012
    Sep 12, 2017
    0
    There’s already holes there in the frame that look unused, why not build a mount that uses them?

  4. MJM

    MJM Light Load Member

    72
    687
    Jan 24, 2011
    Cambridge, WI
    0
    Notch the catwalk around the mounts. If the catwalk is the raised type, it will probably be flush with the mounts.

    Aamcotrans, MOBee, gentleroger and 4 others Thank this.
  5. F4T6UY

    F4T6UY Medium Load Member

    433
    1,331
    Oct 24, 2017
    Very South Texas
    0
    Yeah, that’s plan B, but I thought I’ve seen mounts that come under the frame and press against it. But, yeah, will probably end up fabbing something.

    Didn’t wanna notch the catwalk yet because I’m still playing with configurations and didn’t wanna commit. Plus, eventually I’m trying to sexify everything and want it to look factory ish. But considered that as well.

    Blue jeans Thanks this.
  6. blairandgretchen

    blairandgretchen Road Train Member

    10,400
    48,322
    Dec 9, 2011
    South west Missouri
    0
    Notching was my only thought too.

    4mer trucker, cke, CAXPT and 1 other person Thank this.
  7. F4T6UY

    F4T6UY Medium Load Member

    433
    1,331
    Oct 24, 2017
    Very South Texas
    0
    On the other side I have a step toolbox that we made some brackets for. I’ll probably go the same route with the APU using some heavy duty square tubing and existing frame holes. Was just kinda hoping there was some industry standard mount.

    Blue jeans and OLDSKOOLERnWV Thank this.
  8. GYPSY65

    GYPSY65 Road Train Member

    1,460
    3,477
    Nov 16, 2012
    SW FLA
    0
    I had mine on the previous 3 trucks installed by a shop
    All of them notched the deck

    CAXPT Thanks this.
  9. F4T6UY

    F4T6UY Medium Load Member

    433
    1,331
    Oct 24, 2017
    Very South Texas
    0
    I’d rather not lol, but atleast I know now that that is a common work around.

    I’ll try to remember to post pics here whatever I decide to do.

    baha Thanks this.
  10. beastr123

    beastr123 Road Train Member

    2,165
    18,921
    Jan 2, 2014
    Moose Jaw SK CAN
    0
    Build your catwalk up the height of your APU mounts plus 1/8 inch and notch the buildup. Then the catwalk looks good and is an inch taller.

    gentleroger, D.Tibbitt and F4T6UY Thank this.
  11. CAXPT

    CAXPT Road Train Member

    1,598
    4,774
    Feb 10, 2008
    Michigan
    0
    Those are industry standard mounts. :) Unless you want to drill the frame for direct mounting, that's about your only option outside of that..and then you'd have to have some kind of isolation mounts to keep the vibration and sound level down. Your choice.
