Weight on Steer Axles

Discussion in 'Ask An Owner Operator' started by AgPilot1, Sep 23, 2022.

  1. AgPilot1

    AgPilot1 Light Load Member

    171
    876
    May 29, 2022
    0
    I just found this in an old thread. Someone pulled on the scale and weighed with bags inflated and then weighed with the brake set. Trailer bags deflated.

    First image is with all inflated
    12040
    30840
    32000
    74880

    Second image is with trailer deflated
    13440
    28820
    32260
    74520
    I believe I have found my problem

    77fib77, D.Tibbitt and skallagrime Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. skallagrime

    skallagrime Road Train Member

    2,909
    7,187
    Apr 10, 2012
    Indiana
    0
    Only other thing i would caution if you havent already thought of it, fuel weight. Those look like twin 120s? Relatively centered so if you were at half full when weighingcould be another 400ish steer weight.

    If already full at weigh, ignore this

    D.Tibbitt Thanks this.
  4. D.Tibbitt

    D.Tibbitt Road Train Member

    18,258
    121,218
    Apr 26, 2013
    Gettin' down westbound
    0
    Yes dumping the bags changes the weight... when u get good at it and have dump valves on drives and trailer that u can dump when u flip a switch u can really mess with the scale house and get by with an overweight load that looks legal if it's an axle scale.... Hahahaha

    If you continue to have problems then load the freight a little bit further back of the center point on trailer

    Also with the cat scales, they are going to be perfectly level. Least they should be. Once u pull onto it, use the break to get stopped and then let off the break, it should hold in place... or hold the service breaks, just don't pull the breaks and dump the bags

    motocross25 and Long FLD Thank this.
  5. blairandgretchen

    blairandgretchen Road Train Member

    10,958
    52,944
    Dec 9, 2011
    South west Missouri
    0

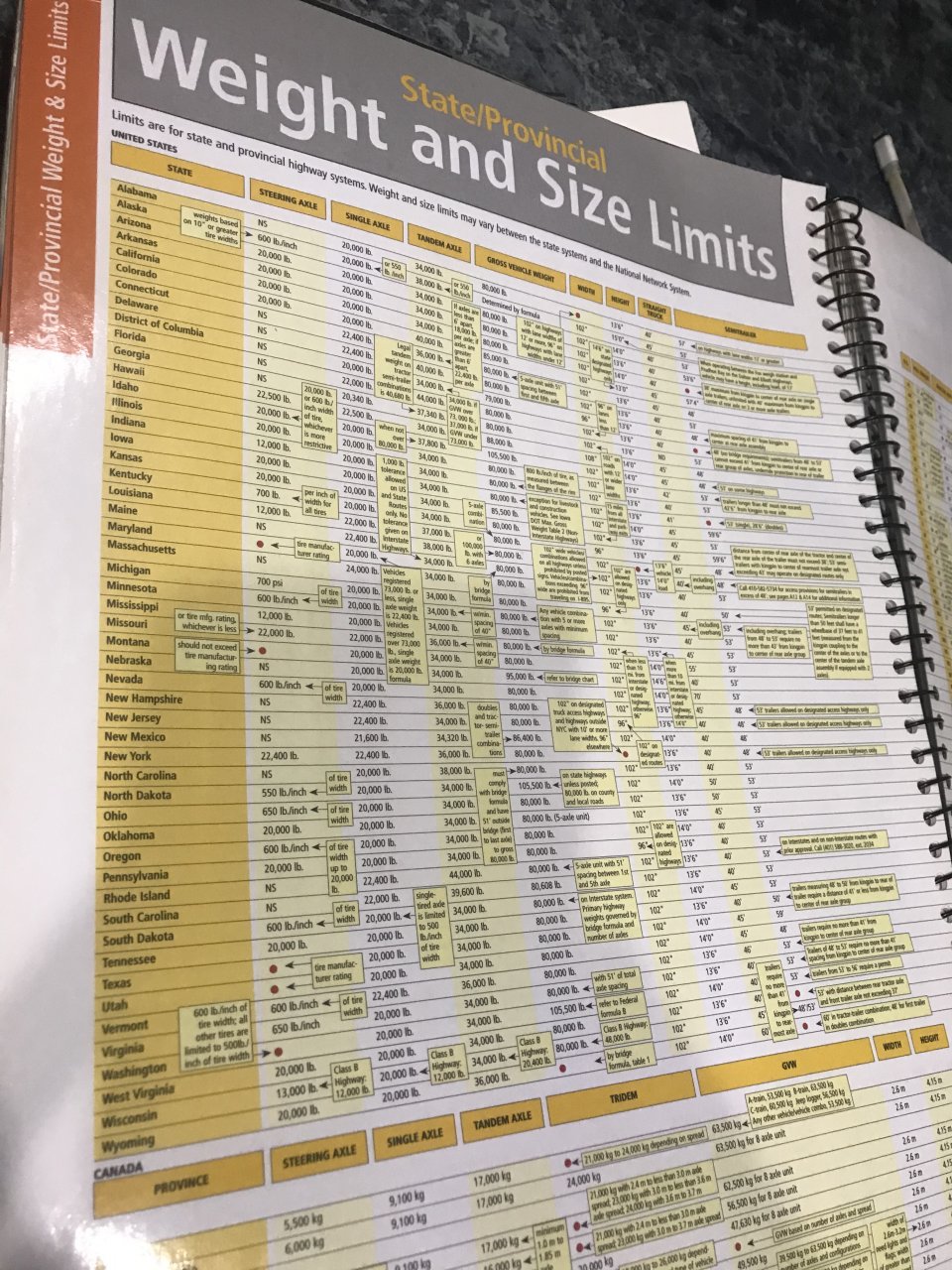

    A14 and A16 of your Road Atlas contain the legality of your situation.

    E00B5C14-8792-4D1B-9FE8-978303403FD5.jpeg F4A60261-B218-4637-9661-D5E06BD19216.jpeg

    Jed2009 and God prefers Diesels Thank this.
  6. 77fib77

    77fib77 Road Train Member

    7,182
    36,961
    Jul 7, 2010
    St Louis
    0
    If you put some chains and binders in a side box. It would move the weight back.

    Bean Jr. Thanks this.
  7. AgPilot1

    AgPilot1 Light Load Member

    171
    876
    May 29, 2022
    0
    I have my tarps in the side box. I reweighed empty and my steer axle 12,100 so I'm thinking I got a bad weigh because I brain cramped and dumped the trailer on the scale. I'm loading 46k on Tuesday so I'll check it then. TMC ran this truck just the way its setup so I think it will be ok.

  8. 77fib77

    77fib77 Road Train Member

    7,182
    36,961
    Jul 7, 2010
    St Louis
    0
    Check the door sticker inside on driver side. On my Freightliner they have axle ratings there. Then double check your tires and see if your legit. If you haven't already.

    When I was tanker they told us to release all brakes on the tractor and trailer when scaling. Granted going over scales I would stab my brakes so the whole truck would dance for the scale master. Smooth bore fun.

    I normally scale at 3/8ths in the fuel tank for an empty trailer.

    Indiana goes off the axle/tire rating for your steers. Most states do. But not all. That's the atlas page in the previous post.


    Anyway good luck. Its a nice looking truck

  9. AgPilot1

    AgPilot1 Light Load Member

    171
    876
    May 29, 2022
    0
    My steer axle is 13,200 and my tires are 14 k and change

    Bean Jr. and 77fib77 Thank this.
  10. 77fib77

    77fib77 Road Train Member

    7,182
    36,961
    Jul 7, 2010
    St Louis
    0
    I wish I had that. :)
