Dreaded air dryer problem...

Discussion in 'Mack Forum' started by Dave1837, Mar 6, 2021.

  1. Dave1837

    Dave1837 Heavy Load Member

    758
    1,967
    Nov 16, 2019
    Pennsylvania
    0
    We've all had to sleep next to a truck with a repetitive air dryer pop off. It's enough to drive anyone crazy. I just moved into a 2015 Mack Pinnacle and it seems as if the air compressor is continuously running. Nobody is in the shop today (Saturday) for me to ask, so I was just wondering if this is a common issue. Also, when it pops off, it's not just a "pshh" sound, it's more like a long "whoooooosh". Very loud and obnoxious. I don't notice the air pressure dropping by looking at the gauges and don't hear any external air leaks, and it occurs both bobtail and with a trailer connected

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Alpha Bandit

    Alpha Bandit Bobtail Member

    40
    31
    Feb 23, 2021
    Chiraq
    0
    Does the dryer continue releasing air slowly after the "whoosh"?
    It sounds like it may need new air dryer cartridge or a new air dryer. In some cases if there is a lot of oil in the dryer, a new compressor. It's a sign of the compressor going out. It's good for the problem to get fixed if your air compressor is running constantly, because its gonna run out of life quicker. Hope that helps

    Dave1837 Thanks this.
  4. bonder45

    bonder45 Heavy Load Member

    938
    2,295
    Oct 2, 2011
    Williston, ND
    0
    Yeah, replace the air dryer "Filter" should be a spin off - few bolts.

    Dave1837 Thanks this.
  5. Dave1837

    Dave1837 Heavy Load Member

    758
    1,967
    Nov 16, 2019
    Pennsylvania
    0
    I let the truck idle for a bit and listened for leaks. There is no air leaking after it "pops" off, but the compressor stops, then kicks back on about a minute later even though the pressure barely dropped

  6. AModelCat

    AModelCat Road Train Member

    21,927
    101,236
    Jul 7, 2015
    Canuckistan
    0
    If primary and secondary aren't leaking down, likely a leak in the wet tank or governor signal line.

    Alpha Bandit and Dave1837 Thank this.
  7. Dave1837

    Dave1837 Heavy Load Member

    758
    1,967
    Nov 16, 2019
    Pennsylvania
    0
    What is a wet tank?

  8. AModelCat

    AModelCat Road Train Member

    21,927
    101,236
    Jul 7, 2015
    Canuckistan
    0
    The one the air dryer fills first. Primary and secondary get filled from that tank. There should be 1 way check valves to prevent primary and secondary air from draining back into the wet tank.

    Dave1837 Thanks this.
  9. Dave1837

    Dave1837 Heavy Load Member

    758
    1,967
    Nov 16, 2019
    Pennsylvania
    0

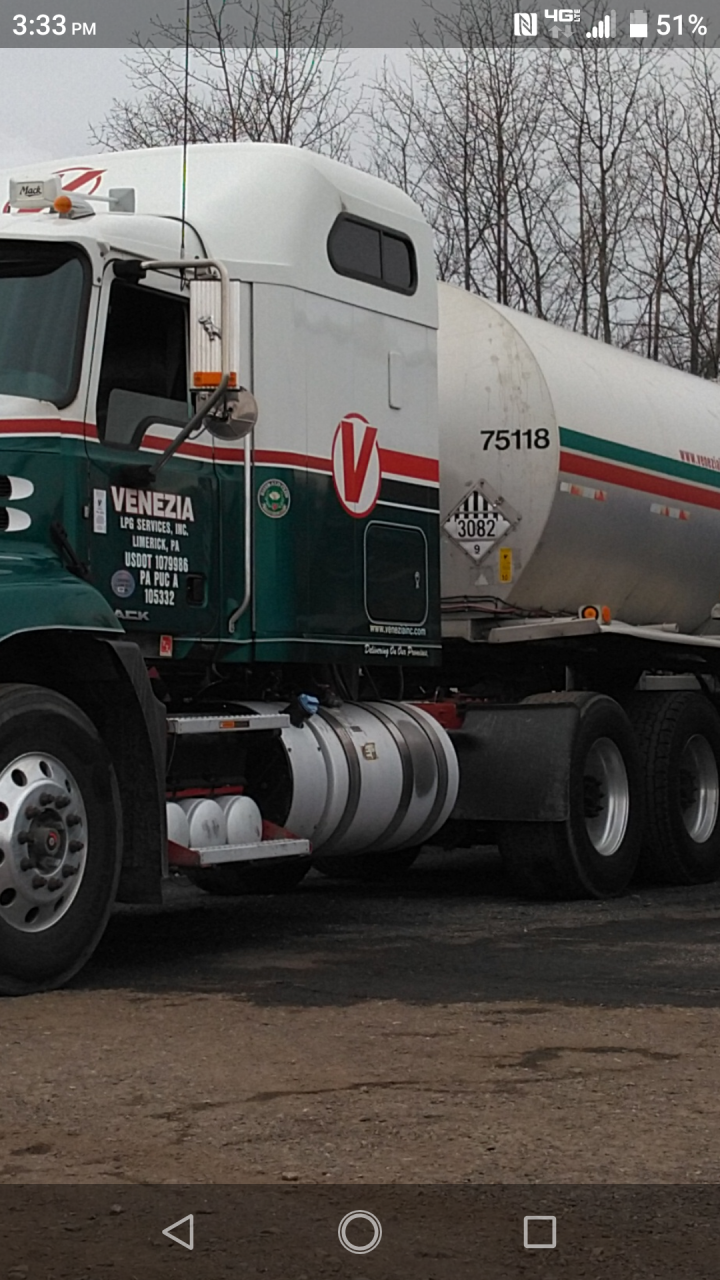

    Is that why there's 3 cans in between the steps? Screenshot_20210306-153339.png

  10. supersnackbar

    supersnackbar Road Train Member

    12,567
    20,710
    Aug 19, 2007
    Your Town, USA
    0
    The wet tank on a Pinnacle was the black tank directly under the drivers side floorboard, sitting longways above the battery box.

    Sounds more like a bad air governor...and unless you like getting dirty, it needs a shop to replace it.

    Dave1837 Thanks this.
  11. Dave1837

    Dave1837 Heavy Load Member

    758
    1,967
    Nov 16, 2019
    Pennsylvania
    0
    Yeah repairing it is way out of my league. I just like to have all my ducks in a row on the write up slip so the mechanics don't think I'm an idiot lol
