2004 9200i blower issue..

Discussion in 'International Forum' started by Beaster0212, Aug 16, 2020.

  1. Aug 16, 2020 #1
    Beaster0212

    Beaster0212 Bobtail Member

    3
    0
    Aug 16, 2020
    0
    I have an 04 9200i... My blower only works on setting #4. High speed only. I have installed a new blower motor, resistor, air door actuator, and dash panel switch. Still only works on high. I dont know what else it could be..any ideas?

    Beaster0212, Aug 16, 2020
    Beaster0212, Aug 16, 2020
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Aug 16, 2020 #2
    beastr123

    beastr123 Road Train Member

    2,947
    24,181
    Jan 2, 2014
    Moose Jaw SK CAN
    0
    You have 2 blowers under the passenger seat and one more to move air to your sleeper area. All have separate resistors and I found that if one motor is out under the seat that the other will not seem to work although it is moving air around the dead unit on all but high.

    beastr123, Aug 16, 2020
    beastr123, Aug 16, 2020
    #2
  4. Aug 16, 2020 #3
    Beaster0212

    Beaster0212 Bobtail Member

    3
    0
    Aug 16, 2020
    0
    Thanks.. I will look into that tomorrow. Although I only saw 1 blower an resistor under passenger seat. I do only have a day cab..But I'll still look into it, only had the truck for a year, so still learning. Thanks again

    Beaster0212, Aug 16, 2020
    Beaster0212, Aug 16, 2020
    #3
  5. Aug 16, 2020 #4
    beastr123

    beastr123 Road Train Member

    2,947
    24,181
    Jan 2, 2014
    Moose Jaw SK CAN
    0
    one is accessed from the center near the rear of the seat box, the other is accessed from a panel at the back of the door side. to access the resistors you remove the seat, then the cover, then the steel lid.
    change the cabin filter while you have the box open.

    beastr123, Aug 16, 2020
    beastr123, Aug 16, 2020
    #4
  7. Aug 18, 2020 #5
    Heavyd

    Heavyd Road Train Member

    7,826
    6,276
    Feb 4, 2009
    0
    Pull out your high speed fan relay and inspect it for burnt terminals. Swap it with a another relay and retest.

    Heavyd, Aug 18, 2020
    Heavyd, Aug 18, 2020
    #5
    Tug Toy Thanks this.
  8. Aug 19, 2020 #6
    Beaster0212

    Beaster0212 Bobtail Member

    3
    0
    Aug 16, 2020
    0
    My glove box doesn't have the diagram for what fuse is what as well as the relays. Any idea which one is the relay I need to check? I've tried to Google it, and I'm coming up empty..thanks

    Beaster0212, Aug 19, 2020
    Beaster0212, Aug 19, 2020
    #6
  9. Aug 21, 2020 #7
    Heavyd

    Heavyd Road Train Member

    7,826
    6,276
    Feb 4, 2009
    0

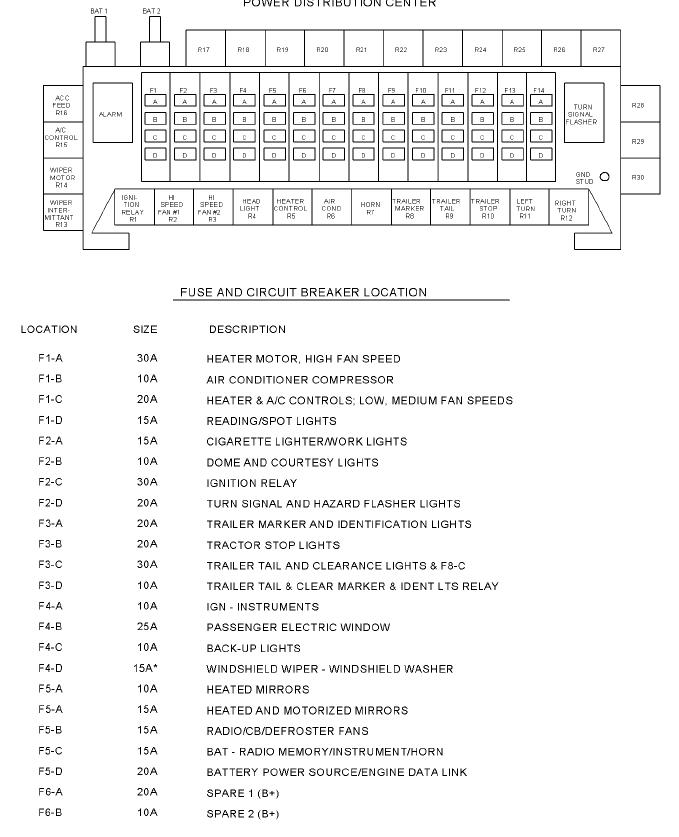

    Fuse panel 1.jpg

    Heavyd, Aug 21, 2020
    Heavyd, Aug 21, 2020
    #7
    Tug Toy and QUALITYTRUCK Thank this.
  10. Aug 25, 2020 #8
    Tug Toy

    Tug Toy Road Train Member

    7,064
    73,906
    Jul 4, 2015
    Corn field
    0
    Tug Toy, Aug 25, 2020
    Tug Toy, Aug 25, 2020
    #8
    Heavyd Thanks this.
