2006 cat c13 engine head torque specs?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by mixingconcrete, Jan 16, 2020.

  1. mixingconcrete

    mixingconcrete Light Load Member

    Joined:
    Apr 14, 2019
    Messages:
    99
    Thanks Received:
    40
    0
    hello, does anybody know or have a manual for c13 twin turbo 2006 torque specs for the
    head bolts,
    valve adjustments,
    and jake brake specs?
    willing to pay somebody thru paypal for the information! thanks
    engine serial kcb53322
    we tried to order the book but it is weeks out and we cant wait that long.
    Thanks!

    mixingconcrete, Jan 16, 2020
    #1
  2. ibcalm19

    ibcalm19 Road Train Member

    Joined:
    Nov 30, 2015
    Messages:
    1,463
    Thanks Received:
    2,435
    Location:
    Pennsylvania
    0
    Search Barrington Diesel club, they should have the information you need online. I hope it helps

    ibcalm19, Jan 16, 2020
    #2
  3. spsauerland

    spsauerland Road Train Member

    Joined:
    May 31, 2010
    Messages:
    4,296
    Thanks Received:
    10,887
    Location:
    West Harrison, In
    0

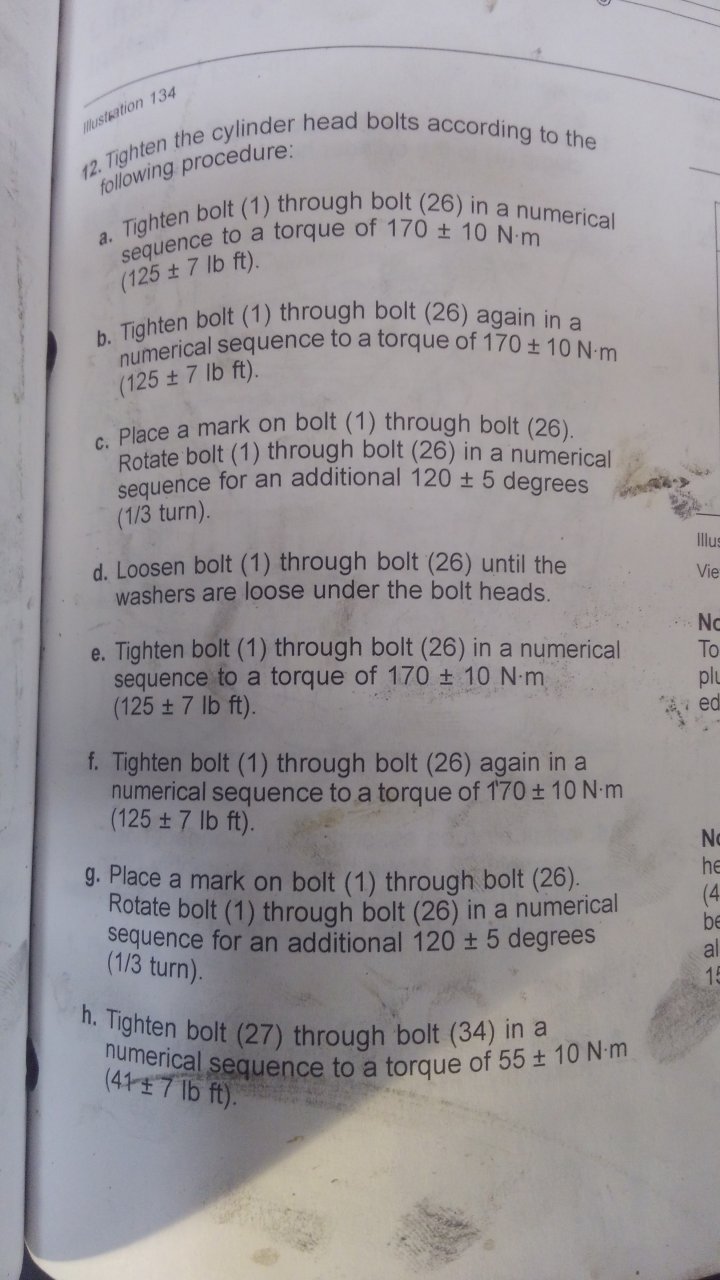

    KIMG2298.JPG KIMG2299.JPG KIMG2300.JPG KIMG2301.JPG

    spsauerland, Jan 16, 2020
    #3
    ibcalm19, SAR, pushbroom and 2 others Thank this.
  4. spsauerland

    spsauerland Road Train Member

    Joined:
    May 31, 2010
    Messages:
    4,296
    Thanks Received:
    10,887
    Location:
    West Harrison, In
    0
    Pay it forward. Adjust 124 intake, 135 exhaust and 356 injector with #1 TDC compression. Rotate 360 and do 356 intake, 246 exhaust, 124 injector. Put on your VVA housings (don't forget seals) and adjust 356 IVA, 246 engine brake. Rotate 360 and do 124 intake, 135 exhaust.

    Last edited: Jan 16, 2020
    spsauerland, Jan 16, 2020
    #4
    ibcalm19, SAR, pushbroom and 3 others Thank this.
  5. mixingconcrete

    mixingconcrete Light Load Member

    Joined:
    Apr 14, 2019
    Messages:
    99
    Thanks Received:
    40
    0
    what is your paypl? And thats for c13 twin turbo correct?



    mixingconcrete, Jan 16, 2020
    #5
  6. spsauerland

    spsauerland Road Train Member

    Joined:
    May 31, 2010
    Messages:
    4,296
    Thanks Received:
    10,887
    Location:
    West Harrison, In
    0
    Yes, from KCB C13 service manual.

    spsauerland, Jan 16, 2020
    #6
    SAR, pushbroom and Doealex Thank this.
  7. spsauerland

    spsauerland Road Train Member

    Joined:
    May 31, 2010
    Messages:
    4,296
    Thanks Received:
    10,887
    Location:
    West Harrison, In
    0
    No money needed or even wanted. Just help the next person in need you can, pay it forward. Any other questions, don't hesitate to ask. I have been through literally everything on a KCB.

    spsauerland, Jan 16, 2020
    #7
    mixingconcrete, pushbroom, ibcalm19 and 2 others Thank this.
  8. SAR

    SAR Road Train Member

    Joined:
    Nov 26, 2011
    Messages:
    2,756
    Thanks Received:
    36,654
    Location:
    ND
    0
    Wow man, you are awesome! I know where I'll be coming for help if I ever tear into a CAT engine. It's good to have you around @spsauerland!

    SAR, Jan 17, 2020
    #8
    spsauerland Thanks this.
  9. ibcalm19

    ibcalm19 Road Train Member

    Joined:
    Nov 30, 2015
    Messages:
    1,463
    Thanks Received:
    2,435
    Location:
    Pennsylvania
    0
    The beauty of being a helpful human being. The payback is just helping someone in need. If that would just keep multiplying throughout the country and world how much a better place it would be. All the best to you keep up the good work

    ibcalm19, Jan 17, 2020
    #9
    stwik, spsauerland and SAR Thank this.
  10. mixingconcrete

    mixingconcrete Light Load Member

    Joined:
    Apr 14, 2019
    Messages:
    99
    Thanks Received:
    40
    0
    Thanks once again! we need more people like you in this world! keep up the good work!

    mixingconcrete, Jan 22, 2020
    #10
    spsauerland and SAR Thank this.
