Abs issue

Discussion in 'Trucks [ Eighteen Wheelers ]' started by OldRed98, Nov 15, 2020.

Page 1 of 3
  1. Nov 15, 2020 #1
    OldRed98

    OldRed98 Medium Load Member

    308
    251
    Apr 18, 2017
    Colorado
    0
    Hello, I’m getting an abs fault code (axle 2 right) does anyone know if the rear tandem is axle 2 or is the middle axle considered axle 2?

    thank you

    OldRed98, Nov 15, 2020
    OldRed98, Nov 15, 2020
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Nov 15, 2020 #2
    S2Hmagoo

    S2Hmagoo Bobtail Member

    8
    3
    Nov 15, 2020
    0
    rear axle

    S2Hmagoo, Nov 15, 2020
    S2Hmagoo, Nov 15, 2020
    #2
    OldRed98 Thanks this.
  4. Nov 15, 2020 #3
    OldRed98

    OldRed98 Medium Load Member

    308
    251
    Apr 18, 2017
    Colorado
    0
    Thank you! I pulled of that wheel cleaned the speed sensor and the light is still on. Wonder if it’s worth replacing the sensor.

    I paid MHC a bunch of money to fix this a while back and my abs light still comes on. Not sure what the problem is

    OldRed98, Nov 15, 2020
    OldRed98, Nov 15, 2020
    #3
  5. Nov 15, 2020 #4
    OldRed98

    OldRed98 Medium Load Member

    308
    251
    Apr 18, 2017
    Colorado
    0
    Also getting a voltage above normal or shorted to high source DTC. Not sure if that’s abs related though.

    OldRed98, Nov 15, 2020
    OldRed98, Nov 15, 2020
    #4
  7. Nov 15, 2020 #5
    S2Hmagoo

    S2Hmagoo Bobtail Member

    8
    3
    Nov 15, 2020
    0
    Paccar product I take it? unfortunately they have electronic issues, may not even be an ABS issue. Had to replace wiring harness and PC to fix the issue in mine to resolve the problem. then I traded in and got another truck not Paccar

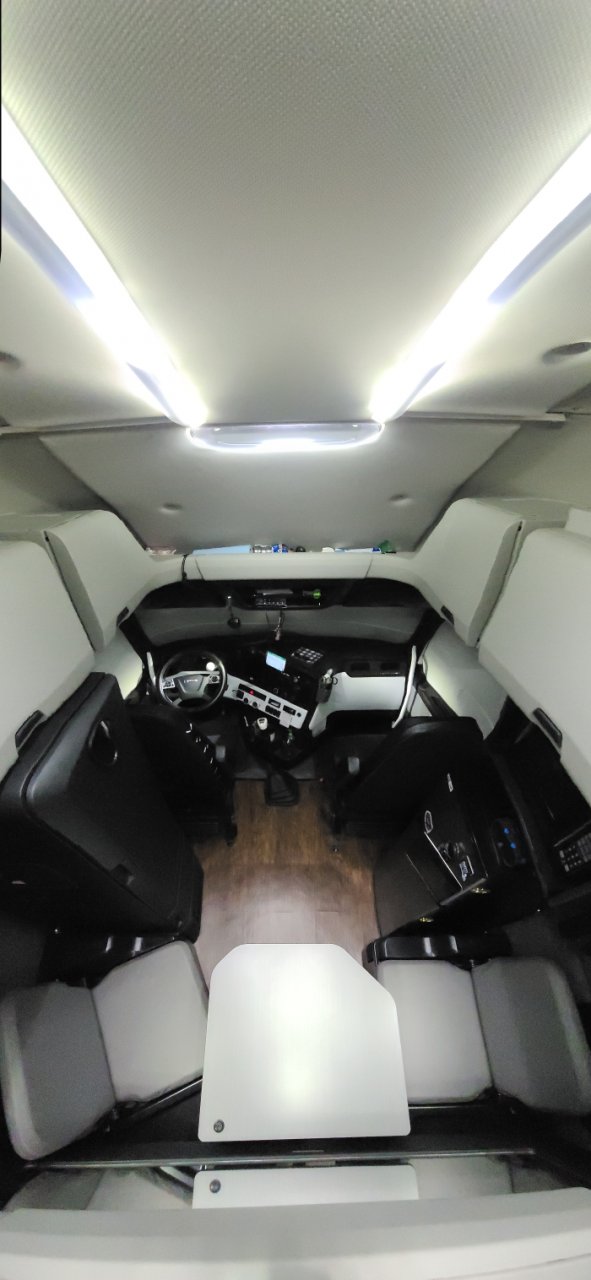

    Attached Files:

    S2Hmagoo, Nov 15, 2020
    S2Hmagoo, Nov 15, 2020
    #5
    Rideandrepair Thanks this.
  8. Nov 15, 2020 #6
    Heavyd

    Heavyd Road Train Member

    7,772
    6,210
    Feb 4, 2009
    0
    Most abs sensors are the same when testing. They should have about 900 to 2000 ohms of resistance and when you put your multimeter on AC volts and spin the wheel by hand, the sensor should generate an AC voltage of about 0.3 volts or higher.

    Heavyd, Nov 15, 2020
    Heavyd, Nov 15, 2020
    #6
    Rideandrepair, spsauerland and OldRed98 Thank this.
  9. Nov 15, 2020 #7
    OldRed98

    OldRed98 Medium Load Member

    308
    251
    Apr 18, 2017
    Colorado
    0
    I have a 98 Kenworth W900 with an N14. Prior owner did a motor swap. I’ve always had an abs light issue. Doesn’t seem like shops like to troubleshoot electrical on old trucks. Figured I better try to fix it.

    OldRed98, Nov 15, 2020
    OldRed98, Nov 15, 2020
    #7
    Rideandrepair Thanks this.
  10. Nov 15, 2020 #8
    Rideandrepair

    Rideandrepair Road Train Member

    17,335
    56,249
    Aug 8, 2015
    0
    Try replacing the harness from sensor to ecu. I did the same thing, replaced sensor, turned out to be the wires going to it. Had same thing happen on my trailer. Now if I have a problem, I first try to push the sensor in, then replace the harness, before sensor. Usually the case. Harness is delicate. Sensor isn’t.

    Rideandrepair, Nov 15, 2020
    Rideandrepair, Nov 15, 2020
    #8
    OldRed98 Thanks this.
  11. Nov 15, 2020 #9
    OldRed98

    OldRed98 Medium Load Member

    308
    251
    Apr 18, 2017
    Colorado
    0
    I checked resistance on the sensor. Didn’t notice anything out of line from the other sensor but it’s hard to get the multimeter diodes on the plugs. Figured I don’t have a lot of time to work on this so I bought a new sensor from mhc... plus I like throwing parts at it .

    a new sensor didn’t fix my issue. Went around the block and my light is still on. I’ll look more at the wire coming from the harness tomorrow.

    OldRed98, Nov 15, 2020
    OldRed98, Nov 15, 2020
    #9
    Rideandrepair Thanks this.
  12. Nov 15, 2020 #10
    AModelCat

    AModelCat Road Train Member

    29,188
    158,936
    Jul 7, 2015
    Canuckistan
    0
    I'd do as @Heavyd suggested. See if you're even generating a signal. For all you know the tone ring in the back of the hub could be missing or never was installed if the hub was replaced at one point. Hate to see somebody toss $$$$$$ at parts for something simple like that.

    AModelCat, Nov 15, 2020
    AModelCat, Nov 15, 2020
    #10
    Heavyd, Rideandrepair and OldRed98 Thank this.
