Clutch problem

Discussion in 'Kenworth Forum' started by cindymz, Jan 31, 2026 at 12:38 PM.

  1. Jan 31, 2026 at 12:38 PM #1
    cindymz

    cindymz Bobtail Member

    18
    0
    Nov 3, 2013
    0

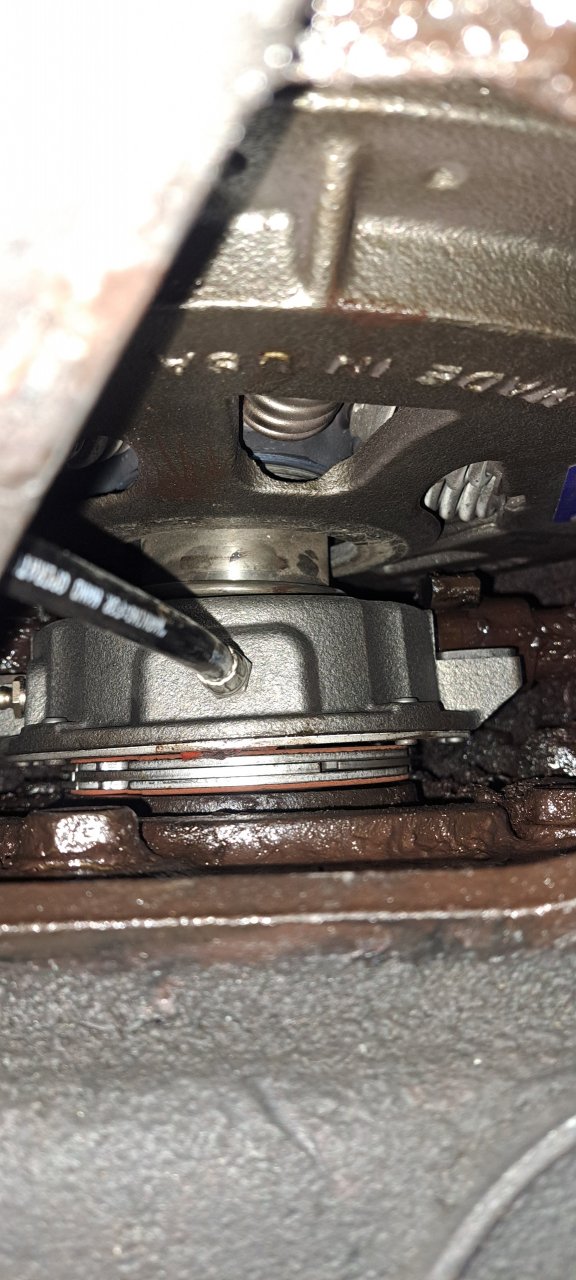

    Resized_20260130_152337.jpeg Resized_20260130_152340(1).jpeg Hi, I have a 2006 Kenworth W900 cat C15.
    I just hade a clutch put in about 3000 miles ago. See the attached picture, it doesn't look like they greased the throw out bearing. Does that look like it's ceased up? Clutch goes to the floor no pressure, but when you take your foot off the pedal it does come back up. I can't take it back, it was done in Florida and I'm in Maryland. Any help is appreciated. Thank you.

    Last edited: Jan 31, 2026 at 12:50 PM
    cindymz, Jan 31, 2026 at 12:38 PM
    cindymz, Jan 31, 2026 at 12:38 PM
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jan 31, 2026 at 12:45 PM #2
    AModelCat

    AModelCat Road Train Member

    29,511
    162,609
    Jul 7, 2015
    Canuckistan
    0
    Sounds to me like the clutch linkage became disconnected or the bell crank or cross shaft is loose and slipping.

    AModelCat, Jan 31, 2026 at 12:45 PM
    AModelCat, Jan 31, 2026 at 12:45 PM
    #2
  4. Jan 31, 2026 at 12:55 PM #3
    cindymz

    cindymz Bobtail Member

    18
    0
    Nov 3, 2013
    0
    I sent a couple pictures. Does it look like the clutch brake is stuck together?
    Thank you for your fast reply.

    cindymz, Jan 31, 2026 at 12:55 PM
    cindymz, Jan 31, 2026 at 12:55 PM
    #3
  5. Jan 31, 2026 at 1:01 PM #4
    AModelCat

    AModelCat Road Train Member

    29,511
    162,609
    Jul 7, 2015
    Canuckistan
    0
    If that's with the clutch pedal released then something isn't right. There should be a roughly 1/8" gap between the cross shaft fingers and the tabs on the release bearing, as well as a 1/2" gap between the release bearing and clutch brake.

    I would start with a clutch adjustment. If that doesn't correct it and get the clearances into spec then unfortunately you may have to drop the transmission again.

    AModelCat, Jan 31, 2026 at 1:01 PM
    AModelCat, Jan 31, 2026 at 1:01 PM
    #4
    QUALITYTRUCK and Big Road Skateboard Thank this.
  7. Jan 31, 2026 at 1:59 PM #5
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    6,837
    38,535
    May 2, 2021
    0
    It looks like the fork isn't even touching the throw out bearing

    Big Road Skateboard, Jan 31, 2026 at 1:59 PM
    Big Road Skateboard, Jan 31, 2026 at 1:59 PM
    #5
  8. Jan 31, 2026 at 3:37 PM #6
    cindymz

    cindymz Bobtail Member

    18
    0
    Nov 3, 2013
    0
    I will try that. Thank you.

    cindymz, Jan 31, 2026 at 3:37 PM
    cindymz, Jan 31, 2026 at 3:37 PM
    #6
  9. Jan 31, 2026 at 3:47 PM #7
    cindymz

    cindymz Bobtail Member

    18
    0
    Nov 3, 2013
    0
    I will try that. Thank you.

    cindymz, Jan 31, 2026 at 3:47 PM
    cindymz, Jan 31, 2026 at 3:47 PM
    #7
  10. Jan 31, 2026 at 3:52 PM #8
    cindymz

    cindymz Bobtail Member

    18
    0
    Nov 3, 2013
    0
    Can you tell me how to adjust this. Thanks


    Attached Files:

    cindymz, Jan 31, 2026 at 3:52 PM
    cindymz, Jan 31, 2026 at 3:52 PM
    #8
