Ddec iv to ddec v conversion

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by truckerbangin, Dec 26, 2018.

  1. truckerbangin

    truckerbangin Light Load Member

    Joined:
    Jan 22, 2013
    Messages:
    266
    Thanks Received:
    44
    0
    seasons greetings I have a fld120 glider that was wired for a ddec iv 12.7 but I have a ddec v 14L that I would like to drop in so I can get the truck back on the road. What is needed to be done in order to make the swap work.

  2. Working2party

    Working2party Medium Load Member

    Joined:
    Feb 10, 2018
    Messages:
    608
    Thanks Received:
    729
    Location:
    Kansas
    0
    That maybe a tough one. I beleive the DDEC V was the first Detroit engine to introduce the MCM and the CPC (instead of the sole ECM. Meaning you would have to have the CPC (CAB computer) out of the donor truck. The DDEC IV used the J1939 protocol to comunicate with the cab electronics /dash. The newer version uses CAN protocol to communicate to the CPC. The CPC then communicates the J1939 to other on-board systems (ABS, transmission, etc). And receives the inputs for road speed, throttle position, Jake brake, fan control, etc.

    Now with all that confusing stuff said. Anything possible with the right amount of time and money.

    The easiest way I can think of would be to get the computer, wire harnesses, and dash from the donor truck and install it in your FLD. There are people on this forum that know more on this and probably have a better, simpler, and less time consuming way. But I’m at a loss.

    Dino soar and truckerbangin Thank this.
  3. KVB

    KVB Heavy Load Member

    Joined:
    Jun 30, 2012
    Messages:
    877
    Thanks Received:
    2,875
    0
    As far as I know DDEC-V still had just the engine ECU, DDEC-VI used MCM and CPC.

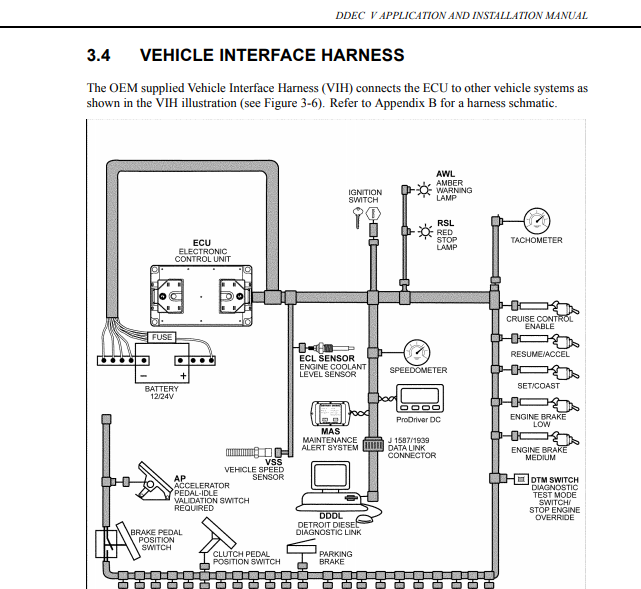

    I'm pretty sure DDEC-V uses different connectors and terminals than DDEC-IV, so you will have to rewire the vehicle wiring to the ECU, or find a suitable vehicle interface wiring harness that matches your truck and the DDEC-V ECU, if these exist at all.

    I have pdf Application and Installation manuals for both IV and V, I can mail them to you, so you can research and go from there. Send me PM with email address and I'll try to send both of them to you within next couple of days.

    swaan and spsauerland Thank this.
  4. Rideandrepair

    Rideandrepair Road Train Member

    Joined:
    Aug 8, 2015
    Messages:
    17,333
    Thanks Received:
    56,243
    0
    What about converting 14 L to ddec IV ? ddec IV is great . ddec V , 2 computers for emissions etc. maybe change turbo for non gvt type? I don’t know if possible just curious if you considered it

  5. truckerbangin

    truckerbangin Light Load Member

    Joined:
    Jan 22, 2013
    Messages:
    266
    Thanks Received:
    44
    0
    my plan was to go non egr and with a regular borg warne. now if i can get the 14l ddec v to use ddec iv ecm ill be a happy man

    Rideandrepair Thanks this.
  6. Rideandrepair

    Rideandrepair Road Train Member

    Joined:
    Aug 8, 2015
    Messages:
    17,333
    Thanks Received:
    56,243
    0
    Let us know. I have an old 12.7 ddec IV. Wouldn’t mind 14.L torque without all the negatives. I’m wondering if I can build mine ( change crank etc into a 14 L .esentially a 12.7 stroker.

  7. ljsride

    ljsride Bobtail Member

    Joined:
    Oct 15, 2016
    Messages:
    5
    Thanks Received:
    0
    0
    What happened on with your swap??? Did you try the DDlV computer on the DD IV???

  8. ljsride

    ljsride Bobtail Member

    Joined:
    Oct 15, 2016
    Messages:
    5
    Thanks Received:
    0
    0
    On the DDV

  9. truckerbangin

    truckerbangin Light Load Member

    Joined:
    Jan 22, 2013
    Messages:
    266
    Thanks Received:
    44
    0
    No haven’t gotten anywhere with it as yet been working on some 12.7’s
