End Dump Tailgate Wiring Question

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by OldRed98, Mar 30, 2022.

  1. OldRed98

    OldRed98 Medium Load Member

    308
    251
    Apr 18, 2017
    Colorado
    0
    I bought a used end dump trailer. I can't find a wiring diagram for the tailgate air valve. It has two wires. I tried adding power to the lines and nothing happened.

    Does anyone know the wiring for a valve like this (it has two wires). Is one a power and the other a ground? Thank you

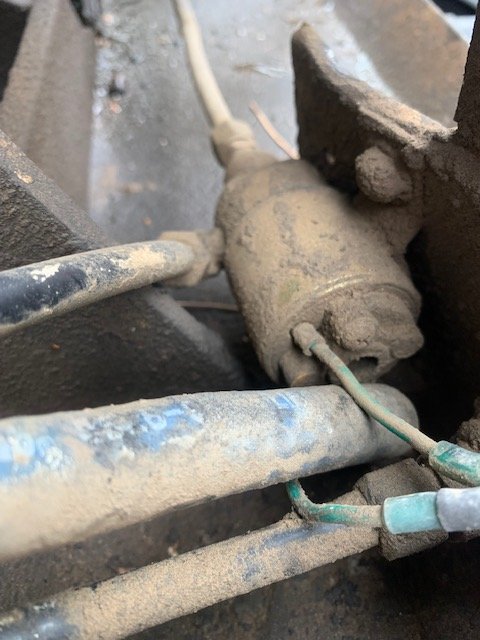

    Tail Gate.jpg

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. RocketScott

    RocketScott Medium Load Member

    579
    946
    Apr 10, 2013
    Kentucky
    0
    One power and one ground, it doesn't matter which is which since it's just a coil. Doesn't matter which direction the electrons flow

    Have you checked it with a multimeter? If there's no continuity through the coil you're going to need a new one

    ETA - Might be this one, clean it off and look for numbers
    Air Solenoid Valve, Three Way Solenoid

    Last edited: Mar 30, 2022
    Oxbow and OldRed98 Thank this.
