epg1 problem

Discussion in 'Trucks [ Eighteen Wheelers ]' started by jaielv, Oct 10, 2012.

  1. Pablo-UA

    Pablo-UA Road Train Member

    Joined:
    Oct 11, 2010
    Messages:
    7,604
    Thanks Received:
    1,642
    Location:
    Borispol, Ukraine
    0

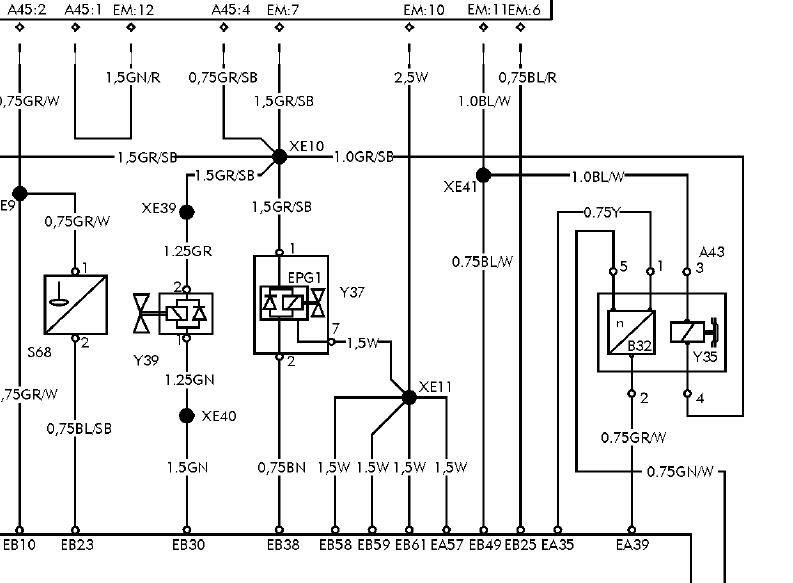

    This is schematics to inspect and check wiring and check solenoid

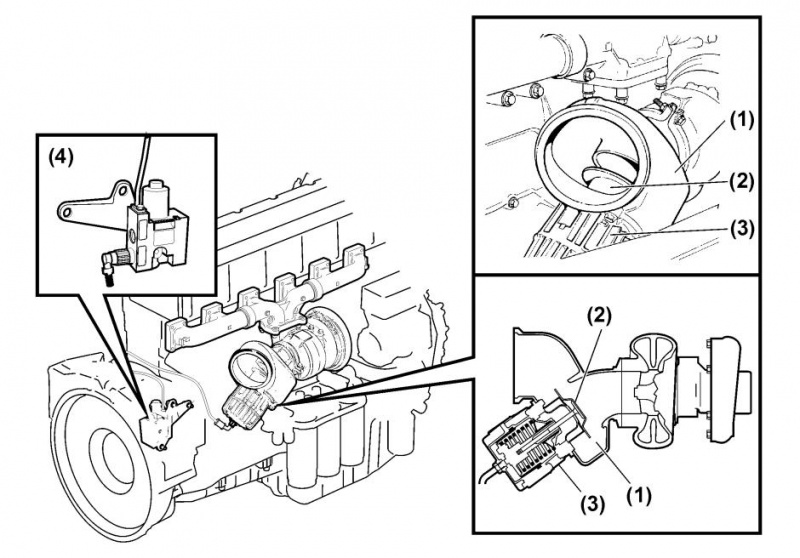

    and component locations

    Newer purchase parts before you do diagnostics and inspection of wiring

  2. Pablo-UA

    Pablo-UA Road Train Member

    Joined:
    Oct 11, 2010
    Messages:
    7,604
    Thanks Received:
    1,642
    Location:
    Borispol, Ukraine
    0
    is the bigger photo available?

  3. Nikolatrucker

    Nikolatrucker Bobtail Member

    Joined:
    Jan 11, 2019
    Messages:
    5
    Thanks Received:
    1
    0
    Hi, i have a 2003 volvo d12 465hp
    Mechanics said that wiring is getting signal but has an X on solenoid.
    I have code mid 128 ppid 123 fmi 5 and
    Mid 128 ppid 124 fmi 5


    Attached Files:

  4. Nikolatrucker

    Nikolatrucker Bobtail Member

    Joined:
    Jan 11, 2019
    Messages:
    5
    Thanks Received:
    1
    0
    I wish that volvo wants to give me parts numbee i would replace both epg parts find some aftermarket becouse it is to expensive in volvo.

  5. Misterj313

    Misterj313 Bobtail Member

    Joined:
    Aug 10, 2018
    Messages:
    13
    Thanks Received:
    2
    0
    After months of a couple psi of turbo loss, and a squeaking engine brake, loss of fuel mileage, I finally figure out it must be the epg. My fan clutch has been squeaking as well recently. Yesterday it was raining and I went to use my engine brake to slow down on an off ramp and it just sounded like air with water rushing through it. I then went to leave and I was down below 10 psi turbo and no acceleration at all. I guess this is my epg stuck closed? The psi would eventually return to around 18 psi and have some power but i used to get 30 and had been around 27 for a month. The epg parts are really expensive on this. Is it worth trying to clean it? I havent found any aftermarket at all. Epg 20722238 06 volvo d12. $1000, valve $600... if i block off the intake i just lose my level 1 exhaust brake? Apply air pressure to get it fully opened? Thats what ive gathered reading all these posts. Any help appreciated.

  6. Oscarg10

    Oscarg10 Bobtail Member

    Joined:
    Apr 17, 2023
    Messages:
    1
    Thanks Received:
    0
    0
    What ended up being the problem?
    Thanks

  7. kellogg69

    kellogg69 Bobtail Member

    Joined:
    Jun 28, 2025
    Messages:
    3
    Thanks Received:
    0
    0
    What ended up being the issue cause I am having the same codes and truck running rough as heck
