fault code SA 16 DTC P030500

Discussion in 'Volvo Forum' started by SWTRANSPORTATION, Dec 20, 2019.

Page 1 of 3
  1. SWTRANSPORTATION

    SWTRANSPORTATION Bobtail Member

    Joined:
    Nov 19, 2018
    Messages:
    12
    Thanks Received:
    2
    0
    Hello
    I have 2015 Volvo D13. 613k , when I started today give this two codes
    SA 16 DTC P030500
    SA 16 DTC P02D500

    The engine shaking bad until it's get warm , I also have bad fuel mileage
    5.2 loaded

    SWTRANSPORTATION, Dec 20, 2019
    #1
  2. Newto Trucking

    Newto Trucking Medium Load Member

    Joined:
    Dec 26, 2013
    Messages:
    359
    Thanks Received:
    225
    Location:
    NE Illinois
    0
    P0305 Misfire Single Cylinder (Cylinder 5)
    P02D5 Single Cylinder Fuel Injector Offset – High (Cylinder 5)

    Did you do delete???

    Newto Trucking, Dec 20, 2019
    #2
    Jack carg Thanks this.
  3. mobilerepairboise

    mobilerepairboise Light Load Member

    Joined:
    Jul 10, 2018
    Messages:
    61
    Thanks Received:
    42
    Location:
    Boise Idaho
    0
    I got p30100 and p02d200 and p02d300 any ideas

    mobilerepairboise, Dec 21, 2019
    #3
  4. Newto Trucking

    Newto Trucking Medium Load Member

    Joined:
    Dec 26, 2013
    Messages:
    359
    Thanks Received:
    225
    Location:
    NE Illinois
    0
    P30100 is incorrect code
    P02D2 - Cylinder 4 Fuel Injector Offset Learning at Min Limit
    P02D3 - Cylinder 4 Fuel Injector Offset Learning at Max Limit
    Most likely physical damage in a cylinder, what a compression test showing you???

    Newto Trucking, Dec 21, 2019
    #4
    Jack carg Thanks this.
  5. mobilerepairboise

    mobilerepairboise Light Load Member

    Joined:
    Jul 10, 2018
    Messages:
    61
    Thanks Received:
    42
    Location:
    Boise Idaho
    0
    I didn’t check compession p030100 that’s the code

    mobilerepairboise, Dec 21, 2019
    #5
  6. Newto Trucking

    Newto Trucking Medium Load Member

    Joined:
    Dec 26, 2013
    Messages:
    359
    Thanks Received:
    225
    Location:
    NE Illinois
    0
    P0301 - Cylinder 1 Misfire detected

    Newto Trucking, Dec 21, 2019
    #6
    Jack carg Thanks this.
  7. SWTRANSPORTATION

    SWTRANSPORTATION Bobtail Member

    Joined:
    Nov 19, 2018
    Messages:
    12
    Thanks Received:
    2
    0
    Thanks for your help man , no I don't do delete
    I did replaced the cups and one of the injectors two months ago and I just run 10k miles since I done with this issue , I know I should replace all injectors , but I was having money issue , I will go next week for another shop to figure out what is wrong

    SWTRANSPORTATION, Dec 21, 2019
    #7
    Newto Trucking Thanks this.
  8. mobilerepairboise

    mobilerepairboise Light Load Member

    Joined:
    Jul 10, 2018
    Messages:
    61
    Thanks Received:
    42
    Location:
    Boise Idaho
    0

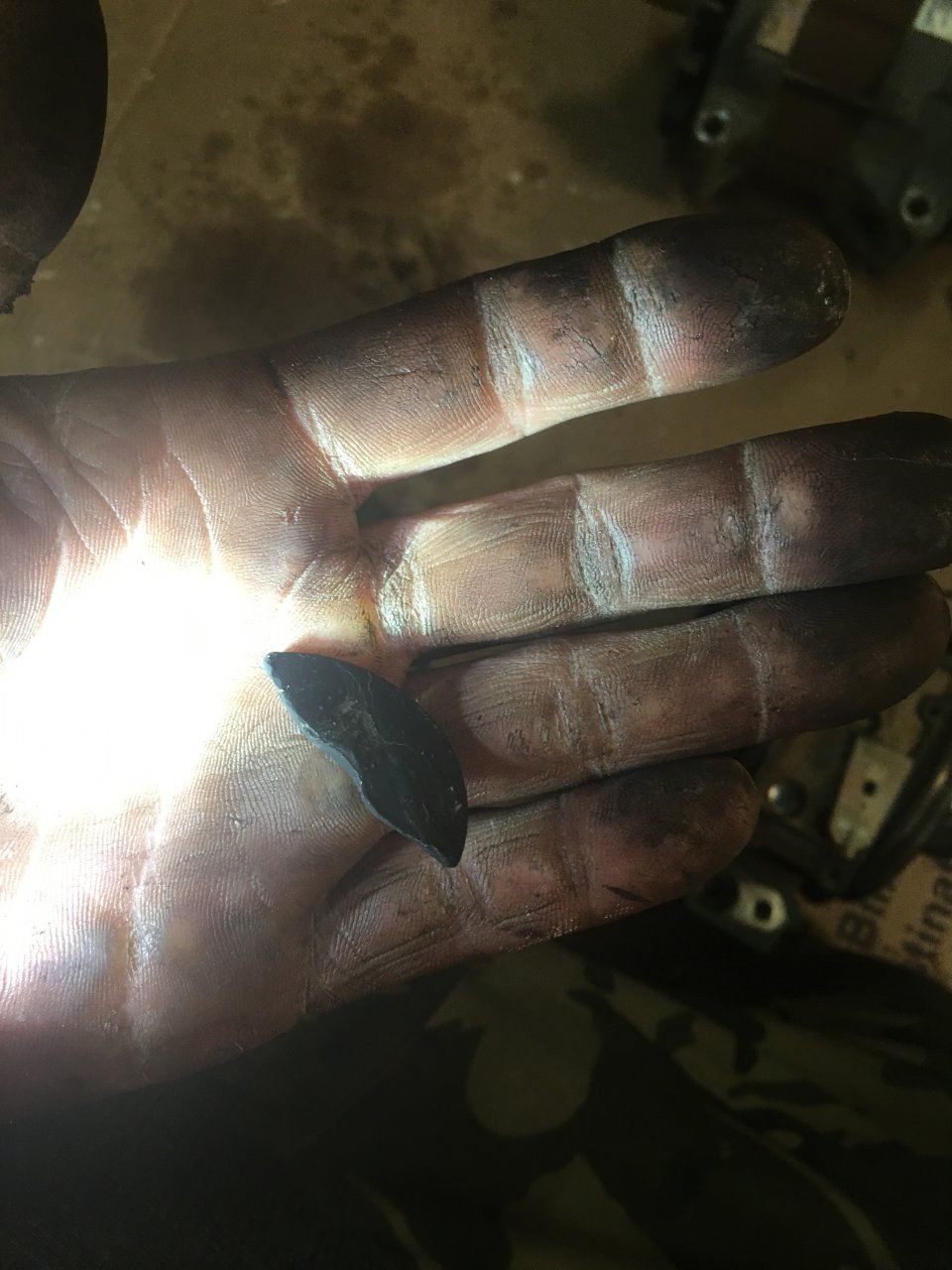

    That’s what I found upload_2019-12-26_9-57-36.jpeg

    mobilerepairboise, Dec 26, 2019
    #8
    Newto Trucking and Jack carg Thank this.
  9. mobilerepairboise

    mobilerepairboise Light Load Member

    Joined:
    Jul 10, 2018
    Messages:
    61
    Thanks Received:
    42
    Location:
    Boise Idaho
    0
    NEWTO TRUCKING Thankyou for ur help

    mobilerepairboise, Dec 26, 2019
    #9
    Newto Trucking Thanks this.
  10. Jack carg

    Jack carg Bobtail Member

    Joined:
    Mar 1, 2019
    Messages:
    20
    Thanks Received:
    7
    0
    Jack carg, Dec 26, 2019
    #10
