Injector o ring question

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by bruce25, Dec 16, 2023.

  1. bruce25

    bruce25 Light Load Member

    150
    90
    Apr 16, 2014
    0

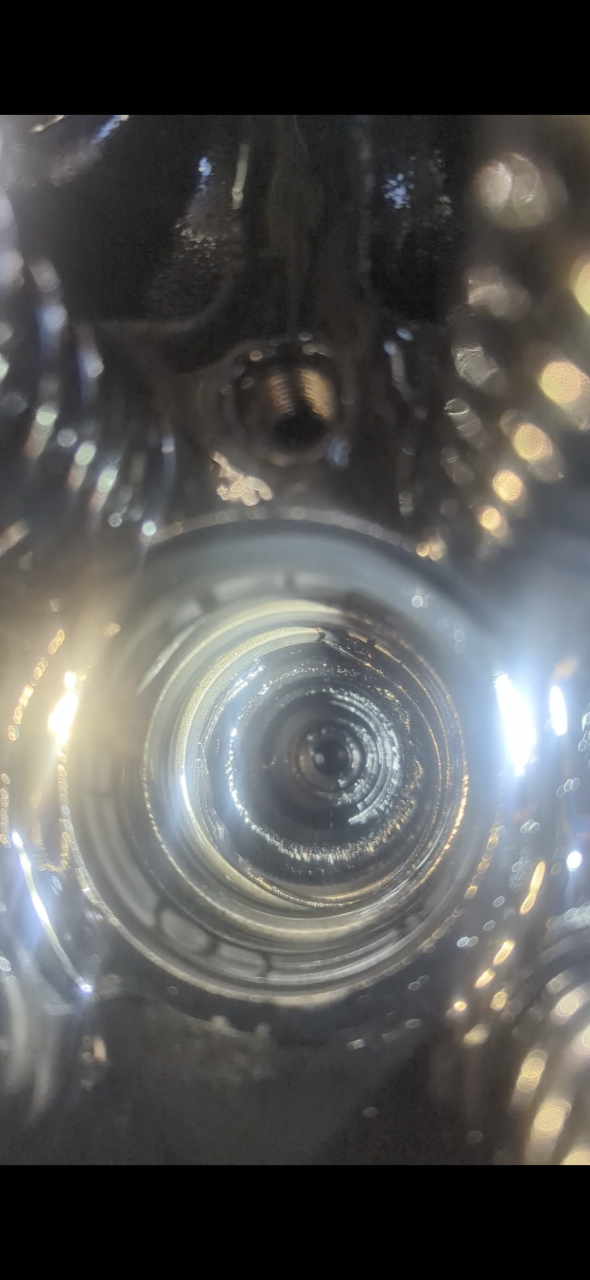

    Yes that's a different cylinder which has no leaks. The one that's black inside is the one that has no o ring or graphite here is the pic Screenshot_20231216-213938.png

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. bruce25

    bruce25 Light Load Member

    150
    90
    Apr 16, 2014
    0
    Screenshot_20231216-215856.png Here another angle hope it's a better pic I just cleaned the injector and it was coated with soot

  4. Big Road Skateboard

    Big Road Skateboard Road Train Member

    6,044
    32,722
    May 2, 2021
    0
    Gotcha. Definitely see it there

    Oxbow and Rideandrepair Thank this.
  5. bruce25

    bruce25 Light Load Member

    150
    90
    Apr 16, 2014
    0
    What say you on the injector cup most likely issue?

    Rideandrepair Thanks this.
  6. little cat 500

    little cat 500 Road Train Member

    2,048
    1,094
    Jan 17, 2010
    Abbottstown PA
    0
    if the injector bolt was loose i don't see anything wrong with cup more than likely you're dealing with a blown head gasket

    Rideandrepair Thanks this.
  7. Rideandrepair

    Rideandrepair Road Train Member

    17,285
    56,110
    Aug 8, 2015
    0
    That’s what I’m wondering.

    Last edited: Dec 19, 2023
  8. Rideandrepair

    Rideandrepair Road Train Member

    17,285
    56,110
    Aug 8, 2015
    0
  9. bruce25

    bruce25 Light Load Member

    150
    90
    Apr 16, 2014
    0
    PXL_20231219_235226573.jpg Just an update cup on cylinder 5 was bad I pressure tested it and it was blowing air through it. Took the head off had it pressure tested confirmed cup on 5 was bad. Cost me 650$ to do pressure test and 6 new cups

    Last edited: Dec 21, 2023
    Rideandrepair and little cat 500 Thank this.
  10. Rideandrepair

    Rideandrepair Road Train Member

    17,285
    56,110
    Aug 8, 2015
    0
    @Big Road Skateboard knows his ####. I’d be very glad if that’s what’s wrong with mine. You got lucky. New heads have gone up about 50% in last 3 years. $650, not bad. Add gasket set, O rings, and what else? Total cost? Whatever, better than $3-$4k. 5-6k with labor these days.

    Oxbow Thanks this.
  11. bruce25

    bruce25 Light Load Member

    150
    90
    Apr 16, 2014
    0
    Bought gasket set online for 210$ including all injector o rings got head bolts for 165$ check valve was bad 130$ new cups+ test 650$
