Rear main seal

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Mr Bob, Dec 2, 2025.

Page 1 of 2
  1. Dec 2, 2025 #1
    Mr Bob

    Mr Bob Light Load Member

    269
    84
    Mar 17, 2015
    0
    We replaced the rear main seal on an N13 IH. Didnt take a reference note on how deep the seal sits. Looking at it it looks like its not sitting deep enough. The 2nd lip of the seal is not touching the crank. We did use the installation tool. Flywheel housing was not removed. Tool used, ZTSE4875 Rear Crankshaft Oil Seal Installer Tool Alternative 373-4726

    Mr Bob, Dec 2, 2025
    Mr Bob, Dec 2, 2025
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Dec 2, 2025 #2
    062

    062 Road Train Member

    6,282
    33,792
    Oct 20, 2013
    0
    062, Dec 2, 2025
    062, Dec 2, 2025
    #2
  4. Dec 3, 2025 #3
    Mr Bob

    Mr Bob Light Load Member

    269
    84
    Mar 17, 2015
    0
    ?

    Mr Bob, Dec 3, 2025
    Mr Bob, Dec 3, 2025
    #3
  5. Dec 6, 2025 #4
    Heavyd

    Heavyd Road Train Member

    7,808
    6,258
    Feb 4, 2009
    0
    We have an engine on the floor right now. I can take a picture of it Monday. It's an A26, but it all the same. Normally, the tool will bottom out and that is all there is to it.

    Heavyd, Dec 6, 2025
    Heavyd, Dec 6, 2025
    #4
    Rideandrepair, Big Road Skateboard and 062 Thank this.
  7. Dec 6, 2025 #5
    Mr Bob

    Mr Bob Light Load Member

    269
    84
    Mar 17, 2015
    0
    Pic would be nice for future reference. Im just used to seeing the end of the crank stick out a bit. It looks like the convex shape of the flywheel will make it all good but who knows. You cant see in there.

    Mr Bob, Dec 6, 2025
    Mr Bob, Dec 6, 2025
    #5
  8. Dec 6, 2025 #6
    Ridgeline

    Ridgeline Road Train Member

    22,623
    120,366
    Dec 18, 2011
    Michigan
    0

    Ridgeline, Dec 6, 2025
    Ridgeline, Dec 6, 2025
    #6
  9. Dec 6, 2025 #7
    Mr Bob

    Mr Bob Light Load Member

    269
    84
    Mar 17, 2015
    0
    I have done those. That is a 2 peice seal. note how the end of the crank sticks out beyond the seal. The N13 has a one peice seal.

    Mr Bob, Dec 6, 2025
    Mr Bob, Dec 6, 2025
    #7
  10. Dec 6, 2025 #8
    Ridgeline

    Ridgeline Road Train Member

    22,623
    120,366
    Dec 18, 2011
    Michigan
    0
    I understand, but it isn't my point.

    The seal driver has a step that stops when the seal is deep enough or should.

    I don't have my books here with me, they are at my shop, but I think it seats almost all the way down, which the seal driver is supposed to make sure happens.

    Ridgeline, Dec 6, 2025
    Ridgeline, Dec 6, 2025
    #8
  11. Dec 6, 2025 #9
    Mr Bob

    Mr Bob Light Load Member

    269
    84
    Mar 17, 2015
    0
    Not all seal drivers have a step. For this aplication there is no step. It stops when it touches the flywheel housing. I trusted the tool and sent it. I hope it dosent come back. That flywheel is heavy. lol.

    Mr Bob, Dec 6, 2025
    Mr Bob, Dec 6, 2025
    #9
  12. Dec 9, 2025 #10
    Heavyd

    Heavyd Road Train Member

    7,808
    6,258
    Feb 4, 2009
    0

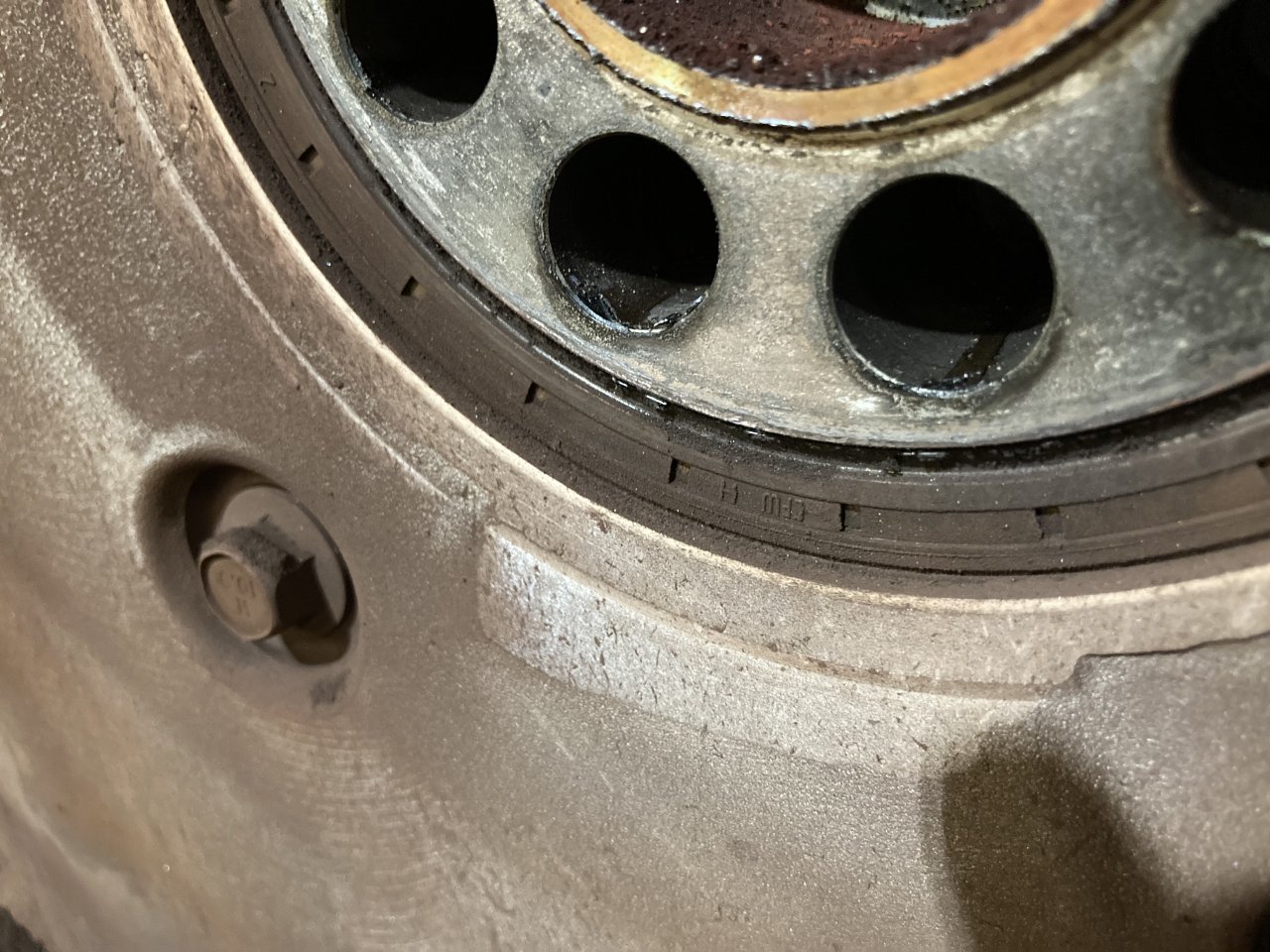

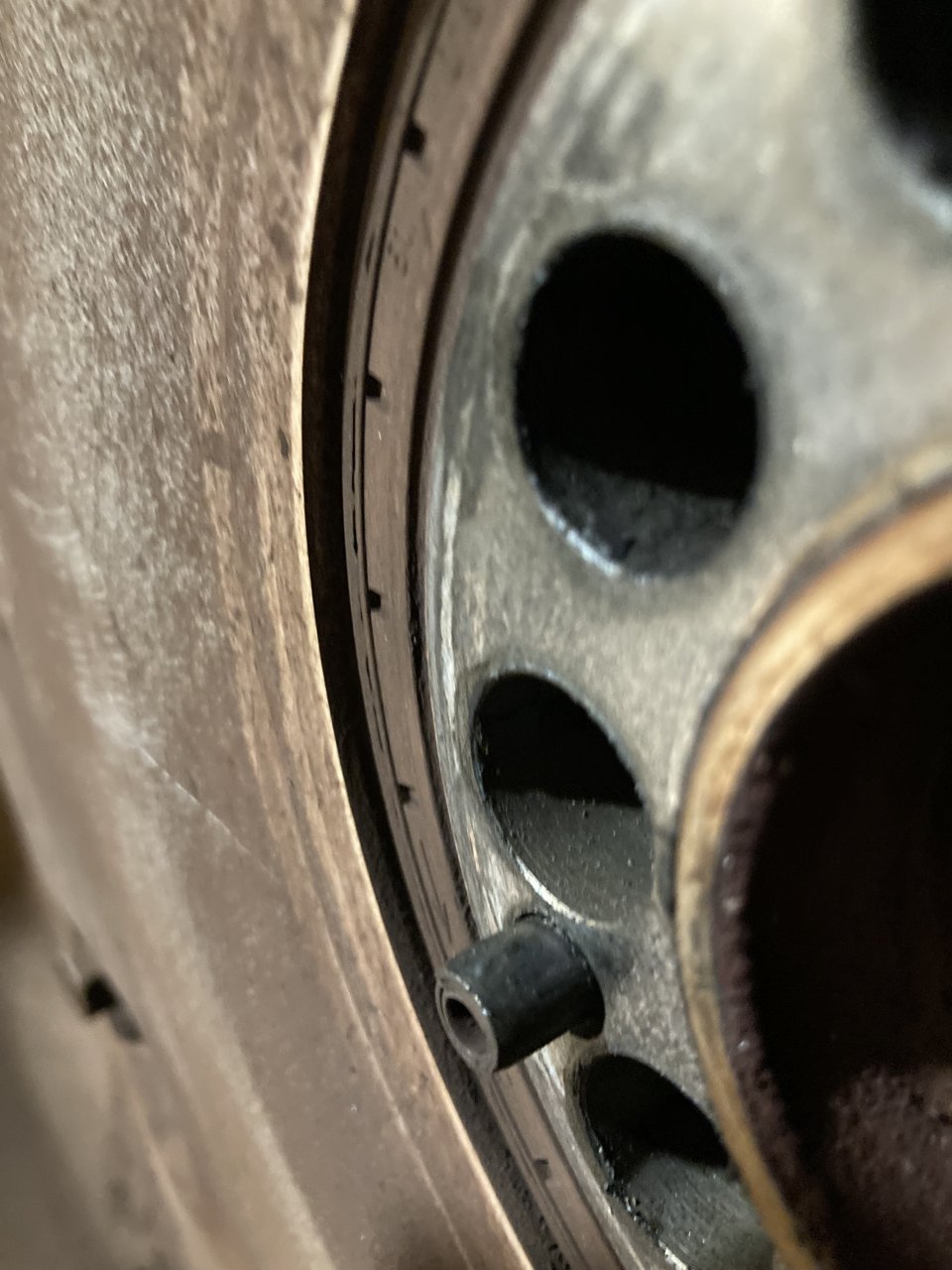

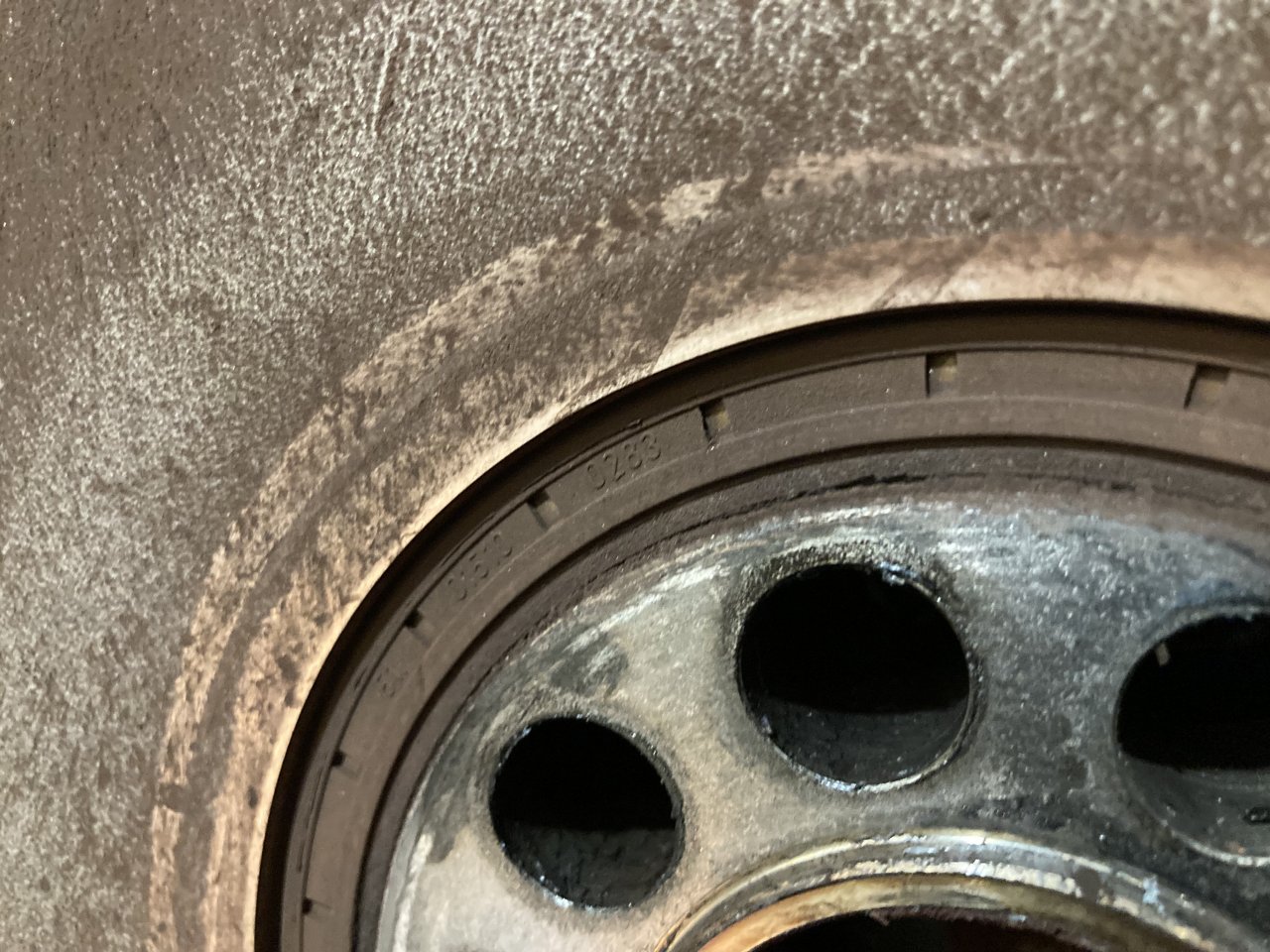

    Here's a few pics;
    IMG_7732.jpeg IMG_7733.jpeg IMG_7734.jpeg IMG_7735.jpeg

    Heavyd, Dec 9, 2025
    Heavyd, Dec 9, 2025
    #10
    Rideandrepair and Big Road Skateboard Thank this.
