Replacing Air compressor Lines

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by nikmirbre, Apr 23, 2020.

Page 5 of 5
  1. May 15, 2020 #41
    Rideandrepair

    Rideandrepair Road Train Member

    17,256
    55,997
    Aug 8, 2015
    0
    There’s no pressure, if the caps off the radiator, maybe put a wrench on the hose part of the fitting, and crank away on the crowfoot

    Rideandrepair, May 15, 2020
    Rideandrepair, May 15, 2020
    #41
    nikmirbre Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. May 15, 2020 #42
    nikmirbre

    nikmirbre Road Train Member

    5,391
    9,660
    Jul 27, 2011
    High Point NC
    0
    Ok, I just drained the coolant and tried again and I can't get it off. I can say for sure its not a matter of getting a wrench on there because I can do that..... it just acts as if there is pressure in there.

    nikmirbre, May 15, 2020
    nikmirbre, May 15, 2020
    #42
    Rideandrepair Thanks this.
  4. May 15, 2020 #43
    Rideandrepair

    Rideandrepair Road Train Member

    17,256
    55,997
    Aug 8, 2015
    0
    There’s no pressure, it’s a coolant line, like any other heater hose. Why not take the block side off first if you can? Any pressure will bleed off once it’s loose. Acts like, what do you mean? It’s squirting coolant? Let it drain, take it off.

    Rideandrepair, May 15, 2020
    Rideandrepair, May 15, 2020
    #43
    nikmirbre Thanks this.
  5. May 15, 2020 #44
    062

    062 Road Train Member

    6,162
    33,296
    Oct 20, 2013
    0
    Looks to be a swivel end. Are you sure you have it backed off all the threads? Sometimes there’s a little twist in the line and it can screw itself back on a thread.

    062, May 15, 2020
    062, May 15, 2020
    #44
    nikmirbre and Rideandrepair Thank this.
  7. May 15, 2020 #45
    nikmirbre

    nikmirbre Road Train Member

    5,391
    9,660
    Jul 27, 2011
    High Point NC
    0
    Its like I can tighten it up, then I go to loosen it and it will only loosen back to where it was before I tightened it. Ill try the block side first this time in about an hour......In post #35 what is the silver braided line next to it? Is it an air line I assume? Just incase I need to remove that line....

    nikmirbre, May 15, 2020
    nikmirbre, May 15, 2020
    #45
    Rideandrepair Thanks this.
  8. May 15, 2020 #46
    062

    062 Road Train Member

    6,162
    33,296
    Oct 20, 2013
    0
    Yes the stainless is air.

    062, May 15, 2020
    062, May 15, 2020
    #46
    nikmirbre and Rideandrepair Thank this.
  9. May 15, 2020 #47
    Rideandrepair

    Rideandrepair Road Train Member

    17,256
    55,997
    Aug 8, 2015
    0
    SS line may be under pressure. Pump brake pedal down, before taking it off. The nuts just jamming up, spray with WD, or PB, and maybe try wiggling the hose, while you turn the nut. Or put another wrench on the hose side, and crank it off.

    Rideandrepair, May 15, 2020
    Rideandrepair, May 15, 2020
    #47
    nikmirbre and 062 Thank this.
  10. May 15, 2020 #48
    nikmirbre

    nikmirbre Road Train Member

    5,391
    9,660
    Jul 27, 2011
    High Point NC
    0

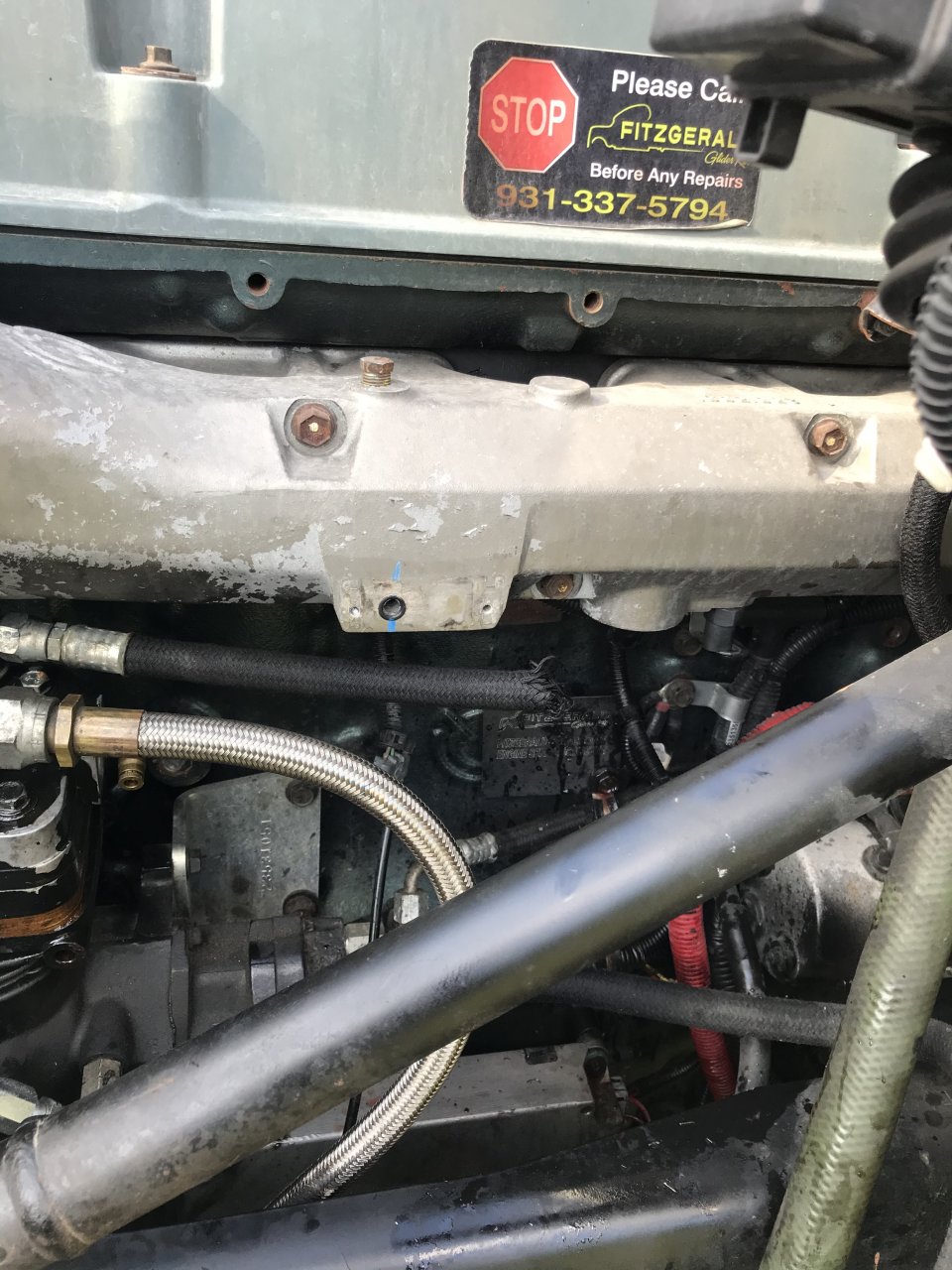

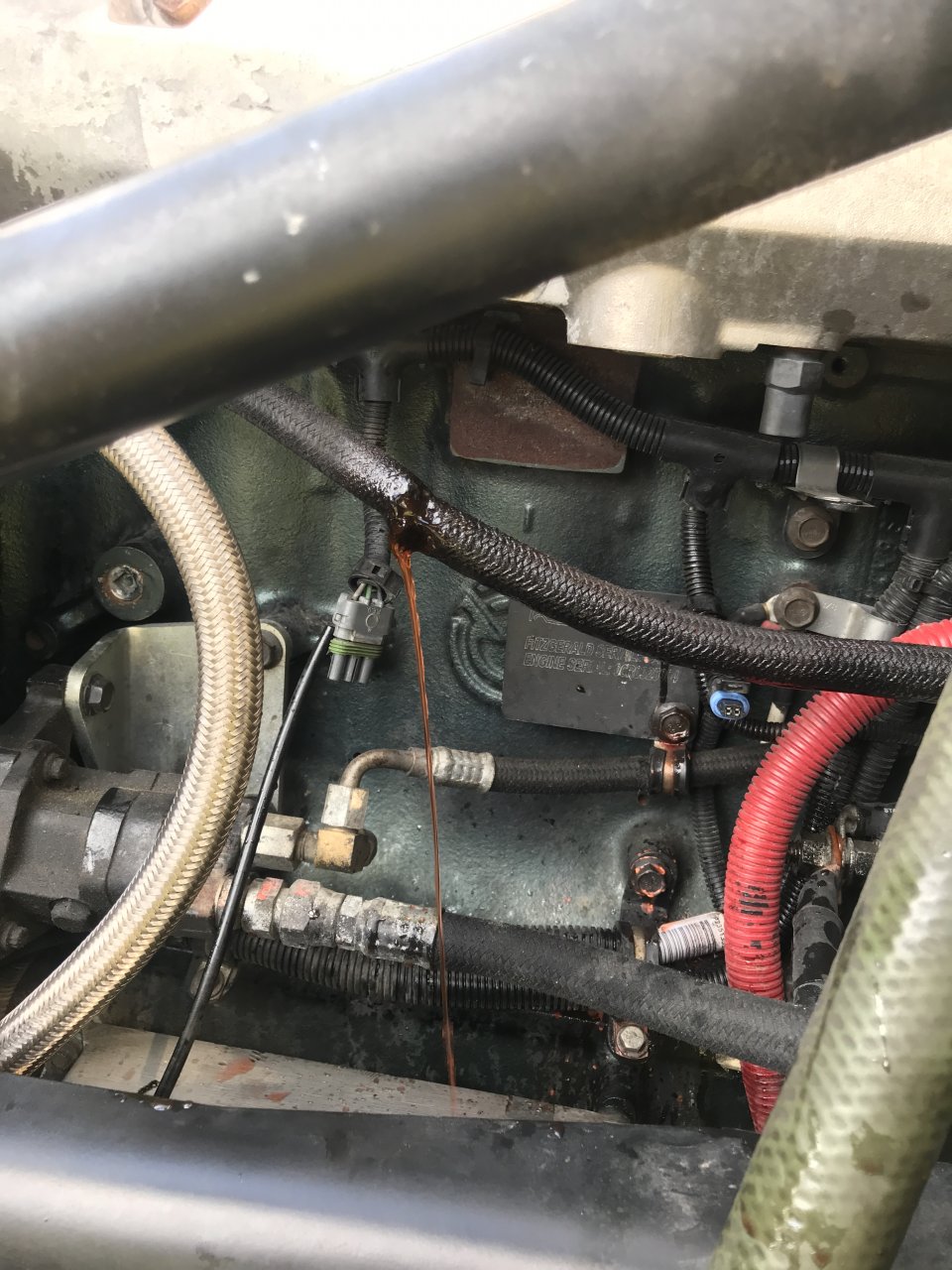

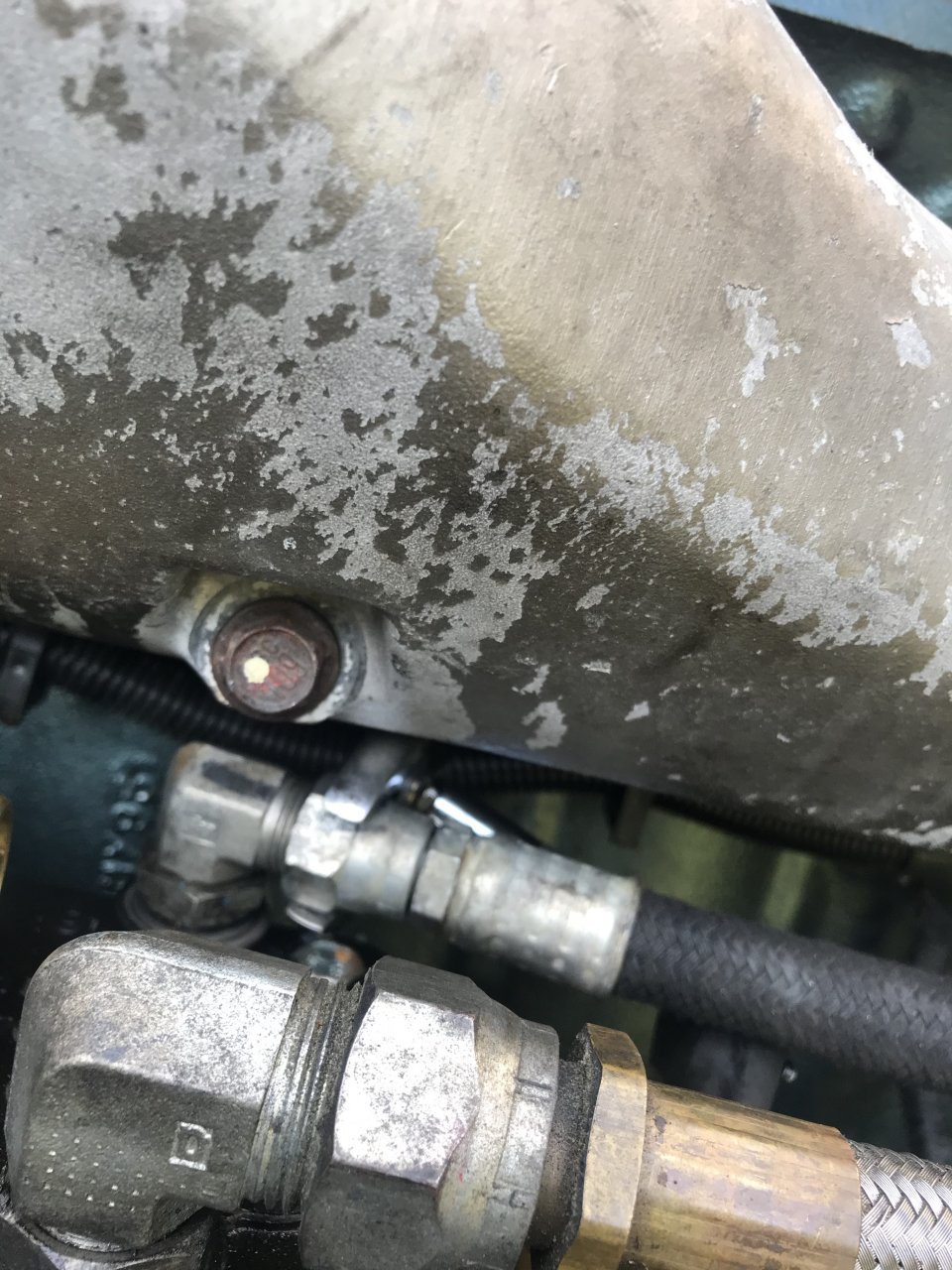

    4AD81C47-D5DA-4124-B1CC-63363A773506.jpeg E8D5FF66-0B42-4693-8CAC-C2CF385FF482.jpeg 16DD9A26-92F3-4017-A92F-EAA83C818731.jpeg

    nikmirbre, May 15, 2020
    nikmirbre, May 15, 2020
    #48
  11. May 15, 2020 #49
    nikmirbre

    nikmirbre Road Train Member

    5,391
    9,660
    Jul 27, 2011
    High Point NC
    0
    Well I twisted the line and it crumbled. Which is good because I’d rather it do it while I’m home rather than while I’m driving. I figured out why it wasn’t coming loose.... in one of the pictures you see I have the wrench on it, what was happening was the wrench was hitting the bottom exhaust thing So it wasn’t turning any further.
    I know now the proper procedure is to take the block side off first. Because once I got that side off the tough part became easy. I’ll get hose made tomorrow morning.

    nikmirbre, May 15, 2020
    nikmirbre, May 15, 2020
    #49
    Rideandrepair and 062 Thank this.
  12. May 15, 2020 #50
    Rideandrepair

    Rideandrepair Road Train Member

    17,256
    55,997
    Aug 8, 2015
    0
    That’s good, so the line was brittle. Mine just has a silicone hose for both, Good solid line, I think is better.

    Rideandrepair, May 15, 2020
    Rideandrepair, May 15, 2020
    #50
