Securing giant tires

Discussion in 'Flatbed Trucking Forum' started by Walk Among Us, Apr 27, 2025.

  1. Walk Among Us

    Walk Among Us Medium Load Member

    300
    1,510
    Mar 3, 2025
    I-35 Corridor
    0

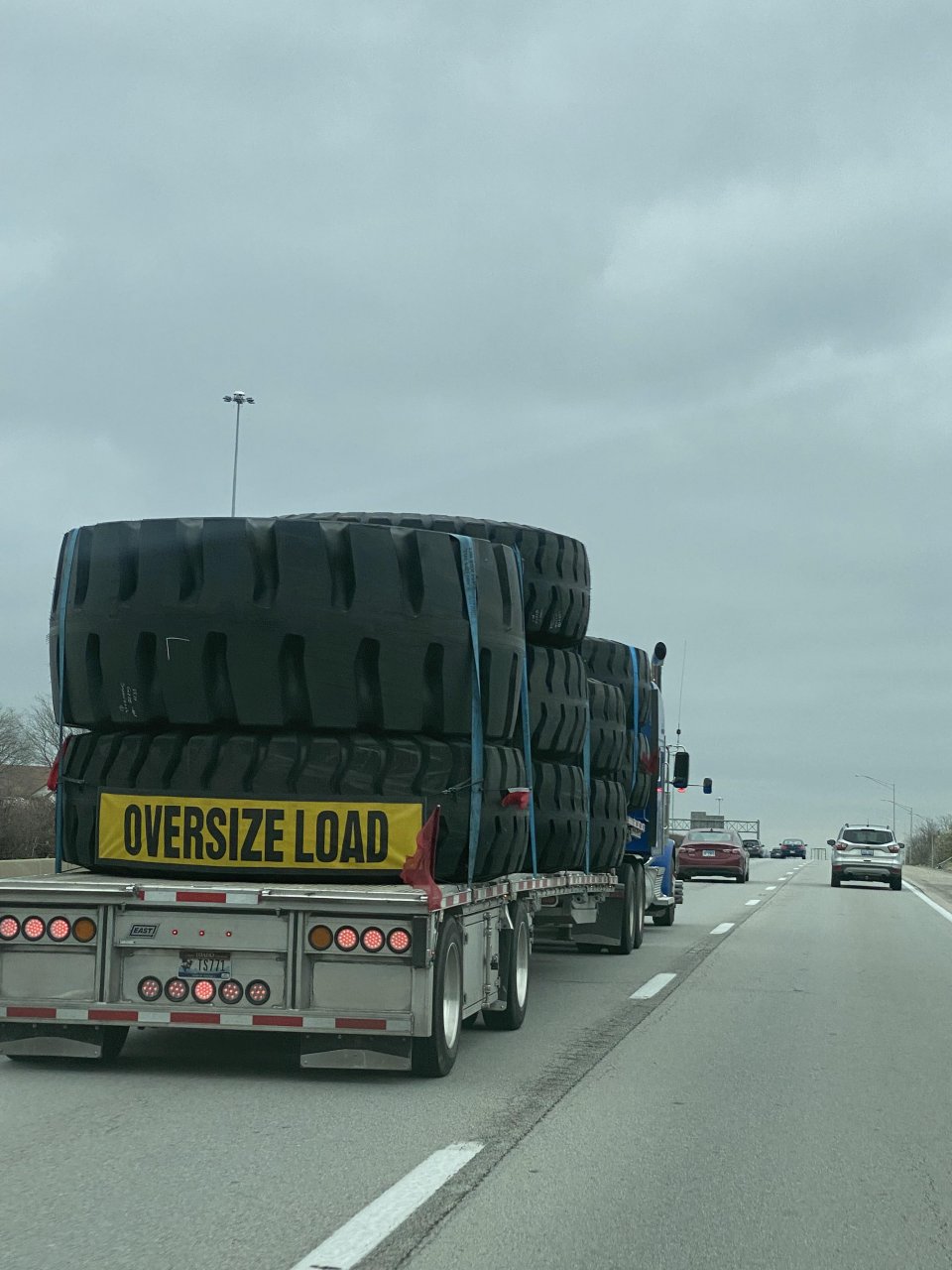

    Wheels with tires securement, stacks of 8'10" wide Caterpillar wheels. 8'tall stacks. 29k lbs. Question, do you simply x-strap each stack with 2 straps, or do you add a 3rd strap going straight across each stack?

    Last edited: Apr 27, 2025
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Walk Among Us

    Walk Among Us Medium Load Member

    300
    1,510
    Mar 3, 2025
    I-35 Corridor
    0
  4. OlegMel

    OlegMel Medium Load Member

    373
    654
    Apr 8, 2023
    0
    I would do 3 straps on each. I always over secure than throw minimum straps. if you’re lazy than 2 straps on each stack. 3 straps on first one

    TripleSix, OldeSkool, CAXPT and 6 others Thank this.
  5. North Pole Nightmare

    North Pole Nightmare Heavy Load Member

    825
    1,611
    Dec 15, 2021
    0
    I see Watt & Stewart trucks all the time,they almost always have 2 straps,3 is good too.

    Albertaflatbed, CAXPT, cke and 5 others Thank this.
  6. Espressolane

    Espressolane Road Train Member

    17,202
    104,437
    Nov 21, 2009
    Just south of the north 40
    0
    Always tried to do a minimum of 2 straps as an X pattern, plus one straight across. Seemed to work well. Never had a problem with DOT on it.

  7. 201

    201 Road Train Member

    12,148
    24,798
    Apr 16, 2014
    high plains colorado
    0
    I read, these tires cost an astonishing $42,000 EACH! It takes 36 hours to make one tire. Whatever you do, don't lose one,,:eek:

    The_vett, CAXPT, cke and 2 others Thank this.
  8. OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    18,034
    271,497
    Nov 29, 2011
    West Virginia
    0
    You say wheels with tires? As the tires mounted on the wheels and inflated? If so, I would use 3 straps.

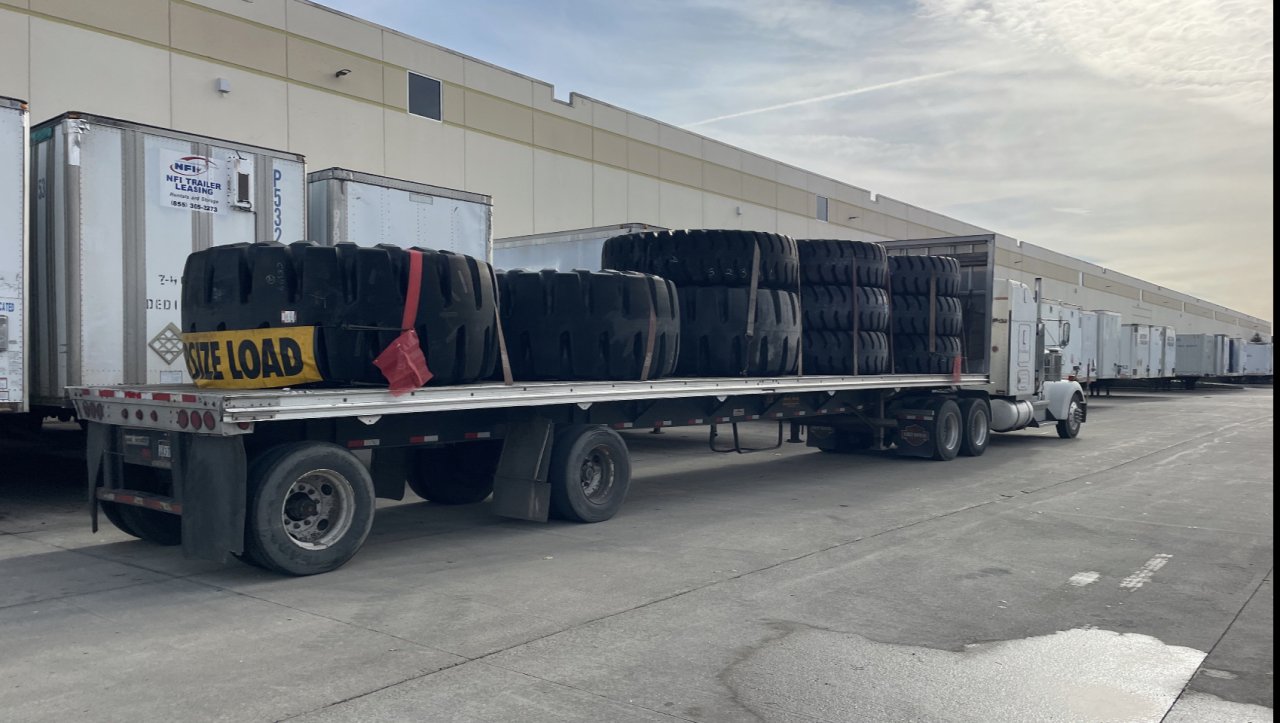

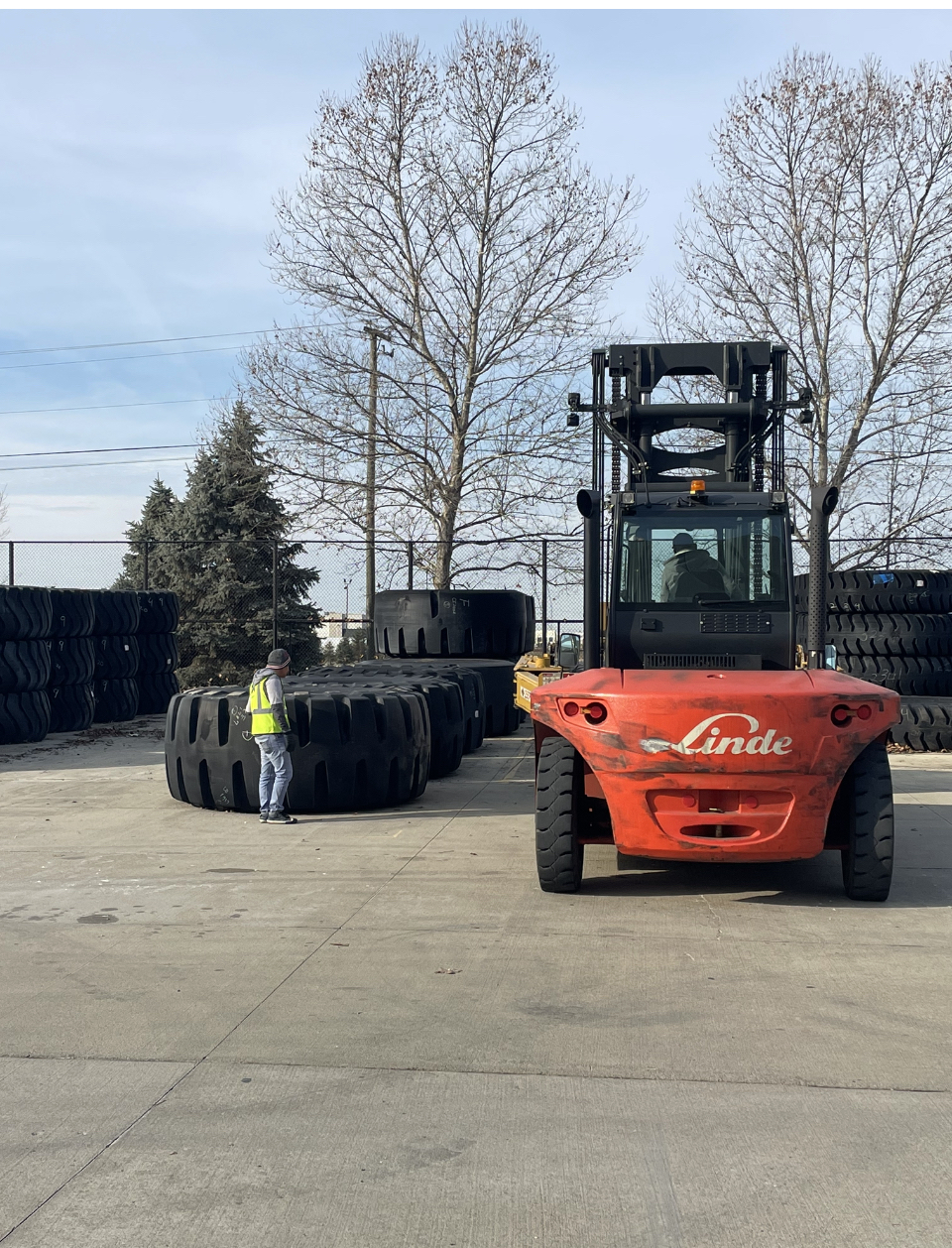

    Hauling just the bare tires I use 2 straps in a X shape, and make sure the strap lays down in between the outer lugs so they don’t move. But that’s just me. Hauled 3 loads of them from from Yokohama in Grove City, OH to a company in Bluefield, WV with no issues….

    IMG_8977.jpeg IMG_8978.jpeg

    cke, lynchy, Isafarmboy and 10 others Thank this.
