Spindle damage?

Discussion in 'Trucks [ Eighteen Wheelers ]' started by Socal Xpress, Mar 18, 2019.

  1. Socal Xpress

    Socal Xpress Road Train Member

    1,855
    1,958
    Dec 6, 2014
    Los Angeles, Ca
    0

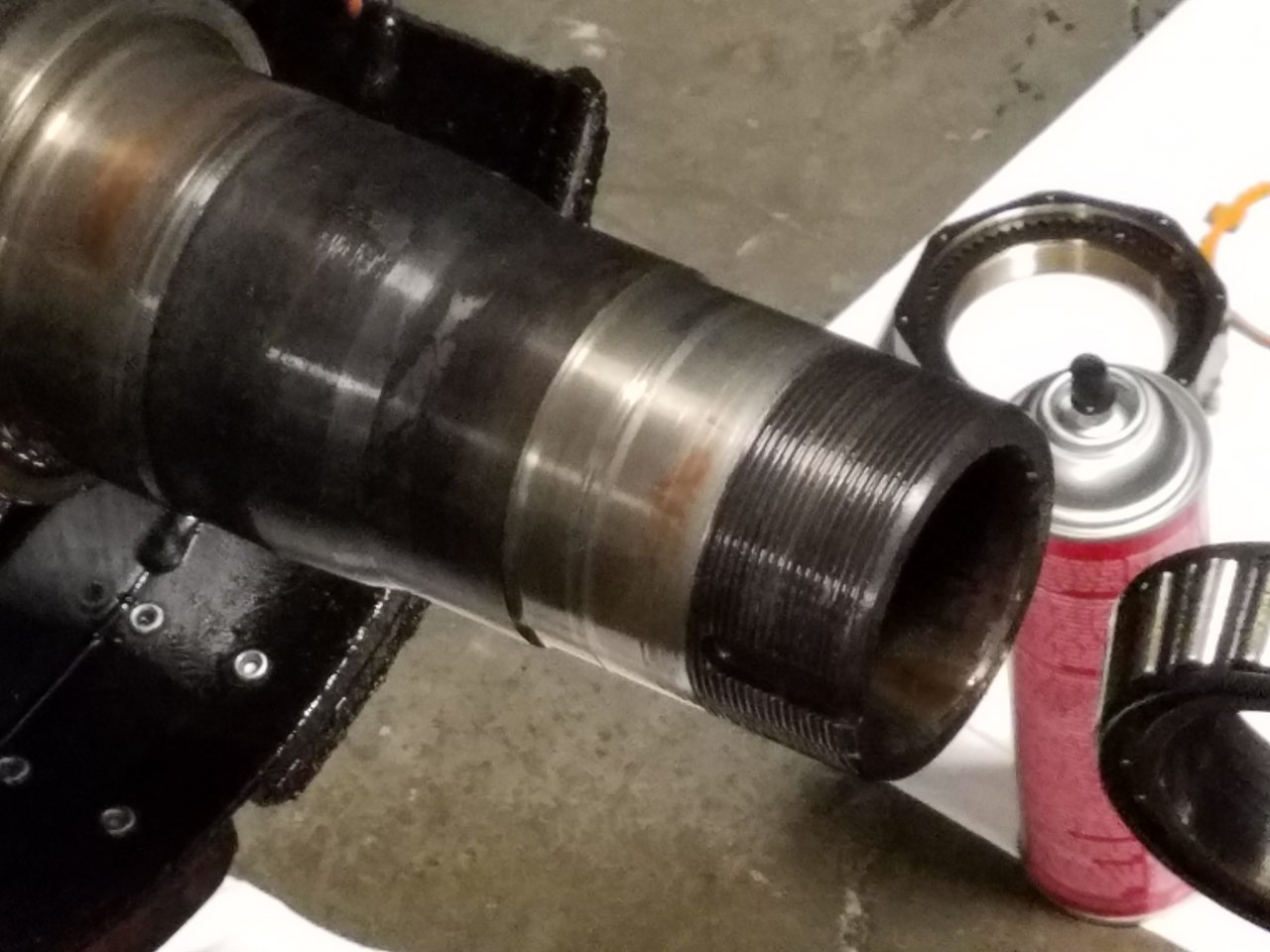

    This is the best picture I have. Would you recommend a new weld in spindle or just roll with new bearings/seal?

    Damage on outer part of spindle where bearing would ride on.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Goodysnap

    Goodysnap Road Train Member

    3,702
    8,981
    Jul 12, 2017
    0
    Really hard to tell from the photo. Can you feel the mark with your fingernail? Do we know what caused the groove?

    I have cleaned up worse with Emery and let em roll with new bearings. Test fit the new bearings to the stub for slip fit all the way on with no slop and let it roll, I say.

    stillwurkin, Hulld, mhyn and 2 others Thank this.
  4. kubasj05

    kubasj05 Light Load Member

    148
    57
    Apr 18, 2013
    0
    I feel the same way. If there's no slack I'd keep on rocking it
    I highly suggest to use Stemco Voyager series wheel seal.

  5. Socal Xpress

    Socal Xpress Road Train Member

    1,855
    1,958
    Dec 6, 2014
    Los Angeles, Ca
    0
    Yes you can feel a mark. The truck was put back together and no issue so far. I was planning on changing out the Chinese bearing with Timken bearings but worried about disturbing what's been holding up.

  6. kubasj05

    kubasj05 Light Load Member

    148
    57
    Apr 18, 2013
    0
    Just keep your eye on oil leaks, if none detected, you'll be fine. Also, it'd be wise to double check on spindle nut for tightness after 1000-2000 miles of running, after everything settles. If it needs minor or no adjustment you'll be totally fine in my opinion. Good luck and be safe out there.

    Socal Xpress Thanks this.
  7. spsauerland

    spsauerland Road Train Member

    4,296
    10,886
    May 31, 2010
    West Harrison, In
    0
    Mic it vertically and horizontal to get an idea of how much wear. Most axles I encounter with higher mileage usually have slight fretting on bottom side. Whatever you decide, go back with reputable bearing like Timken, Bower, or NTN.

    mhyn, Socal Xpress and kubasj05 Thank this.
  8. 6wheeler

    6wheeler Road Train Member

    2,696
    4,773
    Aug 30, 2009
    0
    I have changed a number of seals and wheel bearings over the years. It is a little trick to putting them back together.

    YouTube Truck wheel bearings replacement.

    I keep a laser temperature gun in the truck to measure hub temperatures. If you have a hub getting hot you have a problem. My temperatures loaded run between 88-150 f.

    I back off the wheel nut only a quarter of a turn after tightening up. 12 o-clock to 9 o-clock.

    It's a balance of not too tight, and not too loose. And too loose will cause a seal leak

    HopeOverMope Thanks this.
  9. mhyn

    mhyn Road Train Member

    4,255
    4,513
    Dec 29, 2008
    Northridge, CA
    0
    Looks like it's HN spindle of Hendrickson trailer axle. What you had inside? oil or grease?

    Socal Xpress Thanks this.
  10. Socal Xpress

    Socal Xpress Road Train Member

    1,855
    1,958
    Dec 6, 2014
    Los Angeles, Ca
    0
    Yes Hendrickson but it's a drive axle. Number 2 on my truck.
