Spring brakes Valve?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Steve from hutch, Jul 9, 2023.

Page 1 of 2
  1. Jul 9, 2023 #1
    Steve from hutch

    Steve from hutch Medium Load Member

    465
    4,717
    Oct 22, 2017
    Hutchinson, Ks and Woodland Hills, Ca
    0
    I had just done an oil change on the truck 2005 Peterbilt 387 C13, took a break and a few minutes later an air leak from the truck. The parking brake valve was pushed in, when I pulled it the leak stoped. Under the truck the valve to the spring brakes purges as soon as you push in the knob.

    Steve from hutch, Jul 9, 2023
    Steve from hutch, Jul 9, 2023
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Jul 9, 2023 #2
    Steve from hutch

    Steve from hutch Medium Load Member

    465
    4,717
    Oct 22, 2017
    Hutchinson, Ks and Woodland Hills, Ca
    0
    Could this be a bad diaphram in a spring brake chamber?

    Steve from hutch, Jul 9, 2023
    Steve from hutch, Jul 9, 2023
    #2
  4. Jul 9, 2023 #3
    Goodysnap

    Goodysnap Road Train Member

    3,716
    9,022
    Jul 12, 2017
    0
    Yes it could. Clamp emergency hoses one at a time. Sometimes an ear to each chamber will pinpoint the offender.

    Goodysnap, Jul 9, 2023
    Goodysnap, Jul 9, 2023
    #3
  5. Jul 9, 2023 #4
    Steve from hutch

    Steve from hutch Medium Load Member

    465
    4,717
    Oct 22, 2017
    Hutchinson, Ks and Woodland Hills, Ca
    0
    Not a chamber the valve blows air as soon as the knob is depressed with a hose looped to both ports

    Steve from hutch, Jul 9, 2023
    Steve from hutch, Jul 9, 2023
    #4
  7. Jul 9, 2023 #5
    Steve from hutch

    Steve from hutch Medium Load Member

    465
    4,717
    Oct 22, 2017
    Hutchinson, Ks and Woodland Hills, Ca
    0
    Steve from hutch, Jul 9, 2023
    Steve from hutch, Jul 9, 2023
    #5
  8. Jul 9, 2023 #6
    ducnut

    ducnut Road Train Member

    2,570
    7,739
    Dec 31, 2010
    SPI
    0
    Faulty valve. You need to get a new one. Take that one into the parts counter, so they can match it up.

    I am curious as to where the barbed fitting went that your hose was clamped to, though.

    ducnut, Jul 9, 2023
    ducnut, Jul 9, 2023
    #6
  9. Jul 9, 2023 #7
    Steve from hutch

    Steve from hutch Medium Load Member

    465
    4,717
    Oct 22, 2017
    Hutchinson, Ks and Woodland Hills, Ca
    0
    What barbed fitting? The hoses for the service and spring brakes have a clamp mid hose. All the hoses to the chambers are flare fittings, no barbs?

    Steve from hutch, Jul 9, 2023
    Steve from hutch, Jul 9, 2023
    #7
  10. Jul 9, 2023 #8
    ducnut

    ducnut Road Train Member

    2,570
    7,739
    Dec 31, 2010
    SPI
    0

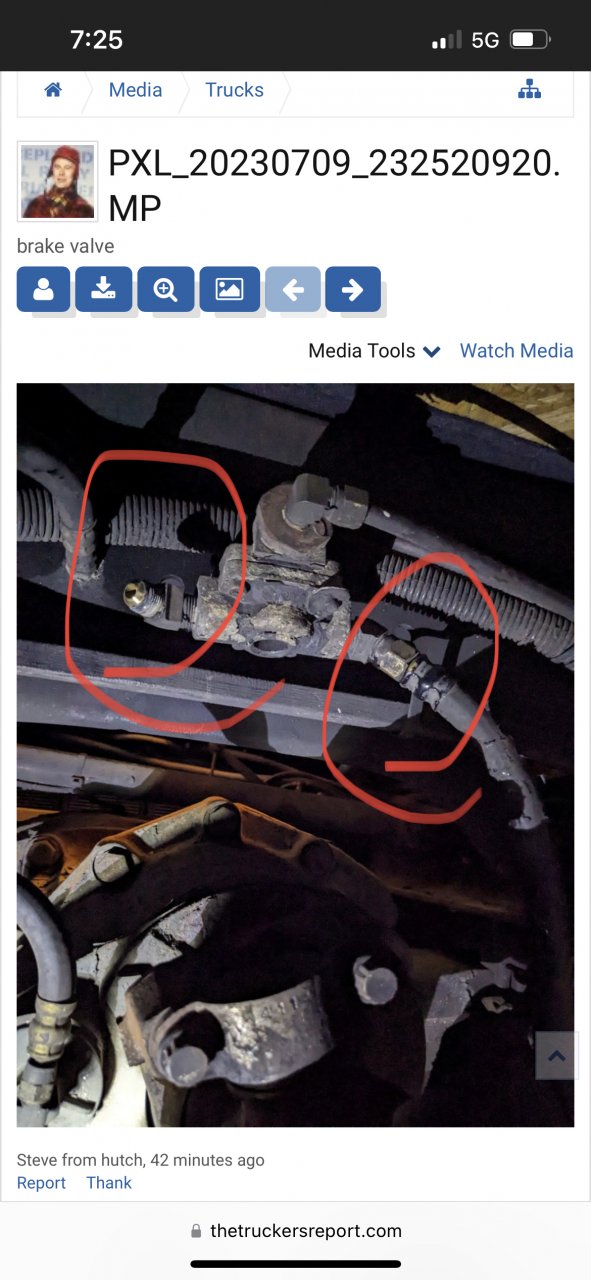

    The fitting on the left would’ve had a barb with the hose clamped to it, just like on the right.

    ducnut, Jul 9, 2023
    ducnut, Jul 9, 2023
    #8
  11. Jul 9, 2023 #9
    Steve from hutch

    Steve from hutch Medium Load Member

    465
    4,717
    Oct 22, 2017
    Hutchinson, Ks and Woodland Hills, Ca
    0
    I took each line off and looped a hose to check the valve. You are calling these 'barb' and I am using the term flare.

    I took the valve apart, it needs a diaphram, I see no valves close to this configuration on line?


    Attached Files:

    Steve from hutch, Jul 9, 2023
    Steve from hutch, Jul 9, 2023
    #9
  12. Jul 9, 2023 #10
    Big Road Skateboard

    Big Road Skateboard Road Train Member

    6,120
    33,405
    May 2, 2021
    0
    It's a standard quick release valve. As mentioned, if it's leaking out the bottom when you release the brakes, and lines removed, it's bad. Any parts house should have one in stock. They make them with 1/4" and 3/8" pipe fittings. Yours looks like 3/8" Screenshot_20230709_213312_Samsung Internet.jpg

    Big Road Skateboard, Jul 9, 2023
    Big Road Skateboard, Jul 9, 2023
    #10
    Bean Jr. and Star Rider Thank this.
