TriPac APU heater problems

Discussion in 'Experienced Truckers' Advice' started by mhlvc, Oct 11, 2023.

Page 2 of 4
  1. Oct 12, 2023 #11
    mhlvc

    mhlvc Light Load Member

    111
    43
    May 2, 2020
    0
    I’m going to do this as well, think its time

    mhlvc, Oct 12, 2023
    mhlvc, Oct 12, 2023
    #11
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Oct 12, 2023 #12
    gokiddogo

    gokiddogo Road Train Member

    8,786
    14,768
    Mar 5, 2012
    Ontario Canada
    0
    The heavy smoke coming out is from carbon build up, do service as states above.

    I suspect the reason it runs while the truck is on may be due to the heater's low voltage cut off setting. See this video for how to adjust that.


    gokiddogo, Oct 12, 2023
    gokiddogo, Oct 12, 2023
    #12
    Blagoje Thanks this.
  4. Oct 12, 2023 #13
    mhlvc

    mhlvc Light Load Member

    111
    43
    May 2, 2020
    0
    I dont have that control module, mine’s the Tripac all in one module, but I think I can change that with a laptop and the Tripac program I have.
    Im also guessing the water temp sensor part# 41-6538 went out which is causing high engine coolant temp and shutting it down? Could also be a fuse as I seen on 1 video on Youtube so I gotta check that as well

    mhlvc, Oct 12, 2023
    mhlvc, Oct 12, 2023
    #13
    blairandgretchen and gokiddogo Thank this.
  5. Oct 12, 2023 #14
    Dna Mach

    Dna Mach Road Train Member

    3,263
    3,008
    Aug 8, 2008
    Texas
    0
    Espar heaters need regular maintenance. The kit you ordered will get you up and running, super easy to service. The fuel filter is mounted outside, easy to spot as it will be mounted at 15° to 45° degrees.



    This one also addresses the fuel filter.



    I’ve been told to never operate an Espar less than 20 minutes minimum as any less will result in air port clogging up. Should also be run 20 minutes per month year round.



    [​IMG]

    Dna Mach, Oct 12, 2023
    Dna Mach, Oct 12, 2023
    #14
    Blagoje and blairandgretchen Thank this.
  7. Oct 12, 2023 #15
    mhlvc

    mhlvc Light Load Member

    111
    43
    May 2, 2020
    0
    About to order the parts for the heater. But Im still trying to figure out where the Water Temp sensor WT1 is on the APU? I think I found one - but Im guessing its the WT2 sensor? Maybe I only have 1 since my APU isnt connected to my truck - since it has its own coolant? I unplugged the once sensor I saw and plugged it back in but my APU still keeps shutting down. Not sure if the heater or a bad water temp sensor is causing that?


    Attached Files:

    mhlvc, Oct 12, 2023
    mhlvc, Oct 12, 2023
    #15
  8. Oct 12, 2023 #16
    mitmaks

    mitmaks Road Train Member

    2,557
    2,072
    May 16, 2014
    0
    It should be on top of thermostat housing

    mitmaks, Oct 12, 2023
    mitmaks, Oct 12, 2023
    #16
  9. Oct 12, 2023 #17
    mhlvc

    mhlvc Light Load Member

    111
    43
    May 2, 2020
    0

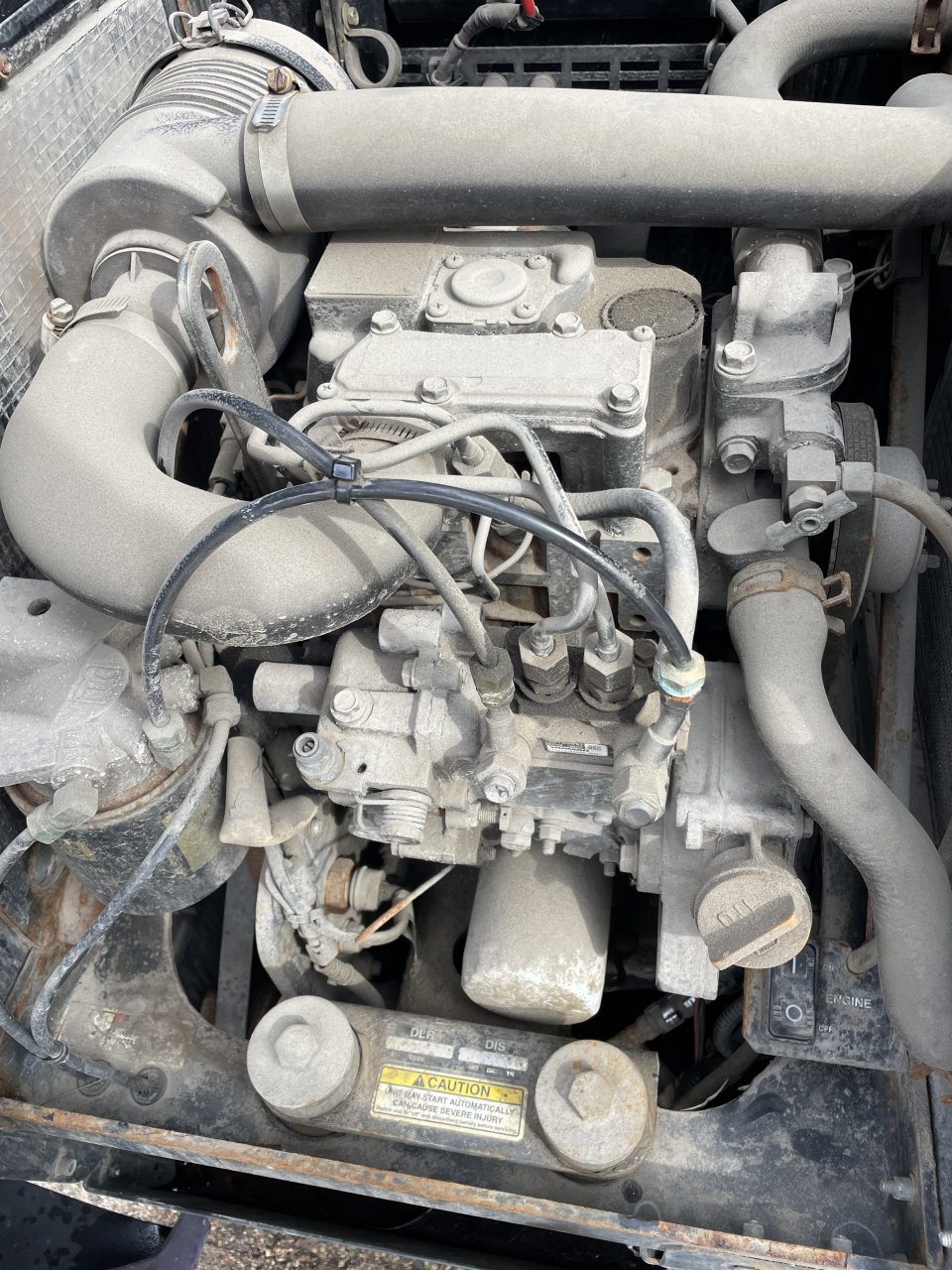

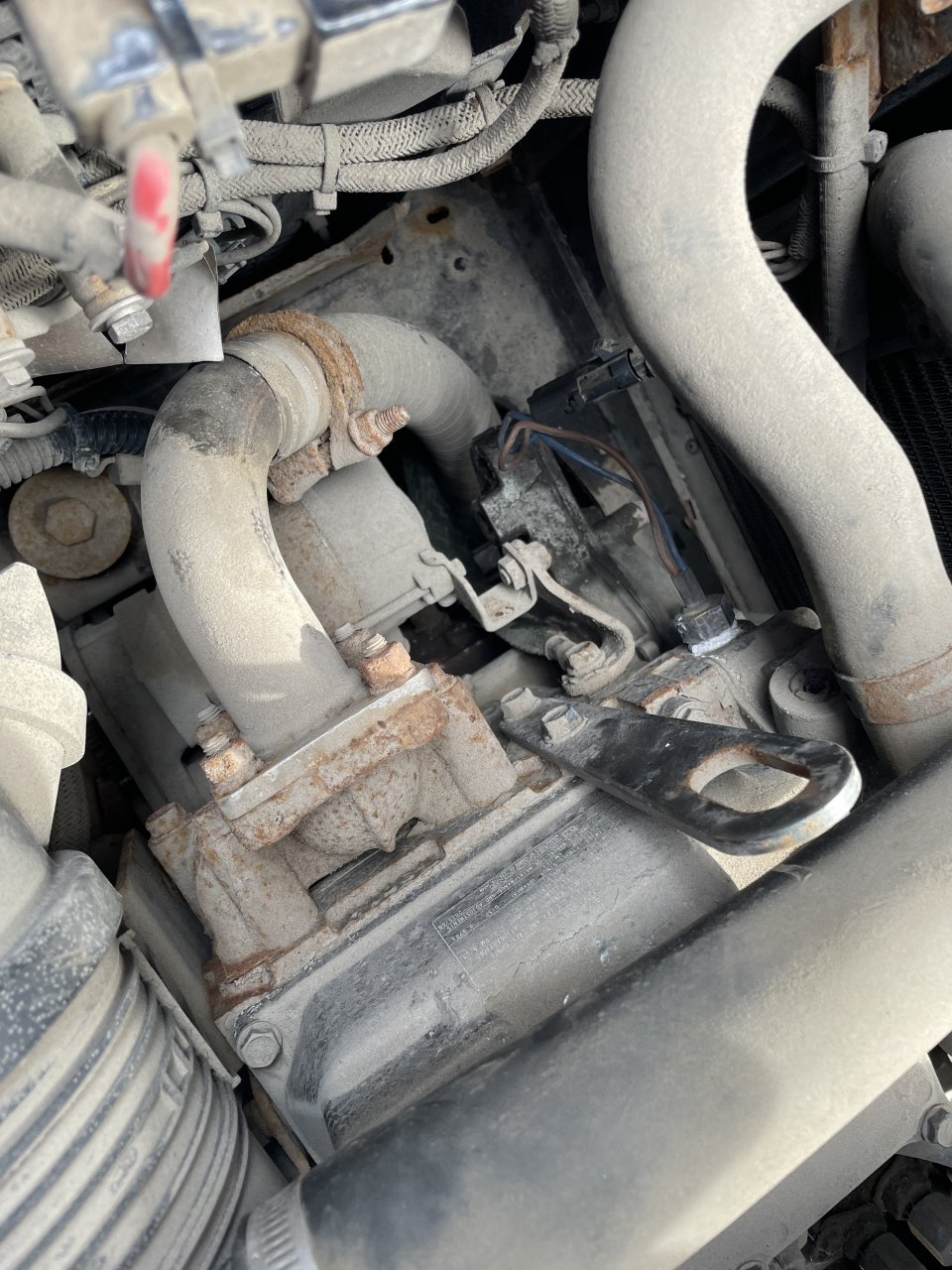

    Im sorry Im potato but I looked for a long time and only found 1, attached pics of 1
    I found and inspected, and another pic of the one I couldnt find (which I think is the WT1 sensor part#41-6538)


    Attached Files:

    mhlvc, Oct 12, 2023
    mhlvc, Oct 12, 2023
    #17
  10. Oct 12, 2023 #18
    blairandgretchen

    blairandgretchen Road Train Member

    13,376
    71,892
    Dec 9, 2011
    South west Missouri
    0
    The bottom video posted here is excellent and concise advice, from when I had one.

    blairandgretchen, Oct 12, 2023
    blairandgretchen, Oct 12, 2023
    #18
    Dna Mach Thanks this.
  11. Oct 12, 2023 #19
    blairandgretchen

    blairandgretchen Road Train Member

    13,376
    71,892
    Dec 9, 2011
    South west Missouri
    0
    I’d load test batteries, I rarely have a set last more than 2-3 winters.

    blairandgretchen, Oct 12, 2023
    blairandgretchen, Oct 12, 2023
    #19
    kemosabi49 Thanks this.
  12. Oct 12, 2023 #20
    mhlvc

    mhlvc Light Load Member

    111
    43
    May 2, 2020
    0
    sht I hope not, they show no issues with the truck it self tbh

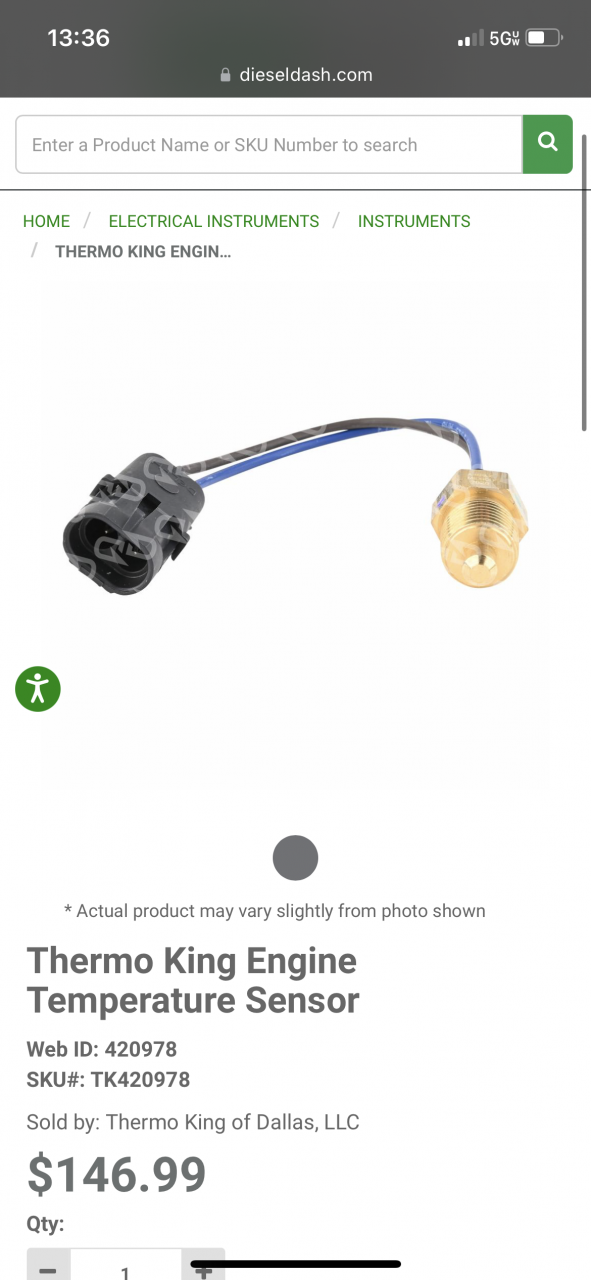

    Also Im 90% this is the water temp sensor I need to buy to replace the 1 I have that is maybe bad? It sits behind the water pump, I called ThermoKing and they want $180 no thanks


    Attached Files:

    mhlvc, Oct 12, 2023
    mhlvc, Oct 12, 2023
    #20
