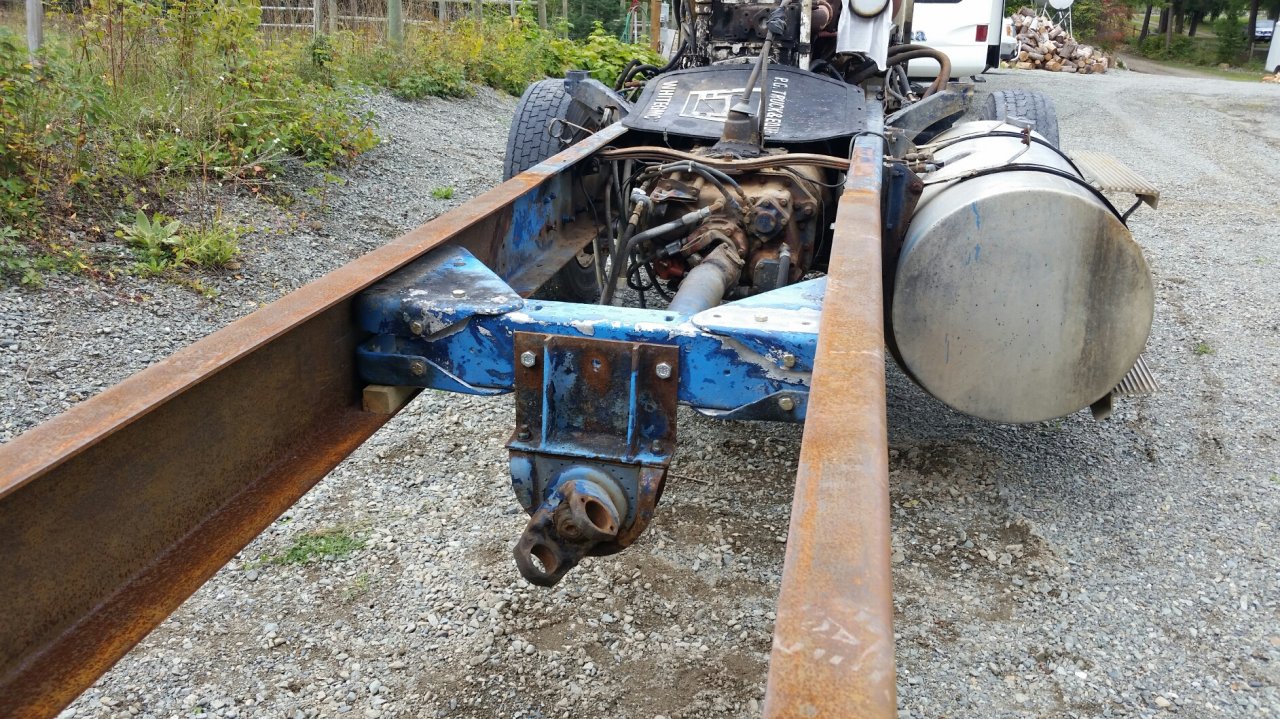

Mocking up and installing the first crossmember. Also trimmed up my 10' sleeve into 5' ones for each side.
Saved From Scrap
Discussion in 'Kenworth Forum' started by AModelCat, Oct 26, 2015.
Page 24 of 76
-
Attached Files:
Last edited: Sep 10, 2016
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
Well I just noticed I have the lower gussets upside down. I just assumed the last owner butchered it together but a quick Google search shows they need to be flipped over. Glad I haven't drilled the holes yet.
Dye Guardian Thanks this. -
Is it just me or does it look crooked?
-
-
Drilled and installed crossmember #1 of 3 today. Just under 5 hours start to finish. Not too bad considering I've never ever laid out and drilled a frame before. Best part is everything is straight and square. Even all 12 holes lined up perfectly.
Even the midship bearing on the driveshaft bolts right up into place like it should.Last edited: Sep 12, 2016
-
Are you using a mag drill? If not a 1 inch ratchet strap and a D-handle drill make short work of poking holes in the frame.
-
Just a good ol' 1/2" D-handle Makita. I drilled them all 1/4" first, then went back and ran the 1/2" drill bit through. Actually wasn't all that bad doing it by hand. Just took a little time. I'll be renting a mag drill for the rest of them though. Easier on the arms lol.
-
Use a 1 inch ratchet strap. Hook to the frame top and bottom and run its thru the D-handle. Tighten it up. On hand in the trigger and one tighten the ratchet. No arm strength required. You won't even want to bother with a mag drill.
-
I'll give that a shot next time.
-
Looking great
