How to install a CB

Discussion in 'Questions From New Drivers' started by Penumbra, Oct 31, 2019.

Page 1 of 3
  1. Oct 31, 2019 #1
    Penumbra

    Penumbra Medium Load Member

    305
    528
    Jul 29, 2019
    0

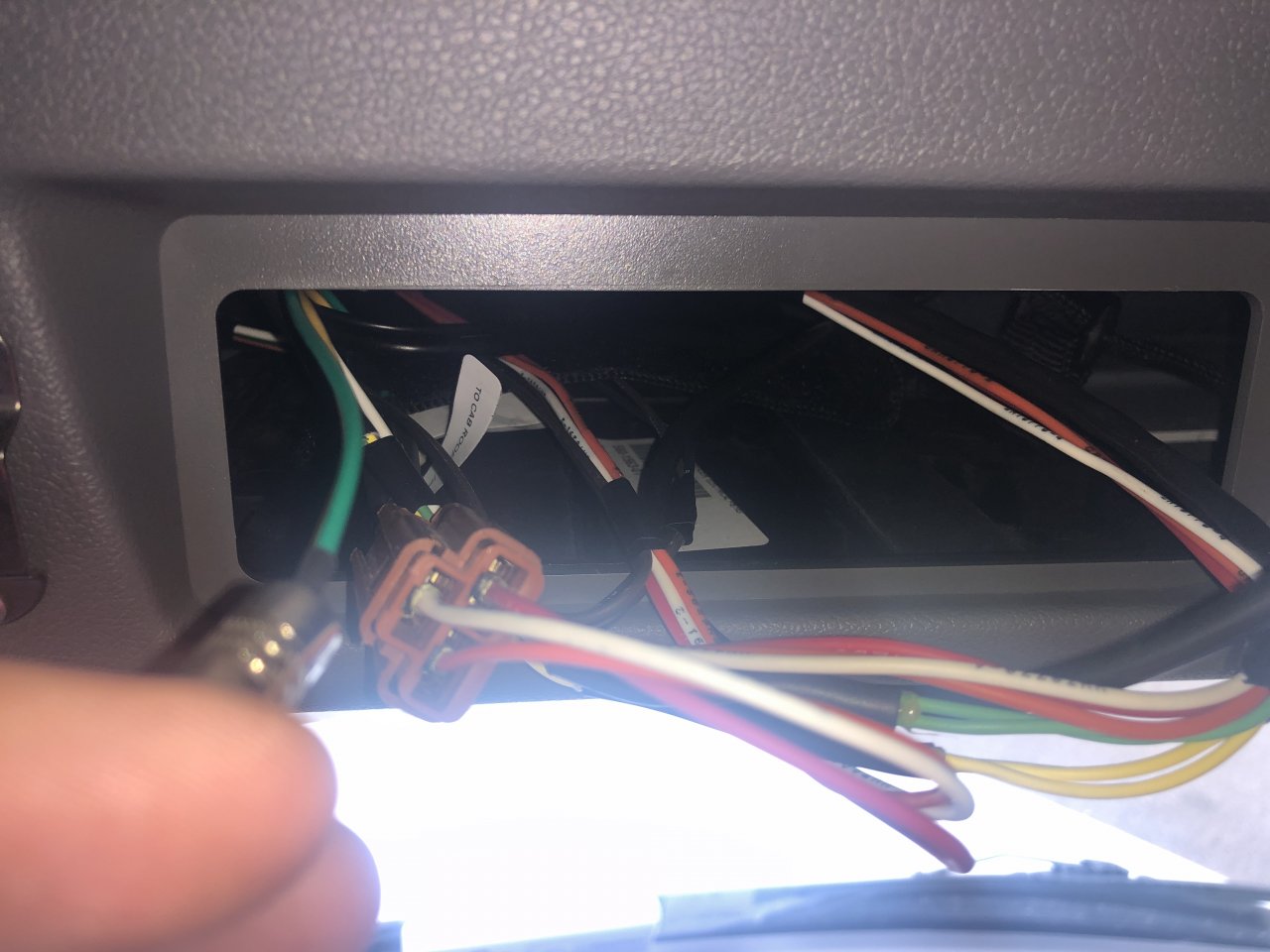

    Help! I don’t know what I’m doing!

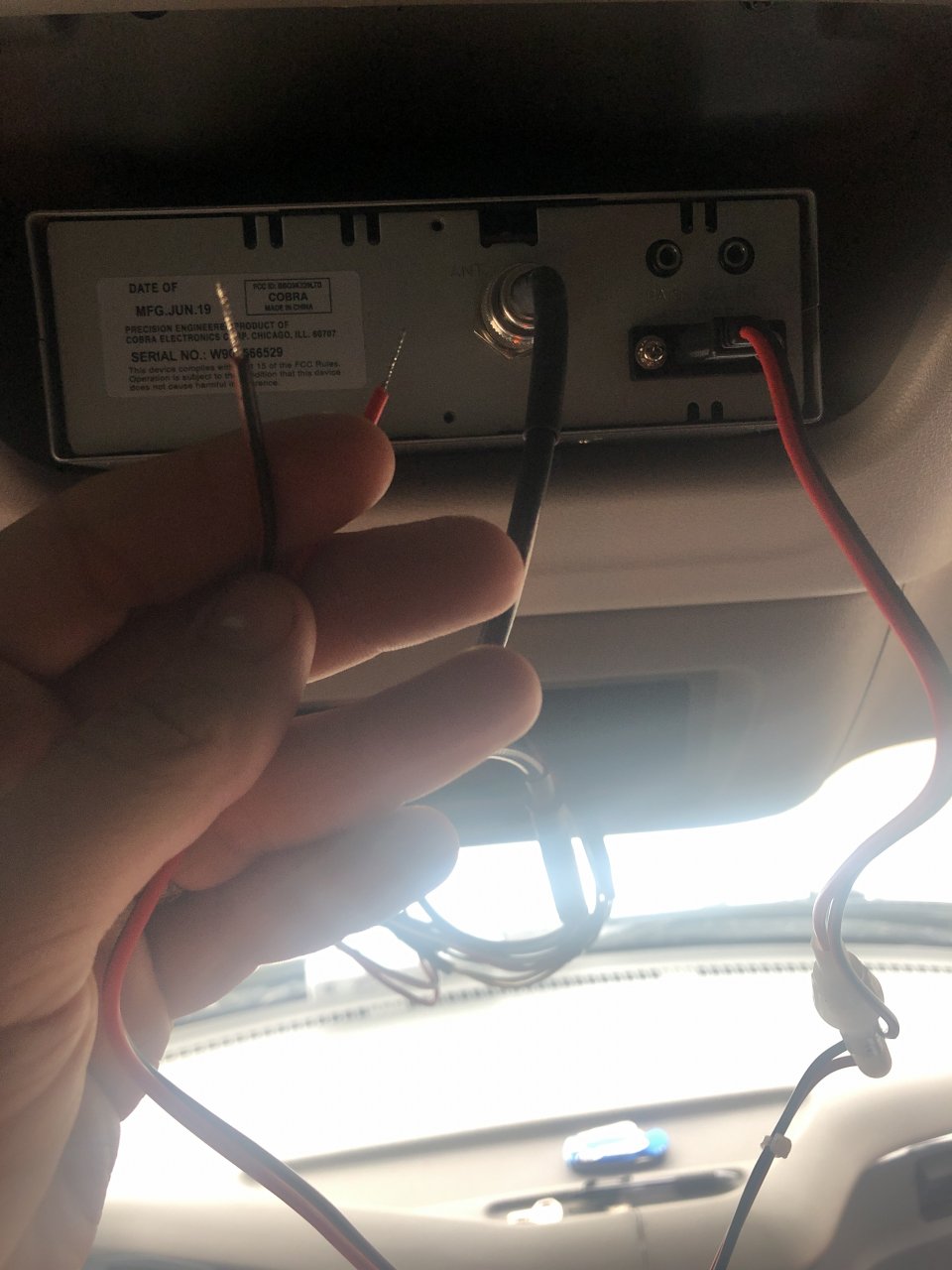

    I know that the cable in my hand allows me to connect the speakers to the CB.

    I’ve also got the antenna wire figured out.


    bur how do I connect the power wires into that mess!?


    Attached Files:

    Penumbra, Oct 31, 2019
    Penumbra, Oct 31, 2019
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Oct 31, 2019 #2
    Penumbra

    Penumbra Medium Load Member

    305
    528
    Jul 29, 2019
    0

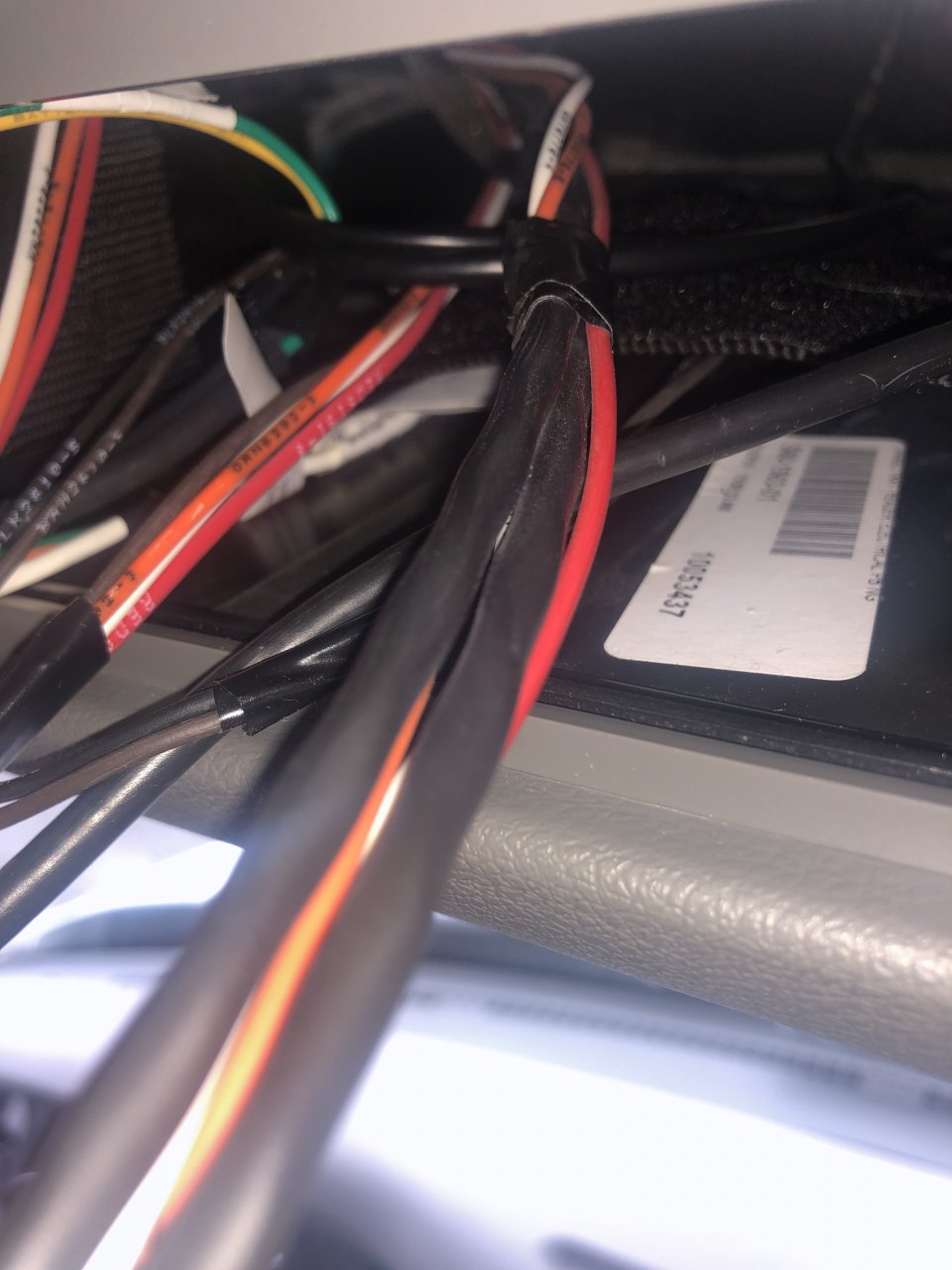

    Update, I think I found a dedicated power line already installed, but I can’t get ahold of it. My cb is also too big for the small hole, so now I have to figure out how to remove the large one

    Penumbra, Oct 31, 2019
    Penumbra, Oct 31, 2019
    #2
  4. Oct 31, 2019 #3
    Penumbra

    Penumbra Medium Load Member

    305
    528
    Jul 29, 2019
    0

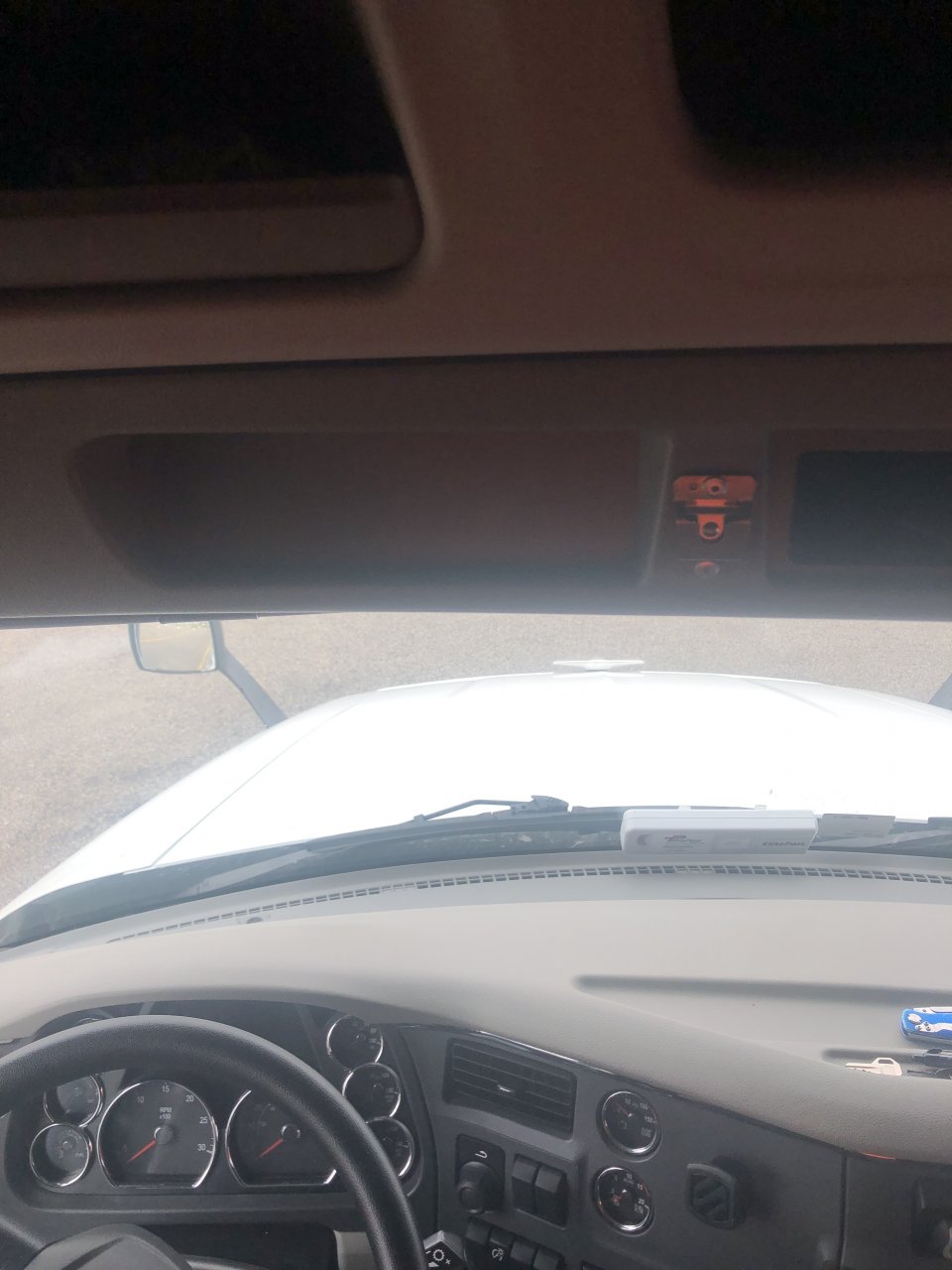

    I’m feeling around blind has anyone I staled on a peterbilt before?


    Attached Files:

    Penumbra, Oct 31, 2019
    Penumbra, Oct 31, 2019
    #3
  5. Oct 31, 2019 #4
    Suspect Zero

    Suspect Zero Road Train Member

    2,530
    9,733
    Oct 10, 2016
    Brookfield, IL
    0
    That panel in your the picture in your last post with the CB opening and the indentation next to the CB opening on the left should be held on with static clips. When you look at it it should end not far from the right of CB opening then to the left of the other indentation.

    Pop it off then you can get better access to what is behind it. I only run a daycab so the behind the scenes may be different but on mine once that panel is off you can remove 4 screws that allow the tray the CB sits on to slide out, making it much easier to do things. It will be easy to see which screws I am talking about once the front panel is off.

    Suspect Zero, Oct 31, 2019
    Suspect Zero, Oct 31, 2019
    #4
  7. Oct 31, 2019 #5
    Penumbra

    Penumbra Medium Load Member

    305
    528
    Jul 29, 2019
    0
    Let’s pretend I’m an idiot...are we there lol

    how do I remove static clips lol

    Penumbra, Oct 31, 2019
    Penumbra, Oct 31, 2019
    #5
    Lepton1 Thanks this.
  8. Oct 31, 2019 #6
    Suspect Zero

    Suspect Zero Road Train Member

    2,530
    9,733
    Oct 10, 2016
    Brookfield, IL
    0
    Gentry pry out on the panel, probably need a small screwdriver, it will then start to pop off. Basically, the inside of the panel has sort of finger type protrusions sticking out of it that snap into slots in the panel it attaches to. Sorry, I can't explain things well.

    Suspect Zero, Oct 31, 2019
    Suspect Zero, Oct 31, 2019
    #6
  9. Oct 31, 2019 #7
    Penumbra

    Penumbra Medium Load Member

    305
    528
    Jul 29, 2019
    0
    Don’t be sorry you’re explaining is fine, I just want to make sure I understand properly before I jam stuff in holes


    There’s a life lesson there people

    Penumbra, Oct 31, 2019
    Penumbra, Oct 31, 2019
    #7
    Lepton1, TravR1, D.Tibbitt and 1 other person Thank this.
  10. Oct 31, 2019 #8
    Penumbra

    Penumbra Medium Load Member

    305
    528
    Jul 29, 2019
    0

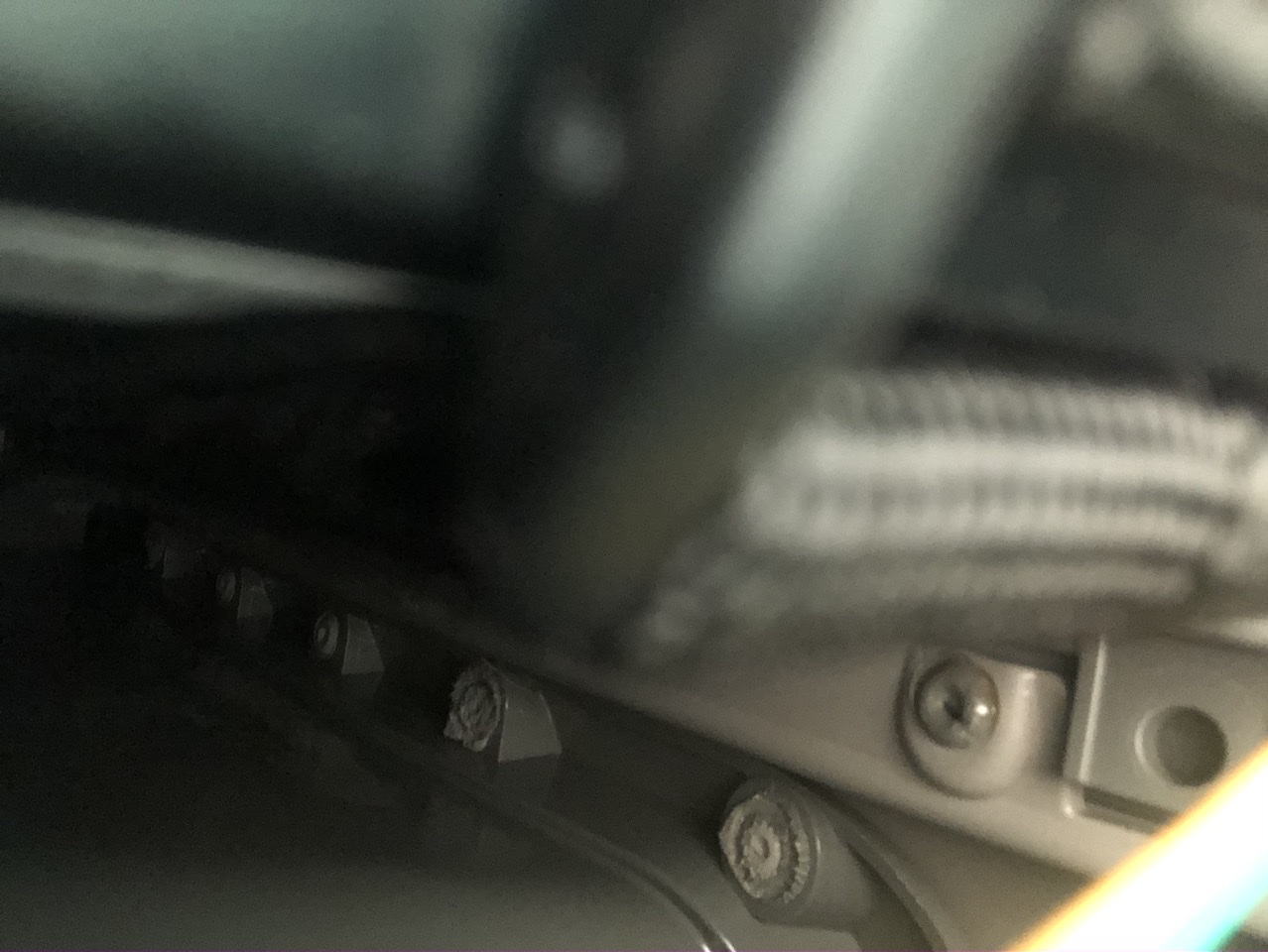

    Ok evidently the geniuses who designed this thing thinks I can get my hand with a...screwdriver? In there lol


    Attached Files:

    Penumbra, Oct 31, 2019
    Penumbra, Oct 31, 2019
    #8
  11. Oct 31, 2019 #9
    Judge

    Judge Road Train Member

    13,808
    91,778
    Mar 19, 2014
    Arkansas
    0
    The real lesson in patience with electronics

    Judge, Oct 31, 2019
    Judge, Oct 31, 2019
    #9
    Lepton1, FlaSwampRat, D.Tibbitt and 2 others Thank this.
  12. Oct 31, 2019 #10
    Penumbra

    Penumbra Medium Load Member

    305
    528
    Jul 29, 2019
    0

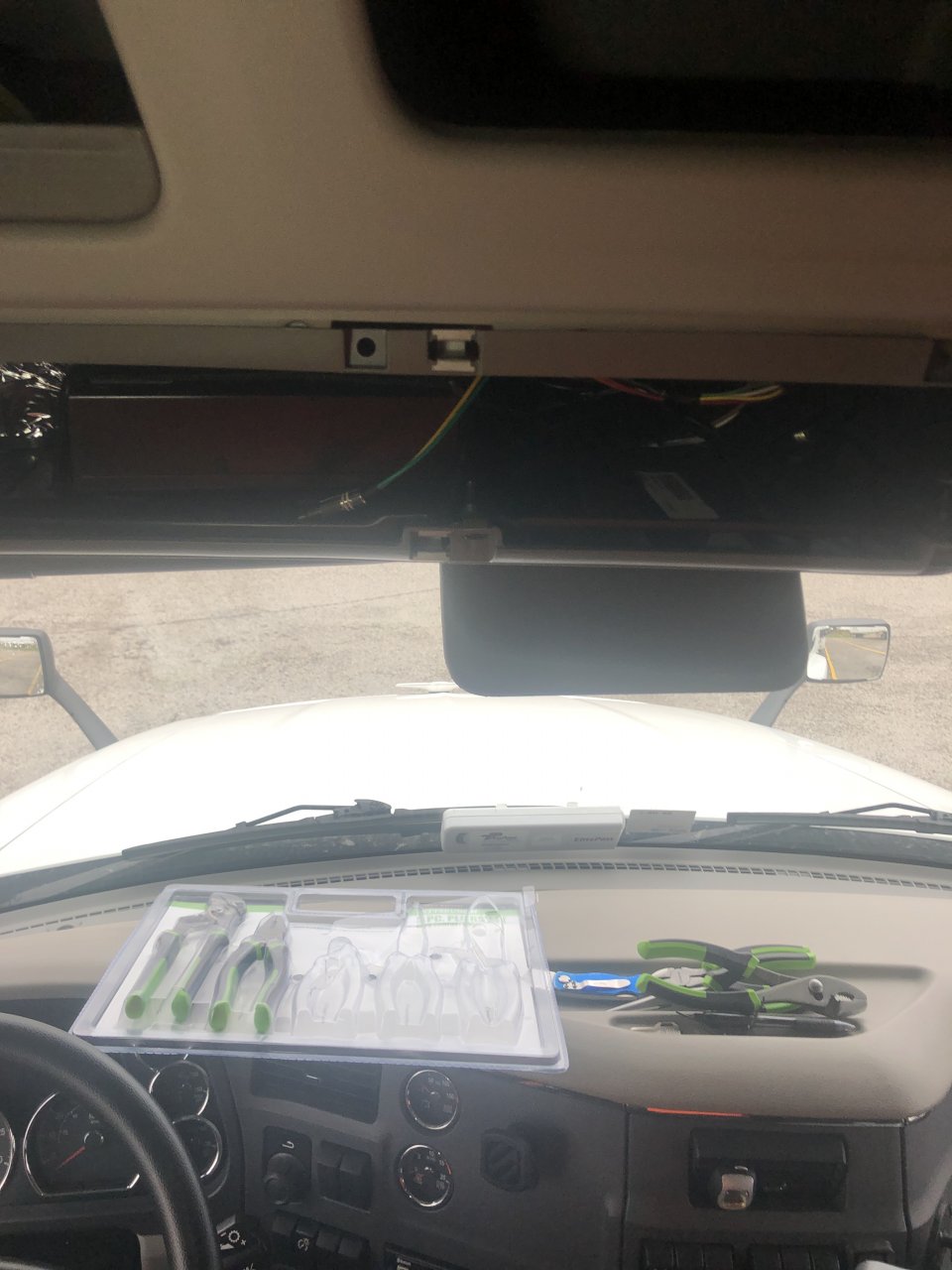

    Oh...evidently I get the idea now lol

    ps what is that black box


    Attached Files:

    Penumbra, Oct 31, 2019
    Penumbra, Oct 31, 2019
    #10
    FlaSwampRat Thanks this.
