03 W900 Smart Wheel Delete

Discussion in 'Kenworth Forum' started by Merci, Dec 22, 2021.

  1. BDRyan92

    BDRyan92 Bobtail Member

    24
    23
    Sep 6, 2017
    0
    finished product. Read for instructions

    B724A999-DFAF-4204-9F6E-6DBB538079DC.jpeg Alright guys I have figured it out. Best thing to do is go to junkyard and take dash panels out. Follow wires from switches. It will lead to one square plug. Remove harness and switches. The harness also goes to hazard light switch on my truck. So just make sure you look at everything and get all you need. Then open your dash up. Find plug. It should be around the center of the dash. Identical to the one out of junk truck. Follow wires. Will lead to black junction box that operates smart wheel. It just has Velcro holding it. Then follow wires to steering wheel. Behind speedometer and just unplug all that junk and remove harness. Put switches in and plug everything in and you should be good to go. My truck is a 2007. Harness came from 2013. You just have to get harness from the same style dash that you have. Doesn’t matter what engine it has. I had to rewire my hazard light rocker switch but Jake’s and cruise all work perfect. Already ordered replacement standard steering wheel. Will post a few pics. Good luck.

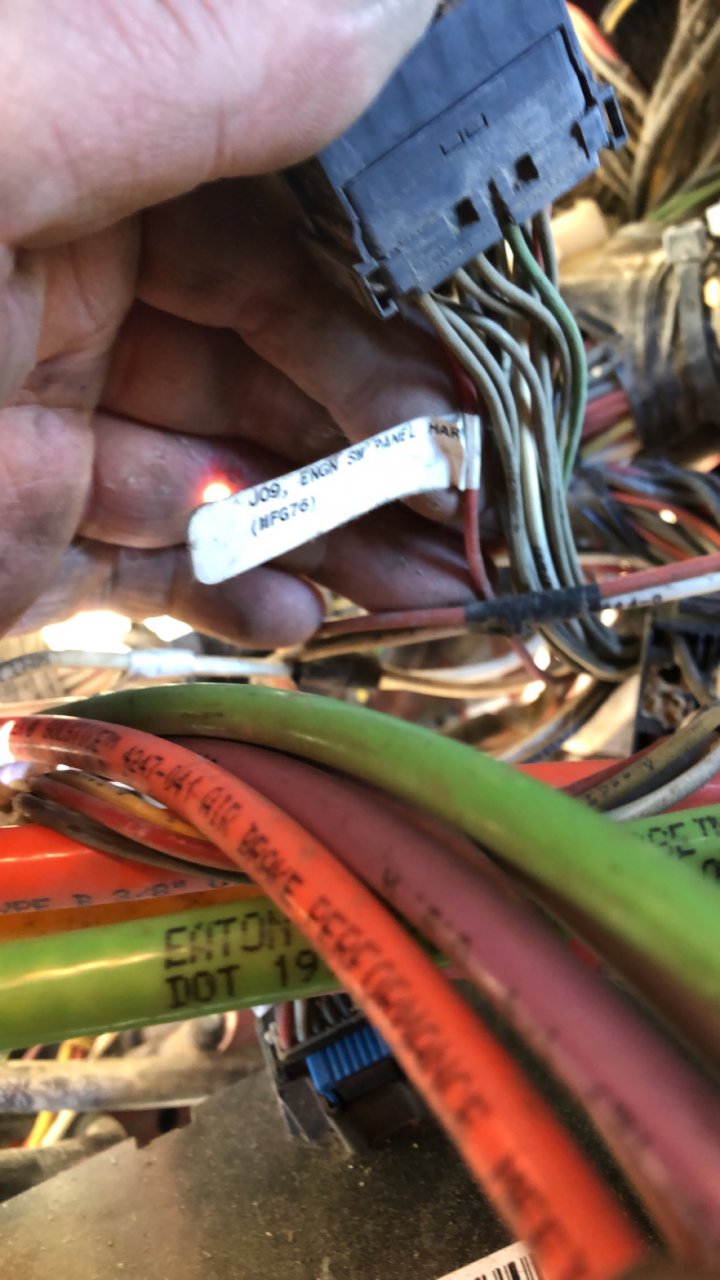

    Square plug in dash that harness plugs into.

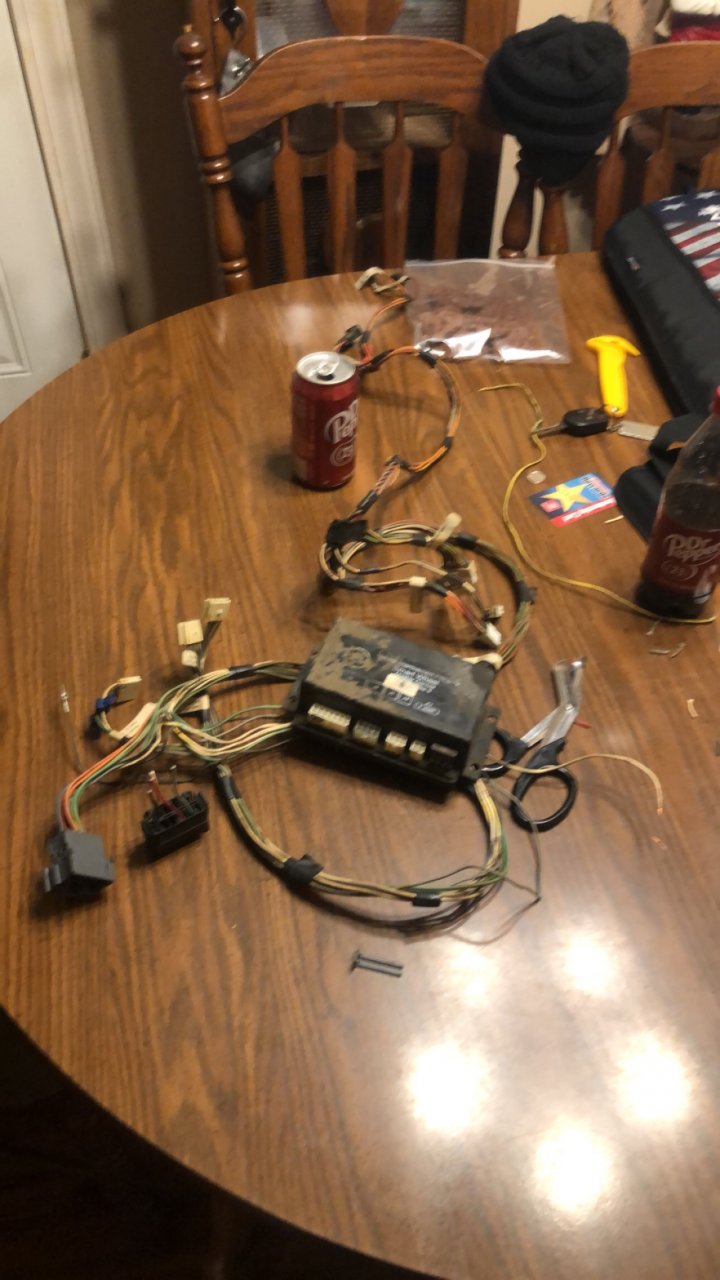

    smart wheel wiring with box

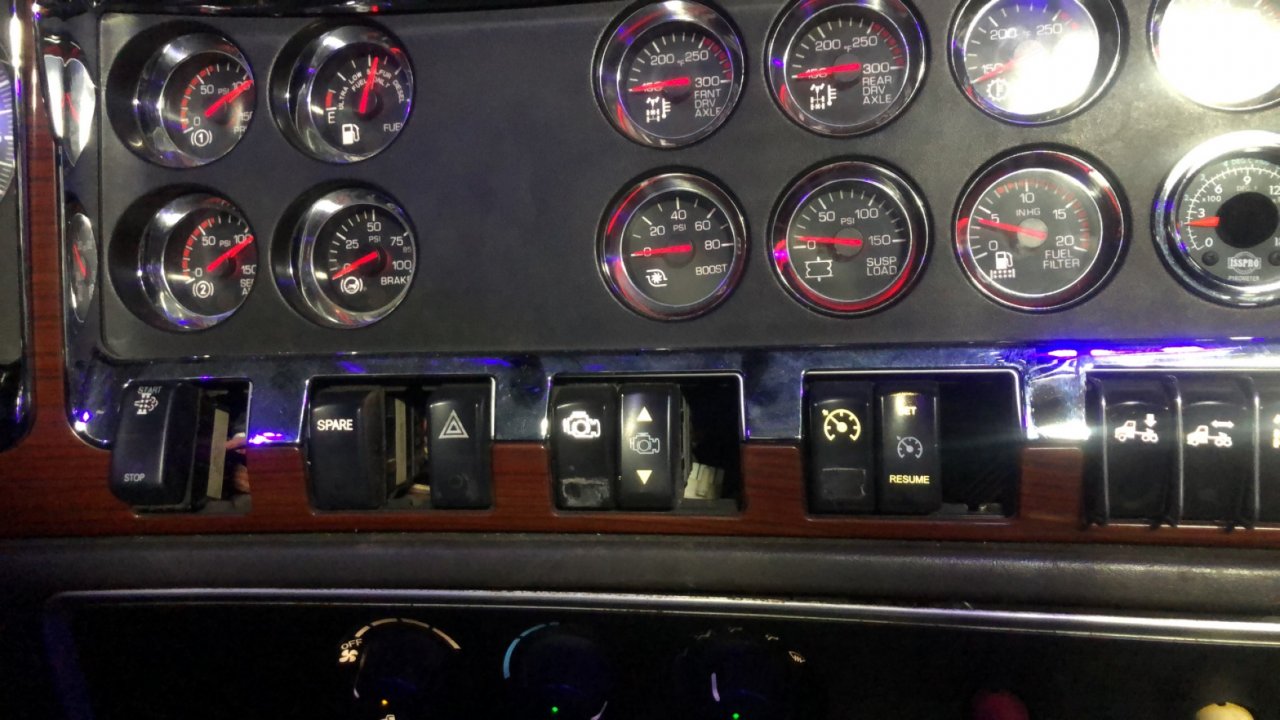

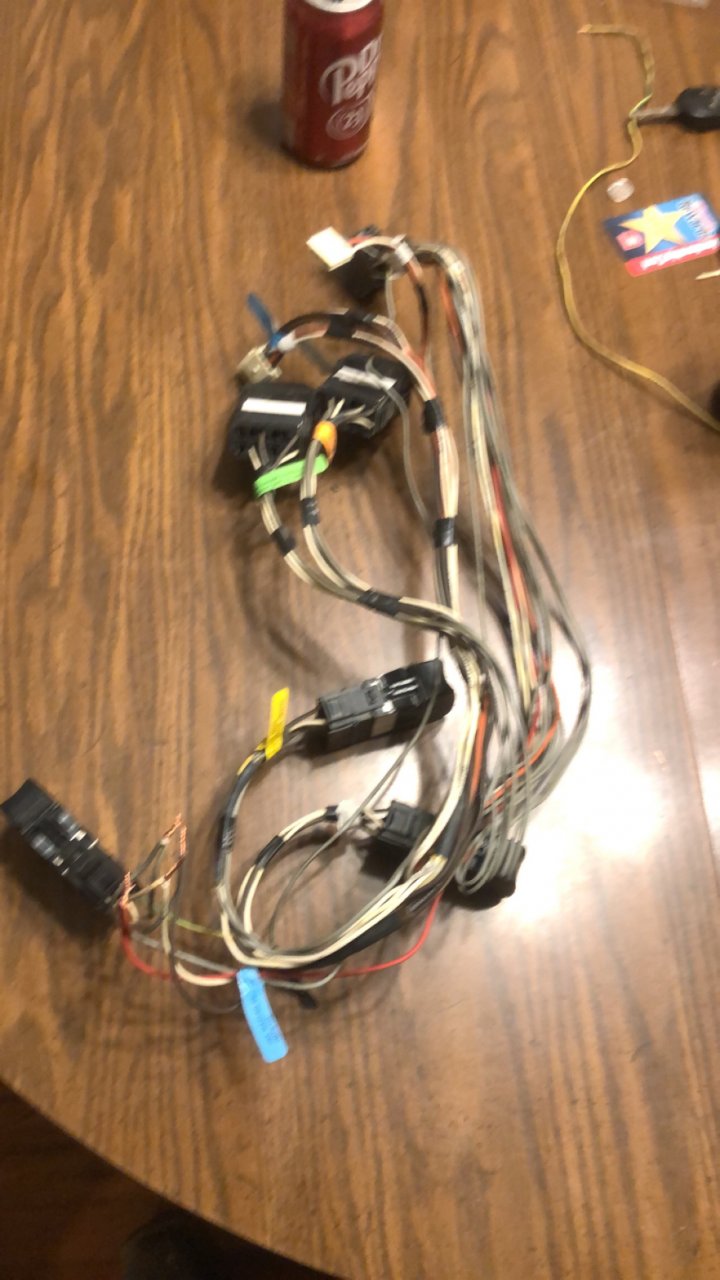

    Rocker switch wiring. Simple and easy

    Judge Thanks this.
