13 speed Eaton splitter shifting to neutral downhill

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by W Bench Farms, Dec 12, 2022.

  1. W Bench Farms

    W Bench Farms Light Load Member

    210
    351
    Oct 16, 2017
    0
    Just put a used 18913a in my FLD. Transmission is used, but has a Weller reman tag on it. No air leaks, everything sounds fine when shifting. Just noticed that it wants to shift into neutral or high when on low split and you let off going down a hill. Checked for air on the low side line going to splitter. Have pressure, but haven't put a gauge on it yet. Thinking about ordering a new regulator, as the original on was broken before I received it. Took a used one off another transmission. Also thinking about ordering a splitter rebuild kit. Also noticed that the range shift will grind from low to high. Not all the time, but seems less when it's cold. Not sure if all of this may be an issue if this transmission has been sitting and it's been in the 30's here.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. MAMservices

    MAMservices Medium Load Member

    486
    3,386
    Aug 9, 2021
    Mississippi
    0

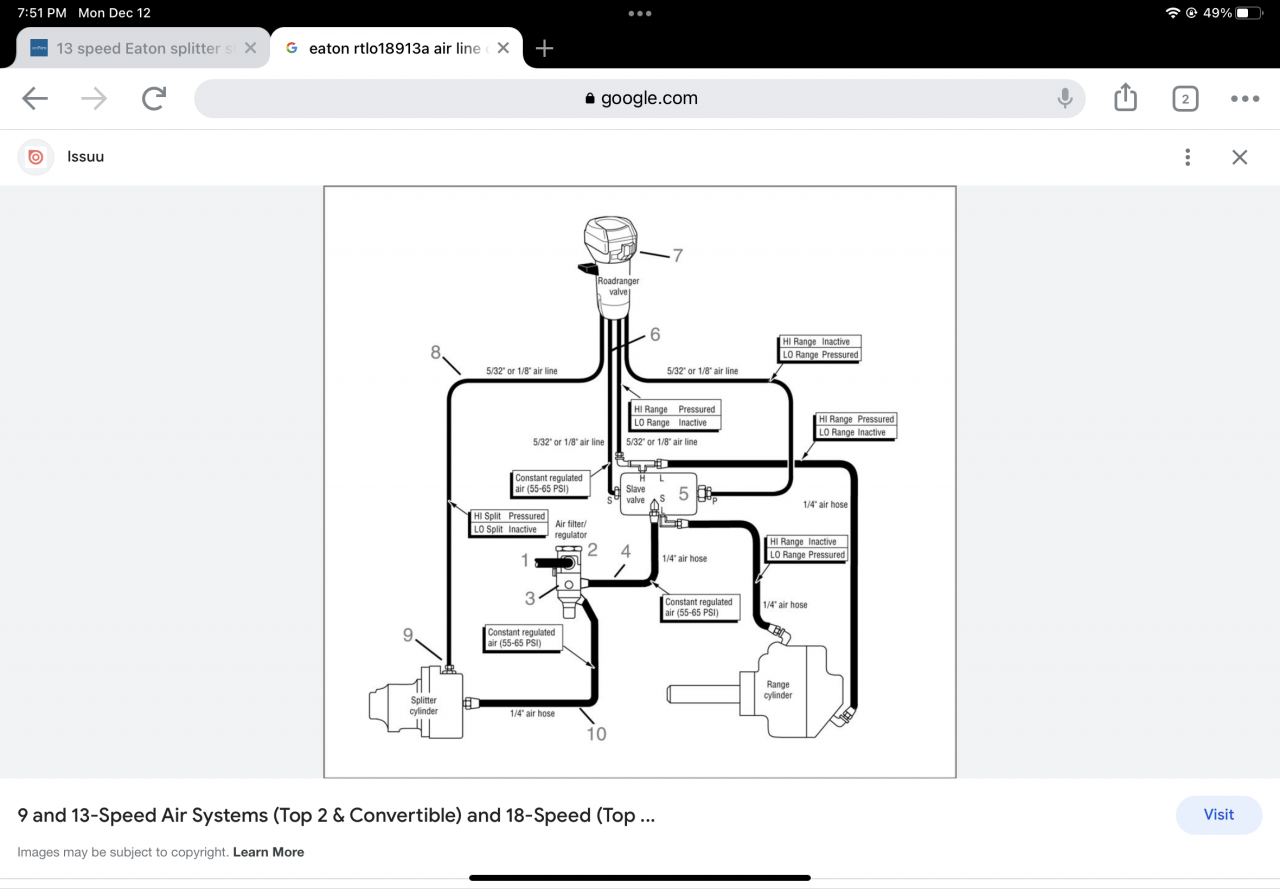

    Here is an air diagram that may help. Sounds like the possibility of control lines crossed. Since it’s been sitting up make certain the slave valve is operating freely, not gummed up. The grinding during range shifting when warm to me is an indication of synchronizer on its way out. Doesn’t grind when cold account of oil being stiffer, than when hot.


    Last edited: Dec 12, 2022
    RubyEagle and singlescrewshaker Thank this.
  4. beastr123

    beastr123 Road Train Member

    2,861
    23,480
    Jan 2, 2014
    Moose Jaw SK CAN
    0
    That may be a low air pressure situation

    singlescrewshaker Thanks this.
  5. W Bench Farms

    W Bench Farms Light Load Member

    210
    351
    Oct 16, 2017
    0
    Have a kit coming for the splitter cylinder, and a new pressure regulator. I'm leaning towards something along those lines the more I see how it's acting. May have to pull the aux but hoping to avoid that for a while.
