1981 3406A gauge and light sender question.

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by SmallPackage, Jun 4, 2025.

  1. SmallPackage

    SmallPackage Road Train Member

    5,447
    17,275
    Dec 20, 2019
    Marion Texas
    0

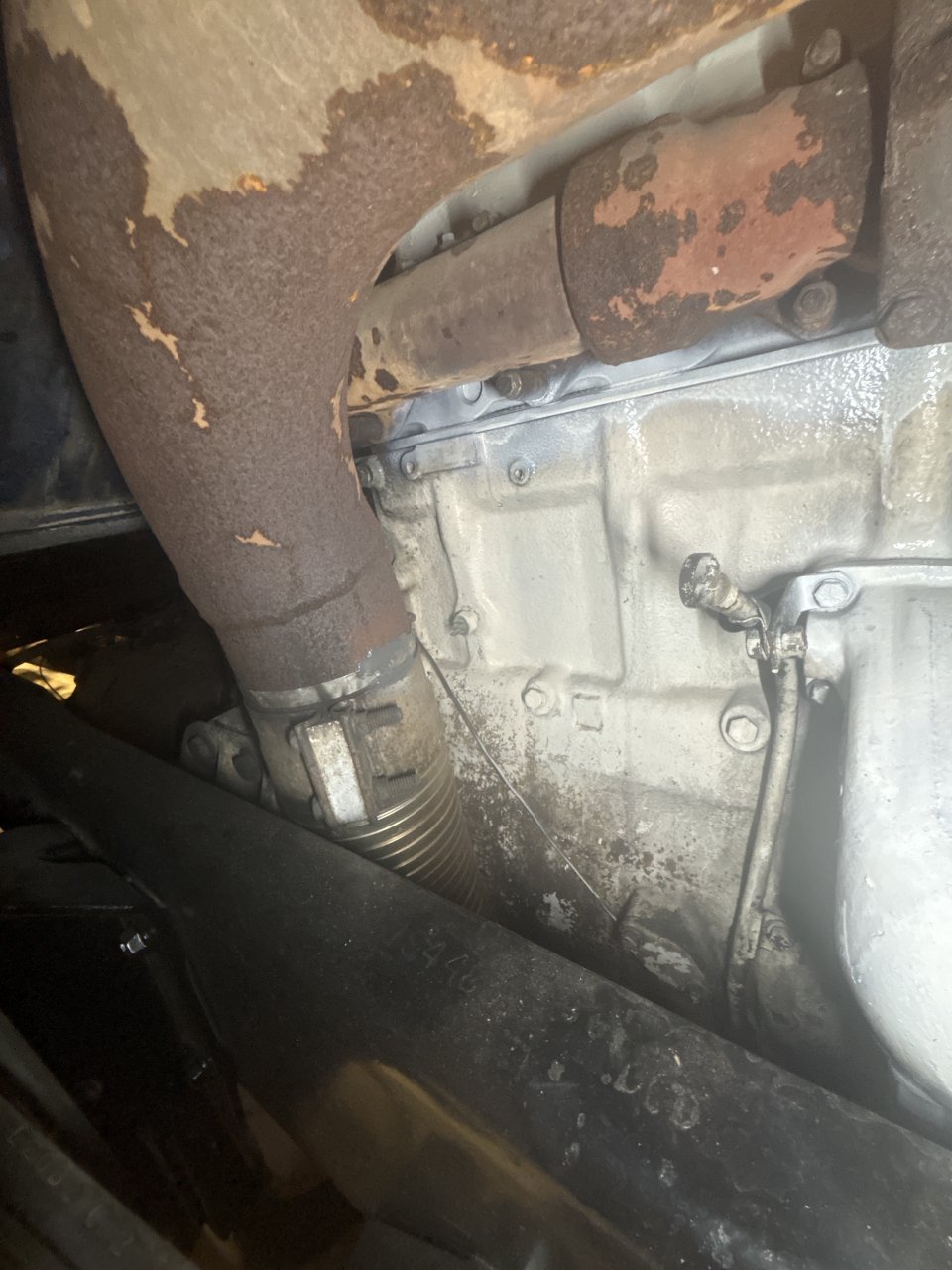

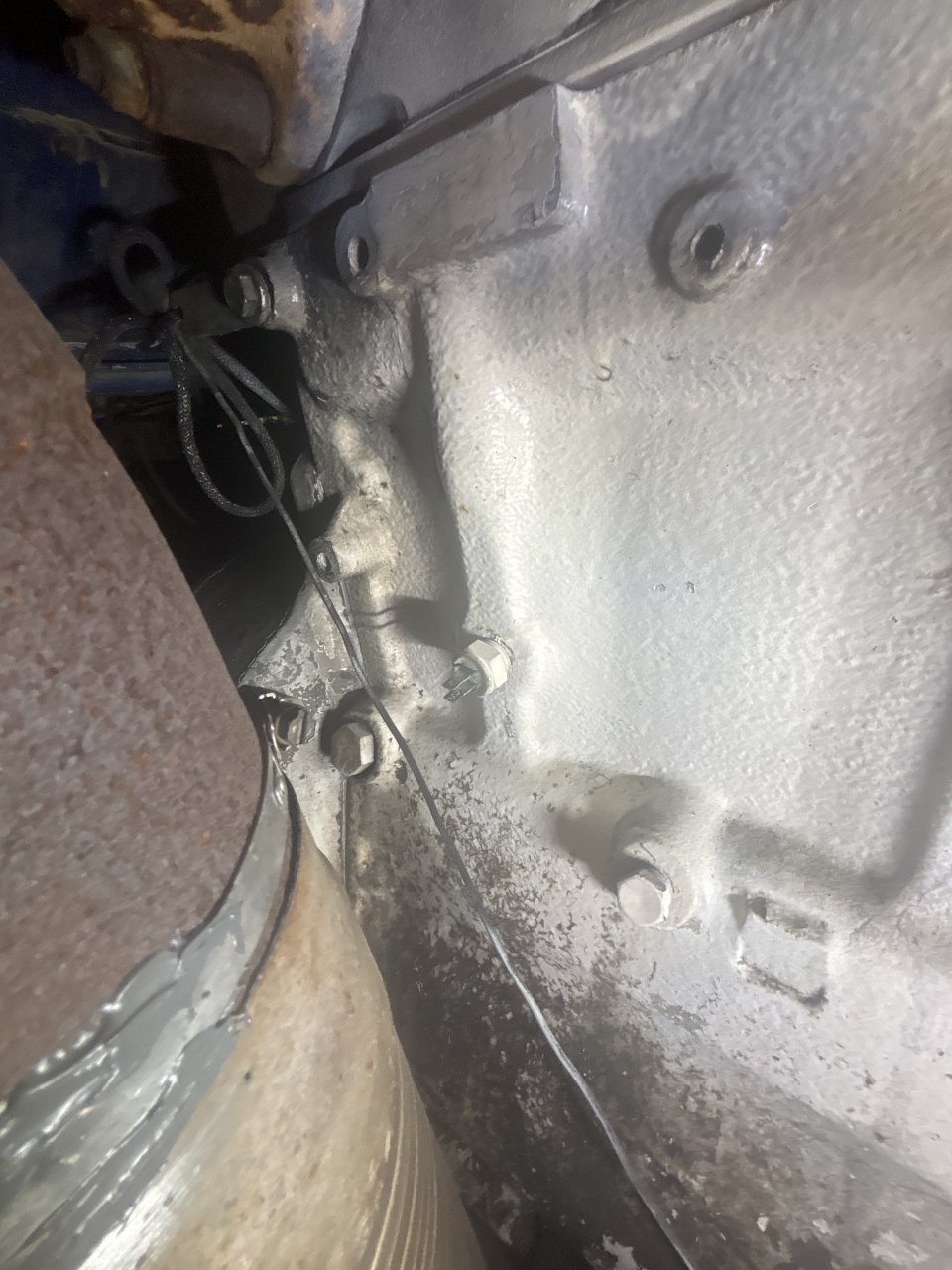

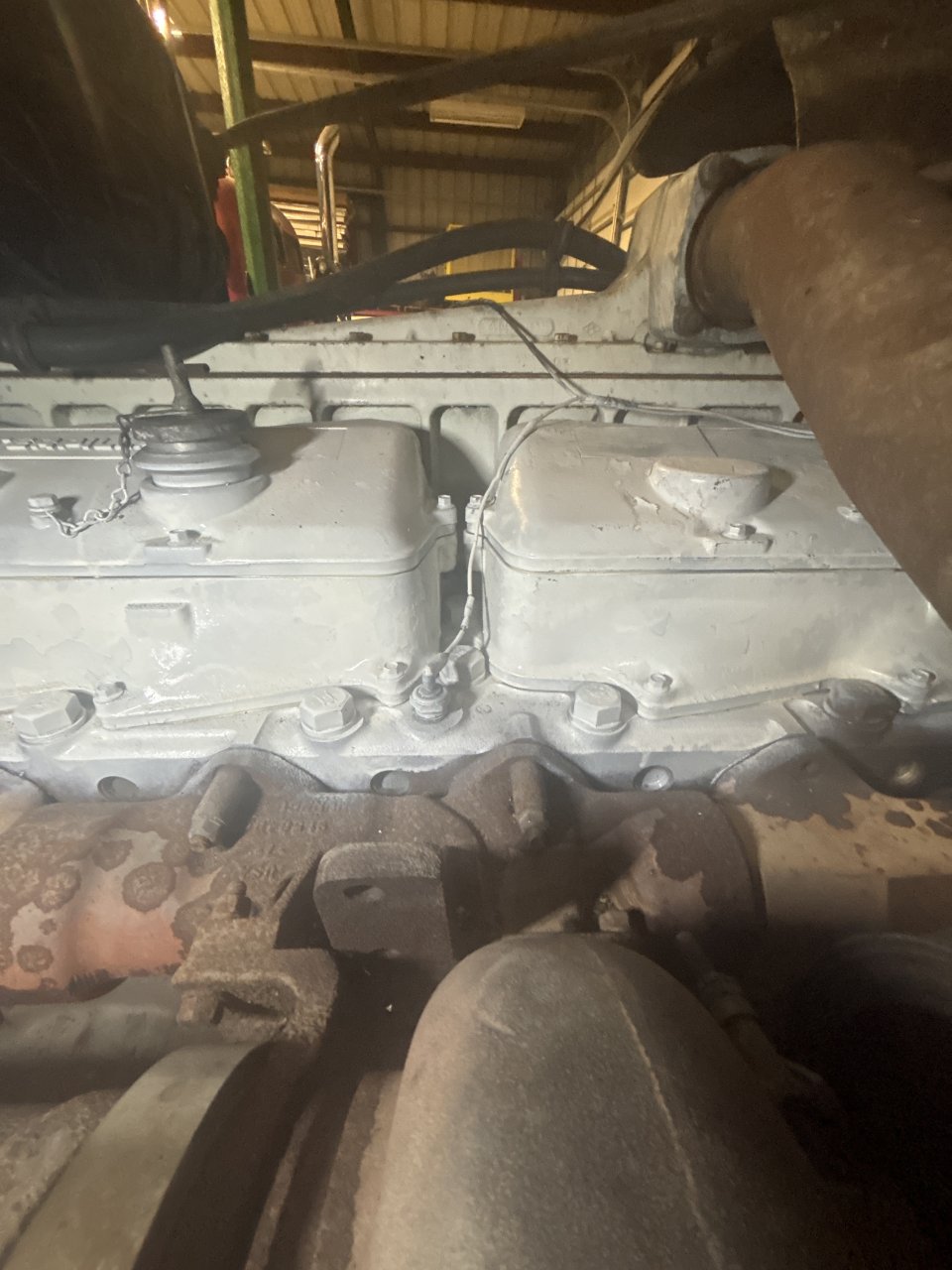

    I am cleaning up an ‘81 W900A with a 400 A model cat. There is a 2 prong sender on the RH side of the block that has no wires going to it. No wires missing or cut on firewall for it. What is it for? If not needed I’m gonna remove and plug hole cause it looks crappy not used. Also this engine seems to have 2 coolant temp senders. One in usual spot next to stat housing and one in the middle of head behind turbo. They both have been spliced numerous times and run together into cab and are sketchy looking. Electric gauge works with key but does not read so i am going to troubleshoot that sender by the stat. Most likely run a new wire for it or both. Is the middle one for idiot light? It does work.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. SmallPackage

    SmallPackage Road Train Member

    5,447
    17,275
    Dec 20, 2019
    Marion Texas
    0
  4. SmallPackage

    SmallPackage Road Train Member

    5,447
    17,275
    Dec 20, 2019
    Marion Texas
    0
  5. ‘Olhand

    ‘Olhand Cantankerous Crusty

    6,685
    16,230
    Jan 18, 2011
    0
  6. 201

    201 Road Train Member

    12,283
    25,083
    Apr 16, 2014
    high plains colorado
    0
    That was a runnin' motor in my day. We all had 238 Detroits, and if you had a 3406, it was left lane most of the way. :thumbup:

  7. Inderjit

    Inderjit Heavy Load Member

    723
    708
    Sep 17, 2017
    0
    I believe the sensor on the right side of the block is for a low oil pressure light. One of the sensors in the head most likely the front one is for a gauge the second one is for a high temp warning light.

  8. wore out

    wore out Numbered Classic

    15,864
    191,861
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    That sensor is in a water jacket. If I’m not mistaken though they are using it as a plug because they couldn’t find an 1/8 inch pipe plug.

  9. SmallPackage

    SmallPackage Road Train Member

    5,447
    17,275
    Dec 20, 2019
    Marion Texas
    0
    @Inderjit. It has mechanical oil pressure gauge plumbed in on Lh side rear. It has two senders on Rh side for oil. One next to oil supply for turbo and the other one towards front on oil cooler. I assume those are warning lights for oil temp and psi. It has oil temp gauge sender in bottom of pan like usual. That all works. @wore out that makes sense. It just looks odd. At first I thought maybe it had one of those old Kysor shutdown boxes in the dash somewhere and that was an old sensor for it. This truck doesn’t have that. I’ve seen that crap on a handful of old Cummins powered trucks. This is really the first Cat powered truck I have spent this much time with. This truck is solid and runs great. Not much has been screwed with.

    wore out Thanks this.
  10. '88K100

    '88K100 Road Train Member

    1,320
    2,880
    Aug 23, 2020
    0
    400 CAT 15 over i was driving in the 80’s. Always had left lane truck hauling explosives..if the CAT dont start its out of fuel, if its quits, again out of fuel.


    Attached Files:

    201 Thanks this.
  11. 201

    201 Road Train Member

    12,283
    25,083
    Apr 16, 2014
    high plains colorado
    0
    Fords nicest trucks, right there, pal. :thumbup:
